Side 1/5
ZMi 10 power bank
Read the instructions carefully before using the device.
Safety label instructions
Each genuine portable battery has a protective label on the outside of the
package. Please erase a special cover and enter your code at ocial
website.
The company-manufacturer: LLC «ZMI Electronic Technology»
Address: Jiangsu Province, 159 Cheng Jiang Central Road, A913.
Cautions
• Before using the battery for the rst time, fully charge it.
• When the battery is used, a display of a digital device should light up, this
indicates a correct operation of the device.
• You can select the cable yourself to charge this battery or to charge other
devices.
• If the LED indicators do not light up while charging the digital device, the
battery is completely discharged. Please charge it right away.
• When the digital device is connected to the battery, the charge of this
portable charger is being charged.
• After fully charging the battery, immediately unplug it from a power supply.
• If a short-circuit on the battery output or for other reasons the protection
mode activates (after the LED button is pressed, the indicators do not light),
charge it with external power supplies, and then it will return to normal
operation.
Attention
This device is equipped with a lithium-ion battery. It is strictly forbidden
to disassemble a case of the device, in order to prevent the battery from
breaking.
Strictly prohibited any dismantling, squeezing, puncturing the device; It is
USB port input
USB port output
also forbidden to place it in water, in a re or expose it to a temperature
above 60 ° C (140 ° F).
Charge level indicators
Charge level check
Mode indicators
Mode indicator:
Double-click the charge check button to
turn on the HUB mode. The blue indicator
indicates a successful activation of the HUB
mode, absence of a blue indicator indicates
that the HUB mode is turned o.
Caution: «Charge level check» button is
not designed to turn the device on / o. This
device has a function of automatic detection
of charging and discharging, so there is
no need to constantly press the charge
level check button. Two minutes before the
discharge, the charge level indicators turn
o.

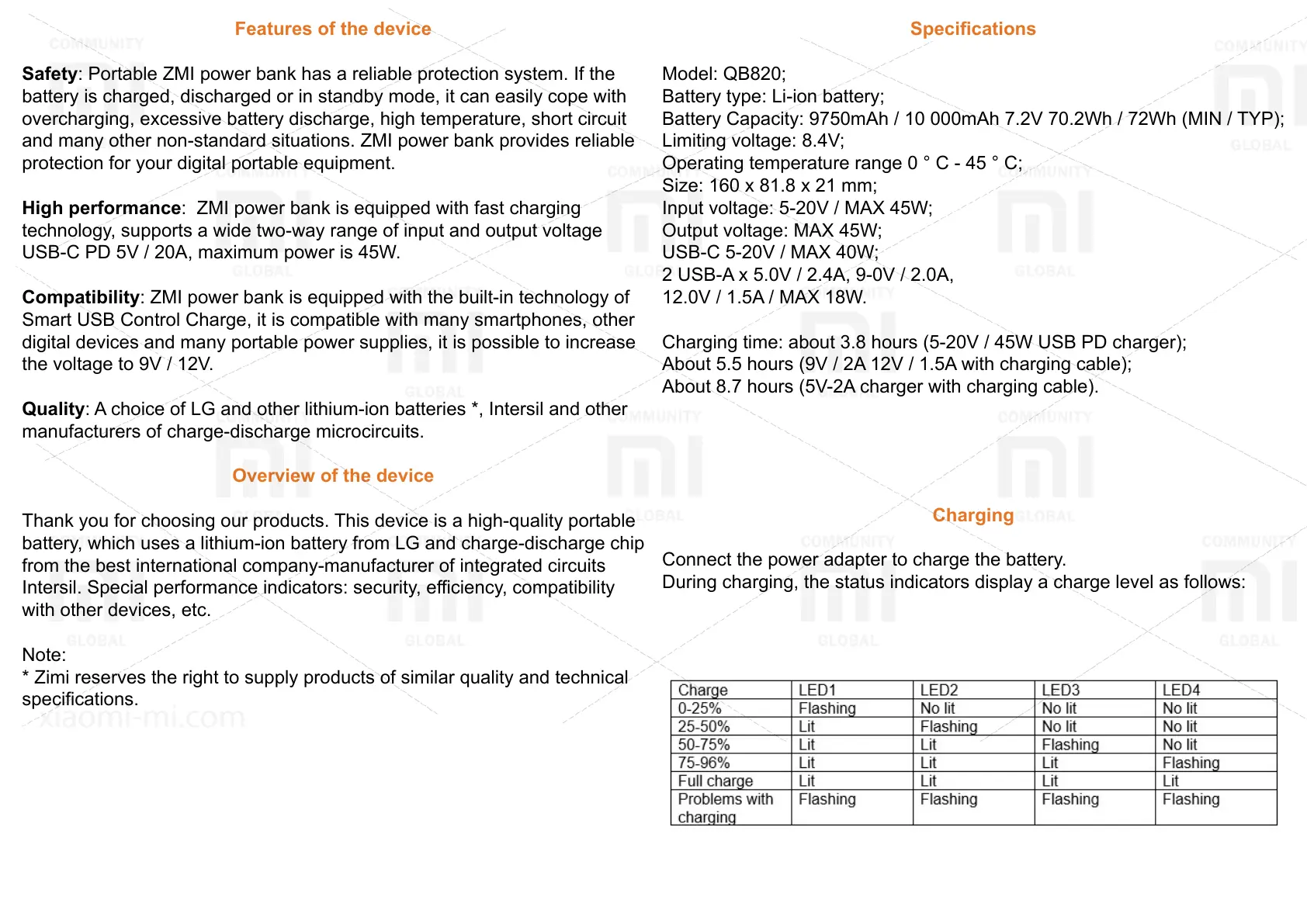

Features of the device
Safety: Portable ZMI power bank has a reliable protection system. If the
battery is charged, discharged or in standby mode, it can easily cope with
overcharging, excessive battery discharge, high temperature, short circuit
and many other non-standard situations. ZMI power bank provides reliable
protection for your digital portable equipment.
High performance: ZMI power bank is equipped with fast charging
technology, supports a wide two-way range of input and output voltage
USB-C PD 5V / 20A, maximum power is 45W.
Compatibility: ZMI power bank is equipped with the built-in technology of
Smart USB Control Charge, it is compatible with many smartphones, other
digital devices and many portable power supplies, it is possible to increase
the voltage to 9V / 12V.
Quality: A choice of LG and other lithium-ion batteries *, Intersil and other
manufacturers of charge-discharge microcircuits.
Overview of the device
Thank you for choosing our products. This device is a high-quality portable
battery, which uses a lithium-ion battery from LG and charge-discharge chip
from the best international company-manufacturer of integrated circuits
Intersil. Special performance indicators: security, eciency, compatibility
with other devices, etc.
Note:
* Zimi reserves the right to supply products of similar quality and technical
specications.
Specications
Model: QB820;
Battery type: Li-ion battery;
Battery Capacity: 9750mAh / 10 000mAh 7.2V 70.2Wh / 72Wh (MIN / TYP);
Limiting voltage: 8.4V;
Operating temperature range 0 ° C - 45 ° C;
Size: 160 x 81.8 x 21 mm;
Input voltage: 5-20V / MAX 45W;
Output voltage: MAX 45W;
USB-C 5-20V / MAX 40W;
2 USB-A x 5.0V / 2.4A, 9-0V / 2.0A,
12.0V / 1.5A / MAX 18W.
Charging time: about 3.8 hours (5-20V / 45W USB PD charger);
About 5.5 hours (9V / 2A 12V / 1.5A with charging cable);
About 8.7 hours (5V-2A charger with charging cable).
Charging
Connect the power adapter to charge the battery.
During charging, the status indicators display a charge level as follows:

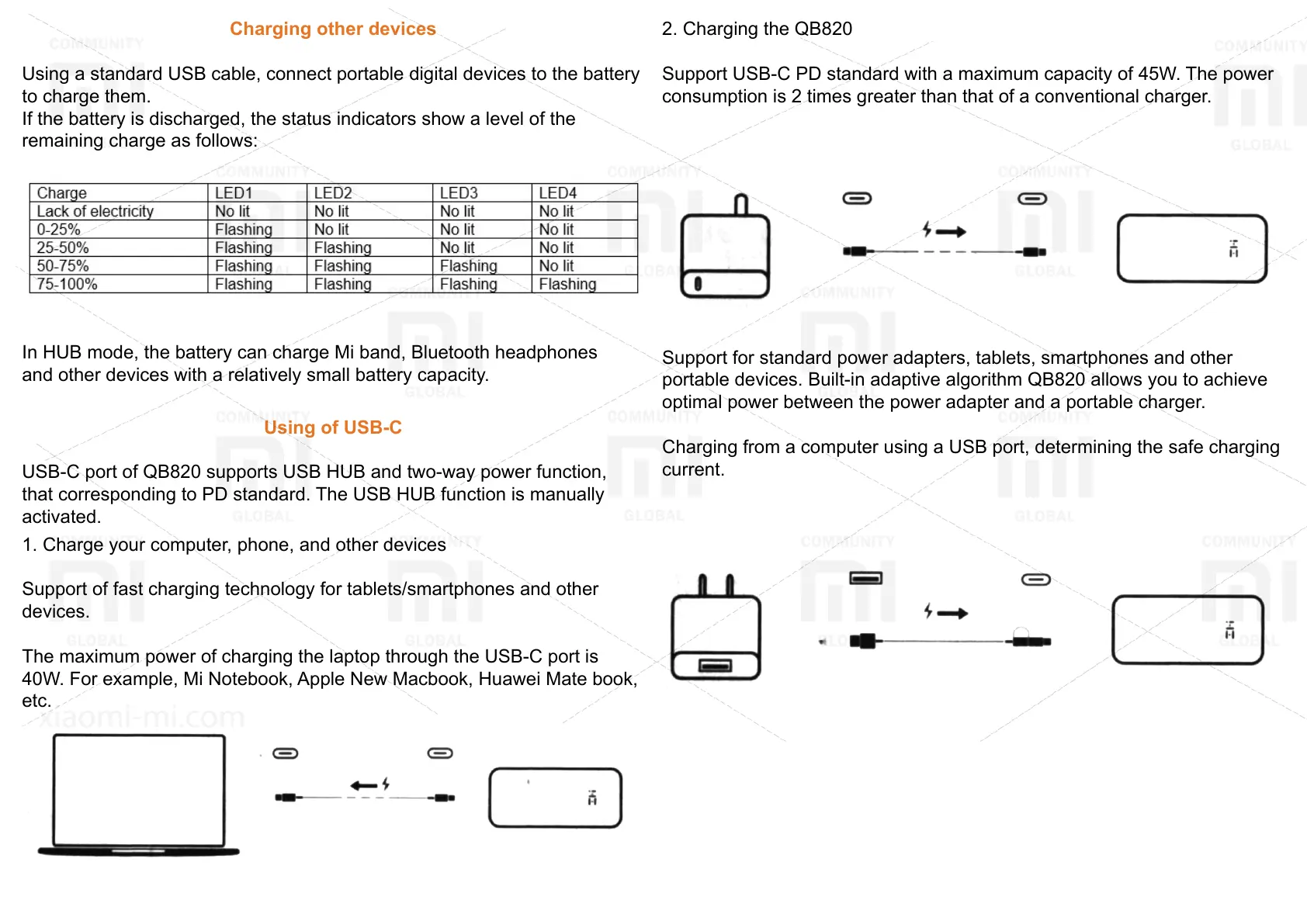

Charging other devices
Using a standard USB cable, connect portable digital devices to the battery
to charge them.
If the battery is discharged, the status indicators show a level of the
remaining charge as follows:
In HUB mode, the battery can charge Mi band, Bluetooth headphones
and other devices with a relatively small battery capacity.
Using of USB-C
USB-C port of QB820 supports USB HUB and two-way power function,
that corresponding to PD standard. The USB HUB function is manually
activated.
1. Charge your computer, phone, and other devices
Support of fast charging technology for tablets/smartphones and other
devices.
The maximum power of charging the laptop through the USB-C port is
40W. For example, Mi Notebook, Apple New Macbook, Huawei Mate book,
etc.
2. Charging the QB820
Support USB-C PD standard with a maximum capacity of 45W. The power
consumption is 2 times greater than that of a conventional charger.
3. USB HUB mode
USB HUB mode is activated by double pressing the charge check button,
after which the blue indicator lights up.
To exit the USB HUB mode, press the charge check button once. USB
HUB mode is automatically turned o if the device is in standby mode for
more than 2 hours.
Support for standard power adapters, tablets, smartphones and other
portable devices. Built-in adaptive algorithm QB820 allows you to achieve
optimal power between the power adapter and a portable charger.
Charging from a computer using a USB port, determining the safe charging
current.
Produkspesifikasjoner
| Merke: | Xiaomi |
| Kategori: | batteribank |
| Modell: | ZMi 10 |
