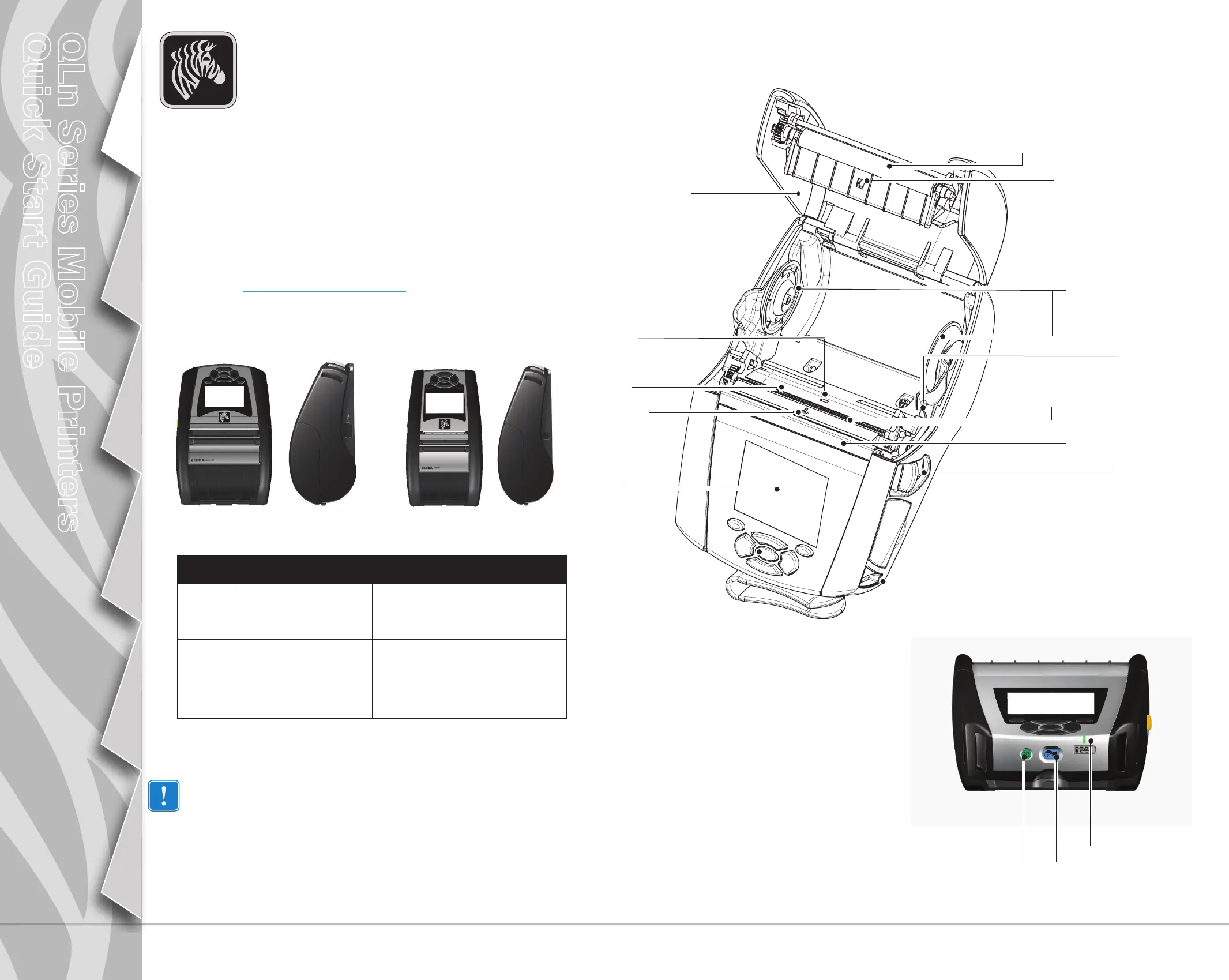

QLn Series Mobile Printers

Quick Start Guide

Introduction

Battery Install &

Charging

Media Loading

Connect Printer/

Printer Controls

Cleaning and

Troubleshooting

Accessories and

Contact Info

Introduction

Thank you for choosing the Zebra QLn™ Se-

ries Mobile Printers. These rugged printers will

become a productive and efficient addition to

your workplace thanks to their innovative design. Because

it is made by Zebra Technologies you can be assured of

world-class support for all of your bar code printers, soft-

ware, and supplies.

This document provides an easy reference for operating

and maintaining the QLn Series Mobile Printer.

Complete and current documentation for this printer

is provided by the QLn Series User Guide available on the

Internet at: www.zebra.com/manuals.

QLn320 QLn220

Media width:

1.0 in. to 3.125 in.

(25,4 mm to 79,4 mm)

Media width:

.63 in. to 2.18 in.

(16 mm to 55,37 mm)

Printer Dimensions

H: 6.85 in. (173,659 mm)*

W: 4.65 in.(117,856 mm)

D: 3.15 in (76,9 mm)

* with belt clip

Printer Dimension

H: 6.73 in. (170,9 mm)*

W: 3.60 in. (91,4 mm)

D: 2.75 in. (69,9 mm)

* with belt clip

Always refer to the Important Safety Information data

sheet shipped with each printer and the Technical Bulletin

shipped with each battery pack. These documents detail

procedures to ensure maximum reliability and safety while

using this printer.

P1031679-002 Rev. A

QLn320

QLn220

QLn Series Overview (QLn320 Shown)

1. Platen Roller

2. Bar Sensor

3. Media Support Disks

4. Tear Bar

5. Label Present Sensor

6. Peeler Lever

7. Peeler Bail

8. Latch Release Lever

9. Keypad

10. Strap Post

11. LCD Screen

12. Printhead

13. Media Cover

14. Gap Sensor

15. Power Button

16. Feed Button

17. LED Charge Indicator

1615

QLn Series Mobile Printers

Quick Start Guide

Introduction

Battery Install &

Charging

Media Loading

Connect Printer/

Printer Controls

Cleaning and

Troubleshooting

Accessories and

Contact Info

Removing the BatteryQLn Series Overview continued

18. Belt Clip

19. Battery

20. USB/RS232 Comm Ports

21. MAC Address Label

22. Docking Contacts

23. DC Input

Rotate the Belt Clip out of the

way of the Battery

Installing the Battery

QLn Series Smart

Battery

Squeeze clip on battery pack

and remove.

Produkspesifikasjoner

Merke:	Zebra
Kategori:	Printer
Modell:	QLn320
Vekt:	720 g
Bredde:	117 mm
Dybde:	173 mm
Høyde:	84 mm
Prosessorfrekvens:	400 MHz
USB-port:	Ja
Tilkoblingsteknologi:	Ledning & Trådløs
Maksimal oppløsning:	203 DPI
Antall USB 2.0-porter:	1
Sertifisering:	FCC 15, B, EN55022 B, EN60950, EN55024, VCCI B, EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, CE, UL, TUV, CSAMedia
Internminne:	128 MB
Oppladbar:	Ja
Utskriftshastighet:	100 mm/sek
Flash-minne:	256 MB
Utskriftsteknologi:	Direkte Termisk
Standard grensesnitt:	Serial, USB 2.0, Ethernet
Innebygde strekkoder:	1D, 2D, CODABAR (NW-7), EAN128, EAN13, EAN8, Interleaved 2/5, Matrix 2/5, PDF417, POSTNET, UPC-A, UPC-E
Batteriteknologi:	Lithium-Ion (Li-Ion)
Maksimal medielengde:	813 mm
Produktfarge:	Black, White
RS-232-port:	1
Driftstemperatur (T-T):	-4 - 122 °F
Oppbevaringstemperaturomåde (Celsius):	-25 - 65 °C
Lagringsrelativ fuktighet:	10 - 90
Relativ luftfuktighet under drift (H-H):	10 - 90
Drivere medfølger:	Ja
RS-232-tilkobling:	Ja
Display:	LCD
Ekstra tilkoblingsmuligheter:	Ethernet, Wireless LAN
Medietykkelse:	0.0584 - 0.1651 mm
Maksimal rulldiameter:	66 mm
Maksimal medielengde (imperisk):	32 "
