P4T/RP4T

Quick Start Guide

Introduction

Getting Started

Using the

Printer

Troubleshooting

Introduction

Thank you for choosing

one of our Zebra P4T

Series Mobile Printers.

The P4T Series con-

sists of two models. The P4T can

print on direct thermal or thermal

transfer media. The RP4T can

print on direct or thermal transfer

media and also encode special

RFID media.

Because these printers are made

by Zebra Technologies you can

be assured of world-class sup-

port for all of your bar code print-

ers, software, and supplies.

This document provides an easy

reference for operating and main-

taining either the P4T or the RP4T Mo-

bile Printer.

Complete and current documentation for these

printers is provided by the P4T/RP4T User Guide

available on the Internet at:

www.zebra.com/manuals.

Always refer to the Important

Safety Information data sheet

shipped with each printer and

the Technical Bulletin shipped

with each battery pack. These

documents detail procedures to

ensure maximum reliability and

safety while using this printer.

QSG-P4T-002 Rev. B €

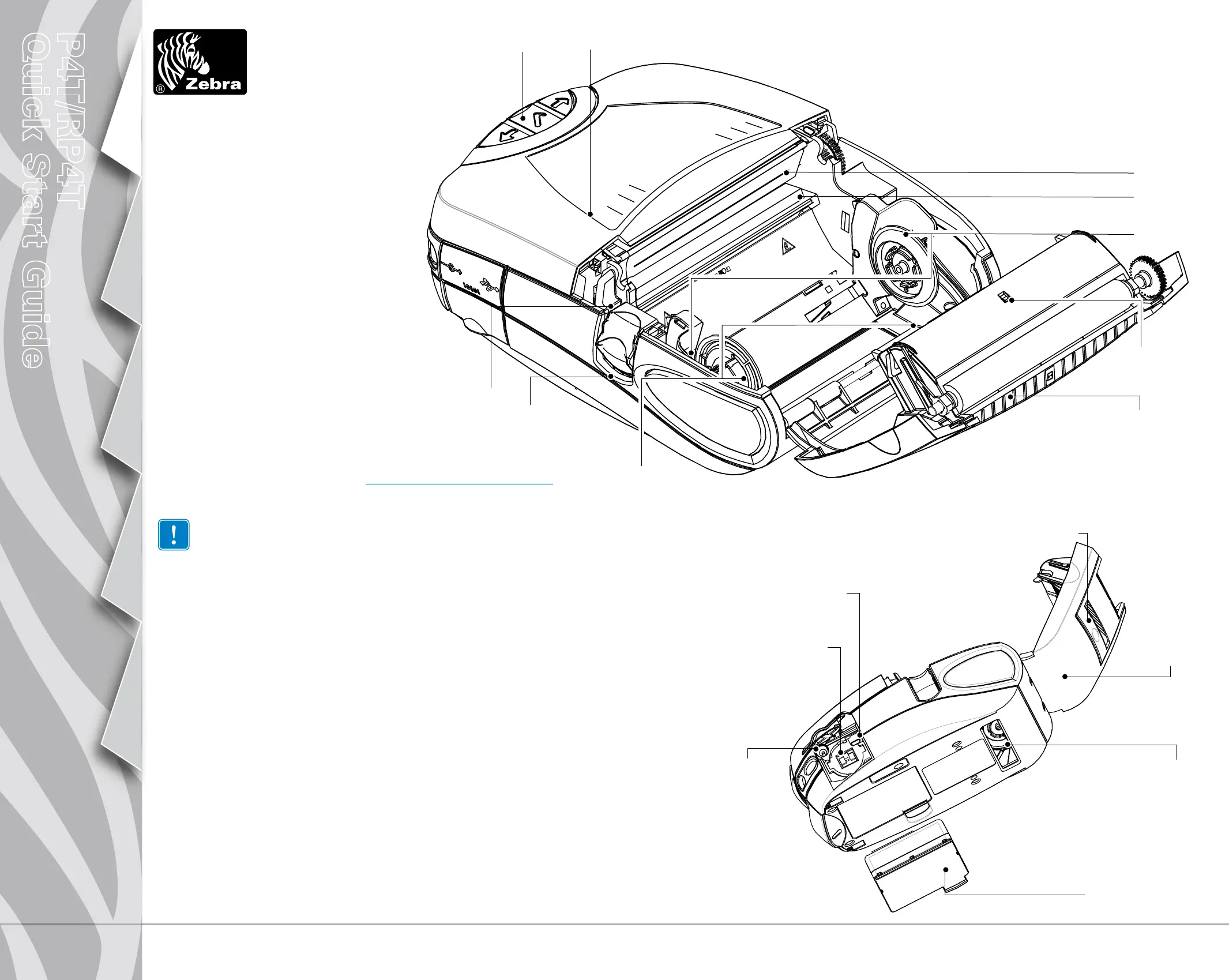

P4T/RP4T Overview

1. Platen Roller

2. Bar Sensor

3. Media Support

4. RFID Reader/Encoder (RP4T only)

5. Printhead

6. Ribbon Cartridge Cover

7. Control Panel

8. Ribbon Cartridge Cover Latch

9. Media Cover Latch

10. Media Support Disks

11. Label Peeler

12. Media Cover

13. External Media Access (optional)

14. Battery

15. Battery Charging Receptacle

16. RS232 Communications Port

17. USB Port

Introduction

Getting Started

Using the

Printer

Troubleshooting

P4T/RP4T

Quick Start Guide

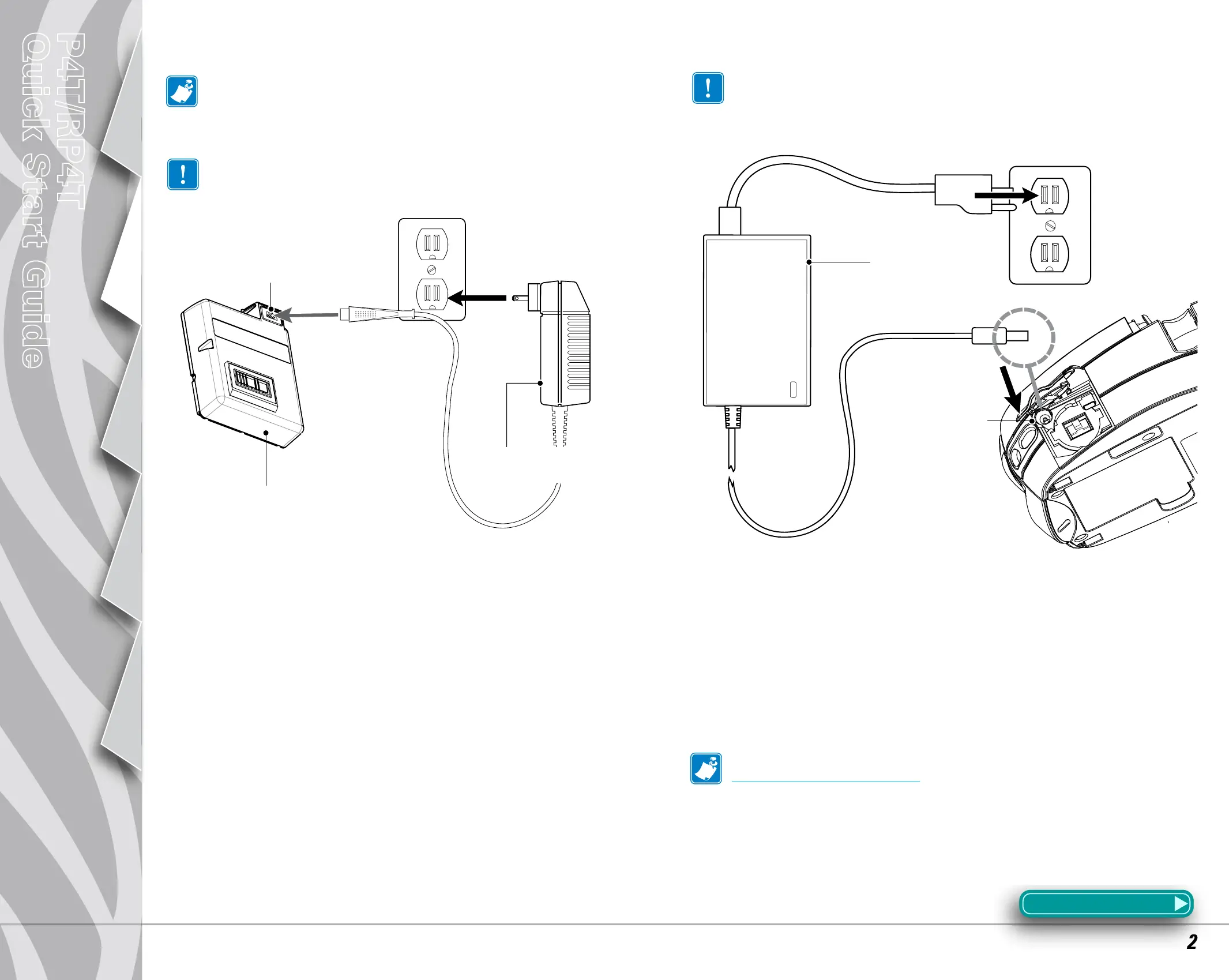

Charge the Battery Pack

Using the AC Adapter

If the Battery Pack is new, remove its protective wrapping and

discard the warning label covering the battery contacts. Install the

Battery Pack in the printer.

Insert the plug from the AC Adapter cable into the Battery Charg-

ing Receptacle. Plug the Adapter into an AC outlet.

Section Continues

Using the Single Battery Charger

If the Battery Pack is new, remove its protective wrapping and

discard the warning label covering the battery contacts. If you are

charging a previously used Battery Pack, remove it from the print-

er.

Insert the plug from the Charger cable into the Battery Charging

Receptacle. Plug the Charger into an appropriate AC outlet.

The light on the front of the charger will indicate the battery

pack’s charge status.

The printer cannot be used while charging with the

single charger.

The printer may be used while charging the battery

pack with the AC adapter. However, prolonged use of

the printer while charging will greatly increase charge

times.

Battery packs are shipped uncharged. Remove

protective shrink-wrap and labels from new battery

packs and allow them to charge completely prior to

initial use.

Consult the P4T/RP4T User’s Guide available at

www.zebra.com/manuals for complete information on charging

batteries on P4T Series printers.

Battery Charging

Receptacle

Battery Pack

Adapter

Open the

protective cover

for access to

the charger

receptacle

LI72 Single

Battery Charger
