UMAN-RWS-010 Rev. A

September 2011

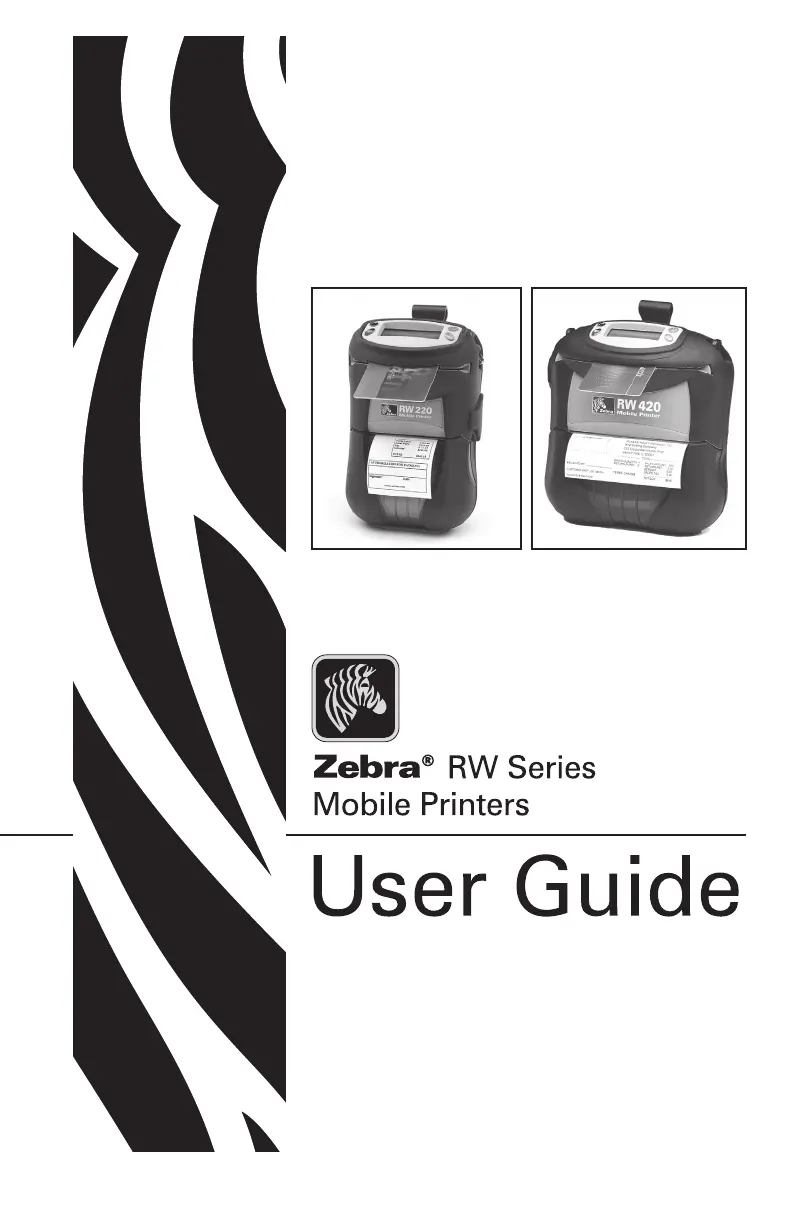

RW Series User Guide

Contents

Proprietary Statement ..............................................................................................5

Document Conventions ...........................................................................................7

Introduction to the RW Series ............................................................................. 10

Unpacking and Inspection ....................................................................10

Reporting Damage ................................................................................10

Getting Ready to Print ............................................................................................11

Battery Safety ....................................................................................... 11

Charger Safety ...................................................................................... 11

Installing RW Series Batteries ..........................................................................................13

The LI72 Charger ..................................................................................................................13

Charging Battery Packs with the LI72 Three-Wire Version (AT17696-x) .............15

Charging Battery Packs with the LI72 Three-Wire Version (AT18737-x) .............16

Model UCLI72-4 Quad Charger ......................................................................................17

Loading the Media ................................................................................ 19

Loading Media Procedure ................................................................................................19

Loading Media From An Internal Supply ................................................................... 20

Loading Media From An External Supply .................................................................. 21

Operator Controls .................................................................................23

Control Panel ........................................................................................................................ 23

Programmable LCD Settings .......................................................................................... 24

Verify the Printer Is Working ................................................................27

Printing a Conguration Label ...................................................................................... 27

Connecting the Printer .......................................................................................... 28

Cable Communications ........................................................................28

Serial (RS232C) and USB Combination Port .............................................................. 28

Wireless Communications ...................................................................30

Wireless Communications with Bluetooth

............................................................. 30

Bluetooth Networking Overview ................................................................................. 30

USB .......................................................................................................................................... 30

Wireless Local Area Network Overview ......................................................................31

Setting Up the Software .................................................................................................. 32

Radio Regulatory Information ............................................................................ 33

Bluetooth RW -ZBR3 Radio (RW 220 and RW 420) ................................................. 33

European Regulatory Information for the RW-ZBR3 Bluetooth Radio ................33

Europe – EU Declaration of Conformity ..........................................................................33

Zebra Bluetooth Radio 2.0 RW-ZBR4 (RW 220 and RW 420) ............................... 34

European Regulatory Information for this Radio ....................................................... 34

Europe – EU Declaration of Conformity ......................................................................... 34

Compact Flash (802.11b) Radio Module ..................................................................... 35

European Regulatory Information for this Radio ........................................................35

Europe – EU Declaration of Conformity ..........................................................................36

Zebra Value Radio, 802.11b ............................................................................................. 37

European Regulatory Information for this Radio ........................................................37

Europe – EU Declaration of Conformity ..........................................................................38

WLAN Module Using 802.11b/g Radio ....................................................................... 39

European Regulatory Information for this Radio ....................................................... 40

Europe – EU Declaration of Conformity ..........................................................................41

NCC (Taiwan) Compliance Statement ..............................................................................42

Produkspesifikasjoner

Merke:	Zebra
Kategori:	Printer
Modell:	RW 220
Vekt:	658 g
Farge:	Nei
Batterikapasitet:	2000 mAh
Tilkoblingsteknologi:	Ledning & Trådløs
Maksimal oppløsning:	203 x 203 DPI
Sertifisering:	-FCC Part 15 Class B, \n-Canadian ICES-003, \n-VCCI, \n-NOM/NYCE, \n-CE compliance (Class B), \n-C-Tick, \n-CSA.
Internminne:	16 MB
Utskriftshastighet:	76 mm/sek
Flash-minne:	8 MB
Vekt (imperial):	1.45 Ibs
Utskriftsteknologi:	Direkte Termisk
Standard grensesnitt:	Ethernet
Dimensjoner (B x D x H):	76.2 x 74 x 173 mm
Innebygde strekkoder:	Code 39, Code 93, MaxiCode, Postnet, QR Code, UPC-A, UPC-E
Batteriteknologi:	Lithium-Ion (Li-Ion)
Kjernediameter:	34.9 mm
Medietykkelse (imperial):	0.002 - 0.0063 "
RS-232-port:	1
Driftstemperatur (T-T):	-20 - 55 °C
Oppbevaringstemperaturomåde (Celsius):	-30 - 65 °C
Lagringsrelativ fuktighet:	10 - 90
Antall USB 1.1-porter:	1
Lagringstemperatur (T-T):	-22 - 149 °F
Relativ luftfuktighet under drift (H-H):	10 - 90
Tilgjengelige språk for sidebeskrivelser:	CPCL-native, EPL, EPL2, XML, ZPL
Medietykkelse:	0.05 - 0.16 mm
Maksimal rulldiameter:	57 mm
