Side 1/24
1

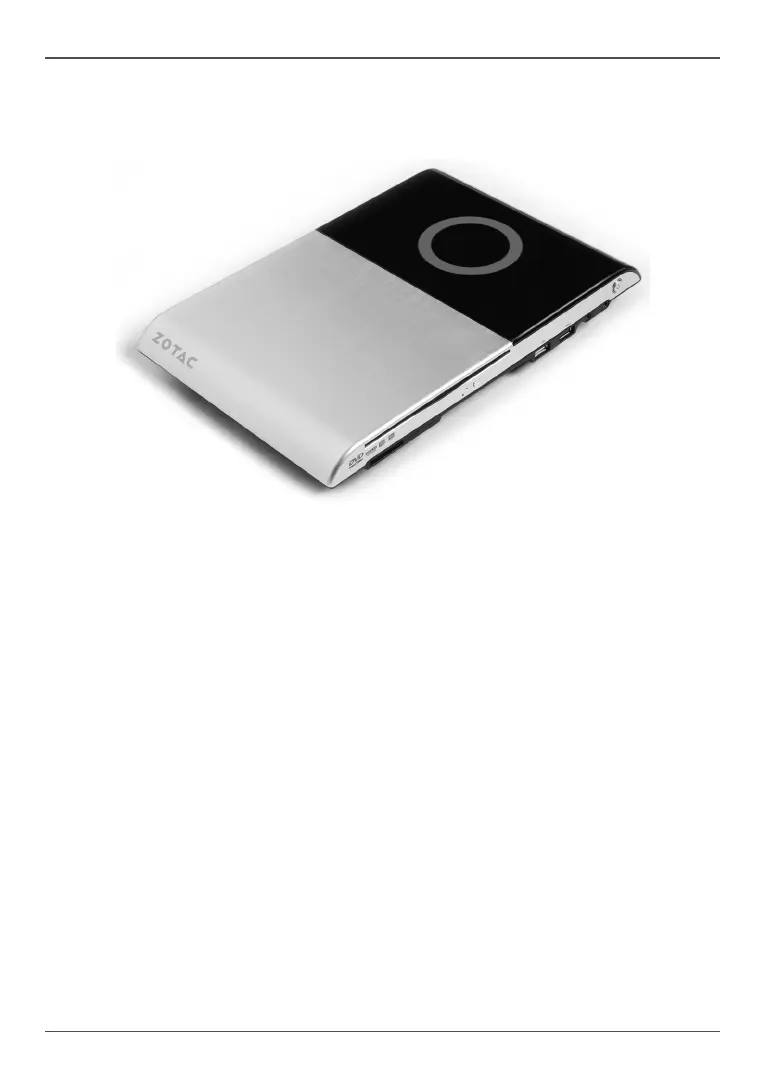

ZOTAC ZBOX DVD
ZOTAC ZBOX DVD
User’s Manual
No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form or by any means,except documenta-
tion kept by the purchaser for backup purposes, without the express written
permission of ZOTAC.
Products and corporate names mentioned in this manual may not be reg-
istered trademarks or copyrights of their respective companies, and are
used for identication purposes only. All trademarks are the property of their
respective owners.
Every effort has been made to ensure that the contents of this manual are cor-
rect and up to date. However, the manufacturer makes no guarantee regard-
ing the accuracy of its contents, and reserves the right to make changes
without prior notice.
CAUTION:
Risk of explosion if the battery is replaced with an incorrect type. Batteries
should be recycled where possible. Disposal of used batteries must be in
accordance with local environmental regulations.
2
ZOTAC ZBOX DVD
Table of Contents
Product specications -------------------------------------------------------------------------- 3
Safety information -------------------------------------------------------------------------------- 4
Setting up your system ----------------------------------------------------------------------- 4
Care during use -------------------------------------------------------------------------------- 4
Welcome --------------------------------------------------------------------------------------------- 5
Package contents ------------------------------------------------------------------------------ 5
Getting to know your ZOTAC ZBOX DVD ------------------------------------------------- 6
Front view ---------------------------------------------------------------------------------------- 6
Rear view----------------------------------------------------------------------------------------- 7
LED indicator --------------------------------------------------------------------------------------- 8
LED indicator illustration --------------------------------------------------------------------- 8
How to disable the orange ring LED indicator ------------------------------------------ 8
DVD disc --------------------------------------------------------------------------------------------- 10
Ejecting a disc ---------------------------------------------------------------------------------- 10
Customizing the ZOTAC ZBOX DVD -------------------------------------------------------- 11
Removing a memory module --------------------------------------------------------------- 12
Installing a memory module ----------------------------------------------------------------- 13
Removing a hard disk ------------------------------------------------------------------------- 14
Installing a hard disk -------------------------------------------------------------------------- 15
Installing a Mini-PCIe card ------------------------------------------------------------------- 16
Setting up the ZOTAC ZBOX DVD ----------------------------------------------------------- 17
Positioning the ZOTAC ZBOX DVD ---------------------------------------------------------- 18
Mounting the ZOTAC ZBOX DVD to a wall ---------------------------------------------- 18
Installing drivers and software --------------------------------------------------------------- 20
Installing an operating system -------------------------------------------------------------- 20
Installing system drivers ---------------------------------------------------------------------- 20
Using your ZOTAC ZBOX DVD ---------------------------------------------------------------- 21
Conguring wireless connection ----------------------------------------------------------- 21
Conguring wired connection --------------------------------------------------------------- 21
Using a static IP ---------------------------------------------------------------------------- 21
Using a dynamic IP (PPPoE connection) -------------------------------------------- 22
Conguring audio output via an HDMI device ------------------------------------------ 22
Conguring the PCIe link state power management ---------------------------------- 23
3
ZOTAC ZBOX DVD
Product specications
Chipset
• Intel
®
NM10 Express
Product Dimensions
• 280mm x 187mm x 38mm (11.02in x 7.36in x 1.5in)
Onboard CPU
• Intel
®
Atom
TM
D525 (Dual-core, 1.8 GHz)
• Intel
®
Atom
TM
D510 (Dual-core, 1.66 GHz) (Optional)
Onboard graphics
• Next-Generation NVIDIA
®
ION GPU
• CUDA cores up to 16
• Up to 512 MB of GDDR3 video memory
• Dual-link DVI-I & HDMI output (VGA compatible with adapter)
• Dual display ready
• Support up to 2560x1600 resolution
Memory support
• Two 204-pin SO-DIMMs DDR3-800
• Up to 4 GB of memory
USB ports
• One USB 2.0 & one combo eSATA / USB 2.0 port (wake-on-USB supported)
• Two USB 3.0 ports
Storage support
• SATA 3.0 Gb/s transfer rates
• Supports one 2.5-inch SATA HDD or SSD (height limit: 9.5 mm)
• One combo eSATA / USB 2.0 port
Network support
• Gigabit (10/100/1000Mbps) LAN
• IEEE 802.3 compatible
WiFi
• 802.11b/g/n compatible
• Enhanced wireless security compatible
Audio
• 2-channel high-denition audio
• Jack-sensing compatible
Operating System support
• Microsoft Windows
®
XP, Windows
®
Vista and Windows 7
• 32-bit and 64-bit support
Green Function
• ACPI (Advanced Conguration and Power Interface) compatible
