Side 1/28

1/16

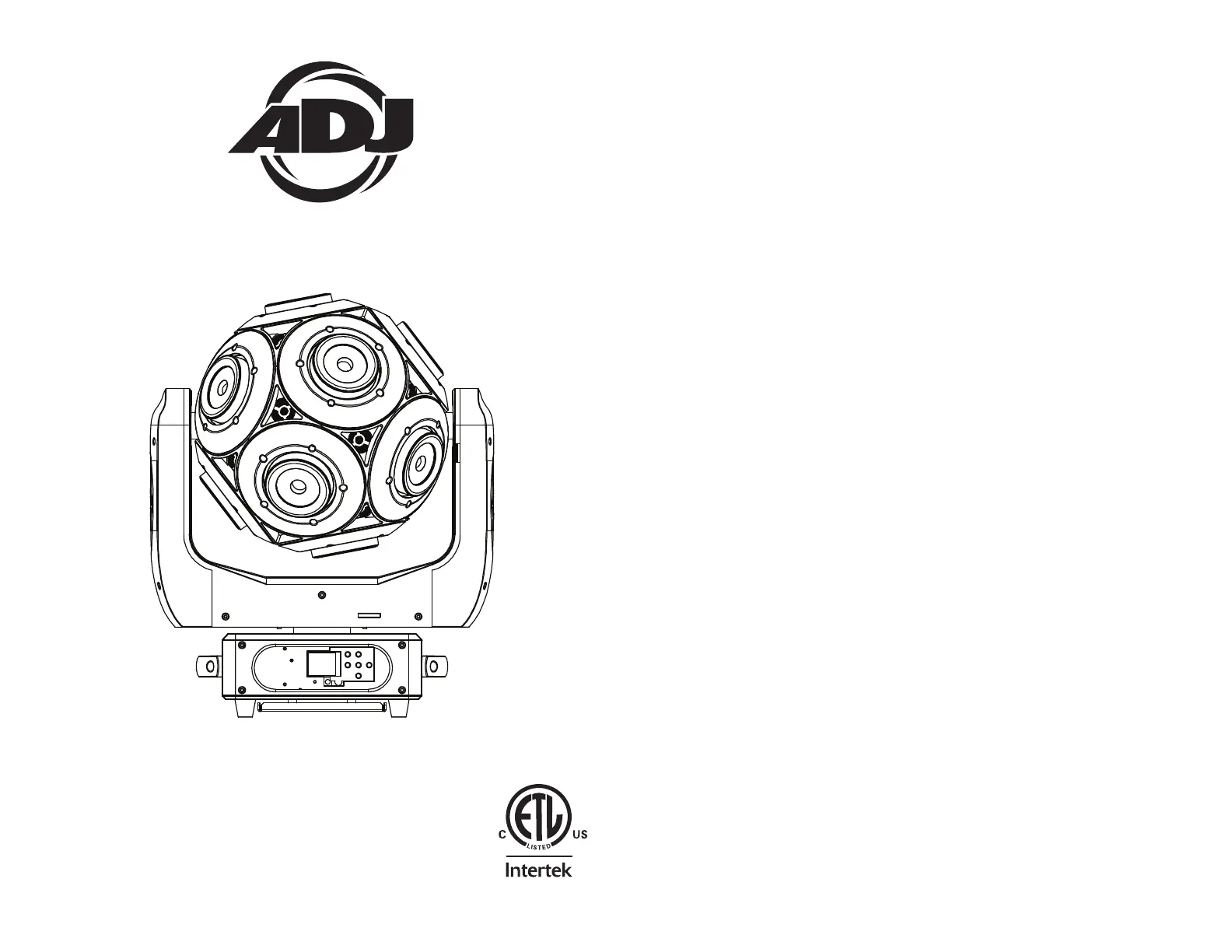

User Instructions

Asteroid 1200

specications, diagrams, images, and instructions herein are

subject to change without notice. ADJ Products, LLC logo and

identifying product names and numbers herein are trademarks

of ADJ Products, LLC. Copyright protection claimed includes all

forms and matters of copyrightable materials and information

now allowed by statutory or judicial law or hereinafter granted.

Product names used in this document may be trademarks or

registered trademarks of their respective companies and are

hereby acknowledged. All non-ADJ Products, LLC brands and

product names are trademarks or registered trademarks of their

respective companies.

ADJ Products, LLC and all aliated companies hereby dis-

claim any and all liabilities for property, equipment, building,

and electrical damages, injuries to any persons, and direct or

indirect economic loss associated with the use or reliance of

any information contained within this document, and/or as a

result of the improper, unsafe, unsucient and negligent as-

sembly, installation, rigging, and operation of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment.

Please turn o all electrical products when they are not in use. To

avoid power consumption in idle mode, disconnect all electrical

equipment from power when not in use. Thank you!

401076 5

Unpacking: Thank you for purchasing the Asteroid 1200 by ADJ

Products, LLC. Every Asteroid 1200 has been thoroughly tested and

has been shipped in perfect operating condition. Carefully check the

shipping carton for damage that may have occurred during shipping.

If the carton appears to be damaged, carefully inspect your xture for

any damage and be sure all equipment necessary to operate the unit

has arrived intact. In the event damage has been found or parts are

missing, please contact our toll free customer support number for fur-

ther instructions. Please do not return this unit to your dealer without

contacting customer support rst.

Introduction: The Asteroid 1200 is a DMX intelligent, 360° rotat-

ing head fixture. The Asteroid 1200 has 3 DMX channel modes; 18

channels, 20 channels, or 64 channels. The fixture can operate in four

different operating modes; auto mode, sound-active, DMX control or

KlingNet & Artnet. The Asteroid 1200 can be used as a stand alone unit

or in a master/slave configuration. For best results use fog or special

effects smoke to enhance the beams projections.

Customer Support: ADJ Products, LLC provides a toll free cus-

tomer support line, to provide help and to answer any question should

you encounter problems during your set up or initial operation. You

may also visit us on the web at www.adj.com for any comments or

suggestions. Service Hours are Monday through Friday 8:00 a.m. to

4:30 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2610

E-mail: support@americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Warning! This may cause severe eye damage. Avoid looking directly

into the light source at all times!

Asteroid 1200 General Information

ADJ Products, LLC - www.adj.com - Asteroid 1200 Instruction Manual Page 3ADJ Products, LLC - www.adj.com - Asteroid 1200 Instruction Manual Page 2

Table of Contents

Unpacking......................................................................3

Introduction....................................................................3

Customer Support......................................................................3

Safety Precautions......................................................................4

Features.........................................................................5

Handling Precautions..................................................................5

Registration......................................................................5

Mounting.........................................................................7

Controls and Functions.............................................................9

DMX Set-Up..............................................................................12

DMX Control..............................................................................15

DMX Traits.................................................................................16

Color Macro Chart....................................................................26

System Menu............................................................................27

Operation...............................................................................46

KlingNet & Artnet Control..........................................................48

Photometric Chart.....................................................................50

Dimmer Curve Chart.................................................................51

Fuse Replacement....................................................................51

Cleaning..................................................................................51

Trouble Shooting.......................................................................52

Warranty.........................................................................53

Specifications....................................................................54

Please see page 7 for important lamp instructions!

For Your Own Personal Safety, Please Read and Understand This

Manual Completely Before You Attempt To Install Or Operate

This Unit!

• To reduce the risk of electrical shock or re, do not expose this unit

rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Be sure that the local power outlet match that of the required volt-

age for your unit.

• Do not attempt to operate this unit if the power cord has been

frayed or broken.

• Do not attempt to remove or break o the ground prong from

the electrical cord. This prong is used to reduce the risk of electrical

shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user

serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product out-

doors voids all warranties.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to

be walked on or pinched by items placed upon or against them,

paying particular attention to cords at plugs, convenience recep-

tacles, and the point where they exit from the appliance.

• Cleaning -The fixture should be cleaned only as recommended by

the manufacturer. See page 52 for cleaning details.

• Heat -This fixture should be situated away from heat sources such

as radiators, heat registers, stoves, or other appliances (including

amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. Objects have fallen, or liquid has been spilled into the appliance.

B. The appliance has been exposed to rain or water.

C. The appliance does not appear to operate normally or exhibits a

marked change in performance.

Asteroid 1200 Safety Precautions

ADJ Products, LLC - www.adj.com - Asteroid 1200 Instruction Manual Page 4

• Infinite Pan and Tilt Rotation in both directions

• 3 Modes of DMX-512 Protocol Compatible (18 DMX Channel

Mode, 20 DMX Channel Mode, and 64 DMX Channel Mode)

• 3-Pin & 5-Pin XLR Inputs & Outputs

• KlingNet & Artnet Compatible

• Ethernet Input & Output Jacks

• 64 Color Macros + Individual RGBW Control

• 4 Operating Modes - Auto Run, Sound Active, DMX Control, &

KlingNet & Artnet

• Stand Alone Setup or Master-Slave Configuration

• Edit and Save Scenes into the Memory

Asteroid 1200 Features

ADJ Products, LLC - www.adj.com - Asteroid 1200 Instruction Manual Page 5

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures

warranty. In the unlikely event your unit may require service please

contact ADJ Products, LLC.

During operation the housing may become extremely hot. Avoid touch-

ing the unit with bare hands while in use.

ADJ Products, LLC will not accept any liability for any resulting dam-

ages caused by the non-observance of this manual or any unauthor-

ized modication to this unit.

Asteroid 1200 Handling Precautions

The Asteroid 1200 carries a two year limited warranty. Please fill out

the enclosed warranty card to validate your purchase. All returned

service items whether under warranty or not, must be freight pre-

paid and accompany a return authorization (R.A.) number. The R.A.

number must be clearly written on the outside of the return package.

A brief description of the problem as well as the R.A. number must

also be written down on a piece of paper and included in the shipping

carton. If the unit is under warranty, you must provide a copy of your

proof of purchase invoice. You may obtain a R.A. number by con-

tacting our customer support team on our toll free customer support

number. All packages returned to the service department not display-

ing a R.A. number on the outside of the package will be returned to

the shipper at the shippers cost.

Asteroid 1200 Product Registration
