User Instructions

Mega UV nBar 50™ Introdu ioct

Rev. 8/07

MEGA BAR UV50

™

Unpacking: Thank you for purchasing the Mega Bar UV50™ by American

DJ®. Every Mega Bar UV50™ has been thoroughly tested and has been

shipped in perfect operating condition. Carefully check the shipping carton for

damage that may have occurred during shipping. If the carton appears to be

damaged, carefully insect your fixture for any damage and be sure all acces-

sories necessary to operate the unit have arrived intact. In the case damage

has been found or parts are missing, please contact our toll free customer

support number for further instructions. Do not return this unit to your dealer

without first contacting customer support.

Introduction: The Mega Bar UV50™ is part of American DJ’s continuing

pursuit for creating high quality, affordable intelligent fixtures. The Mega Bar

UV50™ is a DMX intelligent LED UV wash. This wash can be used in a stand-

alone mode or connected in a Master/Slave configuration. The unit can also

be controlled via DMX controller. This wash has three operating modes:

Sound Active mode, Program mode and DMX Control mode.

Customer Support: American DJ® provides a toll free customer support line

to provide help and to answer any questions; should encounter problems

during your set up or initial installation. You may also visit us on the web at

www.adj.com for any comments or suggestions. Service hours are Monday

through Friday 9:00 AM to 5:00 PM (PST).

Voice: (800) 322-6337

Fax: (323) 582-2941

E-Mail: support@adj.com

To purchase parts online, visit http://parts.adj.com

RISK GROUP 3 - RISK OF EXPOSURE TO

ULTRAVIOLET (UV) RADIATION!

FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF

ULTRAVIOLET LIGHT

WEAR PROPER EYE AND SKIN PROTECTION.

AVOID PROLONGED PERIODS OF EXPOSURE.

AVOID WEARING WHITE COLOR CLOTHING AND/OR

USING (UV) PAINTS ON SKIN.

AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT

DISTANCES SHORTER THAN 11 feet (3.3m).

DO NOT OPERATE FIXTURE WITH DAMAGED/MISSING EXTERNAL COVER

PROTECTIVE LENS.

DO NOT LOOK DIRECTLY INTO THE (UV) LIGHT AND/OR VIEW (UV) LIGHT

DIRECTLY WITH OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE

LIGHT/RADIATION OUTPUT.

INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT

EXPOSURE DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE

MEDICATION, MAY RECEIVE DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET

(UV) LIGHT EMITTED FROM THIS FIXTURE.

Mega Bar UV50™ Safety Precautions

• To reduce the risk of electrical shock or re, do not expose this unit

rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Be sure that the local power outlet match that of the required volt-

age for your unit.

• Do not attempt to operate this unit if the power cord has been

frayed or broken. Do not attempt to remove or break off the ground

prong from the electrical cord. This prong is used to reduce the risk

of electrical shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user

serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Never plug this unit in to a dimmer pack

• Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product out`

doors voids all warranties.

• During long periods of non-use, disconnect the unit’s main power.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to

be walked on or pinched by items placed upon or against them,

paying particular attention to the point they exit from the unit.

• Cleaning -The fixture should be cleaned only as recommended by

t he manufacturer. See page 3 for cleaning details.

• Heat -The appliance should be situated away from heat sources

such as radiators, heat registers, stoves, or other appliances (inclu-

d ing amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the appliance.

C. The appliance has been exposed to rain or water.

D. The appliance does not appear to operate normally or exhibits a

marked change in performance.

Mega Bar UV50™ Warranty Registration

The Mega Bar UV50™ carries a limited warranty. 3 year (1095 days)

Please fill out the enclosed warranty card to validate your purchase

and warranty. You may also register your product online at www.

americandj.com. All returned service items whether under warranty or

not, must be freight pre-paid and accompany a return authorization

(R.A.) number. If the unit is under warranty you must provide a copy

of your proof of purchase invoice. Please contact American DJ® cus-

tomer support for a R.A. number.

Mega Bar UV50™ Features

To optimize the performance of this product, please read these

operating instructions carefully to familiarize yourself with the basic

operations of this unit. These instructions contain important safety

information regarding the use and maintenance of this unit. Please

keep this manual with the unit, for future reference.

Mega Bar UV50™ General Instructions

• Strobe

• Electronic Dimming 0-100%

• Built in Microphone

• DMX-512 protocol

• 2 DMX Channels

Mega Bar UV50™ Cleaning

Due to fog residue, smoke, and dust cleaning the internal and exter-

nal optical lenses must be carried out periodically to optimize light

output.

1. Use normal glass cleaner and a soft cloth to wipe down the

outside casing.

2. Clean the external optics with glass cleaner and a soft cloth

every 20 days.

3. Always be sure to dry all parts completely before plugging

the unit back in.

Cleaning frequency depends on the environment in which the fixture

operates (i.e. smoke, fog residue, dust, dew).

P Before plugging your unit in, be sure the source volt-ower Supply:

age in your area matches the required voltage for your American DJ ®

Mega Bar UV50™. The American DJ

® Mega Bar UV50™ voltage is

between 120v ~ 240v.

DMX-512: -DMX is short for Digital Multiplex. This is a universal pro

tocol used as a form of communication between intelligent fixtures

and controllers. A DMX controller sends DMX data instructions from

the controller to the fixture. DMX data is sent as serial data that trav-

els from fixture to fixture via the DATA “IN” and DATA “OUT” XLR ter-

minals located on all DMX fixtures (most controllers only have a DATA

“OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of

different manufactures to be linked together and operate from a single

controller, as long as all xtures and the controller are DMX compli-

ant. To ensure proper DMX data transmission, when using several

DMX fixtures try to use the shortest cable path possible. The order

in which fixtures are connected in a DMX line does not influence the

DMX addressing. For example; a fixture assigned a DMX address of 1

may be placed anywhere in a DMX line, at the beginning, at the end,

or anywhere in the middle. When a fixture is assigned a DMX address

of 1, the DMX controller knows to send DATA assigned to address 1

to that unit, no matter where it is located in the DMX chain.

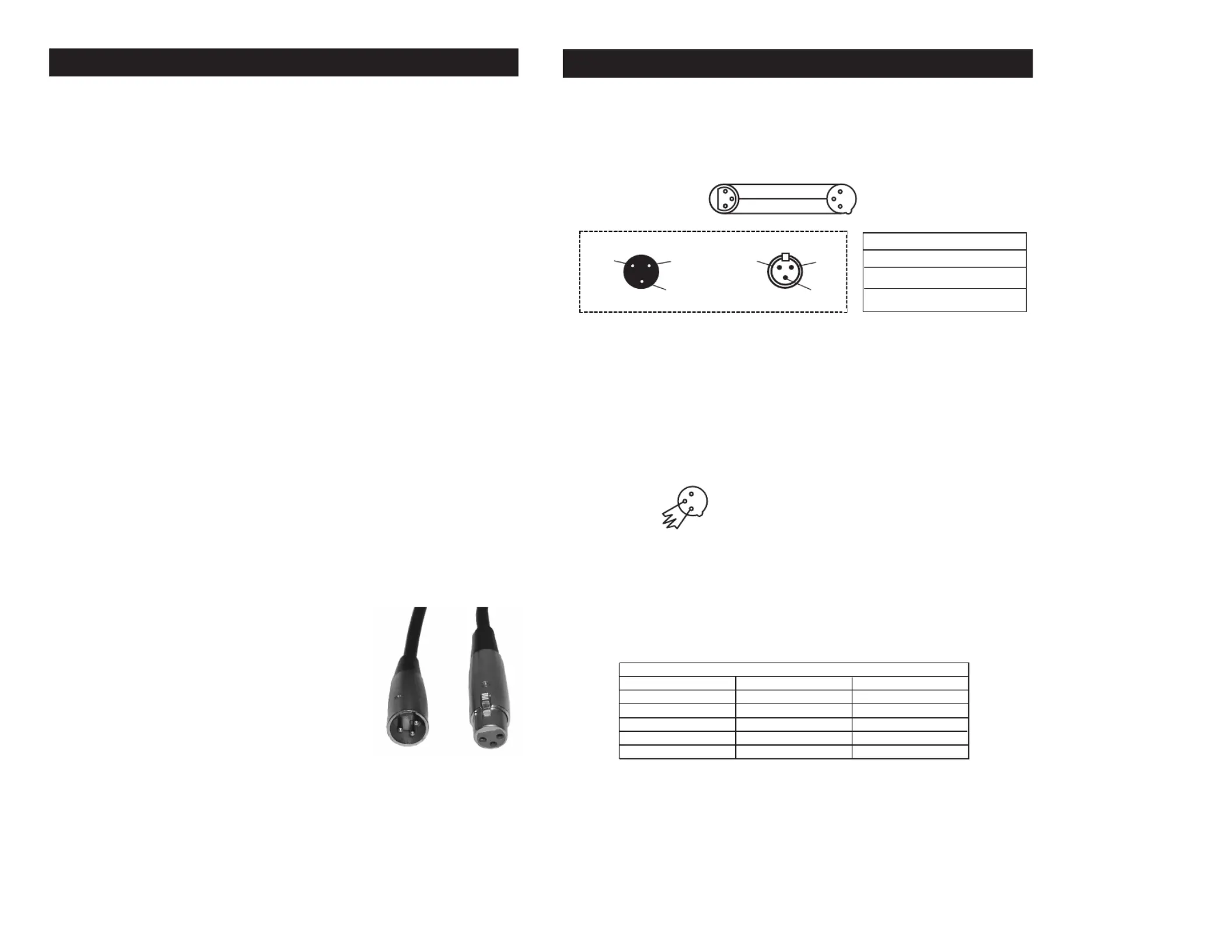

Data Cable (DMX Cable) Requirements (For DMX Operation):

The Mega Bar UV50™ can be controlled via DMX-512 protocol. The

Mega Bar UV50™ is a two channel DMX unit. The DMX address is set

on the back panel of the Mega Bar UV50™. Your unit and your DMX

controller require a standard 3-pin XLR connector for data input and

data output (Figure 1). If you are making your own cables, be sure to

use standard two conductor shielded cable (This

cable may be purchased at almost all pro sound

and lighting stores). Your cables should be made

with a male and female XLR connector on either

end of the cable. Also remember that DMX cable

must be daisy chained and can not be split.

©American DJ® - www.adj.com - Mega Bar UV50™ User Manual Page 5

Mega Bar UV50™ Set Up

Figure 1

Notice: Be sure to follow gures two and three when making your own

cables. Do not use the ground lug on the XLR connector. Do not con-

nect the cable’s shield conductor to the ground lug or allow the shield

conductor to come in contact with the XLR’s outer casing. Grounding

the shield could cause a short circuit and erratic behavior.

Mega Bar UV50™ Set Up

DMX512 IN

3-PIN XLR

DMX +

DMX -

COMMON

DMX512 OUT

3-PIN XLR

Figure 2

Figure 3

1 Ground

XLR Male Socket

XLR Pin Conguration

3 Hot

2 Cold

3 Hot

XLR Female Socket

Pin 3 = Data True (positive)

Pin 2 = Data Compliment (negative)

Pin 1 = Ground

Special Note: Line Termination.

When longer runs of cable are

used, you may need to use a terminator on the last unit to avoid erratic

behavior. A terminator is a 90-120 ohm 1/4 watt resistor which is con-

nected between pins 2 and 3 of a male XLR connector (DATA + and

DATA -). This unit is inserted in the female XLR connector of the last

unit in your daisy chain to terminate the line. Using a cable terminator

(ADJ part number Z-DMX/T) will decrease the possibilities of erratic

behavior.

Termination reduces signal errors and

avoids signal transmission problems

and interference. It is always advisable

to connect a DMX terminal, (Resistance

120 Ohm 1/4 W) between PIN 2 (DMX-)

and PIN 3 (DMX +) of the last fixture.

Figure 4

5-Pin XLR DMX Connectors.

Some manufactures use 5-pin XLR

connectors for DATA transmission in place of 3-pin. 5-pin XLR xtures

may be implemented in a 3-pin XLR DMX line. When inserting stan-

dard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be

used, these adaptors are readily available at most electric stores. The

chart below details a proper cable conversion.

Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)

Pin 1

Do Not Use

Pin 3

Pin 2

Pin 1

Pin 3

Pin 2

Not Used

Data True (+ signal)

Data Compliment (- signal)

Ground/Shield

3-Pin XLR to 5-Pin XLR Conversion
