Side 1/26

Rev. 2/11

User Instructions

American DJ® - www.americandj.com - Vizi Scan LED PRO Instruction Manual Page 2

American DJ®

Vizi Scan LED PRO

Table of Contents

General Information.....................................................................4

Features.........................................................................4

Safety Precautions......................................................................5

Registration......................................................................6

Handling Precautions..................................................................6

Mounting.................................................................................7

Controls and Functions..............................................................9

DMX Set-Up..............................................................................12

System Menu............................................................................15

Editing Program.........................................................................33

Operating Modes.......................................................................38

DMX Traits.................................................................................40

Fuse Replacement....................................................................47

Gobo Replacement...................................................................48

Photometric Chart.....................................................................49

Cleaning..................................................................50

Trouble Shooting.......................................................................50

Warranty.................................................................51

Specifications....................................................................52

Unpacking: Thank you for purchasing the Vizi Scan LED PRO by

American DJ®. Every Vizi Scan LED PRO has been thoroughly tested

and has been shipped in perfect operating condition. Carefully check

the shipping carton for damage that may have occurred during ship-

ping. If the carton appears to be damaged, carefully inspect your x-

ture for any damage and be sure all equipment necessary to operate

the unit has arrived intact. In the event damage has been found or parts

are missing, please contact our toll free customer support number for

further instructions. Please do not return this unit to your dealer with-

out contacting customer support rst.

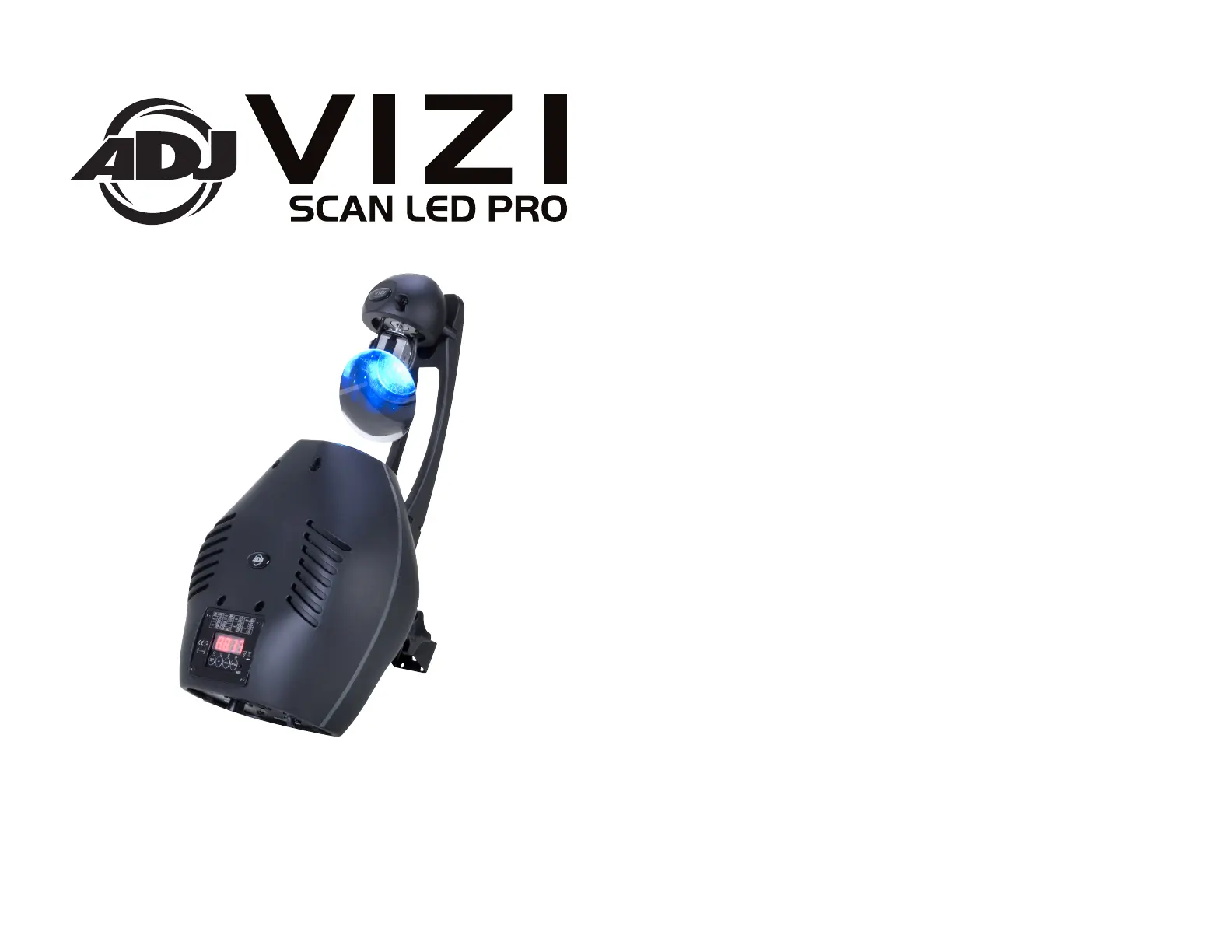

Introduction: The Vizi Scan LED PRO is a bright, high output, intel-

ligent DMX scanner. The Vizi Scan LED PRO can be either a 12 or 14

DMX Channel unit. The fixture can operate in three different operating

modes; sound active, auto run, or DMX control. The fixture can run

as as a Stand Alone unit or in a Master/Slave configuration. The Vizi

Scan LED PRO comes with several built in programs and is best used

in multiples of four. For best results use fog or special effects smoke to

enhance the beams projections.

During the initial start-up or use of this product a light smoke or

smell may arise from the unit. This is a normal process and is

cause by the heat associated with the unit.

Customer Support: American DJ® provides a toll free customer

support line, to provide help and to answer any question should you

encounter problems during your set up or initial operation. You may

also visit us on the web at www.americandj.com for any comments or

suggestions. Service Hours are Monday through Friday 8:00 a.m. to

4:30 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2610

E-mail: support@americandj.com

To purchase parts online visit http://parts.americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Warning! This may cause severe eye damage. Avoid looking directly

into the light source at all times!

Vizi Scan LED PRO General Information

American DJ® - www.americandj.com - Vizi Scan LED PRO Instruction Manual Page 4American DJ® - www.americandj.com - Vizi Scan LED PRO Instruction Manual Page 3

• Micro-Stepping Motors for Smooth Color and Gobo Transitions

• 2 DMX Channel Modes - 12 Channel Mode & 14 Channel Mode

• Independent Gobo and Color Wheels

• 7 Rotating Gobos w/ Shake, 5 Metal and 2 Glass + Spot - All

Replaceable

• 8 Colors, Plus White - With Rainbow

• Prism Wheel: 3 Facet; Trapezoid; Frost

• RDMX - Lets you set the DMX address from any DMX Controller

• 3 Operating Modes - Sound Active, Auto Run, & DMX Control

• Internal Microphone

• Edit and Save Scenes into the Memory

• Remote Focus

• Variable Strobe (1-12 fps)

• Motor Calibration Adjustment

• Pan: 540 or 630 Degrees

• Tilt: 35 Degrees

• Mic Sensitivity Adjustment

• Digital Display for Address and Function Setting

Vizi Scan LED PRO Features

Vizi Scan LED PRO RDMX

Regarding RDMX :

1. The units will be shipped preset in 16 channel increments

from the factory

2. While using RDMX, if all units are set to the same DMX

address, all units will change to the new DMX address you

selected.

EXAMPLE: You have four units, and all the units are set to the

DMX address of “1”, and you change one unit to DMX address

“17”, this will cause all the units to change to DMX address

“17”.

All four units must be on 4 different starting addresses to indi-

vidually set the DMX addresses for each unit.

For more on this feature see pages 25-26.

American DJ® - www.americandj.com - Vizi Scan LED PRO Instruction Manual Page 5 American DJ® - www.americandj.com - Vizi Scan LED PRO Instruction Manual Page 6

For Your Own Personal Safety, Please Read and Understand This

Manual Completely Before You Attempt To Install Or Operate

This Unit!

• To reduce the risk of electrical shock or re, do not expose this unit

rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Do not attempt to operate this unit if the power cord has been

frayed or broken.

• Do not attempt to remove or break off the ground prong from

the electrical cord. This prong is used to reduce the risk of electrical

shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user

serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product out-

doors voids all warranties.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to

be walked on or pinched by items placed upon or against them,

paying particular attention to cords at plugs, convenience recep-

tacles, and the point where they exit from the appliance.

• Cleaning -The fixture should be cleaned only as recommended by

the manufacturer. See page 50 for cleaning details.

• Heat -This fixture should be situated away from heat sources such

as radiators, heat registers, stoves, or other appliances (including

amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. Objects have fallen, or liquid has been spilled into the appliance.

B. The appliance has been exposed to rain or water.

C. The appliance does not appear to operate normally or exhibits a

marked change in performance.

Vizi Scan LED PRO Safety Precautions

To optimize the performance of this product, please read these operating

instructions carefully to familiarize yourself with the basic operations of

this unit. These instructions contain important safety information regard-

ing the use and maintenance of this unit. Please keep this manual with

the unit, for future reference.

Vizi Scan LED PRO General Instructions

The Vizi Scan LED PRO carries a 3 year (1095 Day) limited warranty.

Please fill out the enclosed warranty card to validate your purchase.

All returned service items whether under warranty or not, must be

freight pre-paid and accompany a return authorization (R.A.) number.

The R.A. number must be clearly written on the outside of the return

package. A brief description of the problem as well as the R.A. num-

ber must also be written down on a piece of paper and included in the

shipping carton. If the unit is under warranty, you must provide a copy

of your proof of purchase invoice. You may obtain a R.A. number by

contacting our customer support team on our toll free customer sup-

port number. All packages returned to the service department not dis-

playing a R.A. number on the outside of the package will be returned

to the shipper at the shippers cost.

Vizi Scan LED PRO Product

Registration

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war-

ranty. In the unlikely event your unit may require service please contact

American DJ®.

During operation the housing may become extremely hot. Avoid touch-

ing the unit with bare hands while in use.

American DJ® will not accept any liability for any resulting damages

caused by the non-observance of this manual or any unauthorized

modication to this unit.

Vizi Scan LED PRO Handling Precautions
