User Instructions
American DJ® - www.americandj.com - Vizi Spot LED PRO - Instruction Manual - Page 2
American DJ®
Vizi Spot LED PRO
Table of Contents
Unpacking......................................................................3
Introduction....................................................................3
Customer Support......................................................................3
Safety Precautions......................................................................4
General Information.....................................................................5
Features.........................................................................5
Registration......................................................................5
Mounting.........................................................................6
Controls and Functions..............................................................8
DMX Set-Up................................................................................8
System Menu............................................................................14
Editing Program.........................................................................33
Error Codes...............................................................................36
Operating Modes.......................................................................38
DMX Traits.................................................................................40
Changing the Gobo...................................................................48
Photometric Chart.....................................................................50
Fuse Replacement....................................................................51
Cleaning..................................................................51
Trouble Shooting.......................................................................51
Warranty.................................................................52
Specifications....................................................................55
Unpacking: Thank you for purchasing the Vizi Spot LED PRO by
American DJ®. Every Vizi Spot LED PRO has been thoroughly tested
and has been shipped in perfect operating condition. Carefully check
the shipping carton for damage that may have occurred during ship-
ping. If the carton appears to be damaged, carefully inspect your x-
ture for any damage and be sure all equipment necessary to operate
the unit has arrived intact. In the event damage has been found or parts
are missing, please contact our toll free customer support number for
further instructions. Please do not return this unit to your dealer with-
out contacting customer support rst.
Introduction: The Vizi Spot LED PRO is a compact, bright, moving
head, DMX intelligent fixture. The Vizi Spot LED PRO can be either a
10 or 12 Channel DMX unit. The fixture can operate in three different
operating modes; show mode, sound-active, or under DMX Control.
The Vizi Spot LED PRO can be used as a stand alone unit or in a
master/slave configuration. For best results use fog or special effects
smoke to enhance the beams projections.
Customer Support: American DJ® provides a toll free customer
support line, to provide help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly
into the light source at all times!
Vizi Spot LED PRO Introduction
For Your Own Personal Safety, Please Read and Understand This
Manual Completely Before You Attempt To Install Or Operate
This Unit!
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken.
• Do not attempt to remove or break o the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience recep-
tacles, and the point where they exit from the appliance.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 48 for cleaning details.
• Heat -This fixture should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Vizi Spot LED PRO Safety Precautions
American DJ® - www.americandj.com - Vizi Spot LED PRO - Instruction Manual - Page 4American DJ® - www.americandj.com - Vizi Spot LED PRO - Instruction Manual - Page 3
American DJ® - www.americandj.com - Vizi Spot LED PRO - Instruction Manual - Page 5 American DJ® - www.americandj.com - Vizi Spot LED PRO - Instruction Manual - Page 6

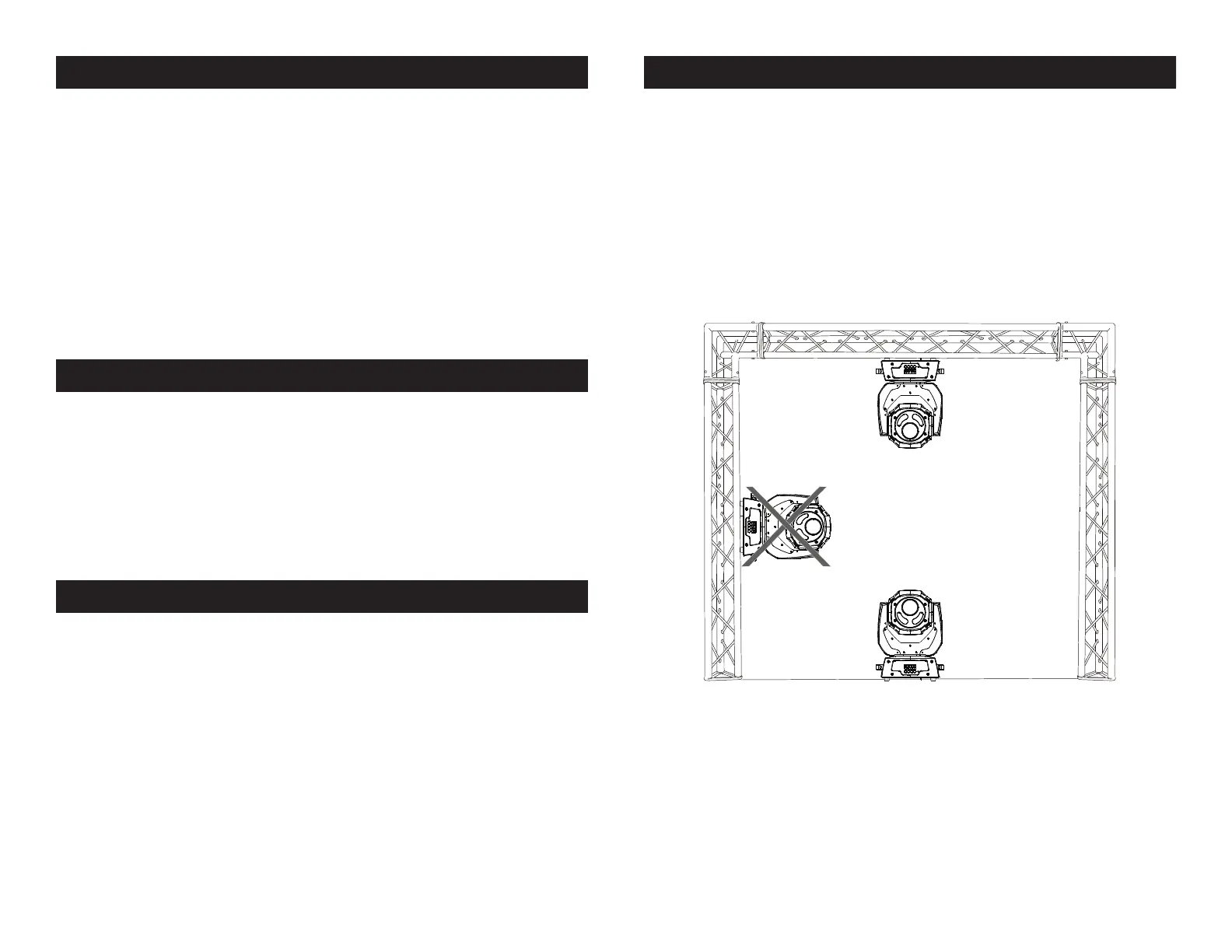

Vizi Spot LED PRO Mounting
The Vizi Spot LED PRO is fully operational in two dierent mounting
positions, hanging upside-down from a ceiling or set on a at level
surface. To avoid internal damage to the unit, never mount the unit on
its side as illustrated above. Be sure this xture is kept at least 0.5m
away from any ammable materials (decoration etc.). Always use
and install the supplied safety cable as a safety measure to prevent
accidental damage and/or injury in the event the clamp fails (see next
page). Never use the carrying handles for secondary attachment.
When installing the unit, the trussing or area of installation must be
able to hold 10 times the weight without any deformation. When
installing the unit must be secured with a secondary safety attach-
ment, e.g. and appropriate safety cable. Never stand directly below
the unit when mounting, removing, or servicing the unit.
Overhead mounting requires extensive experience, including calculat-
ing working load limits, installation material being used, and perodic
safety inspection of all installation material and unit. If you lack these
qualications, do not attempt the installation yourself.
These installaiton should be checked by a skilled person once a year.
• DMX-512 Protocol Compatible (Uses either 12 or 14 DMX
Channels)
• 3 Operating Modes - Sound Active, Show Mode, DMX Control
• Internal Microphone
• Edit and Save Scenes into the Memory
• Variable Strobe (1-12 fps)
• Switchable 540˚ to 630˚ Pan Movement
• 270˚ Tilt Movement
• Digital Display for Address and Function Setting
Vizi Spot LED PRO Features
The Vizi Spot LED PRO carries a three year (1095 days) limited war-
ranty. Please fill out the enclosed warranty card to validate your
purchase. All returned service items whether under warranty or not,
must be freight pre-paid and accompany a return authorization (R.A.)
number. The R.A. number must be clearly written on the outside of
the return package. A brief description of the problem as well as the
R.A. number must also be written down on a piece of paper and in-
cluded in the shipping carton. If the unit is under warranty, you must
provide a copy of your proof of purchase invoice. You may obtain a
R.A. number by contacting our customer support team on our toll free
customer support number. All packages returned to the service de-
partment not displaying a R.A. number on the outside of the package
will be returned to the shipper at the shippers cost.
Vizi Spot LED PRO Product Registration
To optimize the performance of this product, please read these operating
instructions carefully to familiarize yourself with the basic operations of
this unit. These instructions contain important safety information regard-
ing the use and maintenance of this unit. Please keep this manual with
the unit, for future reference.
American DJ® will not accept any liability for any resulting damages
caused by the non-observance of this manual or any unauthorized
modication to this unit.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ®.
Vizi Spot LED PRO General Information

Produkspesifikasjoner
