specications, diagrams, images, and instructions herein are

subject to change without notice. ADJ Products, LLC logo and

identifying product names and numbers herein are trademarks

of ADJ Products, LLC. Copyright protection claimed includes all

forms and matters of copyrightable materials and information

now allowed by statutory or judicial law or hereinafter granted.

Product names used in this document may be trademarks or

registered trademarks of their respective companies and are

hereby acknowledged. All non-ADJ Products, LLC brands and

product names are trademarks or registered trademarks of their

respective companies.

ADJ Products, LLC and all aliated companies hereby dis-

claim any and all liabilities for property, equipment, building, and

electrical damages, injuries to any persons, and direct or indi-

rect economic loss associated with the use or reliance of any

information contained within this document, and/or as a result

of the improper, unsafe, unsucient and negligent assembly,

installation, rigging, and operation of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment.

Please turn o all electrical products when they are not in use. To

avoid power consumption in idle mode, disconnect all electrical

equipment from power when not in use. Thank you!

User Instructions

3/14

Vortex 1200

ADJ Products, LLC - www.adj.com - Vortex 1200 User Manual Page 3ADJ Products, LLC - www.adj.com - Vortex 1200 User Manual Page 2

Vortex 1200 Warranty Registration

The Vortex 1200 carries a 2 year (730 days) limited warranty. Please

fill out the enclosed warranty card to validate your purchase and war-

ranty. You may also register your product online at www. americandj.

com. All returned service items whether under warranty or not, must

be freight pre-paid and accompany a return authorization (R.A.) num-

ber. If the unit is under warranty you must provide a copy of your

proof of purchase invoice. Please contact ADJ customer support for a

R.A. number.

Vortex 1200 Features

To optimize the performance of this product, please read these operat-

ing instructions carefully to familiarize yourself with the basic operations

of this unit. These instructions contain important safety information

regarding the use and maintenance of this unit. Please keep this manual

with the unit, for future reference.

Vortex 1200 General Instructions

Vortex 1200 Introduction

Unpacking: Thank you for purchasing the Vortex 1200 by ADJ Prod-

ucts, LLC. Every Vortex 1200 has been thoroughly tested and has

been shipped in perfect operating condition. Carefully check the ship-

ping carton for damage that may have occurred during shipping. If the

carton appears to be damaged, carefully inspect your xture for any

damage and be sure all accessories necessary to operate the unit has

arrived intact. In the case damage has been found or parts are miss-

ing, please contact our toll free customer support number for further

instructions. Do not return this unit to your dealer without rst contact-

ing customer support.

Introduction: The Vortex 1200 is a DMX intelligent, moving head,

moonflower LED fixture, with zoom effect. This fixture is a great piece

for nightclubs, bars, and stage productions. This unit can be used as

a stand alone unit, or in a Master/Slave conguration. The unit has 3

operating modes; show mode, sound active, and DMX controlled. This

fixture is suitable for theaters, studios, retail stores, and other similar

locations.

Customer Support: ADJ Products, LLC provides a toll free cus-

tomer support line, to provide set up help and to answer any question

should you encounter problems during your set up or initial operation.

You may also visit us on the web at www.adj.com for any comments

or suggestions. Service Hours are Monday through Friday 8:00 a.m. to

4:30 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: support@americandj.com

To purchase parts online visit http://parts.americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war-

ranty. In the unlikely event your unit may require service please contact

ADJ Products, LLC.

PLEASE recycle the shipping carton when ever possible.

• 4 DMX Modes; 14 Channel Mode, 15 Channel Mode, 17 Channel

Mode, & 29 Channel Mode

• RGBW Color Mixing

• 12 x 10W High Output Quad Color LEDs

• 5 Selectable Dimmer Curves

• 23 Color Macros

• 33 Pan/Tilt Macros

• Pan/Tilt Inversion

• Electronic Dimming 0-100%

• Dimmer Curve

• DMX-512 protocol

• 3 Operating Modes - Sound Active, Show Mode, & DMX Control

• UC3 Control (Controller Not Included) See page 31 for Functions

• Power Cord Daisy Chaining (See section below)

Vortex 1200 Power Cord Daisy Chaining

With this feature you can connect the xtures to one another

using the PowerCON input and output sockets. The quantity that

can be connected is 4 xtures maximum for 120V and 8 xtures

maximum for 240V. After the maximum xtures has been reached

you will need to use a new power outlet. They must be the same

xtures. DO NOT mix xtures.

ADJ Products, LLC - www.adj.com - Vortex 1200 User Manual Page 4 ADJ Products, LLC - www.adj.com - Vortex 1200 User Manual Page 5

Vortex 1200 Safety Precautions

• To reduce the risk of electrical shock or re, do not expose this unit

rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Be sure that the local power outlet match that of the required volt-

age for your unit.

• Do not attempt to operate this unit if the power cord has been

frayed or broken. Do not attempt to remove or break o the ground

prong from the electrical cord. This prong is used to reduce the risk

of electrical shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user

serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Never plug this unit in to a dimmer pack

• Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product out`

doors voids all warranties.

• During long periods of non-use, disconnect the unit’s main power.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to

be walked on or pinched by items placed upon or against them,

paying particular attention to the point they exit from the unit.

• Cleaning -The fixture should be cleaned only as recommended by

t he manufacturer. See page 33 for cleaning details.

• Heat -The appliance should be situated away from heat sources

such as radiators, heat registers, stoves, or other appliances (inclu-

d ing amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the appliance.

C. The appliance has been exposed to rain or water.

D. The appliance does not appear to operate normally or exhibits a

marked change in performance.

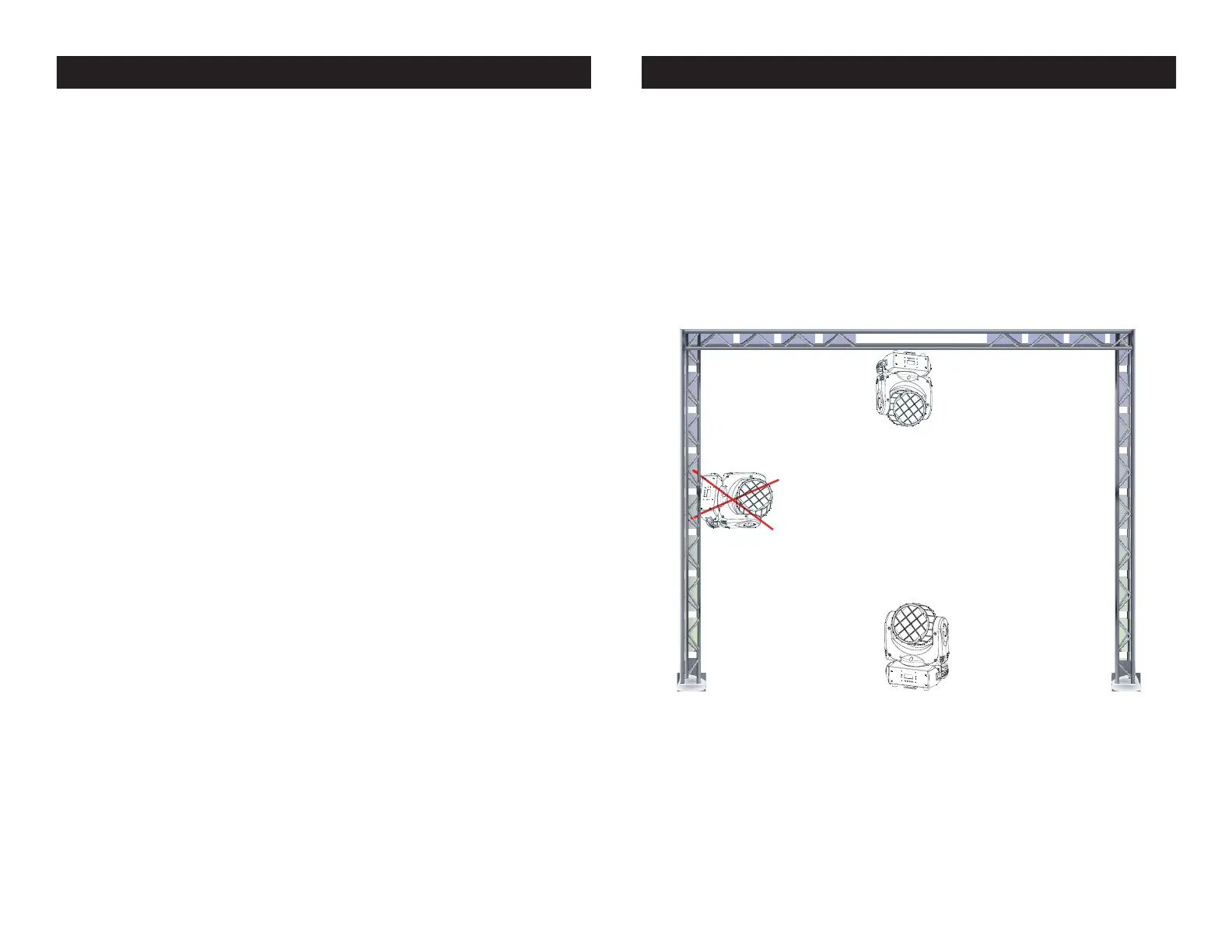

The Vortex 1200 is fully operational in two dierent mounting posi-

tions, hanging upside-down from a ceiling or set on a at level sur-

face. To avoid internal damage to the unit, never mount the unit on

its side as illustrated above. Be sure this xture is kept at least 0.5m

away from any ammable materials (decoration etc.). Always use

and install the supplied safety cable as a safety measure to prevent

accidental damage and/or injury in the event the clamp fails (see next

page). Never use the carrying handles for secondary attachment.

When installing the unit, the trussing or area of installation must be

able to hold 10 times the weight without any deformation. When

installing the unit must be secured with a secondary safety attach-

ment, e.g. and appropriate safety cable. Never stand directly below

the unit when mounting, removing, or servicing the unit.

Overhead mounting requires extensive experience, including calculat-

ing working load limits, installation material being used, and perodic

safety inspection of all installation material and unit. If you lack these

qualications, do not attempt the installation yourself.

These installaiton should be checked by a skilled person once a year.

Vortex 1200 Installation
