USER INSTRUCTIONS

SC-8 II SYSTEM

8 CHANNEL LOW VOLTAGE SWITCH SYSTEM

MAIN FEATURES:

• INDIVIDUAL CHANNEL SWITCHES & FLASH ON BUTTONS. MASTER ON/OFF.

• LIGHTED SWITCHES

• 19” RACK MOUNT SWITCH CENTER WITH BUILT-IN POWER SUPPLY.

• 15 AMPS TOTAL POWER CAPACITY (PER RELAY PACK).

• SYSTEM INCLUDES: 1 - SC-8 II, 1 - SC-8 RELAY PACK, 1 - SC-EX25

• MAY LINK UP TO 2 RP-8 RELAY PACKS ON 1 SC-8FC.

• INCLUDES REMOTE OPERATION FOR CC-2016 (CC-2016 CHASE CONTROLLER SOLD SEPARATELY).

• 12V SIGNAL OUTPUT FROM SWITCH CENTER.

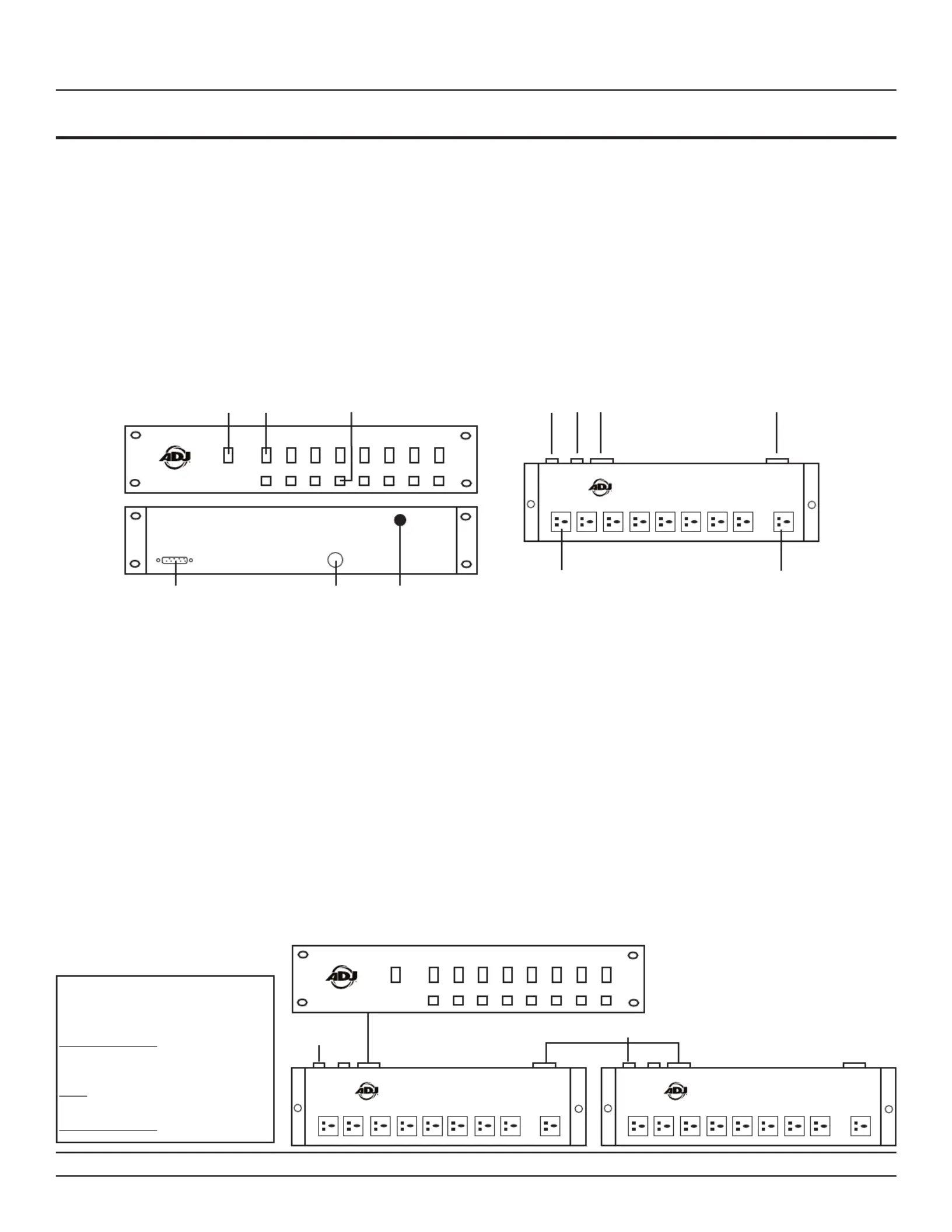

CONTROLS AND COMPONENTS:

1. MASTER ON/OFF SWITCH.

2. INDIVIDUAL CHANNEL SWITCHES.

3. FLASH ON BUTTON FOR EACH INDIVIDUAL CHANNEL.

4. 9 PIN LINE OUT CONNECTOR.

5. 12V POWER SUPPLY

6. FUSE

7. CHANNEL 1-8 110V SWITCHED SOCKETS.

8. UNSWITCHED 110V SOCKET FOR CONSTANT ON ITEM OR LINKING AC

TO ANOTHER RELAY PACK.

9. 9 PIN LINE OUTPUT FOR LINKING PACKS.

10. 9 PIN LINE INPUT FROM SC-8FC OR FROM ANOTHER SC- RP8.

11. 15 AMP CIRCUIT BREAKER.

12. A/C CORD AND PLUG.

ADJ Products, LLC LOS ANGELES, CA 90040 USA • www.adj.com • Customer Support: e-mail: support@americandj.com, Toll Free: 800-322-6337, Fax: 323-582-2941

SC-8 II

System

MASTER 1 2 5 63 4 7 8

1 2

11 10 9

8 CHANNEL RELAY PACK

CH-8 CH-7 CH-6 CH-5 CH-4 CH-3 CH-2 CH-1

LINE IN LINE OUT

CH-8 CH-7 CH-6 CH-5 CH-4 CH-3 CH-2 CH-1

LINE IN LINE OUT

CH-8 CH-7 CH-6 CH-5 CH-4 CH-3 CH-2 CH-1

LINE IN LINE OUT
