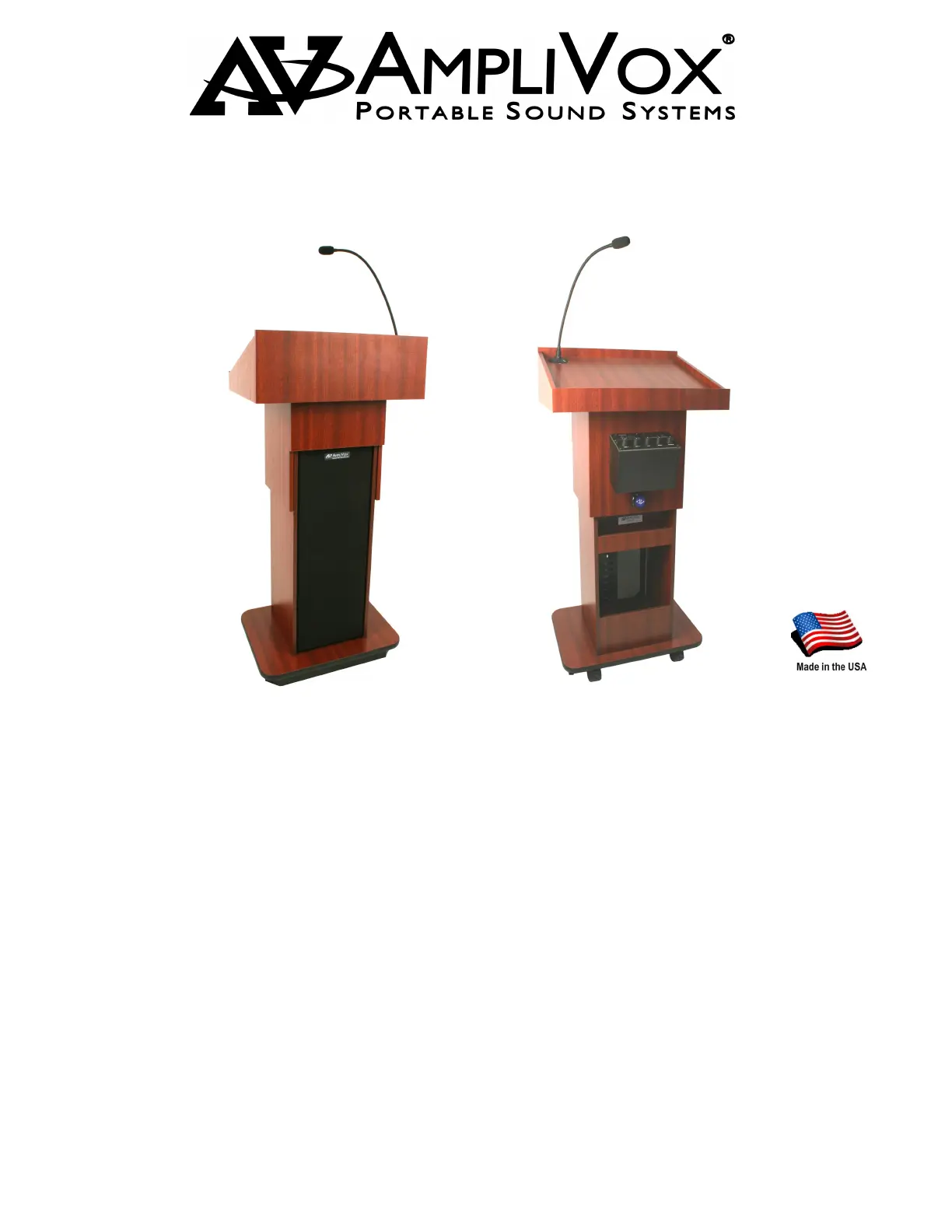

SW505A
· 150 W. Multimedia Stereo Amplifier
· Bluetooth Module and Control Panel
· Dynamic XLR Microphone
· 15 foot XLR mic cable
· 21"Electret condenser gooseneck
mic with Shock Mount Holder
· 16 CH UHF Wireless Microphone
and Receiver
· 2 - Built in Speakers
· 4 - Knurl Knobs/screws for Reading
Table 1" knob - 1" long
· 4 - Knurl Knobs for Base - 2" long
· Speaker Grille Cover
· 10 foot AC Power Cord
S505A
· 150 W. Multimedia Stereo Amplifier
· Bluetooth Module and Control Panel
· Dynamic XLR Microphone
· 15 foot XLR mic cable
· 21" Electret condenser gooseneck
mic with Shock Mount Holder
· 2 - Built in Speakers
· 4 - Knurl Knobs/screws for Reading
Table 1" knob - 1" long
· 4 - Knurl Knobs for Base - 2" long
· Speaker Grille Cover
· 10 foot AC Power Cord
WHAT’S IN THE BOX
Thank you for choosing the S505A and
SW505A Executive Adjustable Lectern
from AmpliVox Portable Sound Systems.
Our system combines flexibility with func-
tionality. Please refer to this user guide as
you enjoy the unique capabilities of an-
other quality product from AmpliVox Port-
able Sound Systems
.
We encourage you to visit our website
www.ampli.com to register your prod-
uct for its warranty coverage, sign up to
receive our newsletter, download our
catalog, and learn more about the com-
plete line of AmpliVox audio visual
products, including portable PA sys-
tems, and lecterns.
USER GUIDE
ASSEMBLY OF LECTERN ……………………………………....…………… 2
CONTROL PANEL ……………………………………….……………………. 3
WIRELESS MIC SETUP …………………………………….…………………. 3
BLUETOOTH MODULE …………………………………………..…………….4
PROBLEM SOLVING ………………………………………….……................ 4
As always, you can reach us at 800-267-5486
or at 847-489-9000
Monday - Friday 8am - 6pm CST.
User Guide
EXECUTIVE ADJUSTABLE COLUMN SOUND LECTERN S505A / SW505A
2
NO TOOL ASSEMBLY OF LECTERN
OPERATION OF ADJUSTABLE LECTERN
This lectern adjusts from 38 inches to 44 inches measured from the
amplifier side. To adjust the lectern height:
1. With one hand flat in the center of the table holding it down
loosen the adjustable height knob with the other hand.
2. You may extend the lectern up to its maximum height of 44 inches.
3. To lower the lectern, lightly press down on the reading table
until the desired height is reached and retighten the
height-locking knob.
TIP: The knob locks at any height by tightening it. The lectern
will adjust from 44 inches down to 38 inches when
measured from the amplifier side.
ADJUSTABLE HEIGHT DIAL
USE TO ADJUST LECTERN
HEIGHT FROM 38 TO 44
INCHES.
CONTROL PANEL
BASE
MOUNTING FLANGE
READING
TABLE
FLEXIBLE GOOSENECK
MICROPHONE
CENTER
COLUMN
Please read all instructions first and then follow the steps below.
Your lectern may not contain some of these features.

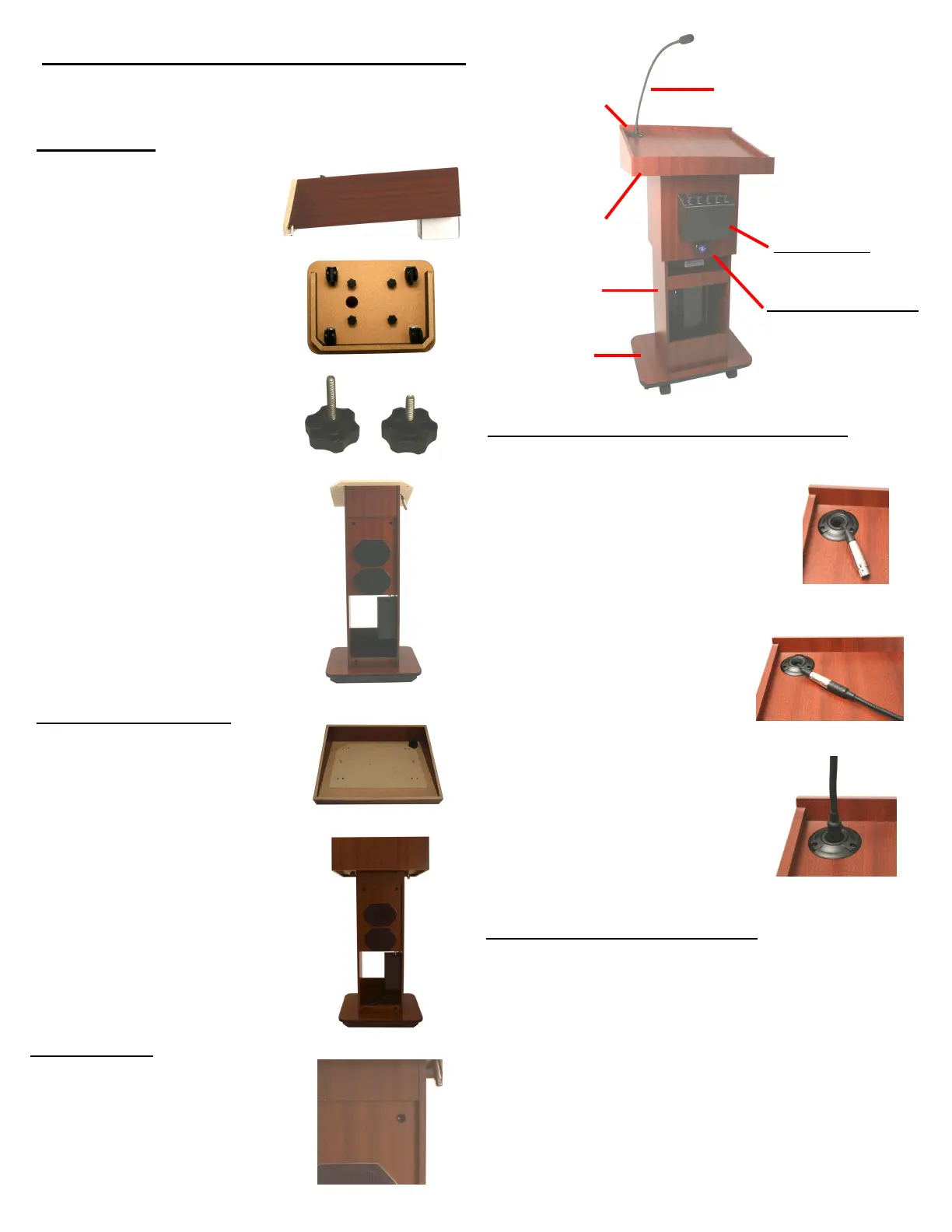

BASE ASSEMBLY
1. Remove center column from the
shipping carton and place as
shipped (speakers face down) on
the floor or on a suitable sturdy
table. If assembling on floor, raise
bottom end of lectern to make fasten-
ing base to lectern easier.
2. Remove and unpack the base from the
shipping carton.
3. Position base with the two locking
wheels facing the back of the lectern.
Assemble the base to the column by
using four of the 2 inch long knurl knob
screws supplied with the lectern.
TIP: Do not completely tighten each
screw as you place it through the base
and into the column. Wait until all four
screws have been put into the proper
position and then tighten them up.
4. Turn the base and column assembly
upright. If assembled on a table, place
the unit upright on the floor.
READING TABLE ASSEMBLY
1. Remove and unpack the lectern read-
ing table.
2. Attach the table to the top of the col-
umn. This is accomplished by placing
the table top on the column base and
lining up the corners.
TIP: the corners need to be lined up in
order to get the screws in the table top.
3. Fasten the reading table to the column
with the 4 - 1 inch long knurl knob
screws supplied. The knob screw goes
up into the reading table through the 4
holes in the column
SPEAKER GRILLE
1. Remove and unpack the speaker
grille..
2. Attach the speaker grille to the front of
the lectern by pushing the plastic posts
in each corner of the grille into the 4
cups.
ASSEMBLY OF FLEXIBLE GOOSENEC MICROPHONE:
The MIC CORD comes pre-wired to the ampli-
fier but needs to be assembled into the
MOUNTING FLANGE located in the far left cor-
ner of the READING TABLE.
Take the plug end of the microphone cable and
insert into the rubber boot of the MOUNTING
FLANGE from underneath. Push plug end all
the way through the rubber boot.
Now take GOOSENECK MICROPHONE
and connect to the plug end of the ca-
ble. Notice that the microphone connec-
tor has three small (3) pins inside of the
connector. These pins can bend if you
are not careful. Align these pins with
the three (3) holes in the plug end of the
cable and push together until microphone
is completely seated onto the plug.
Now carefully take excess cable and
push back through rubber booth first,
then insert the microphone only far
enough that it is able to stand upright
without falling over.
