Side 1/4
1
SW3250 Full Height
· 150 W. Multimedia Stereo Amplifier
· Bluetooth Module and Control Panel
· Dynamic XLR Microphone
· 15 foot XLR mic cable
· 21"Electret condenser gooseneck
mic with Shock Mount Holder
· 16 CH UHF Wireless Microphone
· 2 - Built in Speakers
· Speaker Grille Cover
· Power Strip
· 10 foot AC Power Cord
SW3240 Tabletop
· 150 W. Multimedia Stereo Amplifier
· Bluetooth Module and Control Panel
· Dynamic XLR Microphone
· 15 foot XLR mic cable
· 21" Electret condenser gooseneck
mic with Shock Mount Holder
· 16 CH UHF Wireless Microphone
· 2 - Built in Speakers
· Speaker Grille Cover
· Power Strip
· 10 foot AC Power Cord
WHAT’S IN THE BOX
Thank you for choosing the PINNACLE
SW3240 Tabletop or the SW3250 Full
Height Lectern from AmpliVox Portable
Sound Systems. Our system combines
flexibility with functionality. Please refer to
this user guide as you enjoy the unique
capabilities of another quality product from
AmpliVox Portable Sound Systems
.
We encourage you to visit our website
www.ampli.com to register your prod-
uct for its warranty coverage, sign up to
receive our newsletter, download our
catalog, and learn more about the com-
plete line of AmpliVox audio visual
products, including portable PA sys-
tems, and lecterns.
USER GUIDE
GOOSENECK MICROPHONE ………………..………………....…………… 2
DASHBOARD ……...…………………………………….……………………. 2
WIRELESS MIC SETUP …………………………………….…………………. 3
BLUETOOTH MODULE …………………………………………..…………….4
PROBLEM SOLVING ………………………………………….……................ 4
As always, you can reach us at 800-267-5486
or at 847-489-9000
Monday - Friday 8am - 6pm CST.
User Guide

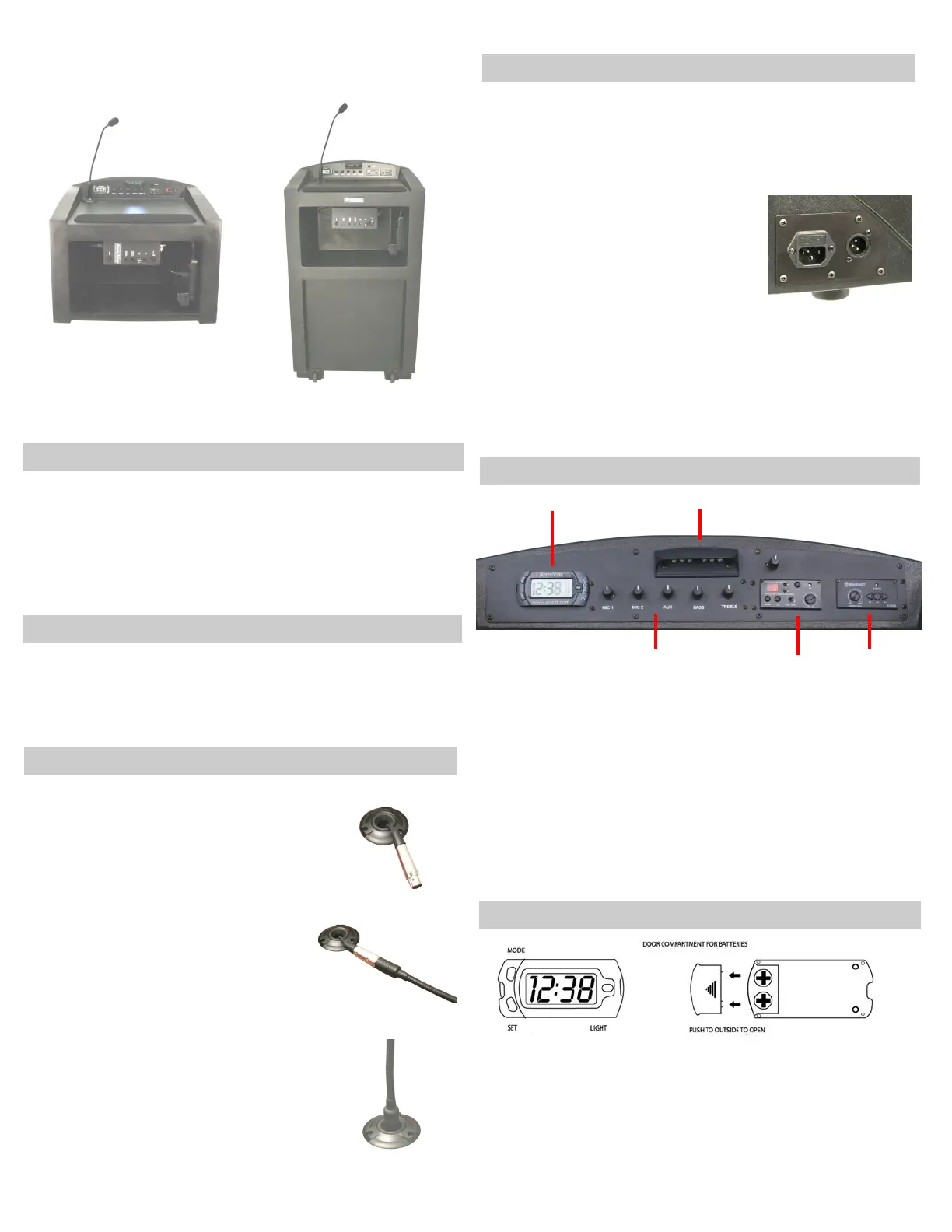

PINNACLE TABLETOP AND FULL HEIGHT LECTERN
WITH SOUND SW3240 / SW3250
SW3240
SW3250
2
A
Please read all instructions first and then follow the steps below.
Your lectern may not contain all of these features as shown.
Locate MOUNTING FLANGE in the far left
corner of the READING TABLE. The MIC
CORD comes pre-wired to the amplifier.and is
taped to the reading table. Remove tape.
Take GOOSENECK MICROPHONE and
connect to the plug end of the cable.
Notice that the microphone connector
has three small (3) pins inside of the
connector. These pins can bend if you
are not careful. Align these pins with
the three (3) holes in the plug end of the
cable and push together until micro-
phone is completely seated onto the plug.
Now carefully take excess cable and push
back through rubber booth first, then insert the
microphone only far enough that it is able to
stand upright without falling over.
· LCD CLOCK (A) See below.
· LED READING LAMP (B) The lectern is equipped with a bright,
adjustable 6-LED reading lamp that aluminates the entire reading
surface. To use, the main power on the power strip must be
turned on. The knob located to the right of the reading lamp turns
it on and controls the brightness. Turn it clock-wise to make it
brighter and counter-clockwise to dim or turn off completely.
· CONTROL PANEL (C) See page 3.
· WIRELESS 16 CHANNEL UHF RECEVIER (D) See page 3.
· BLUETOOTH MODULE (E) see page 4.
DASHBOARD
B
C
D
E
LCD CLOCK
· To make adjustments to clock, press mode button. Display will
flash to show which number to change. When flashing, use set
button to make changes.
· Press light button to laminate display. Light will only work when
pressing button.
· Requires 2—AG13 / LR44 button cell batteries (installed). To
replace batteries, pull clock out of opening in dashboard. Press
fit only.
POWER / XLR MICROPHONE OUTPUT
XLR OUTPUT
At the base of the lectern there is an XLR output jack that may be
used to connect the lectern to the house PA system, recording
device, or any other audio device with a MIC LEVEL input. With
this connection the person speaking into the electret microphone or
any other microphone plugged into the
amplifier panel, including the wireless
microphone, can also be heard through
the house system. Also, audio signals
from any device connected to the "LINE
IN" input will be heard through the house
system, such as the audio portion of a
computer presentation, CD player or MP3
device for example.
The XLR output may also be modified to deliver a line-level output
if needed. Contact AmpliVox Customer Service for further details.
POWER INPUT
Connect lectern to power outlet using the 10 foot IEC power cord.
GOOSENECK MICROPHONE
SW3240
SW3250
POWER STRIP
There is a 6-outlet power strip located inside the recess that is con-
nected to the power input jack at the base of the lectern. The
power strip can be used to power additional electronics.
PORTABILITY
Two tilt-n-turn heavy duty industrial wheels (SW3250) and built-in
handles for easy portability.
From the backside of the lectern grab the two recessed built-in han-
dles on the sides, tilt lectern backwards and begin to roll.
Produkspesifikasjoner
| Merke: | AmpliVox |
| Kategori: | Ikke kategorisert |
| Modell: | Pinnacle SW3250 |
| Vekt: | 28576.34 g |
| Bredde: | 660.4 mm |
| Dybde: | 660.4 mm |
| Høyde: | 1193.8 mm |
