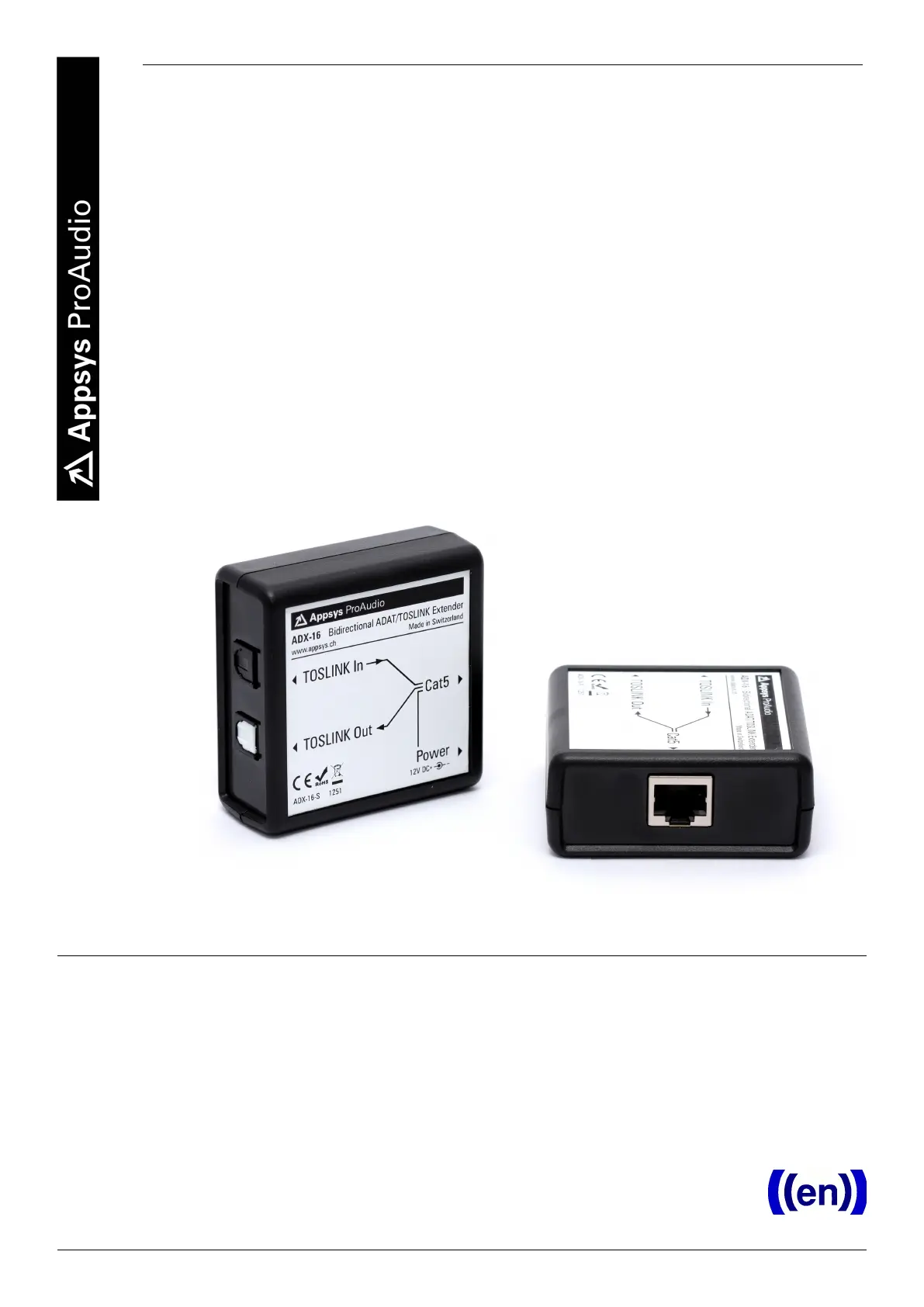

ADX-16
Bidirectional Extender for ADAT® and
TOSLINK® connections over Cat5
User's Manual
User's Manual
1. DESCRIPTION
1.1. Foreword
The ADX-16 Kit has been designed to overcome the length limitations (5m/16 ft) of
optical TOSLINK® interconnects running ADAT Lightpipe®, S/PDIF® and other
protocols, and to provide a more robust alternative to sensitive Plastic Optical
Fiber (POF) cable. Although longer optical cables are sometimes available, they do
not guarantee a reliable connection because they attenuate optical signals too
much and make the proper distinction of 0's and 1's in the digital signal dicult. A
typical indication for such problems are clicks, pops and crackles appearing in the
transmitted audio signal.
The ADX-16 solves these problems by converting the optical signals to electrical
ones, which can be losslessly transmitted over up to 100 meters using ubiquitous
and cheap Cat5 cable. Moreover, the ADX-16 reduces cabling by transmitting a
bidirectional signal (that is, one TOSLINK connection in either direction) together
with power for the second unit over a single Cat5 cable.
1.2. Applications
Economic digital 8x8 snake with lowest latency
Recording of 8 channels from a remote location, with master clock transmitted
to the remote unit
Interconnection of ADAT enabled equipment (e.g. DAWs and digital mixers)
If analog conversion is needed at one or both ends, we recommend using 8-
channel ADC/DACs (e.g. Behringer ADA8000 or Focusrite Octopre mkII
Dynamics) on the respective ends
1.3. Box Contents
Converter Box ADX-16-S
(1xTOSLINK In + 1xTOSLINK Out to Cat5 with power supply)
Converter Box ADX-16-R
(1xTOSLINK In + 1xTOSLINK Out to Cat5)
AC adapter
This manual
2
