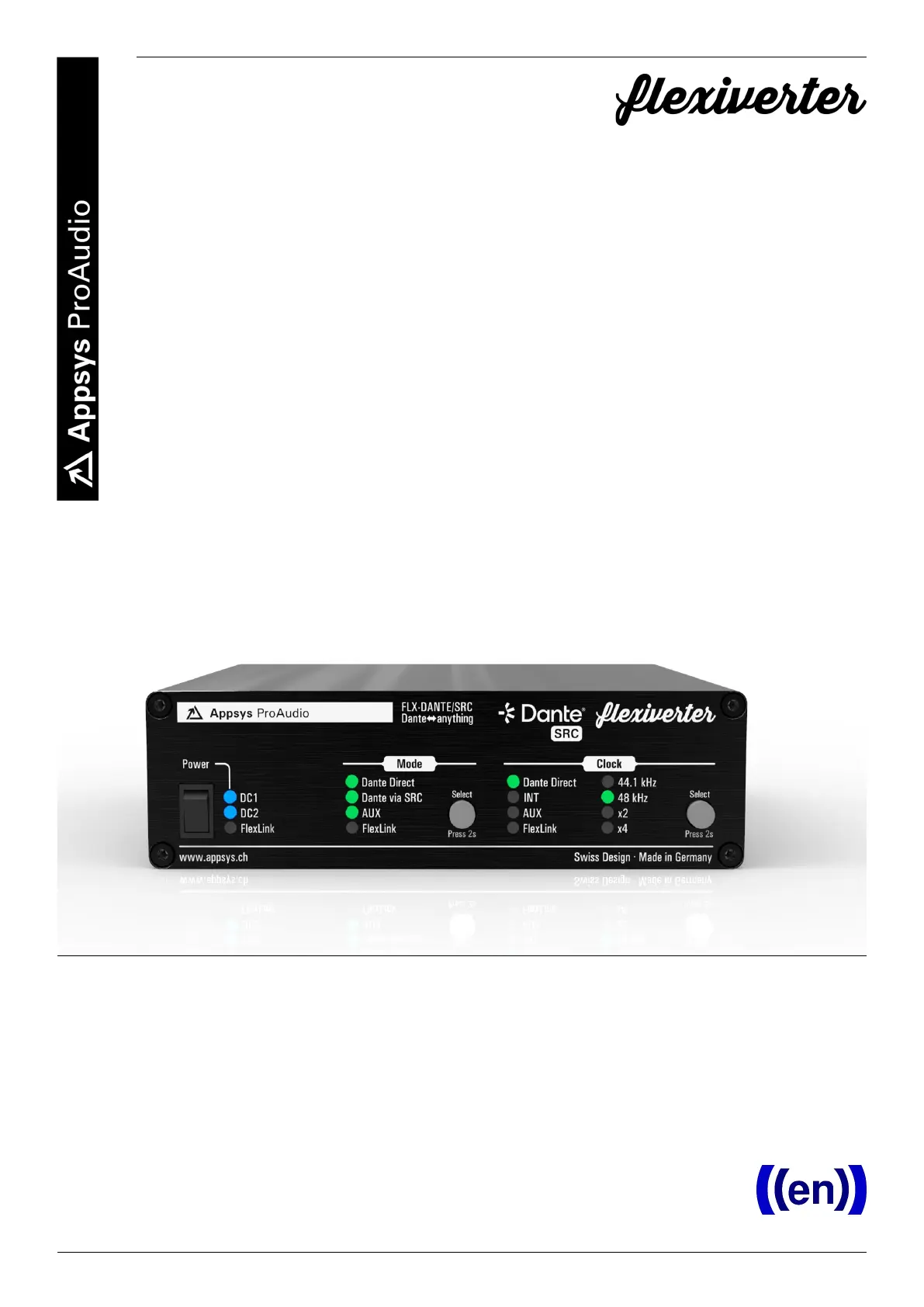

FLX-DANTE/SRC

Dante-to-anything

Digital Audio Converter with High-End SRC

User's Manual

User's Manual
Table of Contents
 QUICK REFERENCE............................................................................................4
 INTRODUCTION................................................................................................. 6
1.   Purpose.................................................................................................... 6
2.   Block diagram...........................................................................................6
3.   Box Contents............................................................................................7
4.   Conventions used in this manual..................................................................7
 TYPICAL SETUPS............................................................................................... 8
1.   Available AUX cards..................................................................................9
2.   Available FLX devices................................................................................9
3.   FlexLink connection...................................................................................9
 AUDIO ROUTING.............................................................................................. 11
1.   Modes and indication...............................................................................11
2.   Selecting the Route Mode.........................................................................12
3.   Remarks................................................................................................. 12
 CLOCK SETTINGS............................................................................................ 13
1.   Clock sources and indication.....................................................................13
2.   Selecting the Main Clock Source................................................................14
3.   Display the clock status of both clocks.......................................................14
 REMOTE CONTROL..........................................................................................15
1.   Browser-based control..............................................................................15
2.   Command line control..............................................................................15
 ACCESSING INTERNALS...................................................................................16
1.   Opening the device..................................................................................16
2.   Inside view.............................................................................................16
3.   Installing AUX cards.................................................................................16
 DIP SETTINGS.................................................................................................17
1.   Base device config (DIP1).........................................................................17
2.   AUX config (DIP4..6)...............................................................................17
3.   FlexLink channel mapping (DIP7..9)............................................................19
 SPECIAL OPERATING MODES............................................................................20
1.   Version Display.......................................................................................20
2.   LED Test................................................................................................20
3.   Interface Self-Test...................................................................................20
4.   Firmware update...................................................................................... 21
 SPECIFICATIONS.............................................................................................23
 ACCESSORIES................................................................................................. 24
1.   Rack mount kits.....................................................................................24
2.   Additional (redundant) power supply........................................................24
2
