Side 1/31
1
NUC13RNGi9, NUC13RNGi7, NUC13RNGi5, NUC13SBBi9, NUC13SBBi7, NUC13SBBi5.
User Guide July 2023
Intel® NUC 13 Extreme Kit - NUC13RNGi9
Intel® NUC 13 Extreme Kit - NUC13RNGi7
Intel® NUC 13 Extreme Kit - NUC13RNGi5
Intel® NUC 13 Extreme Compute Element -
NUC13SBBi9
Intel® NUC 13 Extreme Compute Element -
NUC13SBBi7
Intel® NUC 13 Extreme Compute Element -
NUC13SBBi5
User Guide
July 2023
2
NUC13RNGi9, NUC13RNGi7, NUC13RNGi5, NUC13SBBi9, NUC13SBBi7, NUC13SBBi5.
User Guide July 2023
You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products
described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject
matter disclosed herein.
No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.
All information provided here is subject to change without notice. Contact your Intel representative to obtain the latest Intel product
specifications and roadmaps.
The products described may contain design defects or errors known as errata which may cause the product to deviate from published
specifications. Current characterized errata are available on request.
Copies of documents which have an order number and are referenced in this document may be obtained by calling 1-800-548-4725 or by
visiting: http://www.intel.com/design/literature.htm.
Intel technologies' features and benefits depend on system configuration and may require enabled hardware, software or service activation.
Performance varies depending on system configuration. No computer system can be absolutely secure.
Intel and the Intel logo are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
*Other names and brands may be claimed as the property of others.
Copyright © 2023, Intel Corporation. All rights reserved.
3
NUC13RNGi9, NUC13RNGi7, NUC13RNGi5, NUC13SBBi9, NUC13SBBi7, NUC13SBBi5.
User Guide July 2023
Contents
1.0 Introduction ............................................................................................................................. 5
1.1 Before You Begin ........................................................................................................................................... 5
1.2 Installation Precautions ............................................................................................................................. 6
1.3 Observe Safety and Regulatory Requirements ......................................................................... 6
2.0 Open the Chassis ................................................................................................................... 7
3.0 System Memory ....................................................................................................................13
4.0 M.2 SSD .....................................................................................................................................16
5.0 2.5” and 3.5” SSD................................................................................................................18
6.0 External PCIe card ..............................................................................................................22
7.0 Close the Chassis .................................................................................................................27
8.0 Connect Power ......................................................................................................................29
9.0 Install an Operating System .........................................................................................30
10.0 Install the Latest Device Drivers and Software ................................................31
4
NUC13RNGi9, NUC13RNGi7, NUC13RNGi5, NUC13SBBi9, NUC13SBBi7, NUC13SBBi5.
User Guide July 2023
Revision History
Date
Revision
Description
October 2022
1.0
Initial release.
5
NUC13RNGi9, NUC13RNGi7, NUC13RNGi5, NUC13SBBi9, NUC13SBBi7, NUC13SBBi5.
User Guide July 2023
1.0 Introduction
This User Guide provides step-by-step installation instructions for these products:
Intel® NUC 13 Extreme Kit - NUC13RNGi9
Intel® NUC 13 Extreme Kit - NUC13RNGi7
Intel® NUC 13 Extreme Kit - NUC13RNGi5
Intel® NUC 13 Extreme Compute Element - NUC13SBBi9
Intel® NUC 13 Extreme Compute Element - NUC13SBBi7
Intel® NUC 13 Extreme Compute Element - NUC13SBBi5
1.1 Before You Begin
CAUTIONS
The steps in this guide assume you’re familiar with computer terminology and
with the safety practices and regulatory compliance required for using and
modifying computer equipment.
Disconnect the computer from its power source and from any network before
performing any of the steps described in this guide.
Failure to disconnect power, telecommunications links, or networks before you open
the computer or perform any procedures can result in personal injury or equipment
damage. Some circuitry on the board can continue to operate even though the front
panel power button is off.
Follow these guidelines before you begin:
Always follow the steps in each procedure in the correct order.
Create a log to record information about your computer, such as model,
serial numbers, installed options, and configuration information.
Electrostatic discharge (ESD) can damage components. Perform the
procedures described in this chapter only at an ESD workstation using an
antistatic wrist strap and a conductive foam pad. If such a station isn’t
available, you can provide some ESD protection by wearing an antistatic wrist
strap and attaching it to a metal part of the computer chassis.
7
NUC13RNGi9, NUC13RNGi7, NUC13RNGi5, NUC13SBBi9, NUC13SBBi7, NUC13SBBi5.
User Guide July 2023
2.0 Open the Chassis

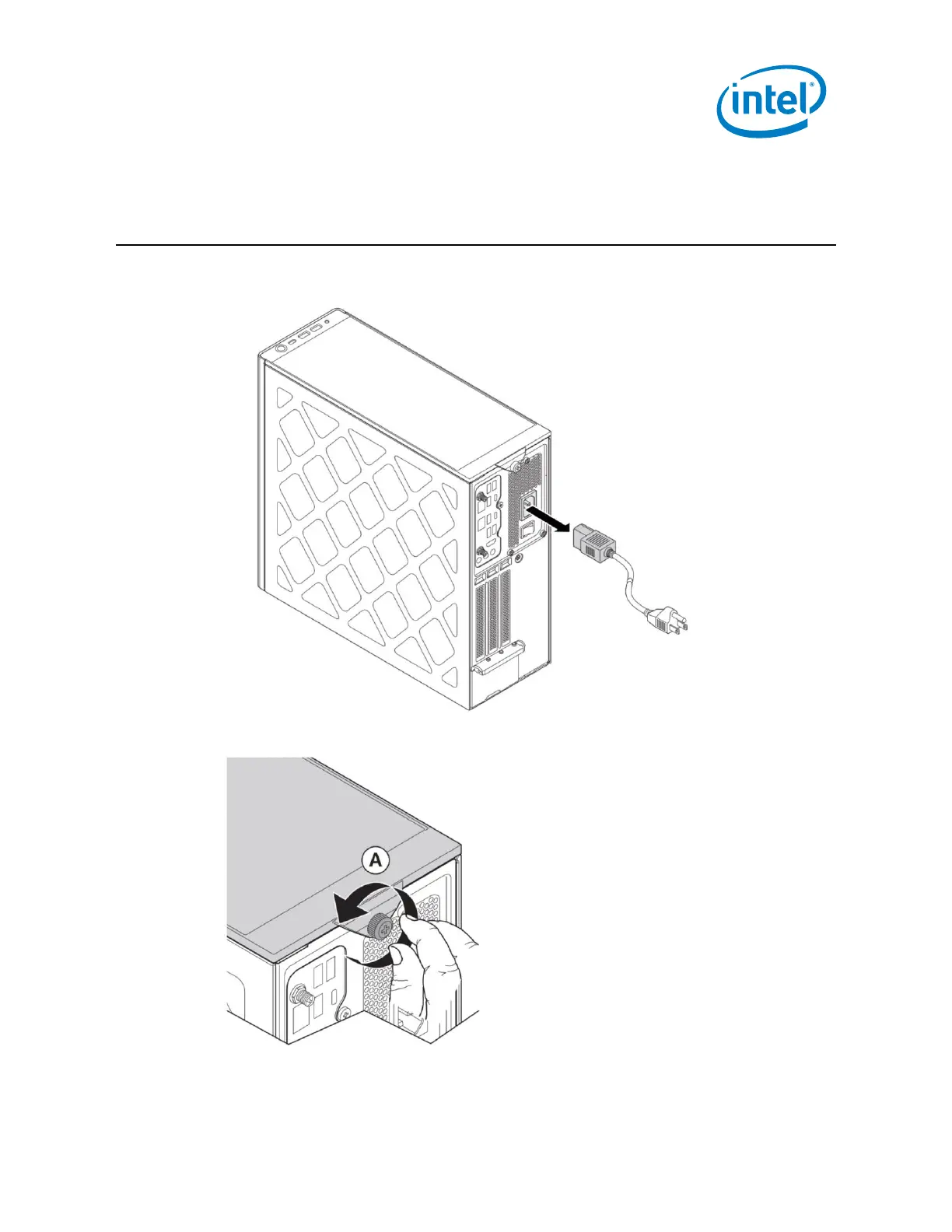

1. Disconnect the power cord, telecommunications systems, networks, antenna, and
modems, if any of them are connected, before you open or service the device.
2. Unscrew the thumb screw (A) on the rear side of the chassis.
8
NUC13RNGi9, NUC13RNGi7, NUC13RNGi5, NUC13SBBi9, NUC13SBBi7, NUC13SBBi5.
User Guide July 2023

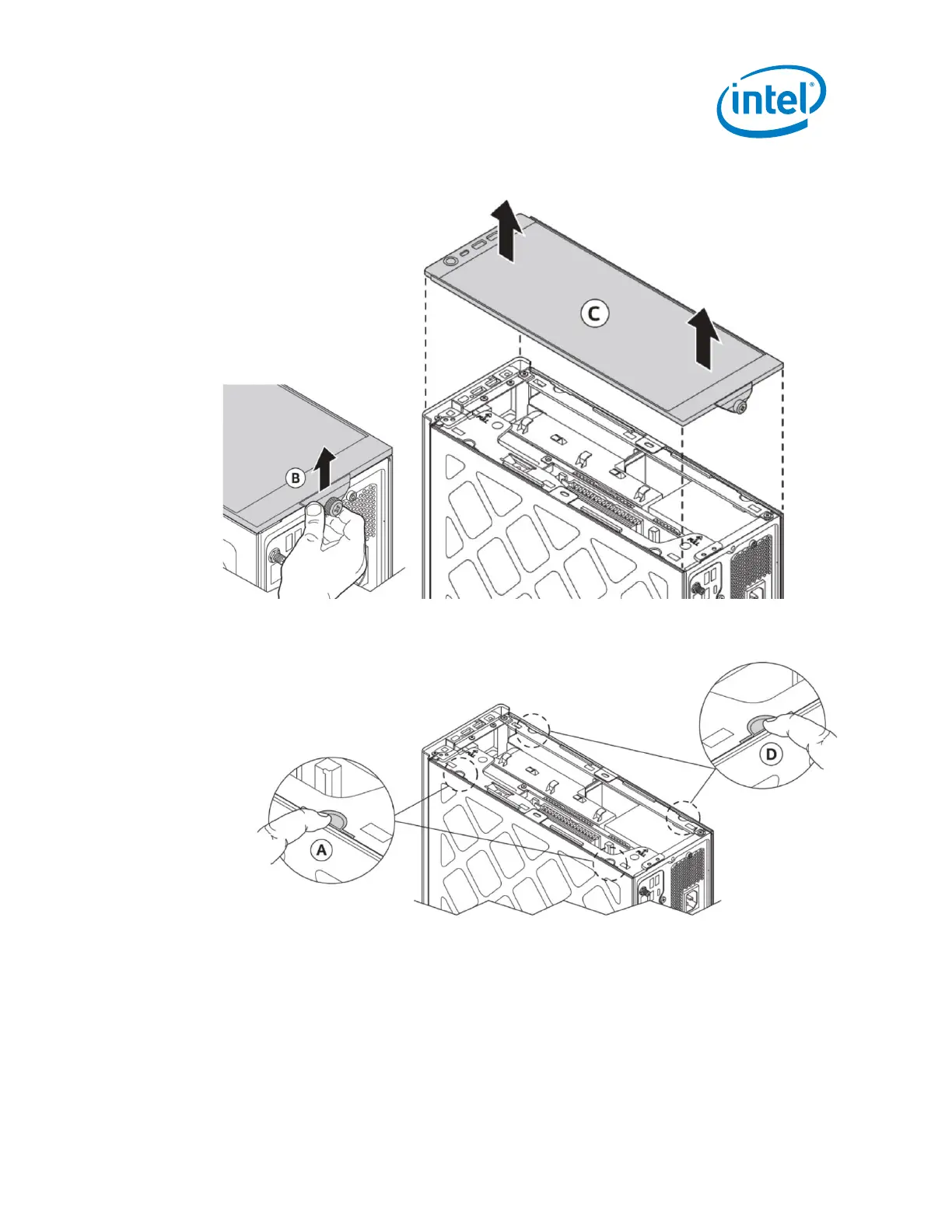

3. Hold (B) and lift to remove the top cover.

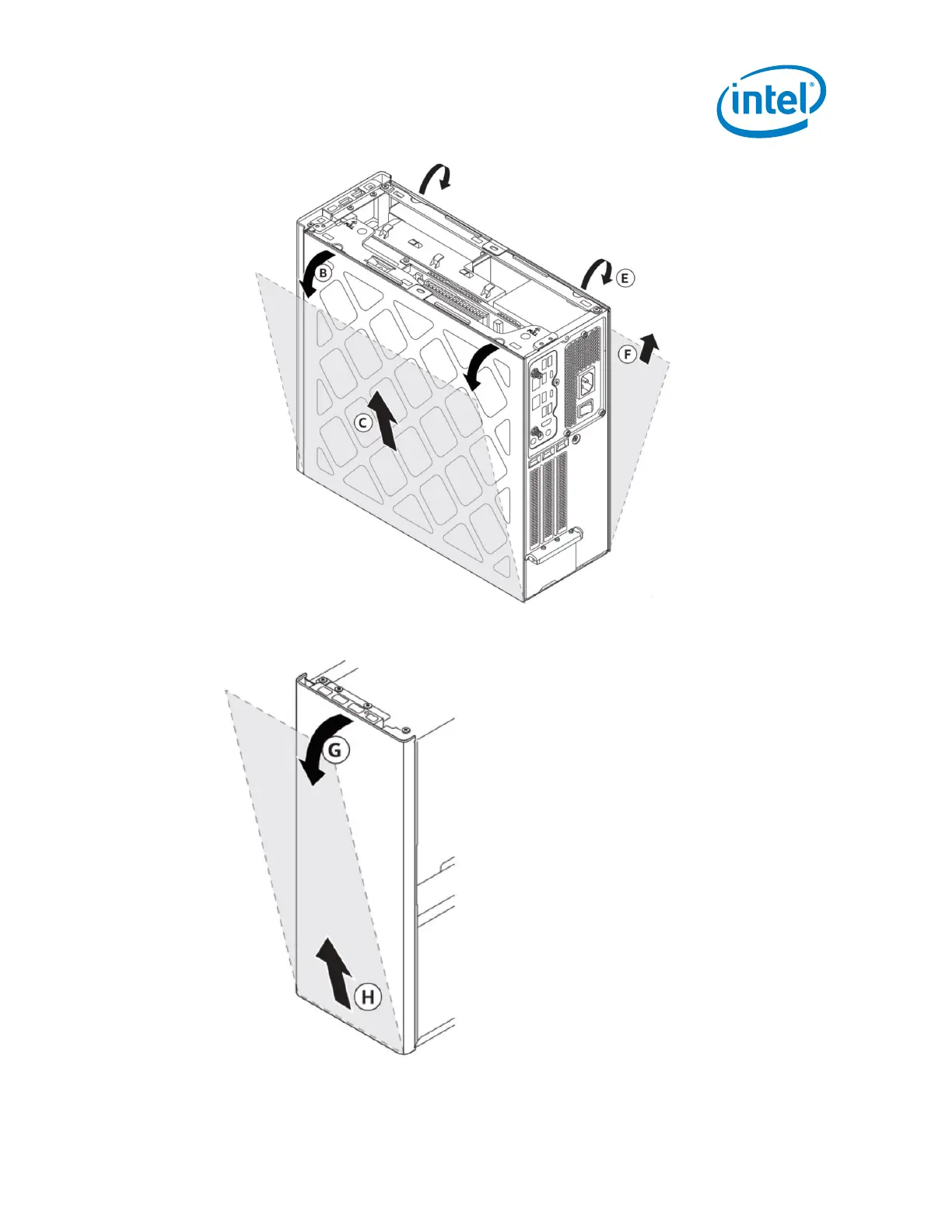

4. Pull (A) (D) outwards to remove the side panels:
9
NUC13RNGi9, NUC13RNGi7, NUC13RNGi5, NUC13SBBi9, NUC13SBBi7, NUC13SBBi5.
User Guide July 2023
5. Remove the front cover:
10
NUC13RNGi9, NUC13RNGi7, NUC13RNGi5, NUC13SBBi9, NUC13SBBi7, NUC13SBBi5.
User Guide July 2023

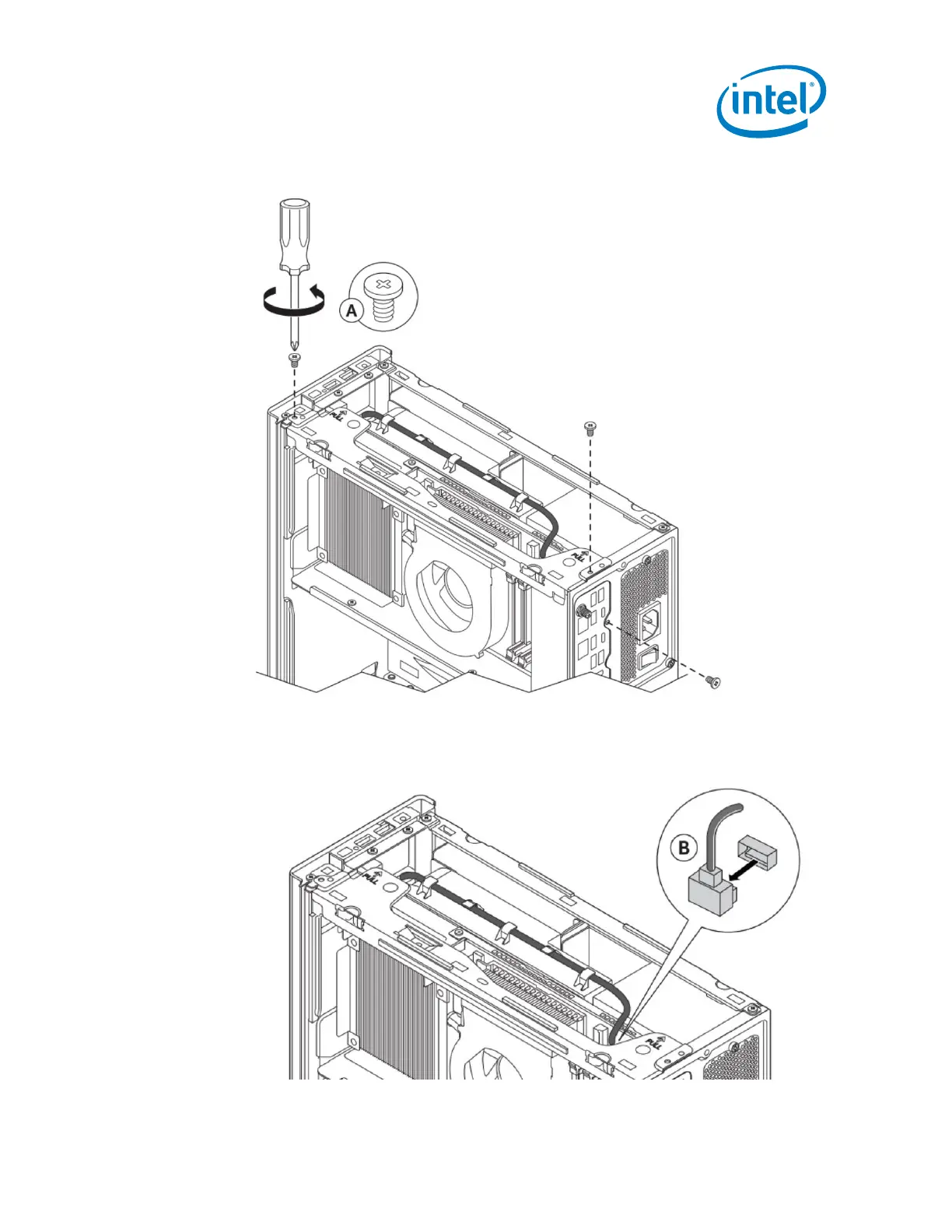

6. Unscrew the three screws on the top front, top rear, and back panel:

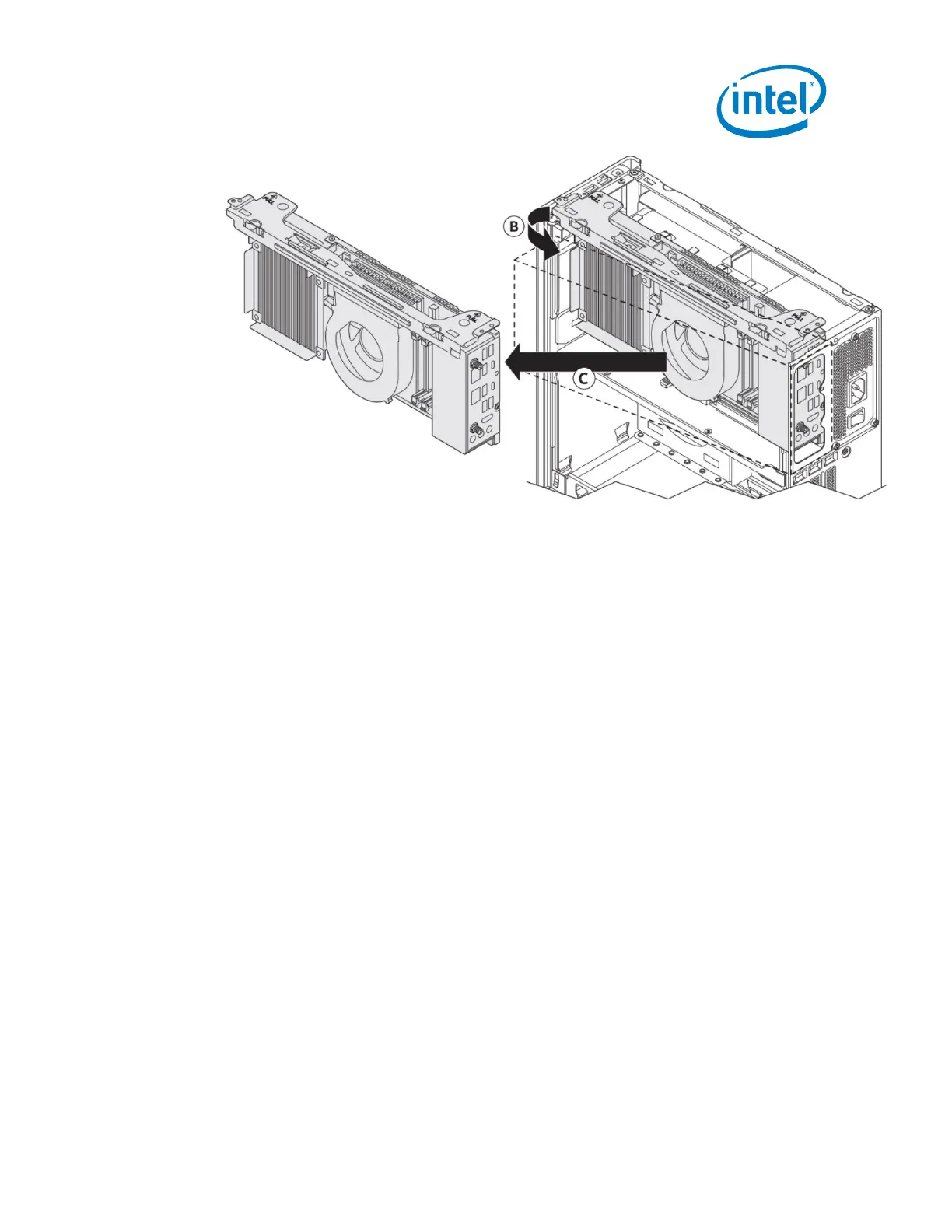

7. Remove the USB Type-C cable (B)
12
NUC13RNGi9, NUC13RNGi7, NUC13RNGi5, NUC13SBBi9, NUC13SBBi7, NUC13SBBi5.
User Guide July 2023
13
NUC13RNGi9, NUC13RNGi7, NUC13RNGi5, NUC13SBBi9, NUC13SBBi7, NUC13SBBi5.
User Guide July 2023
3.0 System Memory
Intel® NUC 13 Extreme Kit NUC13RNGi9, NUC13RNGi7, NUC13RNGi5 and Intel® NUC
13 Extreme Compute Element NUC13SBBi9, NUC13SBBi7, NUC13SBBi5 have two
262-pin DDR5 SO-DIMM sockets. Be sure to select memory modules that meet these
requirements:
1.1V and 2.1V (with XMP) low voltage JEDEC memory only
4000 MHz, 4400 MHz, 4800 MHz, 5200 MHz, and 5600 MHz SO-DIMMs
Max capacity - 64GB
Non-ECC
Intel® XMP 3.0 support
Find compatible memory modules in the Intel Product Compatibility Tool
NUC13RNGi9
NUC13RNGi7
NUC13RNGi5
NUC13SBBi9
NUC13SBBi7
NUC13SBBi5
NOTE
If you plan to install only one memory module, install it in the lower
memory socket.
To install memory, follow these steps:
1. Observe the precautions in "Before You Begin" on page 5.
2. Turn off all peripheral devices connected to the computer. Turn off the
computer and disconnect the power cord.
3. Remove the computer’s side and top chassis covers as per the instructions in
section 2.0, Open the chassis.

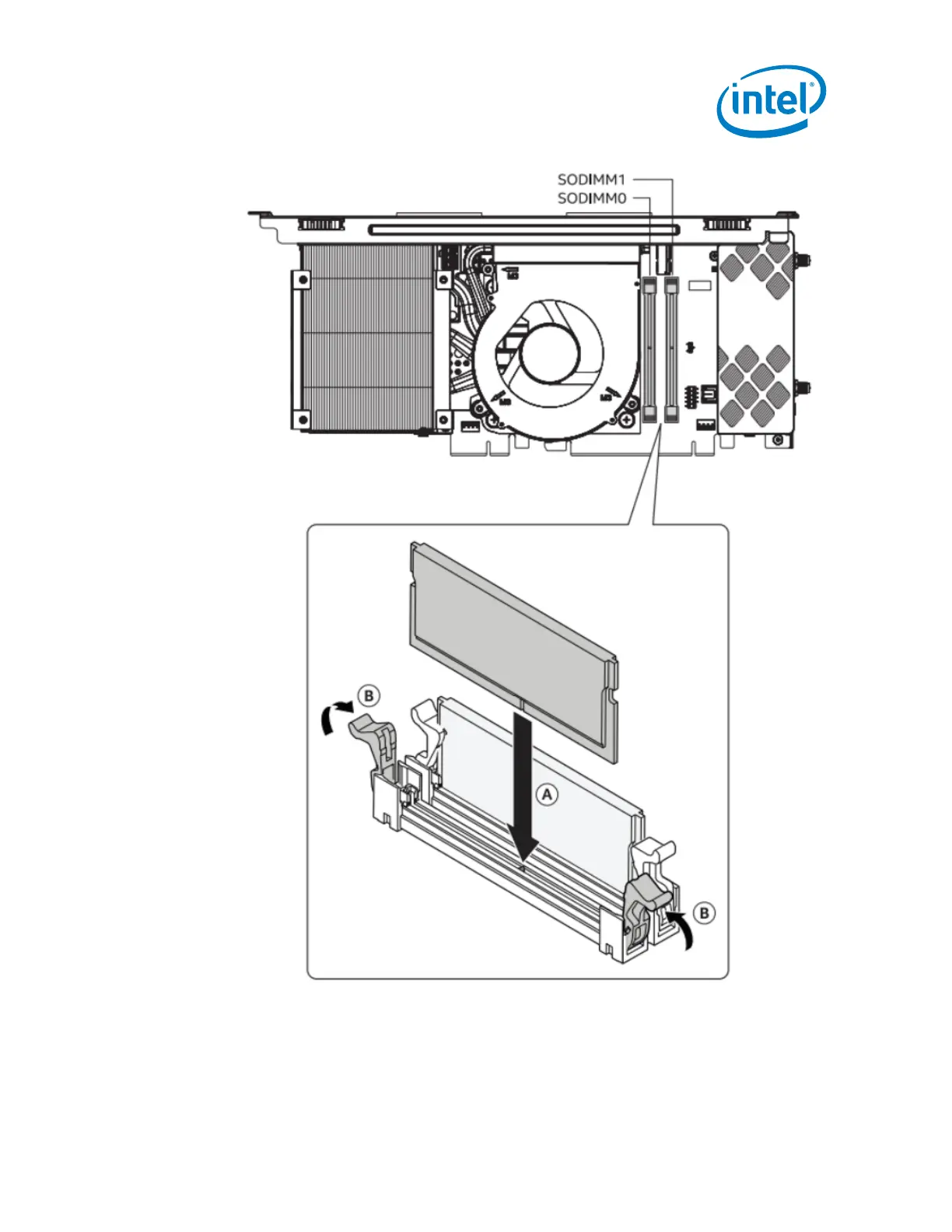

4. Align the small space (key) at the bottom edge of the memory module with
the key in the socket.
5. Insert the bottom edge of the module vertically into the socket (A)
6. When the module is inserted, push up the retaining clips until they snap into
place (B). Make sure the clips are firmly in place.
14
NUC13RNGi9, NUC13RNGi7, NUC13RNGi5, NUC13SBBi9, NUC13SBBi7, NUC13SBBi5.
User Guide July 2023
15
NUC13RNGi9, NUC13RNGi7, NUC13RNGi5, NUC13SBBi9, NUC13SBBi7, NUC13SBBi5.
User Guide July 2023
To remove a SO-DIMM, follow these steps:
1. Observe the precautions in "Before You Begin" on page 5.
2. Turn off all peripheral devices connected to the computer. Turn off
the computer and disconnect the power cord.
3. Remove the computer’s side and top chassis covers as per the
instructions in the section 2.0 Open the chassis.
4. Gently push the retaining clips down at each end of the memory
module to get it out of the socket.
5. Holding the module by the edges, lift it away from the socket, and
store it in an antistatic package.
6. Reinstall and reconnect any parts you removed or disconnected to
reach the memory sockets.
7. Replace the computer’s covers and reconnect the power cord as per
the instructions from section 5.0 Close the Chassis.
