Side 1/4

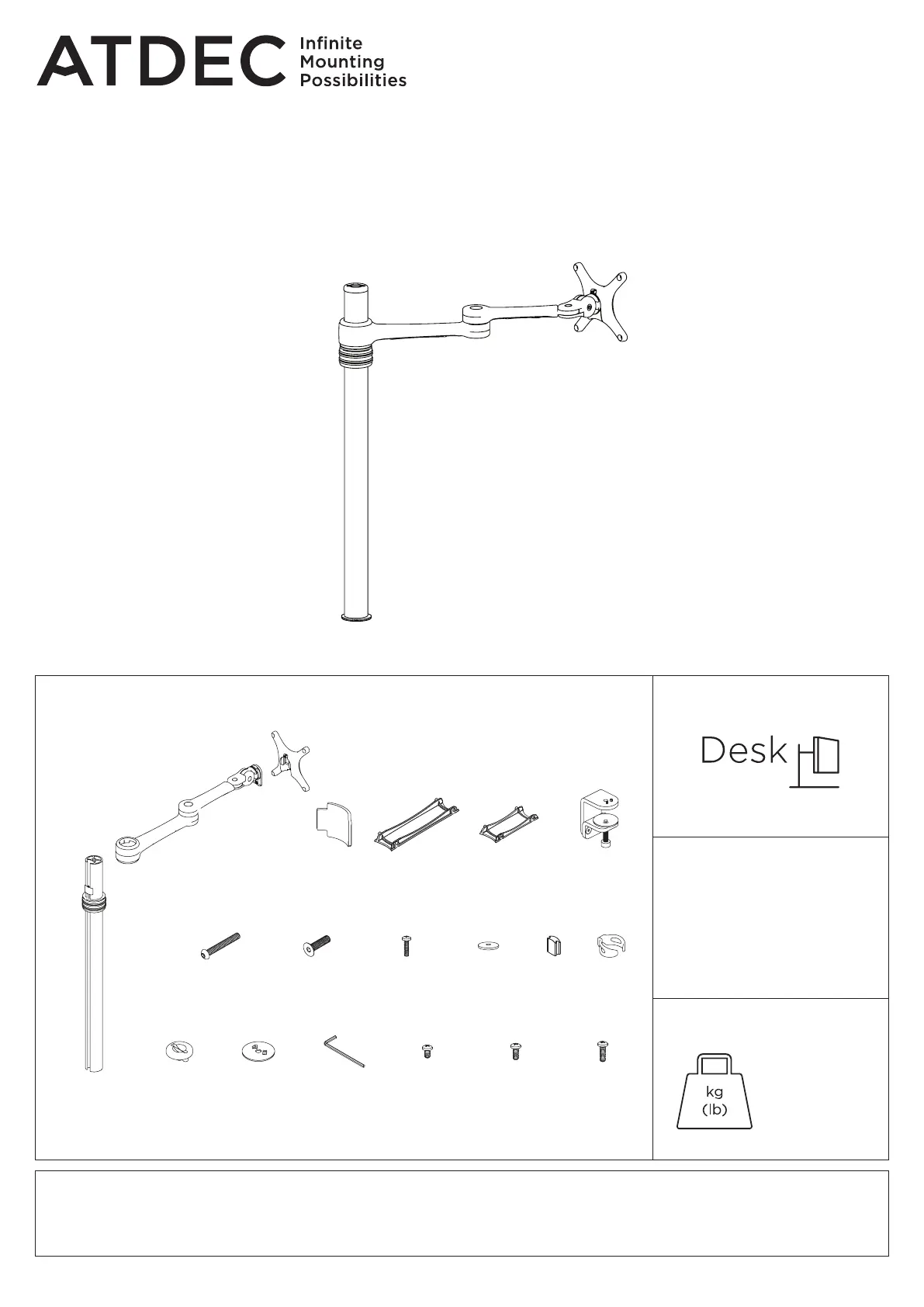

AF-AT Page 1 of 4

COMPONENT CHECKLIST

Monitor

arm

(x1)

Pole Assembly

(x1)

VESA

head

(x1)

Rotation

limitor

(x1)

Screw

M8 x 30mm

(x1)

Pole

top cap

(x1)

Bolt through

base

(x1)

5mm

Allen key

(x1)

Mounting

screws

M4 x 10mm

(x4)

Mounting

screws

M4 x 12mm

(x4)

Mounting

screws

M4 x 16mm

(x4)

Security Screw

M4 x 16mm

(x1)

Steel

washer

(x1)

Cable

stop

(x2)

Cable

clip

(x1)

Primary arm

cable cover

(x1)

Secondary arm

cable cover

(x1)

Desk clamp

assembly

(x1)

Screw

M8 x 60mm

(x1)

Installation Guide

AF-AT

Single Arm

Desktop Monitor Mount

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! This product is compatible with the range of AF Poles and arms.

! The manufacturer accepts no responsibility for incorrect installation.

REQUIRED TOOLS

WEIGHT RANGE

• Power Drill

• Drill Bit

• Phillips Head Screwdriver

0 - 8kg

(0 - 17.6lbs)

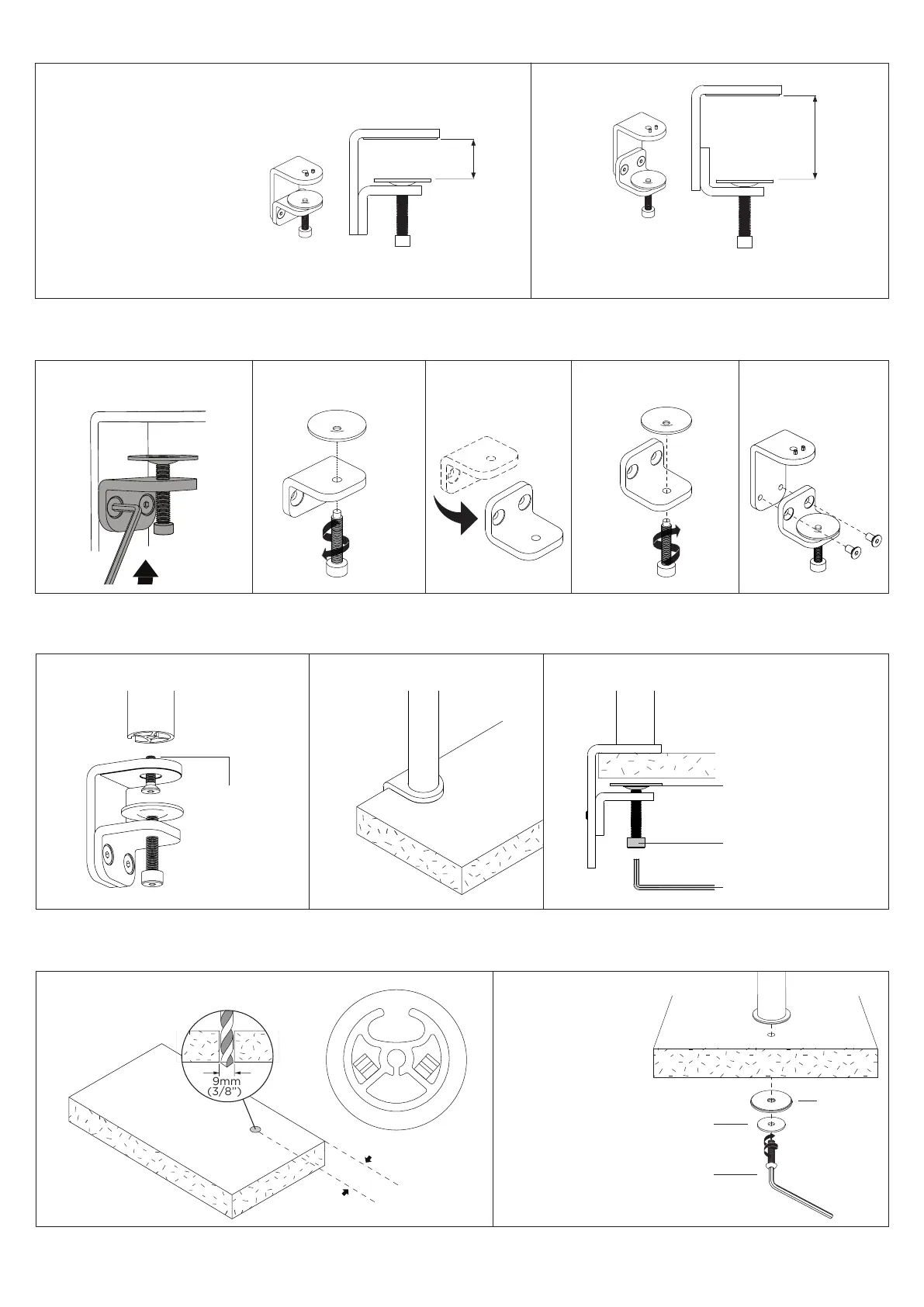

AF-AT Page 2 of 4

1. Desk overview

The desk clamp bracket

can be repositioned to

suit different mounting

surface thicknesses.

1.1 Default 1.2 Inverted

2. How to reconfigure desk clamp

2.1 Remove screws

(M8 x 16mm Countersunk screw)

2.2 Remove clamp plate 2.3 Invert bracket 2.4 Replace clamp plate 2.5 Reattach bracket

Pressure Plate

M10 Desk Clamp Screw

5mm Allen Key

M8 x 30mm

Countersunk

screw Tighten

firmly

3.2 Place in desired location 3.3 Screw pressure plates in and tighten firmly.3.1 Attach clamp to post

Drill 9mm hole in

desired post position

on work surface.

3. Post mount configuration

4. Bolt through

9mm

(3/8”)

25mm

offset

MIN THICKNESS - 0mm (0”)

MAX THICKNESS - 39mm (1.5”)

MIN THICKNESS - 35mm (1.4”)

MAX THICKNESS - 76mm (3”)

5. Installing bolt through

5.1 Attach plate to post

Align rear hole with

hole on desk

5mm

Allen Key

M8x60mm

Screw

Bolt

Through

Plate

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Ikke kategorisert
Modell:	AF-AT
Produkttype:	Monteringsarm
Bredde:	422 mm
Høyde:	525 mm
Antall per pakke:	1 stykker
Rotasjonsvinkel:	360 °
Antall skjermer som støttes:	1
Høydejustering:	Ja
Produktfarge:	Sort
Vippevinkelområde:	-70 - 70 °
Pakkedybde:	580 mm
Pakkehøyde:	95 mm
Pakkebredde:	220 mm
Kroppsmateriale:	Aluminium, Plastic
Panelmonterbart grensesnitt:	75 x 75, 100 x 100 mm
Maksimalvekt (kapasitet):	8 kg
Masterkassens (ytterkassens) bruttovekt:	17600 g
Masterkassens (ytterkassens) lengde:	595 mm
Produkter per masterkasse (ytterkasse):	6 stykker
Masterkassens (ytterkassens) bredde:	455 mm
Masterkassens (ytterkassens) høyde:	300 mm
