Side 1/3

Component Checklist

Coach Screw (x4)

Nylon Anchor (x4)

Washer (x4)

5mm/4mm

Allen Key

M6x16mm

M6x25mm

M8x16mm

M8x25mm

Installation Instructions

TH-3060-UFL

Large-Medium TV Articulated Arm

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received all parts against the Component Checklist and Hardware above.

! IMPORTANT - Install Telehook 3060 Large-Medium TV Articulated Arm per Installation Instructions.

! This product supports a maximum load of 35kg (77lbs).

! This product supports VESA mounting hole configurations 200mm wide x100mm high to 700mm wide x 500mm high.

! The manufacturer accepts no responsibility for incorrect installation.

Display Mounting

Screws (x4 each)

Hardware

Tools Required:

Power drill

•

5mm (0.2”) drill bit

•

10mm (0.39”) masonry drill bit

•

Phillips head screw driver•

13mm (0.5”) socket wrench or shifter

•

Step 2. Changing position of Arm on Wall Mount

Step 3. Install Arm/Wall Mount to the Wall

Arm/Wall Mount

Mounting Bracket (x2)

Multiwasher (x4)

End Cap (x2)

Top Cap (x2)

Block (x2)

Locking

Screw (x4)

End Cap

Use Phillips head screw driver

to loosen and tighten.

Use 5mm Allen Key to

loosen and tighten.

Timber Stud Wall

Masonry Wall

- Drill four 10mm (0.39”) diameter holes, 58mm (2.3”) deep.

- Secure the mounting plate to the wall using the Coach

Screws and Nylon Anchors supplied.

- Drill four 5mm (0.2”) diameter holes, 58mm (2.3”) deep.

- Secure the mounting plate to the wall using the Coach

Screws supplied.

NOTE: Use a stud finder to accurately locate the centre

of the stud. Ensure that all screws fix securely into stud.

Four optional positions

Coach Screw

Washer

End Cap

Screw

Nylon Anchor

Drilled Hole

End Cap

Coach Screw

Washer

End Cap

Screw

Drilled Hole

End Cap

WALL

Component Checklist

Coach Screw (x4)

Nylon Anchor (x4)

Washer (x4)

5mm/4mm

Allen Key

M6x16mm

M6x25mm

M8x16mm

M8x25mm

Installation Instructions

TH-3060-UFL

Large-Medium TV Articulated Arm

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received all parts against the Component Checklist and Hardware above.

! IMPORTANT - Install Telehook 3060 Large-Medium TV Articulated Arm per Installation Instructions.

! This product supports a maximum load of 35kg (77lbs).

! This product supports VESA mounting hole configurations 200mm wide x100mm high to 700mm wide x 500mm high.

! The manufacturer accepts no responsibility for incorrect installation.

Display Mounting

Screws (x4 each)

Hardware

Tools Required:

Power drill

•

5mm (0.2”) drill bit

•

10mm (0.39”) masonry drill bit

•

Phillips head screw driver•

13mm (0.5”) socket wrench or shifter

•

Step 2. Changing position of Arm on Wall Mount

Step 3. Install Arm/Wall Mount to the Wall

Arm/Wall Mount

Mounting Bracket (x2)

Multiwasher (x4)

End Cap (x2)

Top Cap (x2)

Block (x2)

Locking

Screw (x4)

End Cap

Use Phillips head screw driver

to loosen and tighten.

Use 5mm Allen Key to

loosen and tighten.

Timber Stud Wall

Masonry Wall

- Drill four 10mm (0.39”) diameter holes, 58mm (2.3”) deep.

- Secure the mounting plate to the wall using the Coach

Screws and Nylon Anchors supplied.

- Drill four 5mm (0.2”) diameter holes, 58mm (2.3”) deep.

- Secure the mounting plate to the wall using the Coach

Screws supplied.

NOTE: Use a stud finder to accurately locate the centre

of the stud. Ensure that all screws fix securely into stud.

Four optional positions

Coach Screw

Washer

End Cap

Screw

Nylon Anchor

Drilled Hole

End Cap

Coach Screw

Washer

End Cap

Screw

Drilled Hole

End Cap

WALL

Component Checklist

Coach Screw (x4)

Nylon Anchor (x4)

Washer (x4)

5mm/4mm

Allen Key

M6x16mm

M6x25mm

M8x16mm

M8x25mm

Installation Instructions

TH-3060-UFL

Large-Medium TV Articulated Arm

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received all parts against the Component Checklist and Hardware above.

! IMPORTANT - Install Telehook 3060 Large-Medium TV Articulated Arm per Installation Instructions.

! This product supports a maximum load of 35kg (77lbs).

! This product supports VESA mounting hole configurations 200mm wide x100mm high to 700mm wide x 500mm high.

! The manufacturer accepts no responsibility for incorrect installation.

Display Mounting

Screws (x4 each)

Hardware

Tools Required:

Power drill

•

5mm (0.2”) drill bit

•

10mm (0.39”) masonry drill bit

•

Phillips head screw driver•

13mm (0.5”) socket wrench or shifter

•

Step 2. Changing position of Arm on Wall Mount

Step 3. Install Arm/Wall Mount to the Wall

Arm/Wall Mount

Mounting Bracket (x2)

Multiwasher (x4)

End Cap (x2)

Top Cap (x2)

Block (x2)

Locking

Screw (x4)

End Cap

Use Phillips head screw driver

to loosen and tighten.

Use 5mm Allen Key to

loosen and tighten.

Timber Stud Wall

Masonry Wall

- Drill four 10mm (0.39”) diameter holes, 58mm (2.3”) deep.

- Secure the mounting plate to the wall using the Coach

Screws and Nylon Anchors supplied.

- Drill four 5mm (0.2”) diameter holes, 58mm (2.3”) deep.

- Secure the mounting plate to the wall using the Coach

Screws supplied.

NOTE: Use a stud finder to accurately locate the centre

of the stud. Ensure that all screws fix securely into stud.

Four optional positions

Coach Screw

Washer

End Cap

Screw

Nylon Anchor

Drilled Hole

End Cap

Coach Screw

Washer

End Cap

Screw

Drilled Hole

End Cap

WALL

Component Checklist

Coach Screw (x4)

Nylon Anchor (x4)

Washer (x4)

5mm/4mm

Allen Key

M6x16mm

M6x25mm

M8x16mm

M8x25mm

Installation Instructions

TH-3060-UFL

Large-Medium TV Articulated Arm

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received all parts against the Component Checklist and Hardware above.

! IMPORTANT - Install Telehook 3060 Large-Medium TV Articulated Arm per Installation Instructions.

! This product supports a maximum load of 35kg (77lbs).

! This product supports VESA mounting hole configurations 200mm wide x100mm high to 700mm wide x 500mm high.

! The manufacturer accepts no responsibility for incorrect installation.

Display Mounting

Screws (x4 each)

Hardware

Tools Required:

Power drill

•

5mm (0.2”) drill bit

•

10mm (0.39”) masonry drill bit

•

Phillips head screw driver•

13mm (0.5”) socket wrench or shifter

•

Step 2. Changing position of Arm on Wall Mount

Step 3. Install Arm/Wall Mount to the Wall

Arm/Wall Mount

Mounting Bracket (x2)

Multiwasher (x4)

End Cap (x2)

Top Cap (x2)

Block (x2)

Locking

Screw (x4)

End Cap

Use Phillips head screw driver

to loosen and tighten.

Use 5mm Allen Key to

loosen and tighten.

Timber Stud Wall

Masonry Wall

- Drill four 10mm (0.39”) diameter holes, 58mm (2.3”) deep.

- Secure the mounting plate to the wall using the Coach

Screws and Nylon Anchors supplied.

- Drill four 5mm (0.2”) diameter holes, 58mm (2.3”) deep.

- Secure the mounting plate to the wall using the Coach

Screws supplied.

NOTE: Use a stud finder to accurately locate the centre

of the stud. Ensure that all screws fix securely into stud.

Four optional positions

Coach Screw

Washer

End Cap

Screw

Nylon Anchor

Drilled Hole

End Cap

Coach Screw

Washer

End Cap

Screw

Drilled Hole

End Cap

WALL

Component Checklist

Coach Screw (x4)

Nylon Anchor (x4)

Washer (x4)

5mm/4mm

Allen Key

M6x16mm

M6x25mm

M8x16mm

M8x25mm

Installation Instructions

TH-3060-UFL

Large-Medium TV Articulated Arm

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received all parts against the Component Checklist and Hardware above.

! IMPORTANT - Install Telehook 3060 Large-Medium TV Articulated Arm per Installation Instructions.

! This product supports a maximum load of 35kg (77lbs).

! This product supports VESA mounting hole configurations 200mm wide x100mm high to 700mm wide x 500mm high.

! The manufacturer accepts no responsibility for incorrect installation.

Display Mounting

Screws (x4 each)

Hardware

Tools Required:

Power drill

•

5mm (0.2”) drill bit

•

10mm (0.39”) masonry drill bit

•

Phillips head screw driver•

13mm (0.5”) socket wrench or shifter

•

Step 2. Changing position of Arm on Wall Mount

Step 3. Install Arm/Wall Mount to the Wall

Arm/Wall Mount

Mounting Bracket (x2)

Multiwasher (x4)

End Cap (x2)

Top Cap (x2)

Block (x2)

Locking

Screw (x4)

End Cap

Use Phillips head screw driver

to loosen and tighten.

Use 5mm Allen Key to

loosen and tighten.

Timber Stud Wall

Masonry Wall

- Drill four 10mm (0.39”) diameter holes, 58mm (2.3”) deep.

- Secure the mounting plate to the wall using the Coach

Screws and Nylon Anchors supplied.

- Drill four 5mm (0.2”) diameter holes, 58mm (2.3”) deep.

- Secure the mounting plate to the wall using the Coach

Screws supplied.

NOTE: Use a stud finder to accurately locate the centre

of the stud. Ensure that all screws fix securely into stud.

Four optional positions

Coach Screw

Washer

End Cap

Screw

Nylon Anchor

Drilled Hole

End Cap

Coach Screw

Washer

End Cap

Screw

Drilled Hole

End Cap

WALL

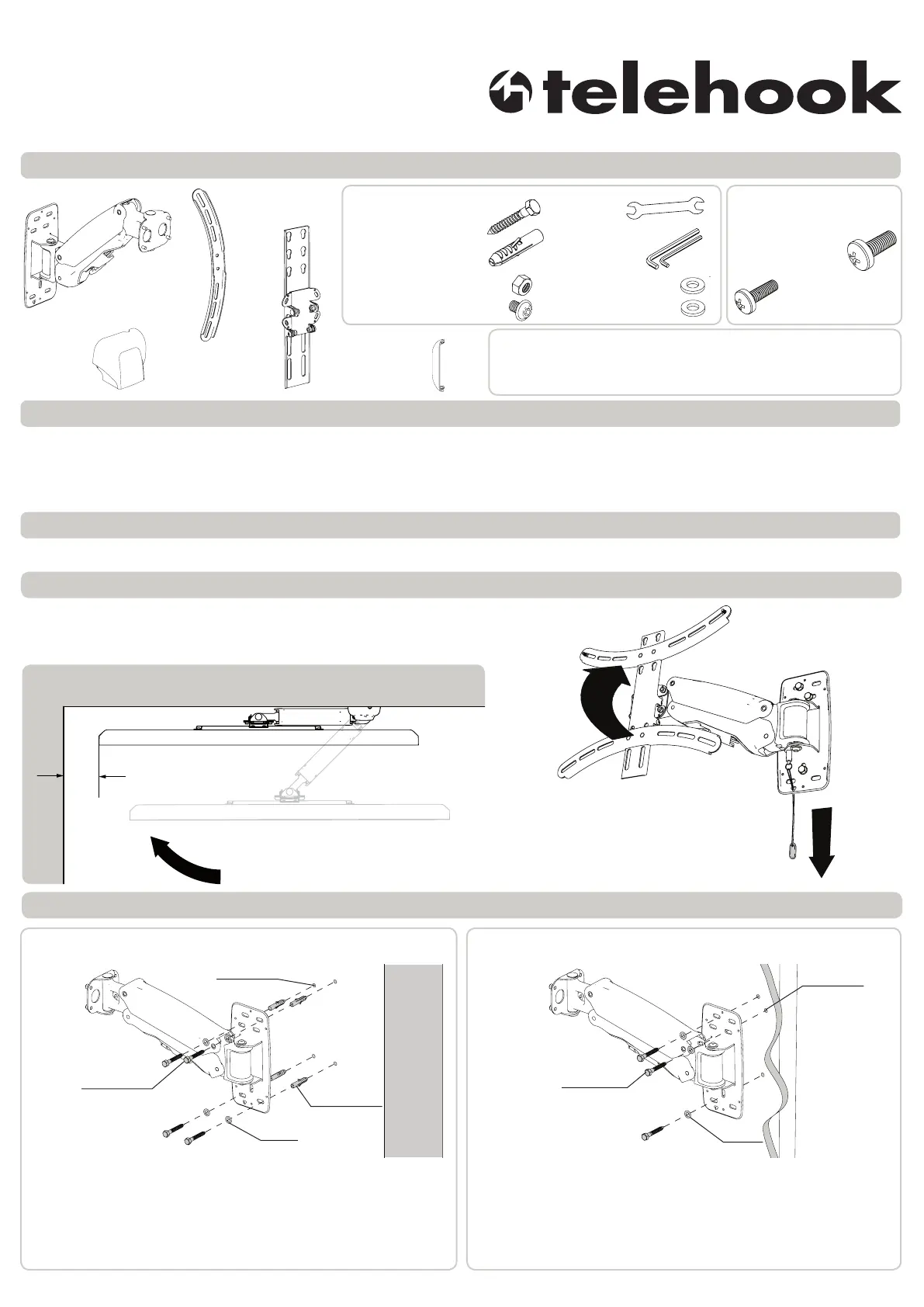

Flat screen wall mount | Full Motion height adjustable

TH-3060-UFH

! IMPORTANT - Install Telehook Flatscreen wall mount as per Installation Instructions

! This product supports a minimum load of 5kg (11lbs) and a maximum load of 25kg (55lbs)

! This product supports VESA mounting hole configurations from 200mm x 200mm to 400mm x 400mm

! The Manufacturer accepts no responsibility for incorrect installation.

Check you have received all parts against the Component Checklist and Hardware.

M6 x 16mm (x4)

M6 x 25mm (x4)

Display Mounting

Screws Bag

M8 x 16mm (x4)

M8 x 25mm (x4)

Hardware Bag

Coach Screw (x4)

Nylon Anchor (x4)

Spanner

6mm/4mm

Allen key

20mm Washer (x4)

Arm

Display

Mount

cap (x2)

Display

Bracket (x2)

Wall plate

cover (x2)

Masonary Wall Timber Stud wall

- Using a 10mm (0.39”) masonary drill bit, Drill four holes,

60mm (2.4”) deep.

- Secure the mounting plate to the wall using the Coach

Screws and Nylon Anchors supplied.

- 5mm (0.2”) drill bit

- 10mm (0.39”) masonary drill bit

- Philips head screwdriver

- Power drill

Tools required:

Clearance

locked position

free movement

M6 Nyloc Nut (x4)

M6 x 6mm screw (x4)

12mm Washer (x4)

Installation Instructions

- Using a 5mm (0.2”) drill bit, Drill three holes , 60mm (2.4”)

deep.

- Secure the mounting plate to the wall using the Coach

Screws supplied.

NOTE: Use a stud finder to accurately locate the centre

of the stud. Ensure that all screws fix securely into stud.

Coach Screw

Washer

Nylon Anchor

Drilled hole

Coach Screw

Washer

Drilled hole

This product has a feature where the arm will automatically lock in position when

pushed up against the wall to the left. If this feature is to be used allow clearance

to the left when deciding the mounting location.

To unlock, pull the chord down whilst

moving the arm away from the wall

Wall

Step 3. Install Arm to the wall

Step 1. Check Components

Component Checklist

Step 2. Mounting Location

IMPORTANT INFORMATION

PUSH

Flat screen wall mount | Full Motion height adjustable

PUSH

5° 5°

The Mounting rails support VESA hole

configurations from 200mm x 200mm to

400mm x 400mm

Display mounting screw

Only insert the M6 x 6mm screws in

the mounting rail attached to the top of

the display. Tighten fully then undo one

half turn

Mounting rail

Mount

Washer

M6 Nyloc Nut

(tighten firmly)

Threaded stud

A.From the

tightened position

undo each nut a

quarter of a turn two

times

B.This will

allow 10°

Horizontal

rotation

adjustment

Note:The nuts can be re-tightened to

secure the display in position or left to allow

future changes

Step4.AttachWallPlateCovers

Step6.HorizontalRotationAdjustment

Step8.AttachMountingRailsToDisplay

Step7.AttachScrewCovers

Step5.AttachDisplayMounttoArm

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Ikke kategorisert
Modell:	TH-3060-UFH
Maksimal skjermstørrelse:	22.4 "
Minimum skjermstørrelse:	- "
Produktfarge:	Sort
Vippevinkelområde:	0 - 13 °
Kroppsmateriale:	Stål
Panoreringsomfang:	0 - 180 °
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	25 kg
Monteringsgrensesnitt, kompatibilitet (min):	200 x 200 mm
Monteringsgrensesnitt, kompatibilitet (maks):	400 x 400 mm
Distanse til vegg (maks.):	450 mm
Distanse til vegg (min.):	70 mm
