Side 1/4

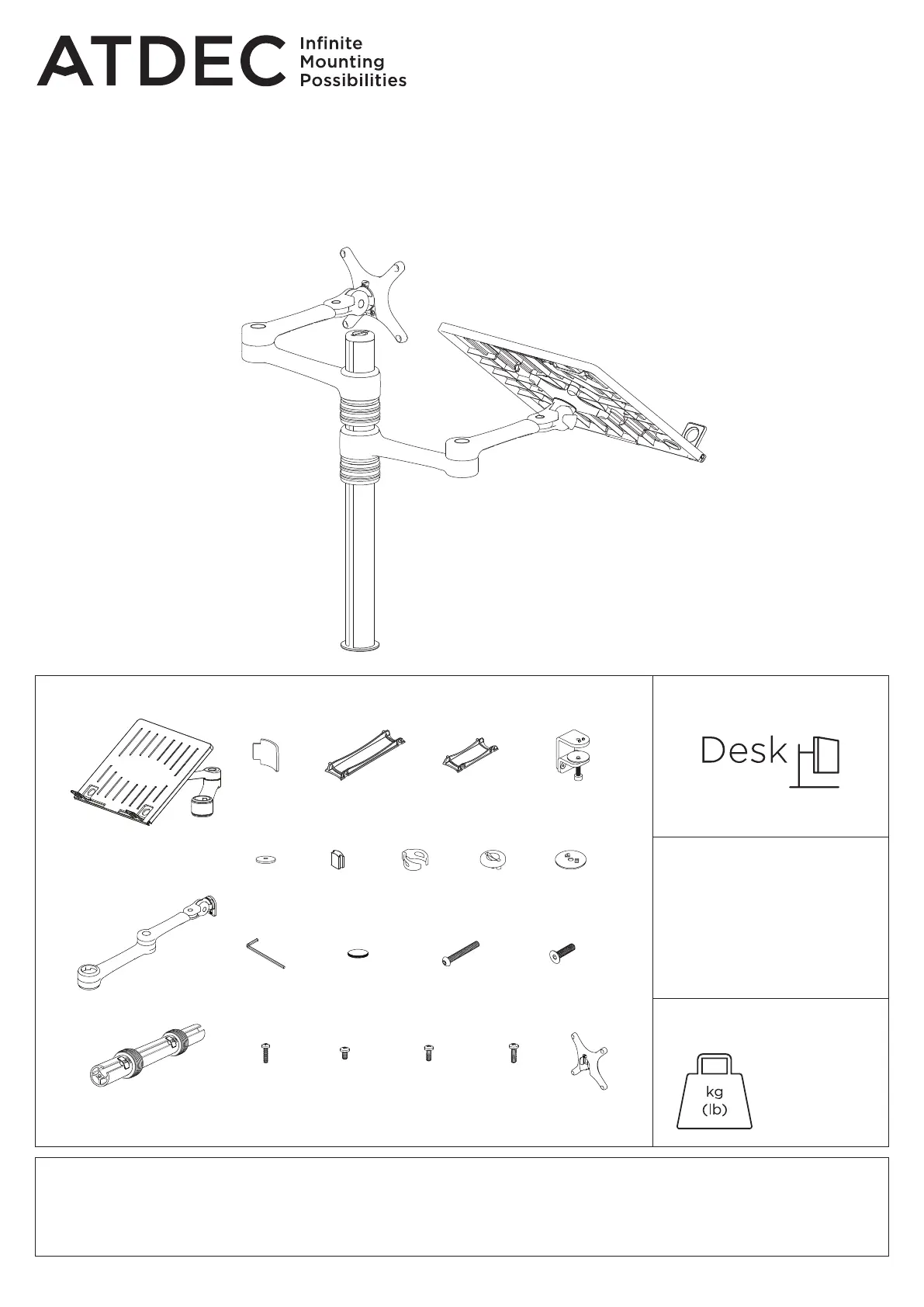

AF-AT-NBC Page 1 of 4

COMPONENT CHECKLIST

Notebook tray

assembly

(x1)

Primary arm

cable cover

(x1)

Secondary arm

cable cover

(x1)

Self adhesive

hook & loop

(x4 sets)

Monitor

arm

(x1)

Pole

assembly

(x1)

Rotation

limitor

(x1)

Screw

M8 x 30mm

(x1)

Pole

top cap

(x1)

Bolt through

base

(x1)

5mm

Allen key

(x1)

Mounting

screws

M4 x 10mm

(x4)

Mounting

screws

M4 x 12mm

(x4)

Mounting

screws

M4 x 16mm

(x4)

Security

Screw

M4 x 16mm

(x1)

Steel

washer

(x1)

Cable

stop

(x2)

Screw

M8 x 60mm

(x1)

Desk clamp

assembly

(x1)

Cable

clip

(x1)

VESA

head

(x1)

Installation Guide

AF-AT-NBC

Notebook Monitor Arm

Combo Mount

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

REQUIRED TOOLS

WEIGHT RANGE

• Power Drill

• Drill Bit

• Phillips Head Screwdriver

0 - 8kg

(0 - 17.6lbs)

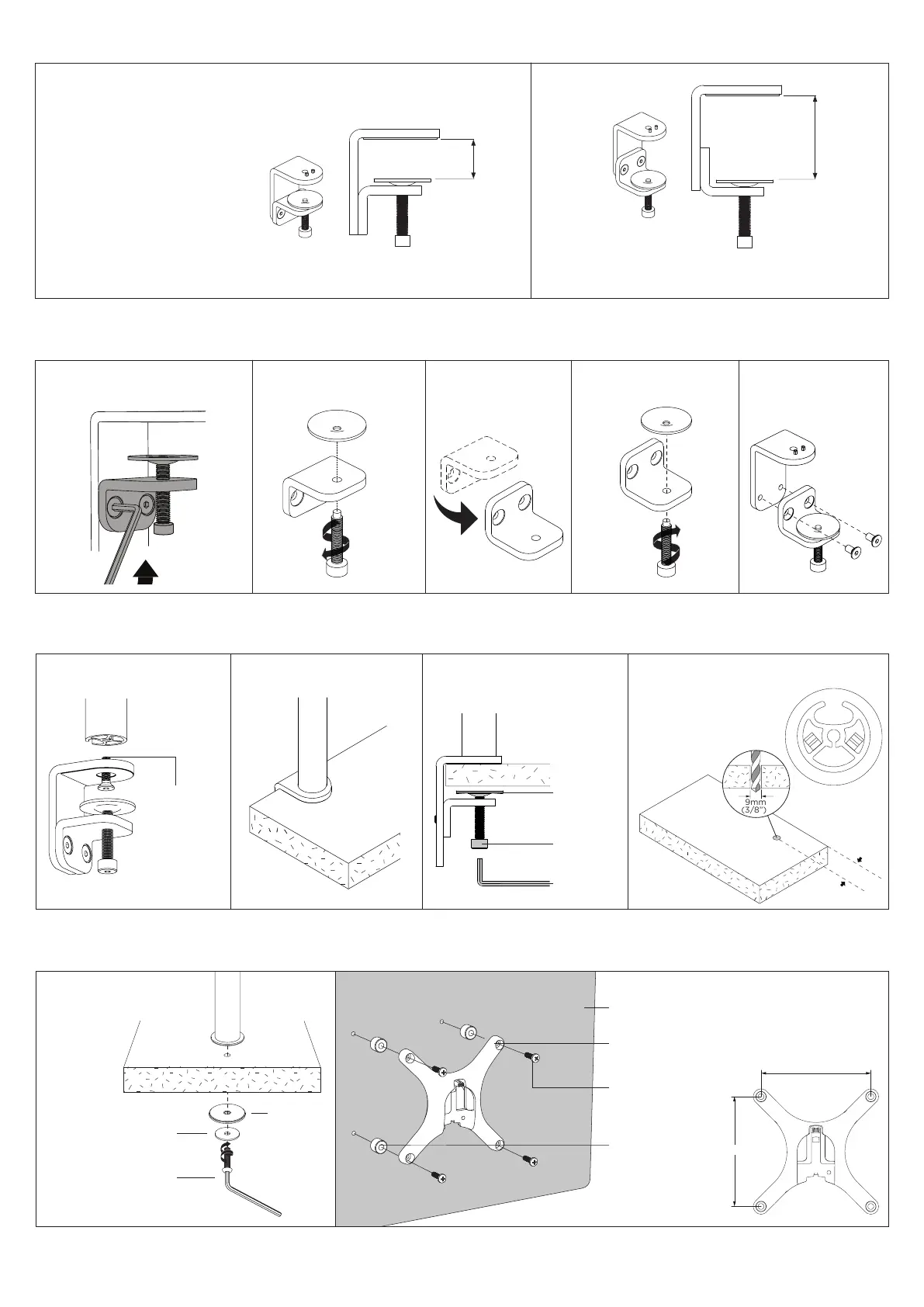

AF-AT-NBC Page 2 of 4

1. Desk overview

The desk clamp bracket

can be repositioned to

suit different mounting

surface thicknesses.

1.1 Default 1.2 Inverted

2. How to reconfigure desk clamp

2.1 Remove screws

(M8 x 16mm Countersunk screw)

2.2 Remove clamp plate 2.3 Invert bracket 2.4 Replace clamp plate 2.5 Reattach bracket

Pressure

Plate

M10 Desk

Clamp Screw

5mm Allen

Key

M8 x 30mm

Countersunk

screw Tighten

firmly

3.2 Place in desired location 3.3 Screw pressure plates

in and tighten firmly.

Drill 9mm hole in desired post

position on work surface.

3.1 Attach clamp to post

3. Post mount configuration 4. Bolt through

9mm

(3/8”)

25mm

offset

MIN THICKNESS - 0mm (0”)

MAX THICKNESS - 39mm (1.5”)

MIN THICKNESS - 35mm (1.4”)

MAX THICKNESS - 76mm (3”)

5. Installing bolt through

5.1 Attach plate to post

Align rear hole with

hole on desk

5mm

Allen key

M8x60mm

Screw

Bolt

through

plate

6. Install VESA monitor head

Optional Spacers

(may be required

for recessed and

uneven surfaces)

VESA monitor

head

Screen

M4x10/12/16mm

Phillips head

mounting screws

6.1 Install VESA monitor head as shown.

100mm

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Ikke kategorisert
Modell:	AF-AT-NBC
Produkttype:	PC- og skjermarm
Pakkevekt:	4263 g
Materiale:	Aluminium, Plastic
Rotasjonsvinkel:	360 °
Høydejustering:	Ja
Produktfarge:	Sølv
Vippevinkelområde:	-70 - 70 °
Pakkedybde:	508 mm
Pakkehøyde:	132 mm
Pakkebredde:	317 mm
VESA-montering:	Ja
Panoreringsomfang:	-180 - 180 °
Panelmonterbart grensesnitt:	75 x 75, 100 x 100 mm
Maksimalvekt (kapasitet):	8 kg
Antall støttede enheter:	2
Maksimal laptop-skjermstørrelseskompatibilitet:	18 "
