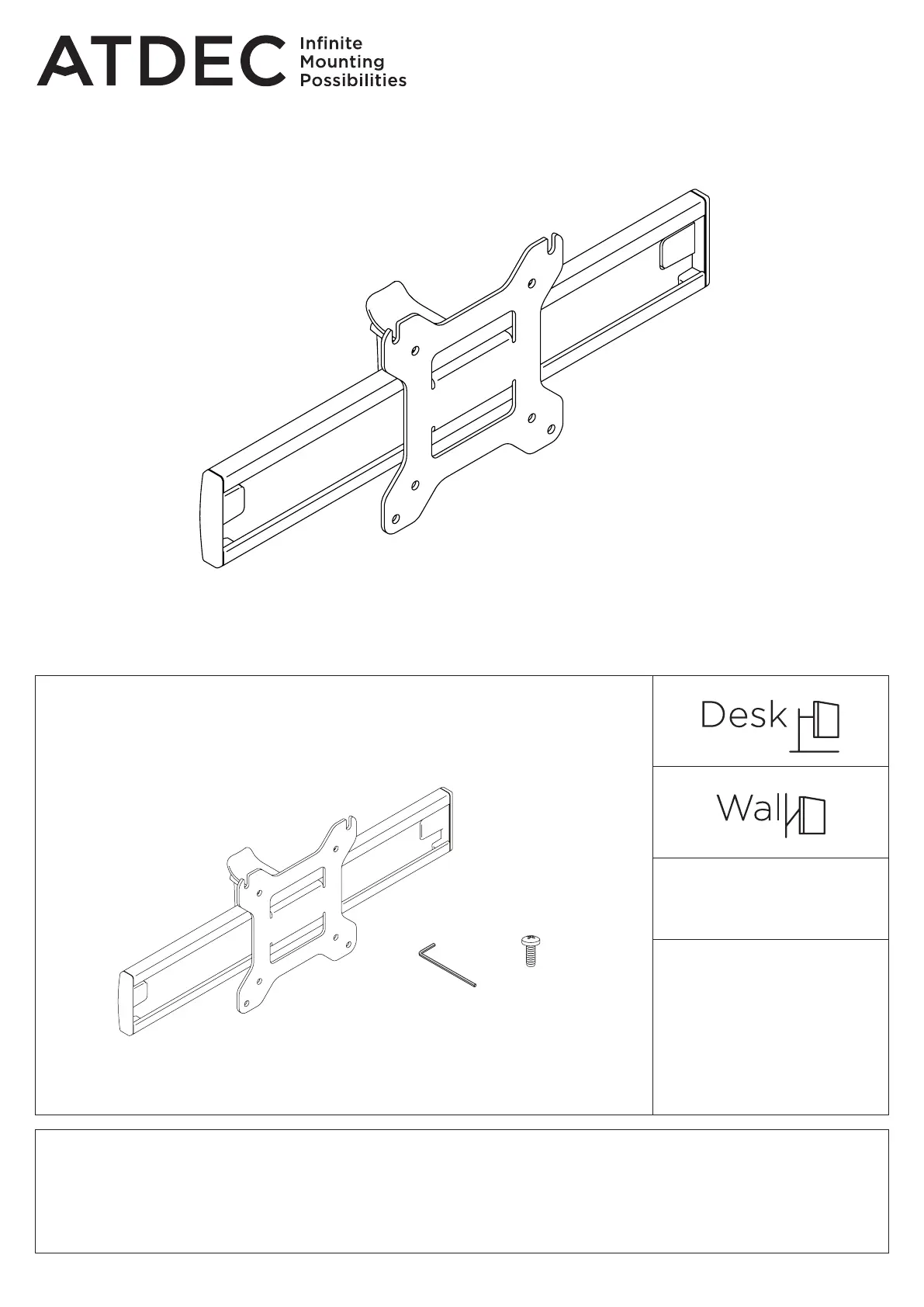

AWM-HS Page 1 of 2

Installation Guide

AWM-HS

Slider

COMPONENT CHECKLIST

REQUIRED TOOLS

• Phillips Head Screwdriver

Slider

Assembly

(x1)

Screw

M4x10mm

(x4)

2.5mm

Allen key

(x1)

0 - 7kg

(0 - 15lbs)

Monitor weight should be

within the weight range of

all modular elements that

make up the complete

monitor mounting solution.

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed

the capacity of the mount even though the monitor weight may be within the stated range.

! The manufacturer accepts no responsibility for incorrect installation.

! This product is compatible with AWM Series monitor arms: AWM-A13, AWM-A46, AWM-A71 and AWM-AD.

WEIGHT RANGE

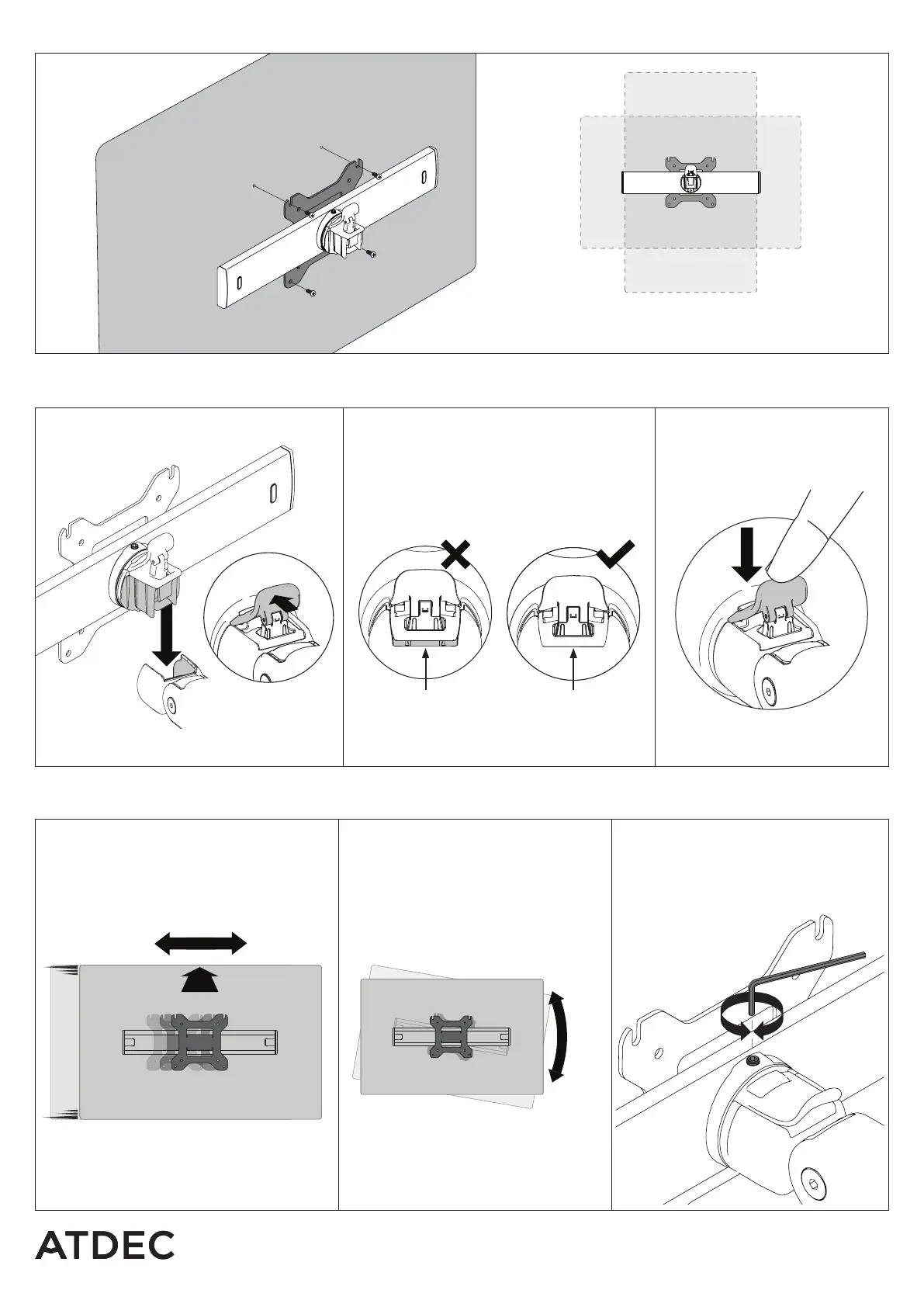

AWM-HS Page 2 of 2

1. Attach slider to monitor

1.1 Fix the slider onto

monitor using the

provided screws.

Slider orientation should match your desired

monitor orientation, landscape or portrait.

Note: Ensure the lever is unlocked when tting.

3. Adjust the monitor position

3.1 To adjust the monitor’s horizontal position,

tilt it back slightly and slide left or right.

3.2 To level the screen simply rotate it

to the desired position.

3.3 (Optional) Monitor rotation

tension may be adjusted by

tightening or loosening a small

screw with the provided allen key.

PUSH

SLIDE

+/-

10°

atdec.com | atdec.co.uk | atdec.com.au

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

2. Mount slider on arm

2.1 Mount slider onto the monitor arm

2.3 Push the lever down to secure

it to the arm assembly

2.2 Ensure that the slider is seated fully into

the receptacle at the end of the monitor arm.

There should be no gap.

Gap No gap

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Ikke kategorisert
Modell:	AWM-HS
Produkttype:	Skinne
Kompatibilitet:	AWM-A13, AWM-A46, AWM-AD
Antall skjermer som støttes:	1
Produktfarge:	Sølv
Kroppsmateriale:	Aluminium
Panelmonterbart grensesnitt:	75 x 75, 100 x 100 mm
Maksimalvekt (kapasitet):	7 kg
