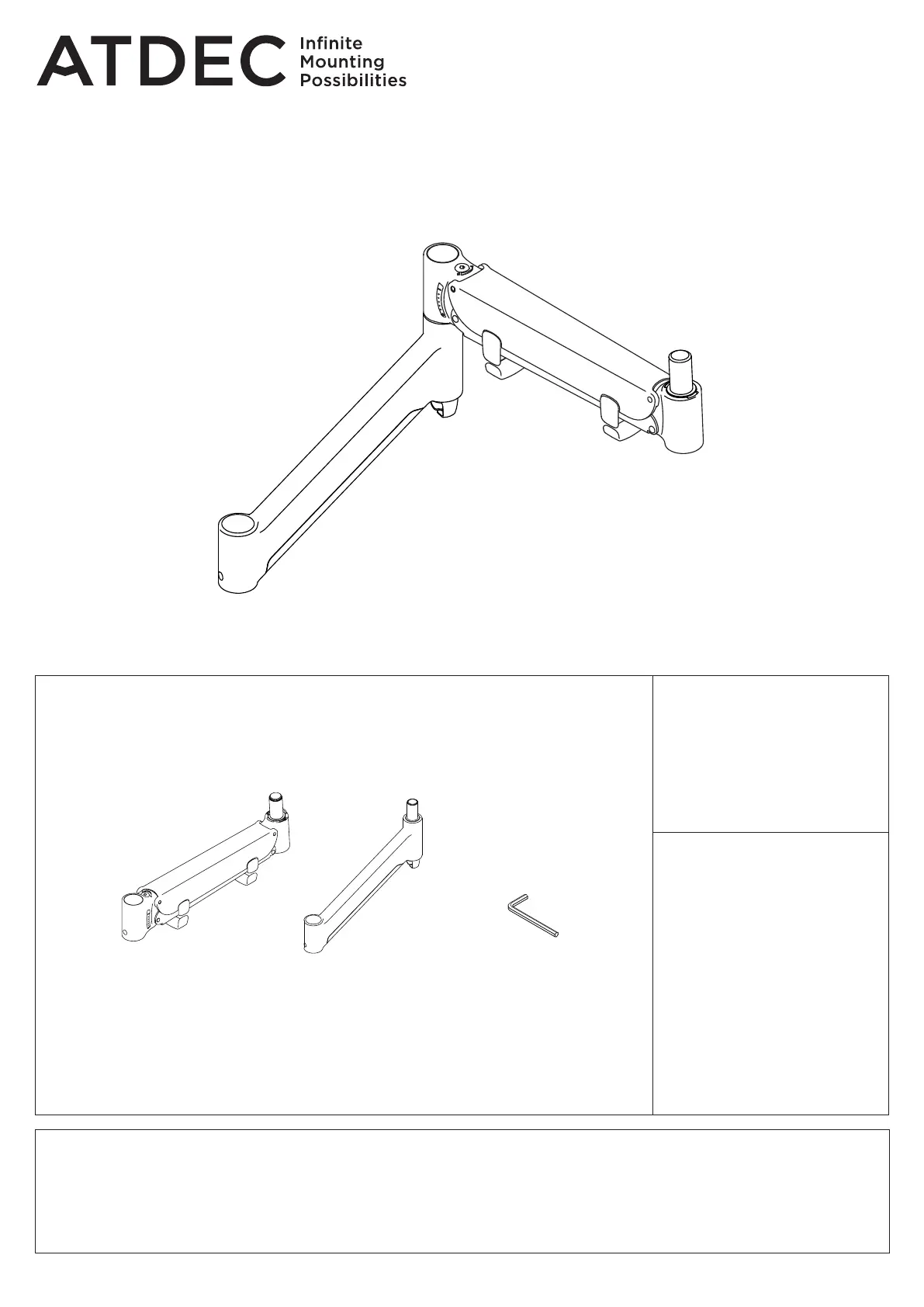

AWM-AHX Page 1 of 3

Installation Guide

AWM-AHX

Heavy Duty Dynamic Arm

COMPONENT CHECKLIST REQUIRED TOOLS

All tools supplied

Lower Angled

Link

(x1)

Heavy Duty

Dynamic Link

(x1)

4mm

Allen Key

(x1)

WEIGHT RANGE

Desk Base Mount

6 - 16kg

(13 - 35lb)

Post Mount

6 - 14kg

(13 - 31lb)

Monitor weight should be

within the weight range of

all modular elements that

make up the complete

monitor mounting solution.

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed

the capacity of the mount even though the monitor weight may be within the stated range.

! The manufacturer accepts no responsibility for incorrect installation.

! This product is compatible with AWM Series monitor arm products.

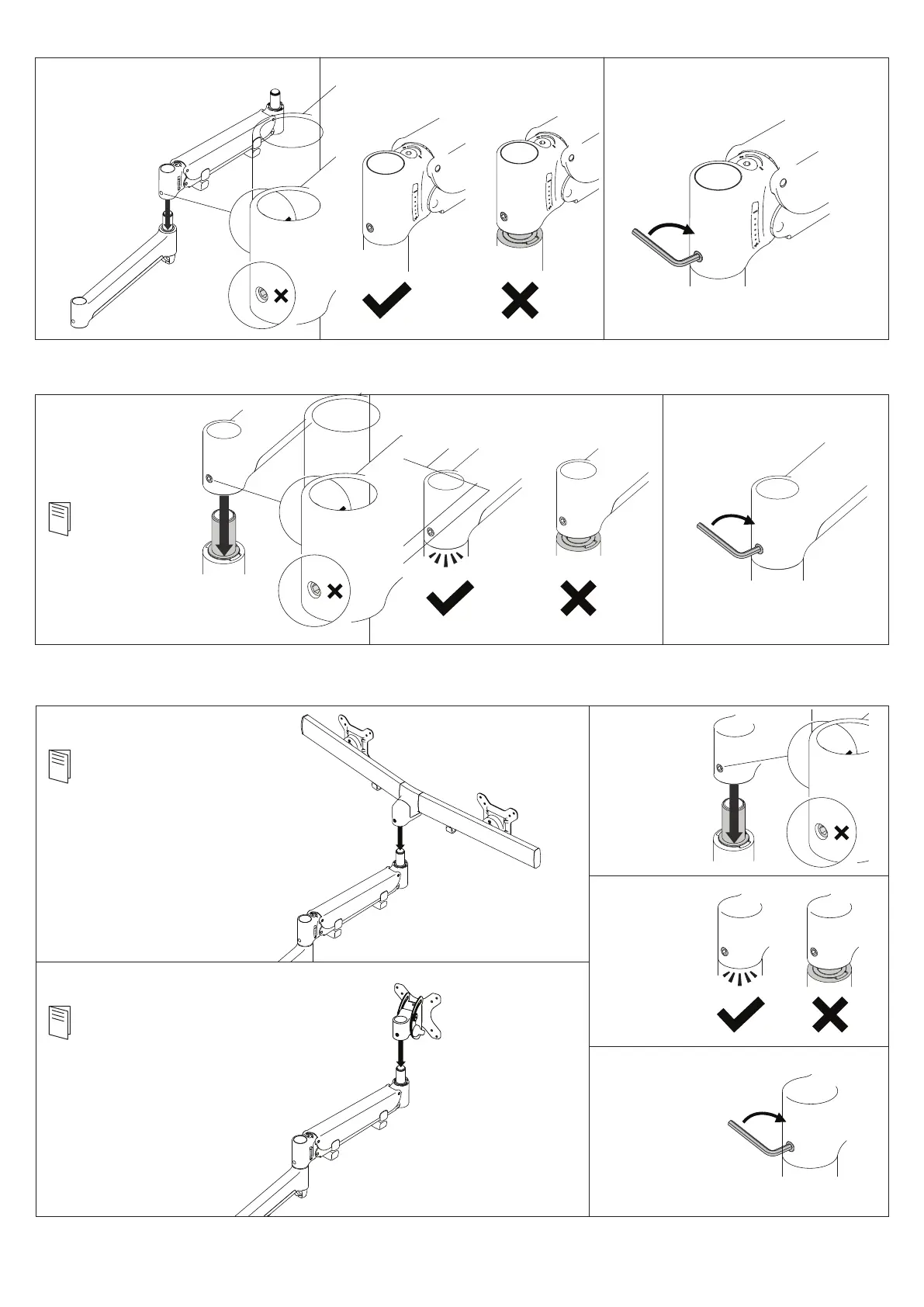

AWM-AHX Page 2 of 3

1.1 Push two arm links together

2.1 Push arm onto shaft

3.1 Push link

onto shaft

3.2 Ensure link

is fully pushed

onto shaft

3.3 Tighten set screw

1.2 Ensure arm is fully pushed together

2.2 Ensure arm is fully pushed onto base

1.3 Tighten set screw

2.3 Tighten set screw

1. Assemble Arm Links

2. Fit arm onto Arm Base (AWM-LB) or Channel Clamp (AWM-LC) (sold separately)

3. Fit Heavy Duty Tilt Head (AWM-LTH) or Dual Crossbar (AWM-LR) (sold separately)

Note: Check that arm rotation

is smooth after tightening

Note: Check that arm rotation

is smooth after tightening

Note: Check

rotation is smooth

after tightening

Optional: Set joint

rotation to 180°

on Arm Base or

Channel Clamp by

following separate

instruction manual.

To set up follow

separate installation

guide supplied with

the Dual Crossbar

Dual Crossbar

AWM-LR

Heavy Duty VESA Tilt Head

AWM-LTH

To set up follow

separate installation

guide supplied with the

Heavy Duty Tilt Head

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Ikke kategorisert
Modell:	Modular AWM-AHX-B
Produkttype:	Monteringsarm
Bredde:	597 mm
Kompatibilitet:	AWM-LTH, AWM-LR
Rotasjonsvinkel:	180 °
Minimum skjermstørrelse:	43 "
Produktfarge:	Sort
Kroppsmateriale:	Aluminium
Maksimalvekt (kapasitet):	16 kg
Forbedret kabelføring:	Ja
