Component Checklist
Systema | 400mm Post C-Clamp
C-Clamp Base Plate with
Post and Cable Cover
! IMPORTANT - Install Systema 400mm Post as per installation instruction.
! Systema 400mm Post is compatible with Systema monitor arms SA13, SA46, SA71 & SS
! The manufacturer accepts no responsibility for incorrect installation.
IMPORTANT INFORMATION:
Step 1. Check Components
Check what you have received against the component checklist above.

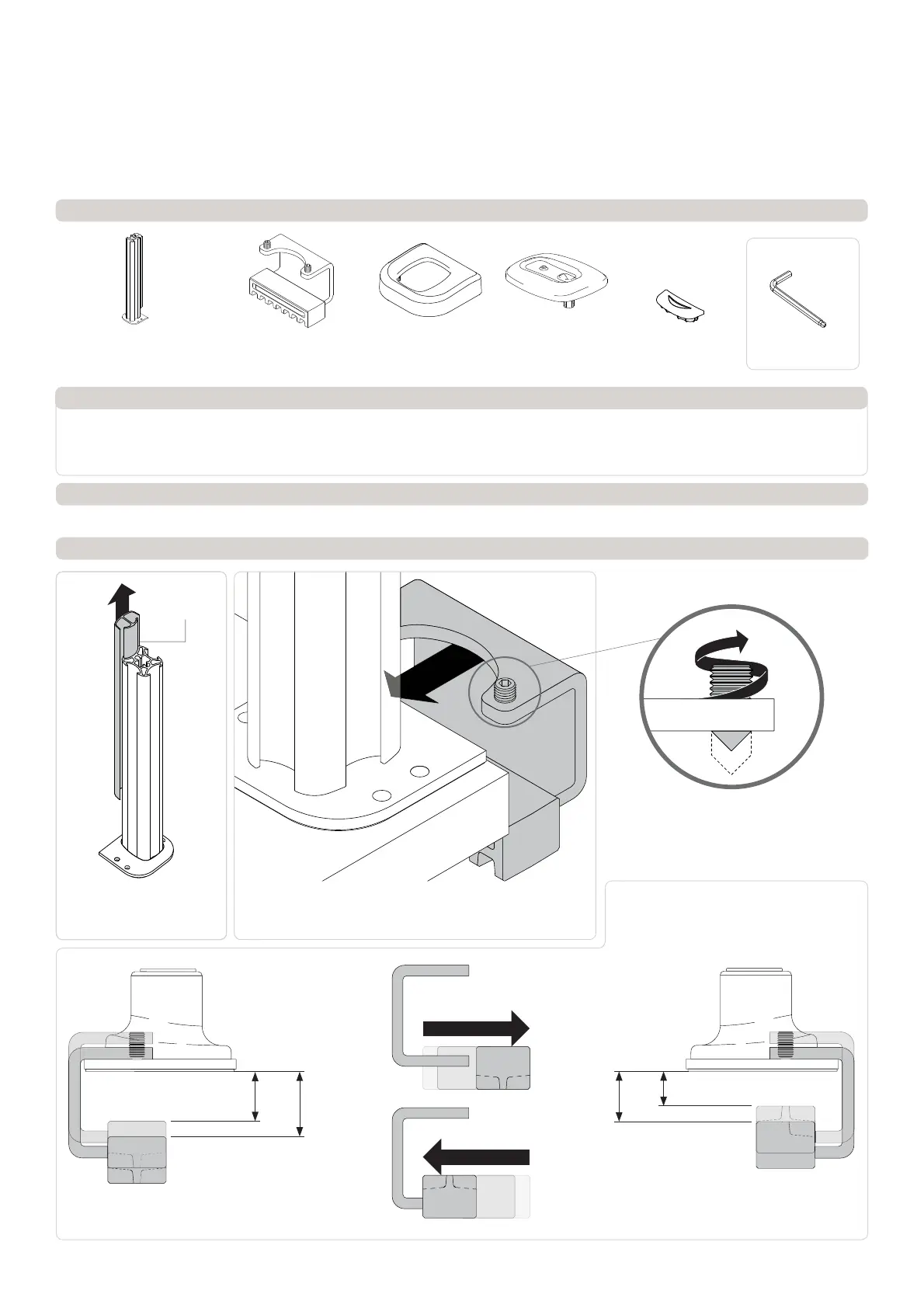

Step 2. Mount C-Clamp
Cable Cover Cap
SYSTEMA
Installation Instructions
Cable Cover
A.1 Remove the Cable Cover,
pull it straight up and out of
the post.
Pole CapC-Clamp Bracket with
Spacer Block and Set
Screw M8x16 (2x)
C-Clamp
Cover
HARDWARE
4mm Ball-tip
Allen Key
A.2 Place C-Clamp Base onto the mounting surface. Slide the
Bracket onto the Base Plate and position screw tips in the indents
on the Base Plate.
A.3 Depending on the thickness of the mounting
surface you may need to extend the set screws
out of the plate using the 4mm Allen key.
A.4 The C-Clamp supports a range of different
mounting surface thicknesses. By inverting the
Spacer Block on the Clamp Bracket, mounting
surfaces with a thinner profile can be supported.
Minimum 25.6 mm
Maximum 33.5 mm
Minimum 18 mm
Maximum 25.75 mm
Inverted Spacer block positionDefault Spacer block position
MaxMin MinMax
(0.7”)
(1.03”)
(1”)
(1.3”)
10º - 20º
5º 15º
(h)
Step 2. Mount Base (cont.)
Installation Complete
Ergonomic Guidelines
Many experts believe that the extended use of any computer screen has the potential to cause serious injury to your eyes,
neck and back. This can be largely avoided by correctly positioning your display.
Viewing angle: Ergonomists recommend that the optimal position
of your display should be slightly below eye level. When looking at
the display’s centre the user should have a downward visual angle
of approximately 10°-20°.
Height: As a guide, the height (h) of your display should
approximately be as follows:
- Tall Male (Max): 560mm (22”)
- Short Male (Min): 368mm (14.5”)
- Tall Female (Max): 520mm (20.5”)
- Short Female (Min) 356mm (14”)
Distance: For visual comfort, a viewing distance (d) between
500mm (20”) to 750mm (29.5”) is recommended.
Tilt Angle: Angular adjustments to reduce reflection on your
monitor should range between 5° forward tilt to 15° backward tilt.
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 12.10.15 ©
You are now ready to install your Systema Monitor Arms.
Please refer to the Installation Instructions Included with these products.

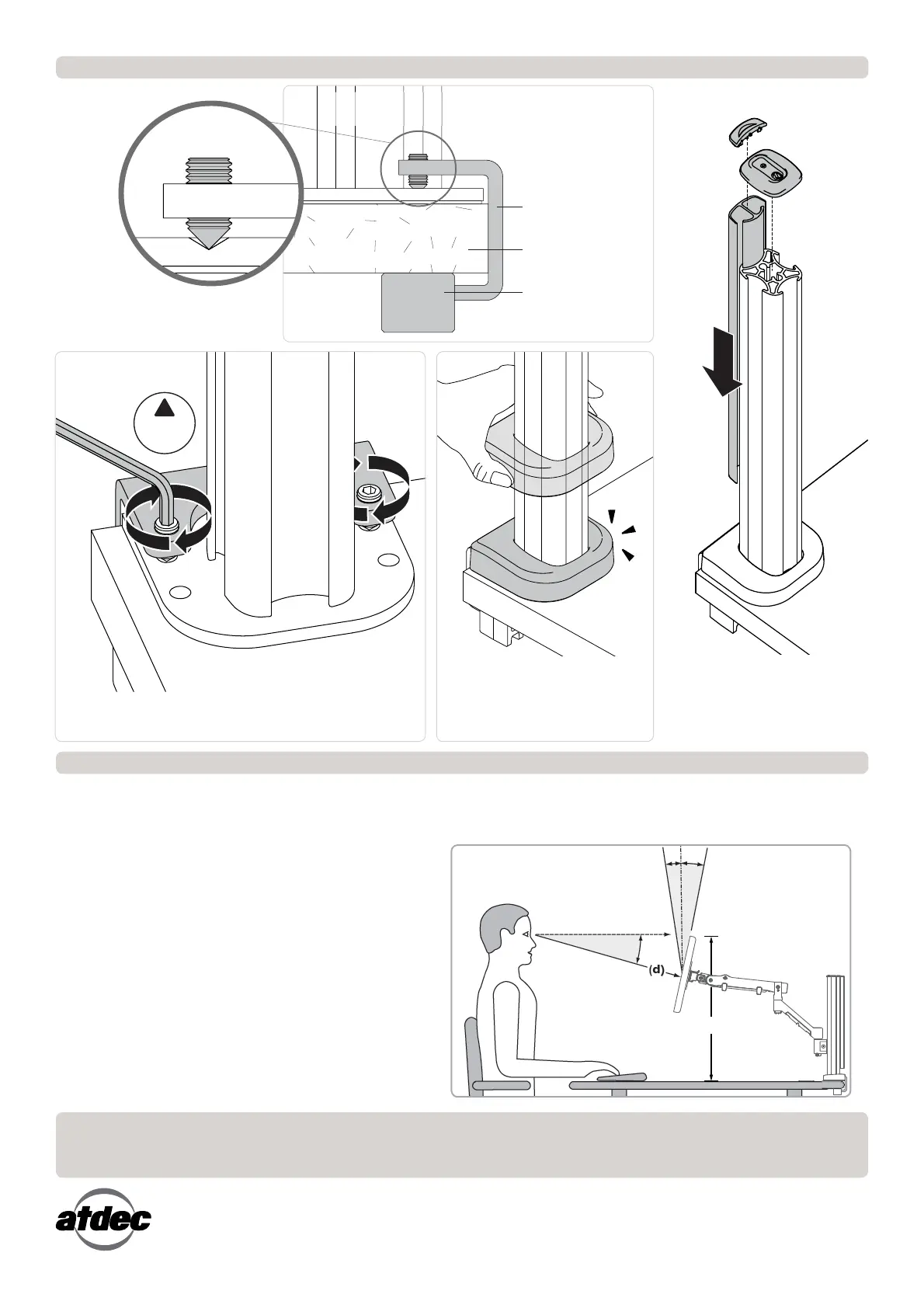

A.7 Locate the C-Clamp Cover over
the Post. Guide over the holes in the
Base Plate and gently apply pressure
on the cover until it clicks into place.
A.8 Reattach the Cable Cover by
sliding it into the rear channel of the
Post. Fit the Pole Cap and the Cable
Cover Cap.
Desk Clamp Bracket
Mounting surface
Spacer
A.6 Tighten Set Screws evenly on both sides of the Desk Clamp
Bracket using the 4mm Allen Key.
Tighten
Firmly
!
Click!
NOTE: Ensure the desk clamp bracket is positioned
tight up against the Mounting surface edge
A.5 Ensure the Set Screws are mounted
in postion.
M8 x 12mm Set Screw
