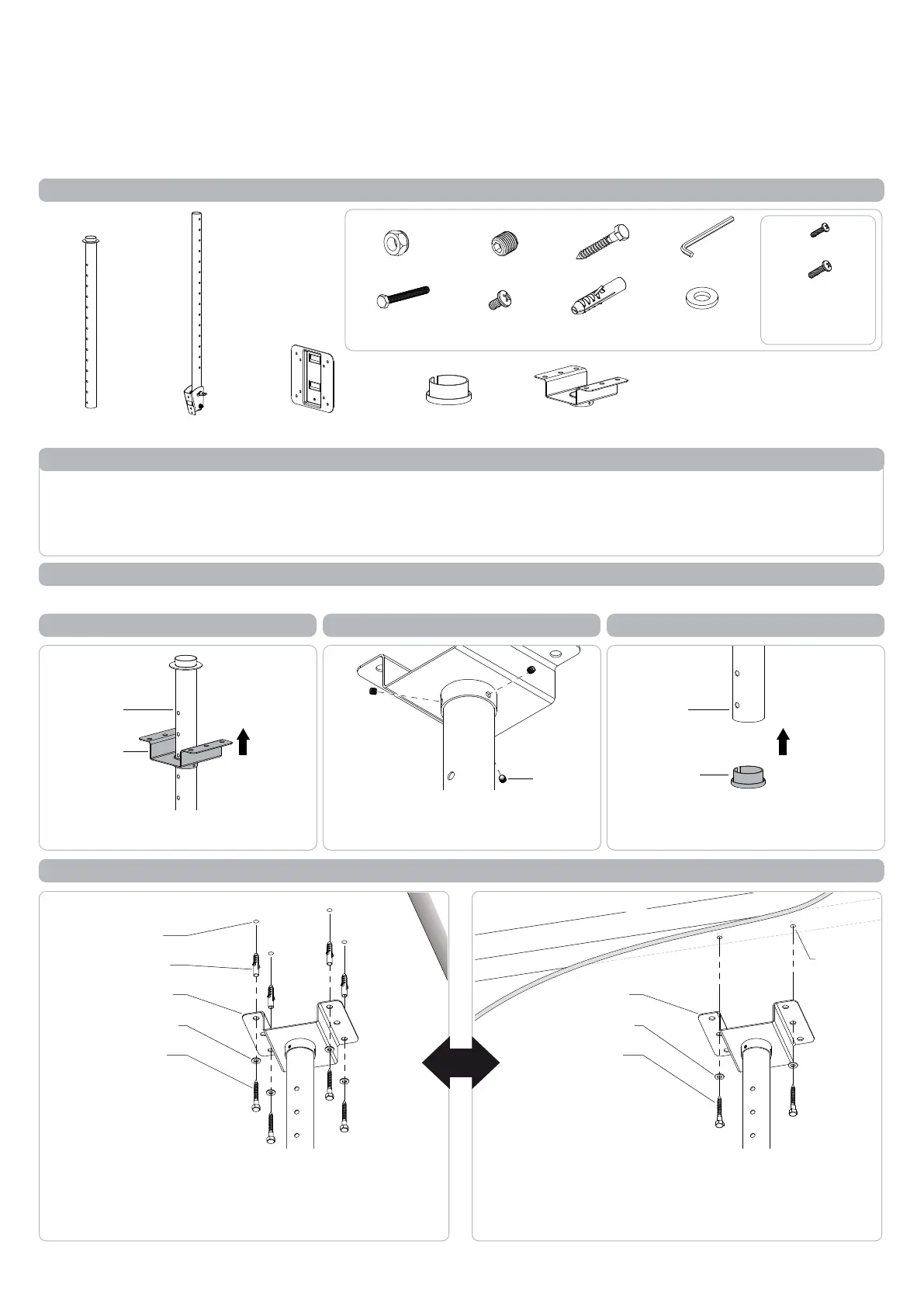

Side 1/2

Component Checklist

Coach Screw (x4)

Nylon Anchor (x4)

Washer 8.5mm(x6)

Washer 4.5mm(x4)

3mm Allen Key

M4x12mm/20mm

M5x12mm/20mm

TH-1026-CT

Ceiling Tilt Mount

IMPORTANT INFORMATION:

Step 1. Check Components

! IMPORTANT - Install 1026 Ceiling Tilt Mount per Installation Instructions.

! This product supports a maximum load of 15kg (33lbs).

! This product supports VESA mounting hole configurations 75x75mm and 100x100mm.

! The manufacturer accepts no responsibility for incorrect installation.

Display Mounting

Screw (x4 each)

Hardware

Tools Required:

Power drill

•

4.5mm (0.18”) drill bit

•

10mm (0.39”) masonry drill bit

•

Phillips head screw driver•

12mm (0.47”) socket wrench or shifter

•

Step 2. Slide Ceiling Mount

Upper Pole Lower Pole Screen Mount

Ceiling Mount

Upper Pole Bush

Timber Stud CeilingMasonry Ceiling

Hex-Head Screw

M8x55mm (x2)

Nyloc Hex Nut (x2)

SLIDE INSERT

Ceiling Mount

Upper Pole

Upper Pole Bush

Upper Pole

Insert Bush to the Upper Pole.

Set Screw (x3)

Set Screw

Step 3. Fix Upper Pole

Check you have received all parts against the Component Checklist and Hardware above.

Step 4. Insert Bush

Slide Ceiling Mount on to the Upper

Pole.

Drilled Hole

Nylon Anchor

Ceiling Mount

Washer 8.5mm

Coach Screw

Ceiling Mount

Washer 8.5mm

Coach Screw

- Drill four 10mm (0.39”) diameter holes, 61mm (2.4”) deep.

- Secure the mounting plate to the ceiling using the Coach

Screws and Nylon Anchors supplied.

- Drill two 4.5mm (0.18”) diameter holes, 61mm (2.4”) deep.

- Secure the mounting plate to the ceiling using the Coach

Screws supplied.

NOTE: Use a stud finder to accurately locate the centre

of the stud. Ensure that all screws fix securely into stud.

Fix Upper Pole to Ceiling Mount with

three Set Screws. Tighten using supplied

Allen Key.

M5x6mm

Security Screw

Step 5. Install Ceiling Mount to the Ceiling

Drilled Hole

13mm (0.51”) socket wrench or shifter

E,I

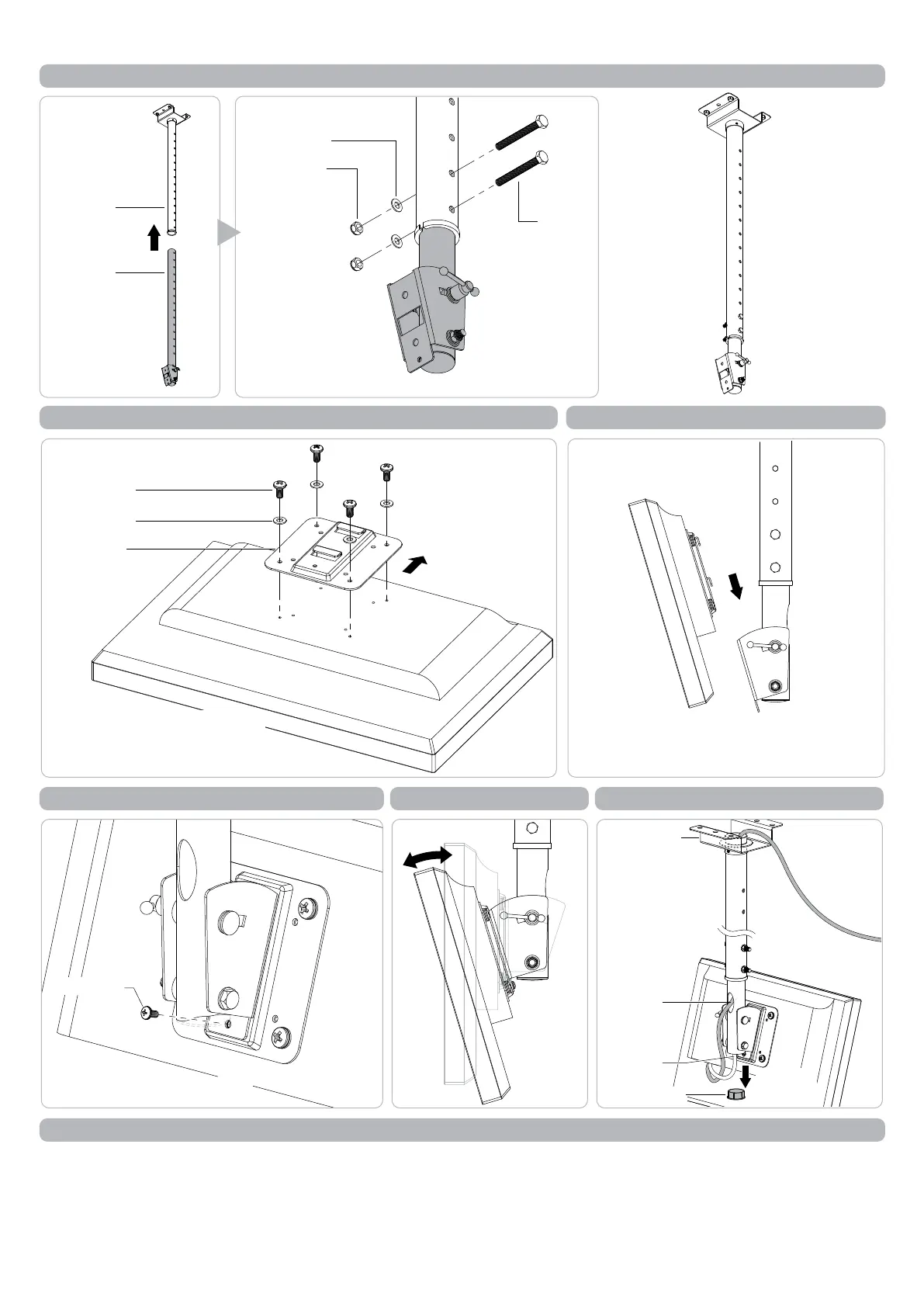

Installation Instructions

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Ikke kategorisert
Modell:	TH-1026-CT
Rotasjonsvinkel:	360 °
Antall skjermer som støttes:	1
Produktfarge:	Sort
Vippevinkelområde:	0 - 15 °
Kroppsmateriale:	Stål
Montasjetype:	Tak
Maksimalvekt (kapasitet):	15 kg
Monteringsgrensesnitt, kompatibilitet (min):	75 x 75 mm
Monteringsgrensesnitt, kompatibilitet (maks):	75 x 75 mm
