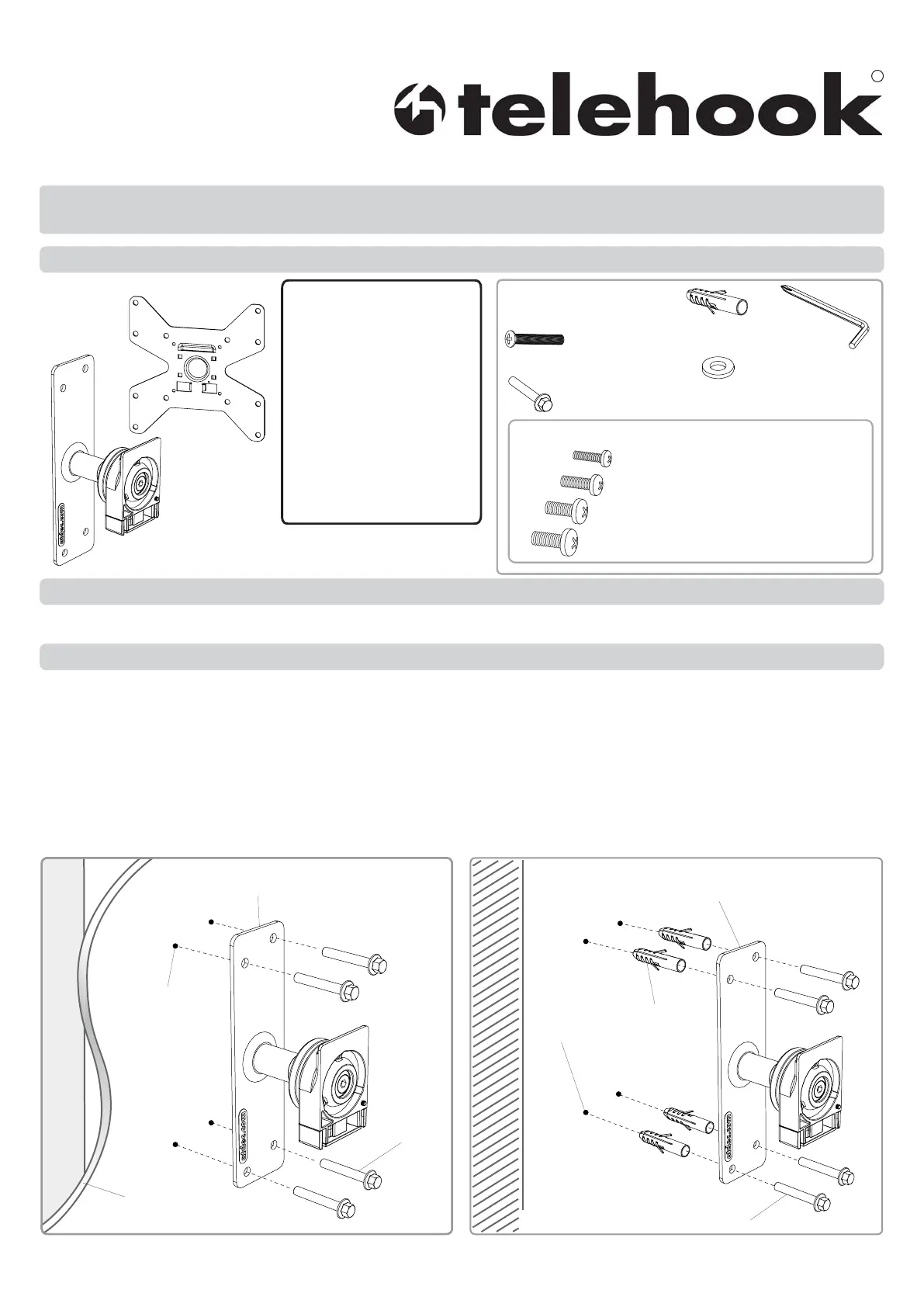

Component Checklist

Step 1. Component Checklist

Check you have received all parts against the Component Checklist above.

Mounting Fasteners

Wall Mount

Assembly (x1)

Step 2. Installing the Wall Mount Assembly (choose from one of the following options)

For mounting Telehook to a Timber Stud Wall - Using the Wall Mount Assembly Bracket, mark

the location of the 4 holes and drill using a 4mm drill bit. Secure the bracket to the wall using the M6 Coach

Screws as shown in diagram A.

For mounting Telehook to a Masonry Wall - Using the Wall Mount Assembly Bracket, mark

the location of the 4 holes and drill using an 8mm masonry drill bit. Secure the bracket to the wall using the M6

Coach Screws and Nylon Anchors as shown in diagram B.

A. Timber Stud Wall

B. Masonry Wall

Note: This product will suit VESA compliant displays with 100x100mm, 200x100mm, and 200x200mm hole patterns only.

It will support up to a maximum weight of 25kg (55lbs).

Installation Instructions

Flat Screen Wall Mount / Tilt

TH-2040-VTR

TOOLS REQUIRED:

• Power Drill

• Phillips-head Screwdriver

• 4mm (

”) Drill Bit

• 8mm (

”) Masonry Drill Bit

• 8mm (

”) Socket Wrench

or Shifter

Combined 3mm

Allen Key and

Phillips-head

Screwdriver (x1)

Hardware

(Optional)

Security

Screw (x1)

M6 Coach

Screws (x4)

Nylon

Anchor (x4)

VESA

plate (x1)

Wall Mount Assembly

Bracket

M6 Coach

Screw

4 x 4mm

Holes

Wall Material

Stud

Wall Mount Assembly

Bracket

M6 Coach Screw

4 x 8mm

Holes

Masonry Wall

Nylon Anchor

M4x16mm / M4x25mm Screw (x4 each)

M5x16mm / M5x25mm Screw (x4 each)

M6x16mm / M6x30mm Screw (x4 each)

M8x16mm / M8x30mm Screw (x4 each)

M4/5

Washer (x4)

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Ikke kategorisert
Modell:	TH-2040-VTR
Produktfarge:	Sort
Panelmonterbart grensesnitt:	100 x 100,200 x 100,200 x 200 mm
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	25 kg
Monteringsgrensesnitt, kompatibilitet (min):	100 x 100 mm
Monteringsgrensesnitt, kompatibilitet (maks):	200 x 200 mm
