Side 1/3

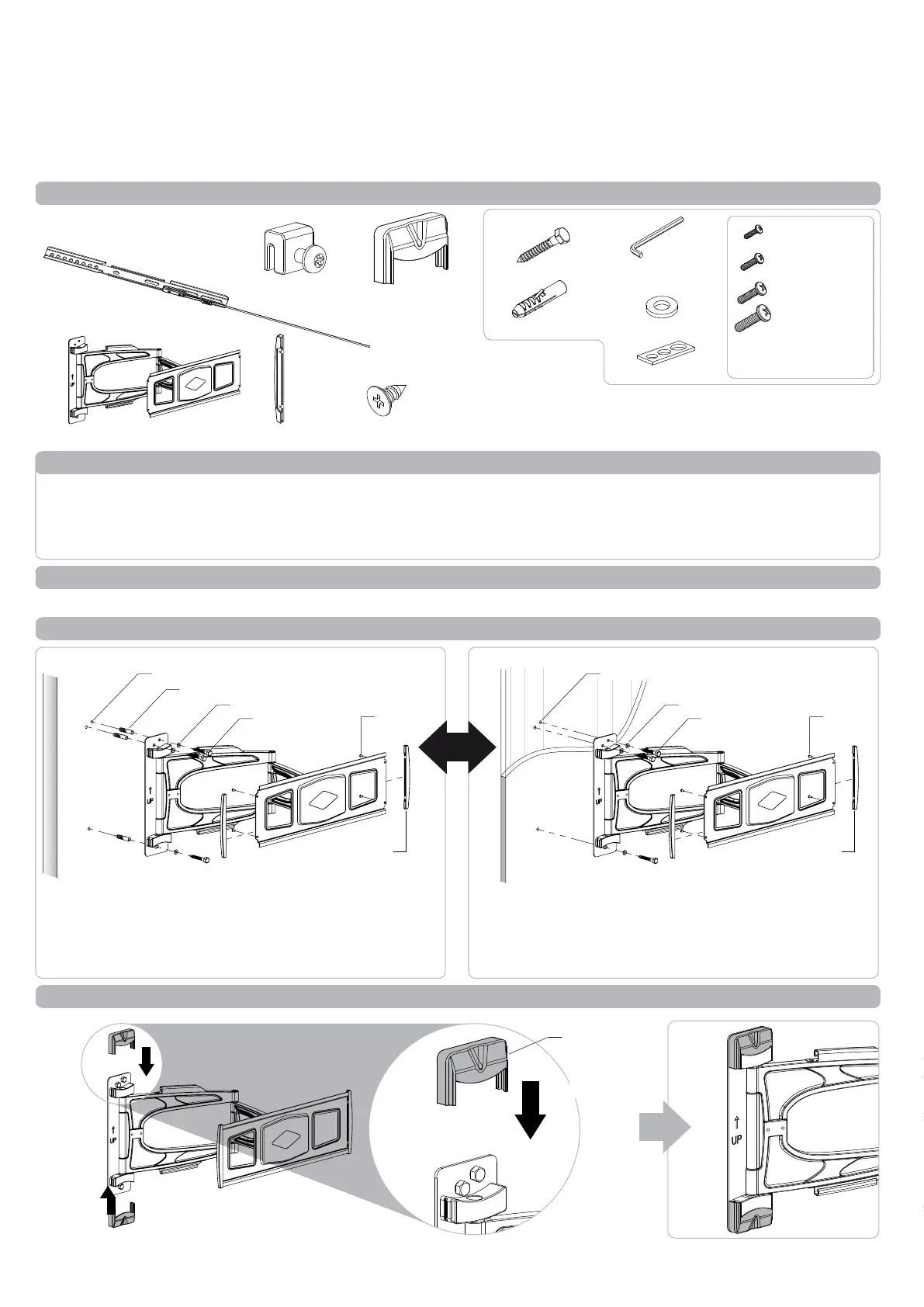

Component Checklist

Coach Screw (x3)

Nylon Anchor (x3)

Washer (x3)

4mm

Allen Key

M4x16mm

M5x16mm

M6x16mm/25mm

M8x16mm/25mm

TH-2050-UFL

Small-Medium TV Articulated Arm

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received all parts against the Component Checklist and Hardware above.

! IMPORTANT - Install 2050 Small-Medium TV Articulated Arm per Installation Instructions.

! This product supports a maximum load of 25kg (55lbs).

! This product supports VESA mounting hole configurations 200mm wide x100mm high to 400mm wide x 400mm high.

! The manufacturer accepts no responsibility for incorrect installation.

Display Mounting

Screws (x4 each)

Hardware

Tools Required:

Power drill

•

4.5mm (0.18”) drill bit

•

10.5mm (0.41”) masonry drill bit

•

Phillips head screw driver•

10mm (0.39”) socket wrench or shifter

•

Step 2. Install Arm/Wall Mount to the Wall

Step 3. Attach Top Caps to the installed Arm/Wall Mount

Top Cap (x2)

Arm/Wall Mount

Mounting Bracket (x2)

Multiwasher (x4)

Timber Stud Wall

Masonry Wall

- Drill three 10.5mm (0.41”) diameter holes,

58mm (2.3”) deep.

- Secure the mounting plate to the wall using the Coach

Screws and Nylon Anchors supplied.

- Drill three 4.5mm (0.18”) diameter holes, 58mm (2.3”) deep.

- Secure the mounting plate to the wall using the Coach

Screws supplied.

NOTE: Use a stud finder to accurately locate the centre

of the stud. Ensure that all screws fix securely into stud.

SLIDE

End Cap (x2)

Locking Block (x2)

End Cap Screw (x4)

Coach Screw

Washer

End Cap

Screw

Nylon Anchor

Drilled Hole

End Cap

Coach Screw

Washer

End Cap

Screw

Drilled Hole

End Cap

SLIDE

Top Cap

13mm (0.5”) socket wrench or shifter

•

Installation Instructions

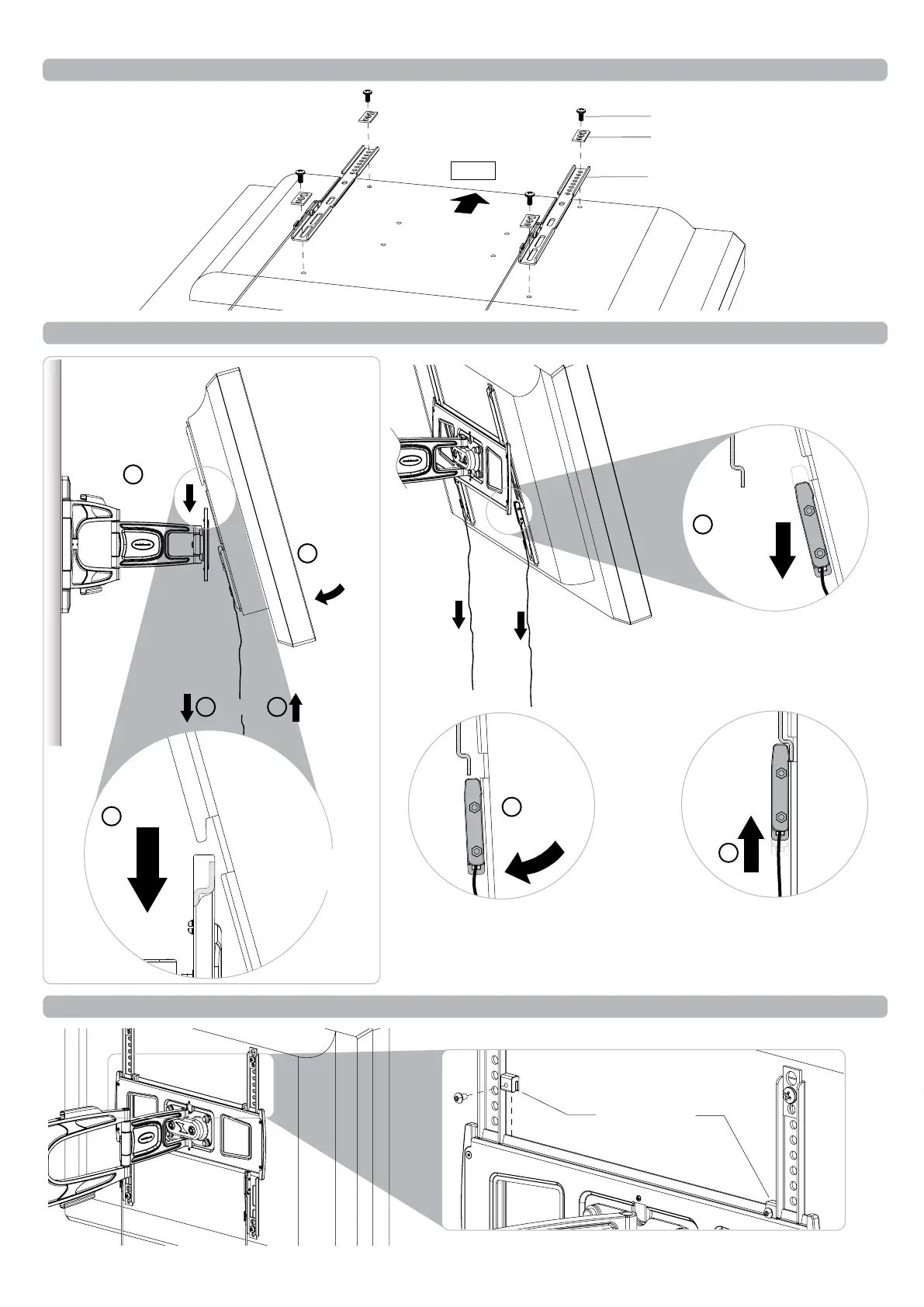

Step 4. Attaching Mounting Brackets to Display

TOP

Back of Display

Display Mounting Screw

Multiwasher

Mounting Bracket

Step 6. Attach Locking Blocks to fully secure the Display

WALL

Pull down both Spring Lock

Ties to open catch.

Hook the Display

to the Arm/Wall

Mount.

The mounting brackets support

hole configurations from

200x100mm to 400x400mm.

1 HOOK

3 PUSH

DOWN

1 HOOK

2 LOCK 4

2 PULL

DOWN

3 PUSH

DOWN

Push down Display into catch. Release Spring Lock Ties

to secure Display.

NOTE: Ensure that Spring

Lock is fully engaged.

RELEASE 4

Step 5. Attaching/Detaching Display to the installed Arm (2 people required)

Back of Display

Locking Blocks

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Ikke kategorisert
Modell:	TH-2050-UFL
Maksimal skjermstørrelse:	- "
Minimum skjermstørrelse:	- "
Produktfarge:	Sort
Vippevinkelområde:	-5 - 15 °
Kroppsmateriale:	Aluminium, Steel
Panelmonterbart grensesnitt:	Nei mm
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	25 kg
Distanse til vegg (min.):	38 mm
