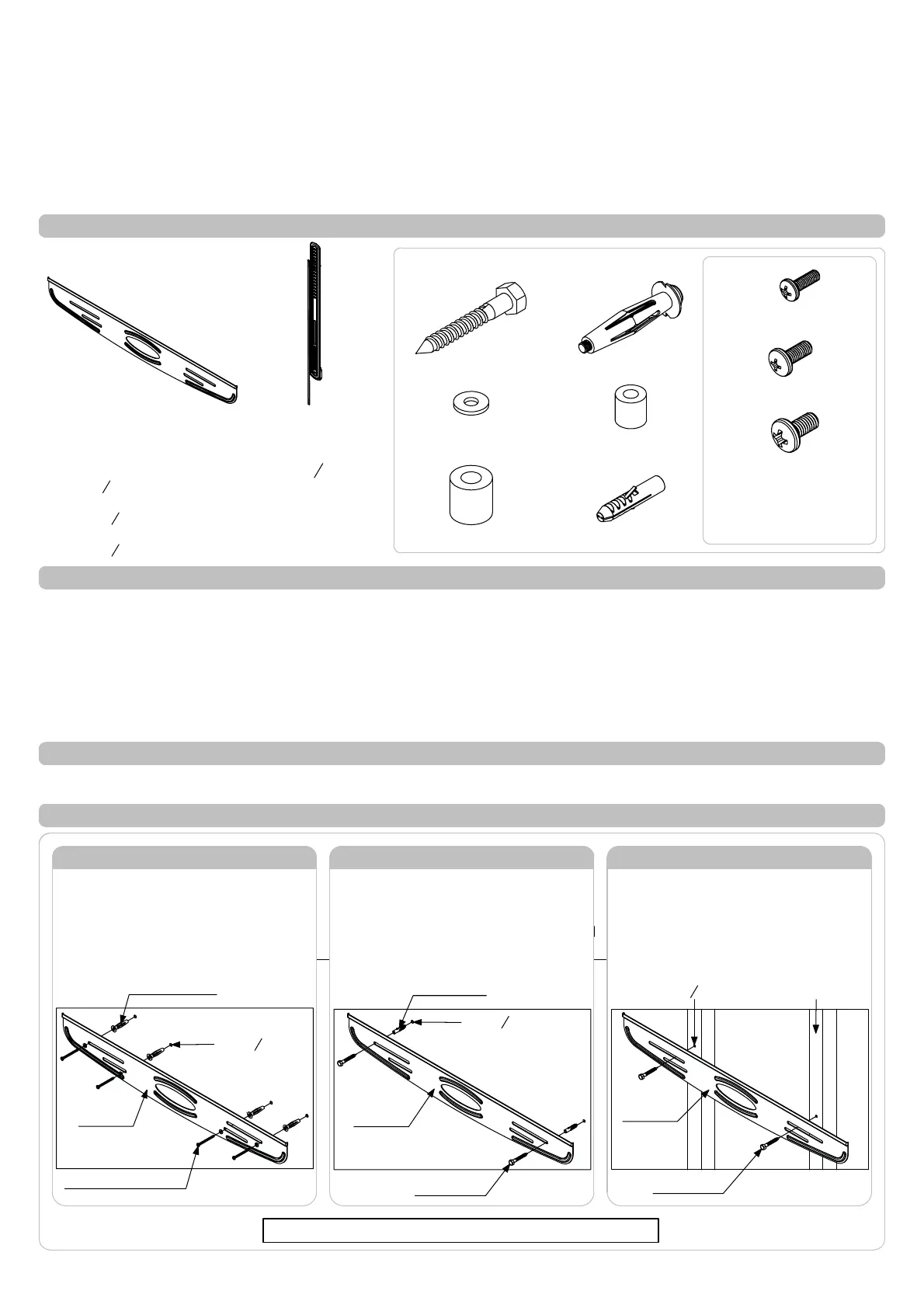

Side 1/2
Nylon Anchor (x2)
Dry Wall anchor (x4)
M5/6/8 Washer
(x4 each)
M5x30/16mm (x4 each)
M6x30/16mm (x4 each)
M8x30/16mm (x4 each)
Display Mounting
Screws
M4/5 Spacer (x4)
M6/8 Spacer (x4)
Wall Plate
10mm(
3
8
") Hole
Dry Wall Anchor
Dry Wall Anchor Screw
Note:
Each Dry Wall anchor should be at a
maximum distance from the next anchor point.
This is the recommended mounting pattern for
Dry Wall Anchors.
Coach Screw
Wall Plate
10mm(
3
8
") Hole
Nylon Anchor
6mm(
1
4
") Hole
Timber Stud
Wall Plate
Coach Screw
Note:
Use a stud finder to accurately locate
the centre of the stud. Ensure that all two
screws fix securely into the stud.
Hardware
Coach Screw (x2)
Components Checklist
Wall Plate
Display Bracket (x2)
IMPORTANT INFORMATION
! IMPORTANT - Install 3060 Wall Mount as per Installation Instructions.
! This product supports a maximum load of 65kg (143.3lbs).
! This product supports displays with mounting hole configurations from 100mm (4”) to 500mm (19½”) high,
and from 200mm (8”) to 810mm (32”) wide.
! The manufacturer does not accept responsibility for incorrect installation.
! Before installing this product, please check the display ventilation requirements with your
LED/LCD manufacturer.
Step 1. Check Components
Step 2. Mounting the Wall Plate
10mm ( drill bit
3
8
")
Spirit Level
Tools Required:
Power Drill
6mm
(
1
4
")
drill bit
Phillips Head screwdriver
10mm
(
3
8
")
masonry drill bit
Large Flat Head Screw Driver
13mm
(
1
2
")
Socket Wrench or Shifter
Dry Wall
Tip: Use a spirit level to ensure wall plate is horizontal.
Masonry Wall
Timber Stud
OR
OR
Check you have received all parts against the component checklist and Hardware above.
Installation Instructions
TH-3060-LPF
Flat Screen Wall Mount | Fixed

Produkspesifikasjoner

Merke: Atdec
Kategori: Ikke kategorisert
Modell: TH-3060-LPF
Produktfarge: Sort
Skjermstørrelsekompabilitet: - "
Panelmonterbart grensesnitt: 200 x 100,200 x 200,300 x 300,400 x 400,600 x 400,800 x 400,300 x 200,400 x 300 mm
Montasjetype: Vegg
Maksimalvekt (kapasitet): 65 kg
Monteringsgrensesnitt, kompatibilitet (min): 200 x 100 mm
Monteringsgrensesnitt, kompatibilitet (maks): 400 x 300 mm
