Side 1/2
(Optional) Spacer
Back of Display
Washer
Display Mounting Screw
Mounting Brackets

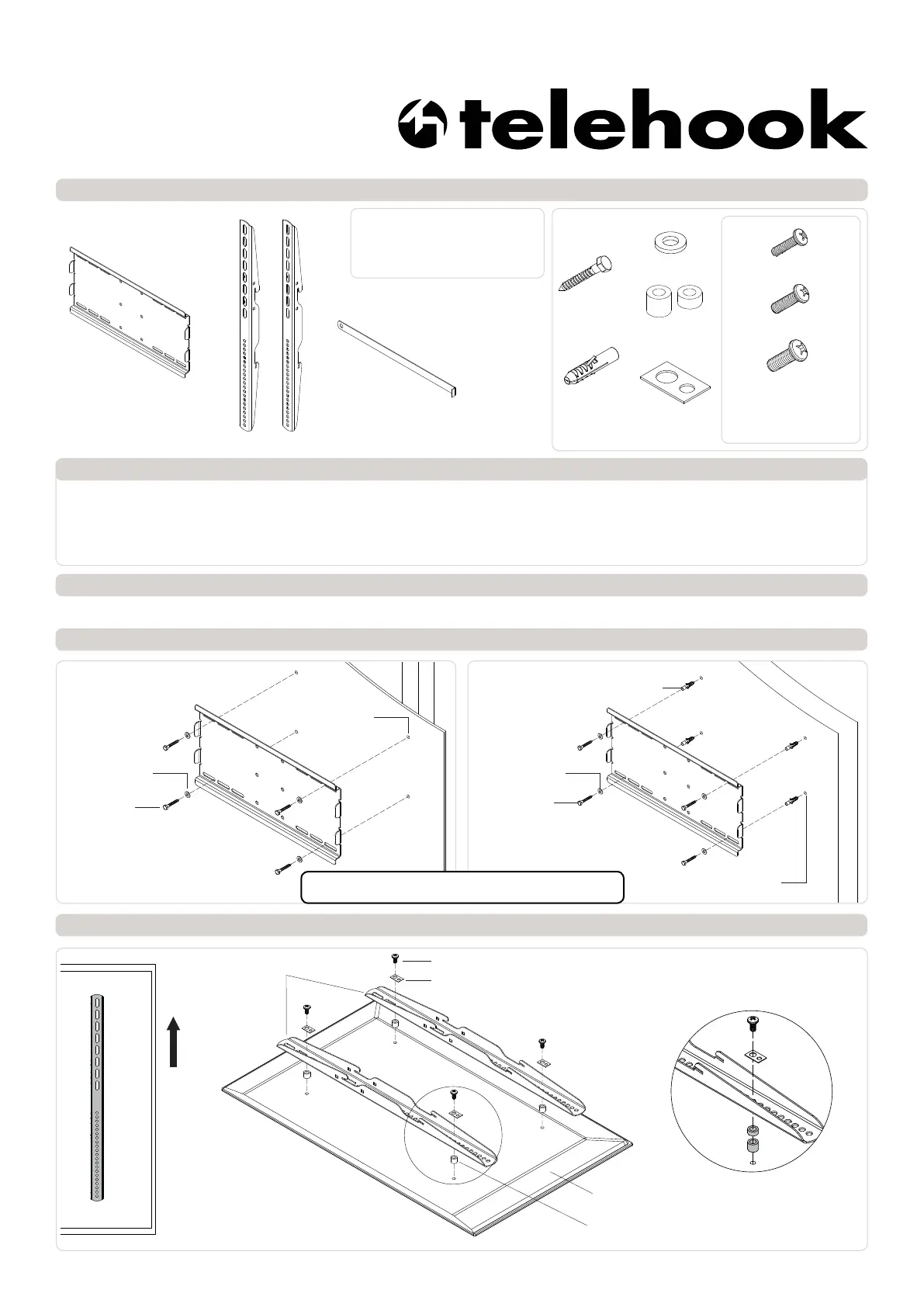

Installation Instructions
TH-3070-UFP
Component Checklist
Flat Screen Fixed Portrait Wall Mount
Rectangular
Washer (x4)
Security Bar
M6 Coach
Bolt (x4)
Nylon
Anchor (x4)
HARDWARE
Display Mounting
Screws (x4 each)
M5x14mm
M8x20mm/30mm
! IMPORTANT - Install Telehook Flat Screen Portrait Wall Mount as per installation instruction.
! This product supports a maximum load of 70kg (154lbs.).
! This product supports Screen Mounting Hole Configurations: From 200mm to 600mm wide
and from 200mm to 400mm high.
! The manufacturer accepts no responsibility for incorrect installation.
IMPORTANT INFORMATION:
Step 1. Check Components
Check you have received against the component checklist and hardware above.
M6 Washer (x4)
Wall Plate
Step 2. Attach Wall Plate to the Wall
Timber Stud Masonry Wall
NOTE: Use a stud finder to accurately
locate the center of the stud. Ensure
that all screws fix securely into the stud.
Coach Bolt
Nylon Anchor
Step 3. Attach Mounting Brackets to Display in Portrait Position
Ø4.5mm x 55mm
deep Drilled Hole
Ø10mm x 60mm
deep Drilled Hole
M6 Washer
Coach Bolt
M6 Washer
Mounting Brackets (pair)
Big/Small
Spacer (x4/x8)
M6x14mm/30mm
Use appropriate washers to level uneven
and recessed rear screen surfaces
Tools Required:
• Power Drill
• 4.5mm(0.18”) Drill Bit
• 10mm(0.39”) Masonry Drill Bit
Slots should be at the
top of the display
Slots
Holes
Tips 1.Please use a Spirit Level to ensure plate is LEVEL.
2.Use the Wall Plate as a drilling template.

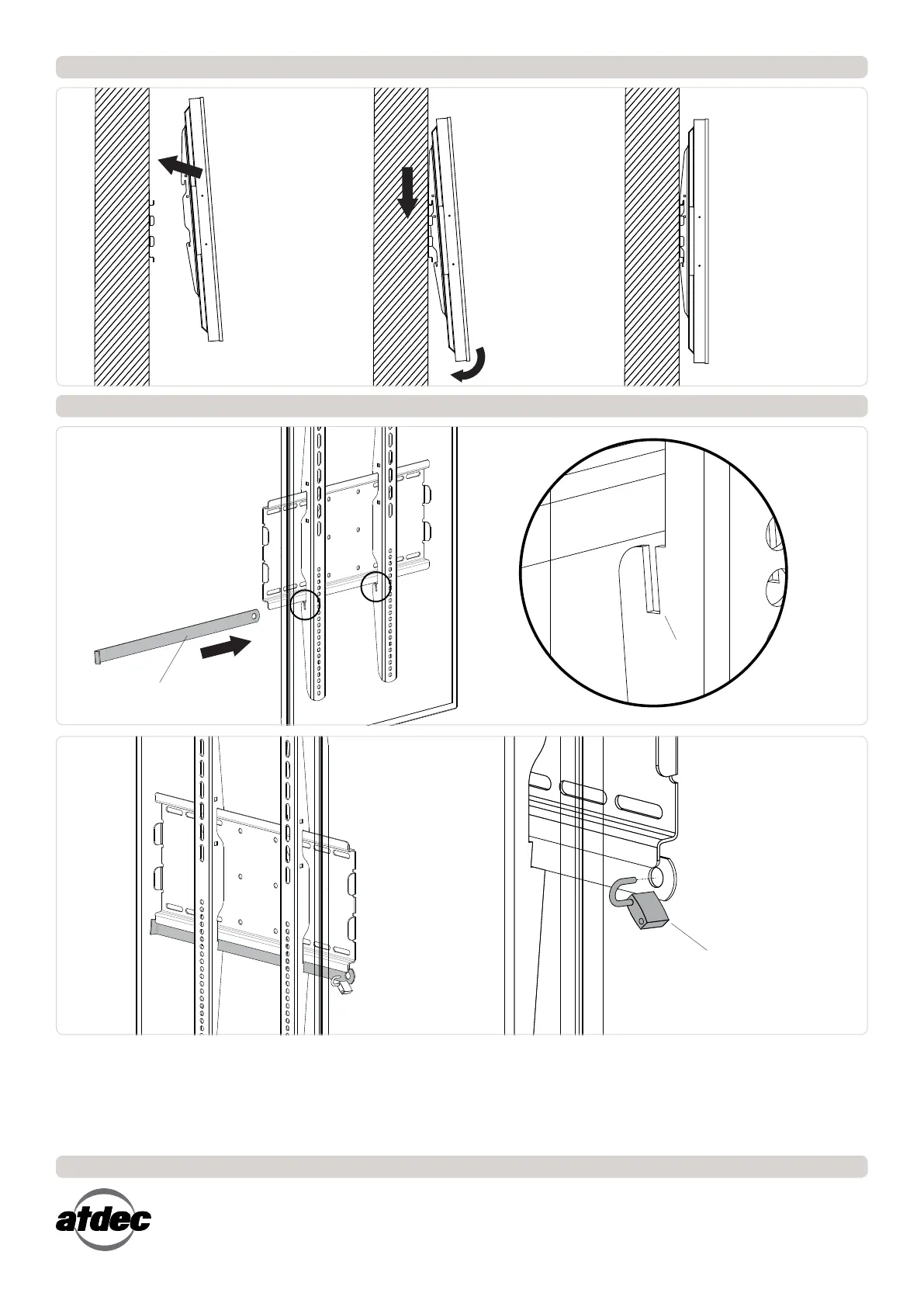

Angle the screen as
shown and position
so the hook is above
the bracket
Drop the hook
onto the bracket to
engage and gently
lower the screen
Installation Complete
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 18.07.13 ©
Step 5. Security
Security Bar
Insert the Security Bar into
the slots on the Mounting
Brackets with the tab
facing outwards.
Step 5a
Step 5b
Secure with a Pad
Lock.
Step 4. Mount the Display to the Wall
Slot
Pad Lock
(not supplied)
