Side 1/3

FURNITURE

ROTATION

ADJUSTMENT

Check Clearance

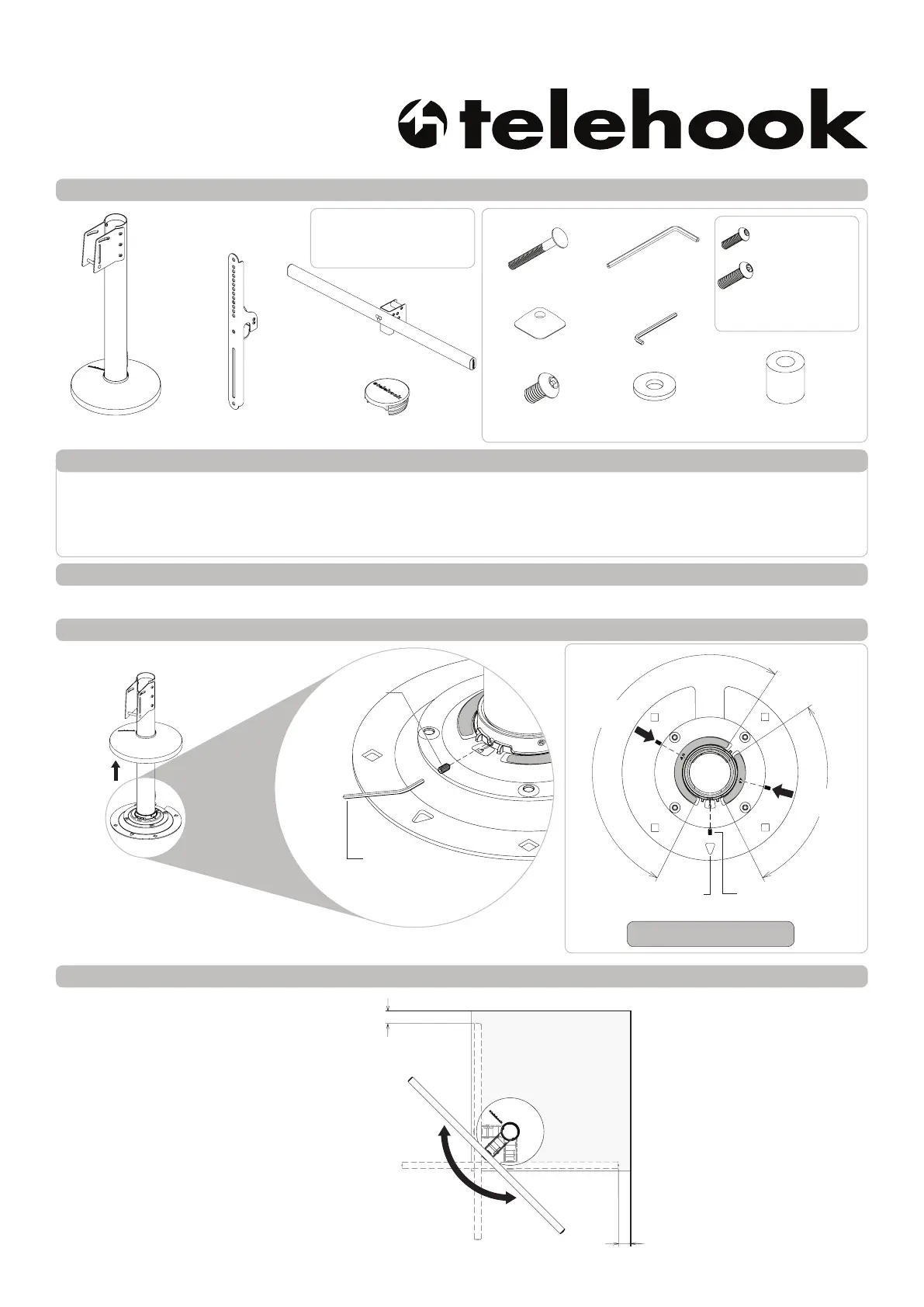

Installation Instructions

TH-FM

Component Checklist

Furniture Mount

Pole Assembly

Horizontal Rail

! IMPORTANT - Install Telehook Furniture Mount as per installation instruction.

! This product supports a maximum load of 35kg (77lbs.).

! This product has a universal mounting hole pattern that suits a broad range of TV’s:

From 100-600mm in width and 100-400mm in height.

! The manufacturer accepts no responsibility for incorrect installation.

Step 1. Check Components

Check you have received against the component checklist and hardware above.

Step 2. Limit Rotation and Position

2mm Allen Key

Step 3. Check Space

Before installing your TH-FM check your

proposed location has enough space for

the amount of rotation you are planning

to use.

M6x10 Security

Screw (x3)

4mm Security

Allen Key

M8x45mm/65mm

Coach Bolt (x4 each)

Security Nut (x5)

IMPORTANT INFORMATION:

The Limit of Rotation

is dependant on the

location of the Set

Screw.

M6 Washer (x7)

M8 Washer (x4)

M6 Spacer (x4)

M8 Spacer (x4)

HARDWARE

Display Mounting

Screws (x4 each)

M6x16mm/30mm

M8x16mm/30mm

2mm Allen Key

NOTE: Use 2mm Allen Key to remove and insert M4x8

Grub Screw to the desired hole position.

M4x8 Set

Screw

points forward

Option 2

90°

Option 3

180°

Option 1 (Factory Set:

Set Screw at 0°)

Option 4 - remove Set Screw

for free 360° rotation.

WALL

Check Clearance

Tools Required:

• 8mm Drill Bit

• 50mm Hole Saw

• Adjustable Wrench

Mounting Bracket (x2) Top Cap

45mm or 65mm

Coach Bolt (x4)

Security Nut (x4)

8mm Drilled

Hole (x4)

Spare Security Nut

(use spare Security Nut to tighten other Security Nuts)

DESK

Furniture Mount

orientation

arrow

Step 5. Locate and Secure the Furniture Mount

OPTION 1

APPLY

ADHESIVE

GLASS or STONE SURFACE

OPTION 2

Step 6. Install the Horizontal Rail

Notch

1. Hook the notch on to the pin.

HOOK

2. Insert the two M6 Security Screw to secure the Horizontal Rail.

Leave untightened to allow Tilt Adjustment.

M6x10

Security Screw (x2)

Step 7. Tilt Adjustment

4mm Security

Allen Key

use the square holes

as template in drilling

holes to the desk.

NOTES:

1. Use 45mm Coach Bolt for 15-25mm surface

thickness and 65mm Coach Bolt for 25mm-

45mm surface thickness.

2. Remove the spare Security Nut after tightening

other Security Nuts. Keep it in a safe place for

future usage.

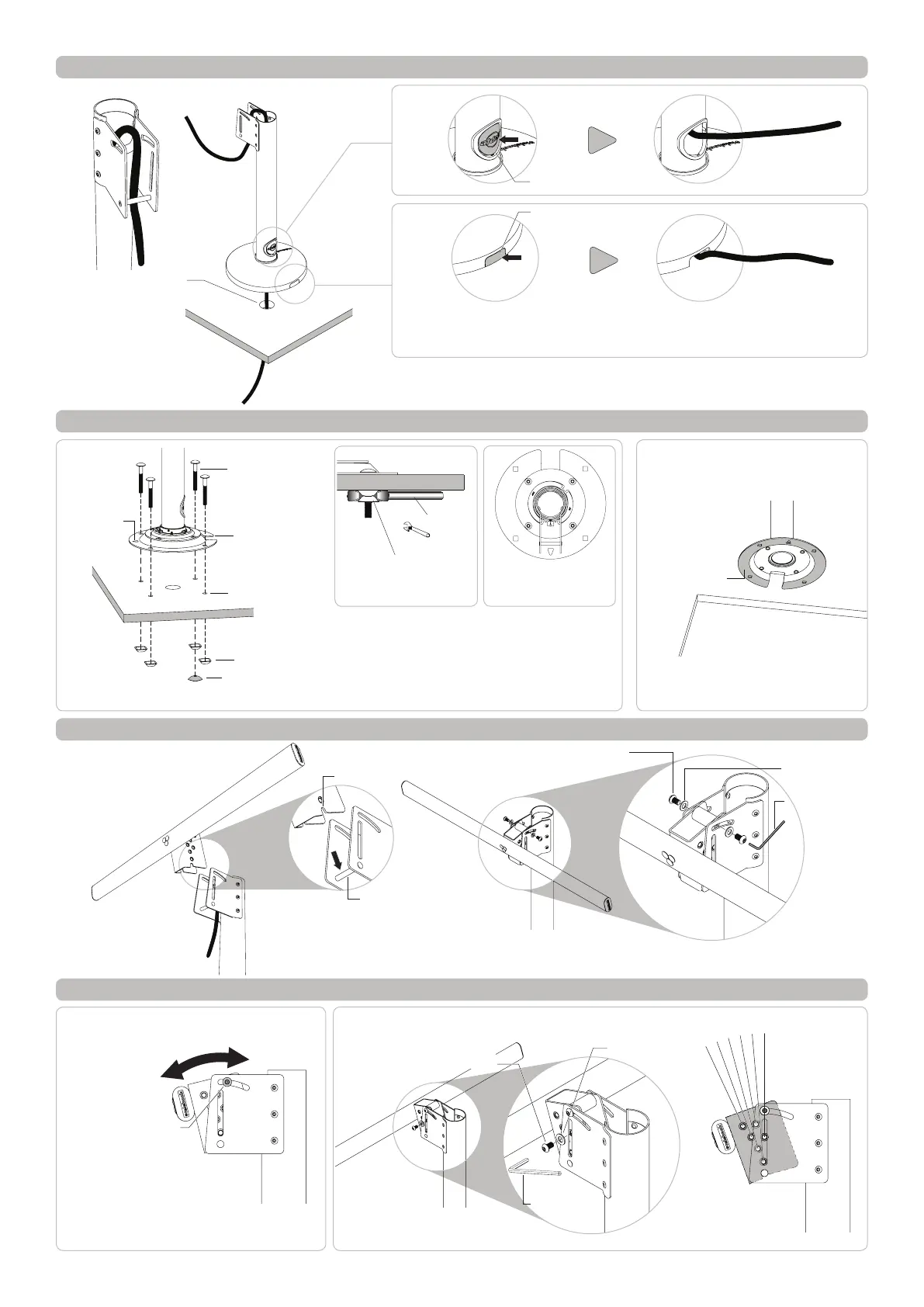

Step 4. Cable Management

SNAP OFF

OPTION 2

OPTION 3

NOTE: The cable needs to be in place BEFORE the

furniture mount is attached to the furniture top when

using this configuration.

OPTION 1

A 50mm cable access

hole will need to be

made on the desk top to

allow cable access from

below for Option 1.

DESK

Rear Cable Port

Base Cable Port

Atdec recommends a good quality

Brand Name contact adhesive. Please

follow directions on the product.

Adjustable

Wrench

NOTE: If Option 2 is preferred to secure

your Furniture Mount, all cables need to

be in place before the Furniture Mount is

attached to the surface.

M6 Washer (x2)

OPTION 2: 5° Incremental Tilt Adjustment from -5° to +20°

M6x10

Security Screw

20°

10°

0°

5°

-5°

15°

Tighten all screws to lock the

position after tilt adjustment.

4mm Security

Allen Key

M6 Washer

OPTION 1: -5° to +20° Free Tilt Adjustment

-5°

+20°

Loosen Security Screws

on both sides to adjust

and tighten to secure

the desired tilt.

The Security Nuts can only

be tightened or loosened in

conjunction with the spare

Security Nuts.

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Ikke kategorisert
Modell:	TH-FM
Rotasjonsvinkel:	360 °
Antall skjermer som støttes:	1
Maksimal skjermstørrelse:	- "
Minimum skjermstørrelse:	- "
Produktfarge:	Sort
Vippevinkelområde:	-5 - 20 °
Kroppsmateriale:	Stål
Montasjetype:	Bord
Maksimalvekt (kapasitet):	35 kg
Monteringsgrensesnitt, kompatibilitet (min):	100 x 100 mm
Monteringsgrensesnitt, kompatibilitet (maks):	600 x 400 mm
