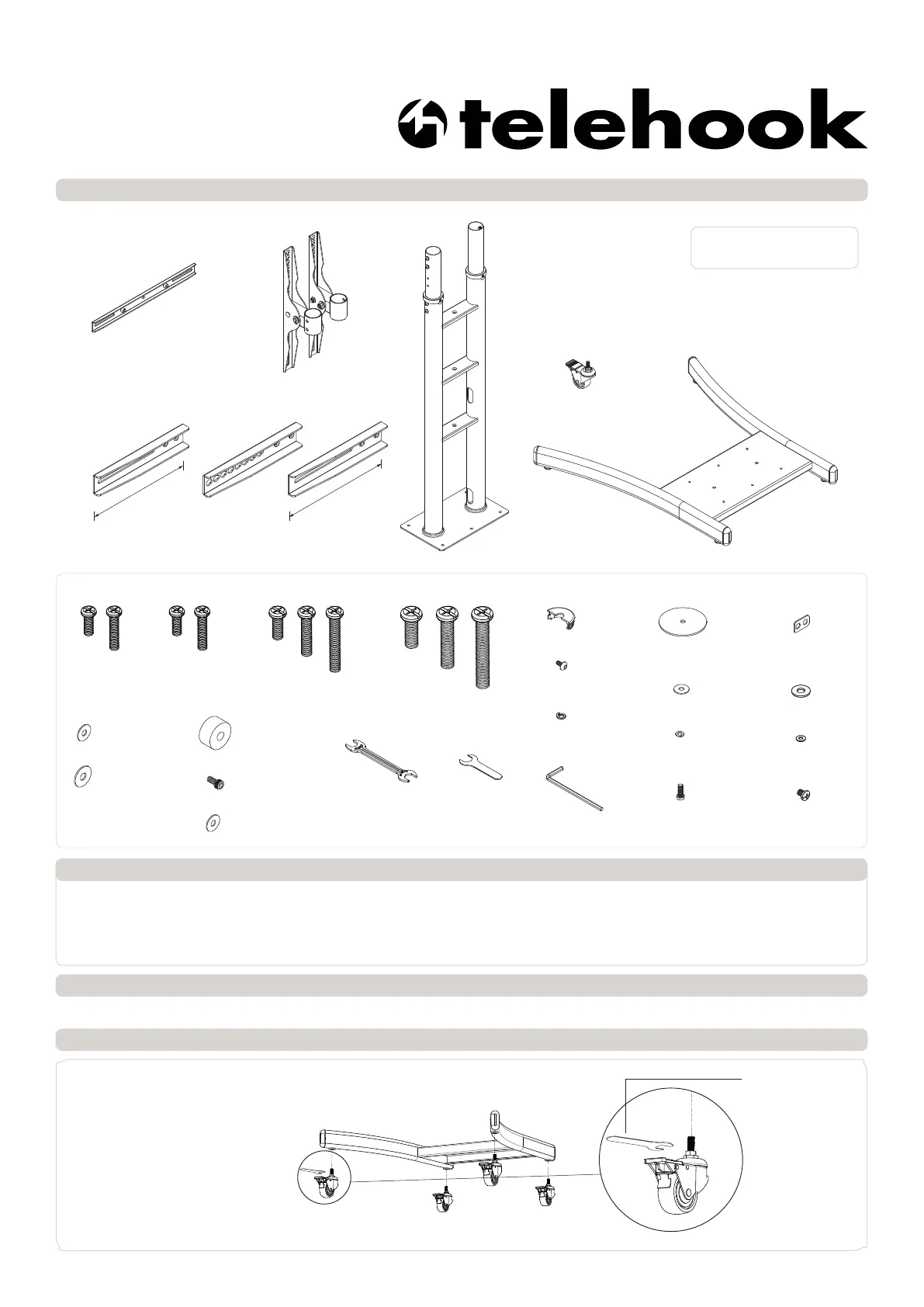

Installation Instructions

TH-TVCH

Component Checklist

Mobile TV Cart / Heavy Duty

Column

Base

Castors (x4)

Tilt adjustment

Spanner (x2)

Castor Spanner

Mounting

Brackets (x2)

Mounting Bracket

Extensions (x4)

250mm

Uprights (L) & (R)

Upright Bottom

Extension (x2)

260mm

Upright Top

Extension (x2)

Column Top Column Bottom Mounting Bracket

M4 x 16/25

(x8)

M5 Washers

(x8)

1/4” Washers

(x6)

M5 x 16/25

(x8)

M6 x 20/40/55

(x6)

M8 x 20/40/55

(x6)

Cable Plug (x4)

93mm OD

Washer (x2)

Rectangular Washer

(x4)

28mm OD Spacer (x8)

21mm OD black

Washer (x16)

M8 Phillps Head Screw

(x16)

3/8” Washer (x2)

3/8” Spring

Washer (x2)

3/8” Bolt (x2)

M8 Button Head

Screw (x6)

M8 Spring Washer

(x6)

Allen Key

Spacers (x12)

Socket Head Bolt

(x4)

21mm OD Silver

Washer (x2)

HARDWARE

! IMPORTANT - Install Telehook TV Cart as per installation instruction.

! This product supports a maximum load of 125kg (275lbs.).

! This product supports VESA Mounting Hole Configurations: From 200mm to 450mm wide (800mm with extensions)

and from 200mm to 450mm high (800mm high with extensions).

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received against the component checklist and hardware above.

Step 2. Assemble Base

2.1 Mount all castors and tighten with caster spanner.

Castor Spanner

Tools Required:

• Phillips Head Screwdriver
