Side 1/2

Wall Plate

Coach Screw

6mm (¼") hole

Timber Stud

Nylon Anchor (x4)

M5/6/8 Washer

(x4 each)

M5x30/16mm (x4 each)

M6x30/16mm (x4 each)

M8x30/16mm (x4 each)

Display Mounting

Screws

M4/5 Spacer (x4)

M6/8 Spacer (x4)

Note: Use a stud finder to accurately locate the center of

the stud. Ensure that all two screws fix securely into the stud.

Hardware

Coach Screw (x4)

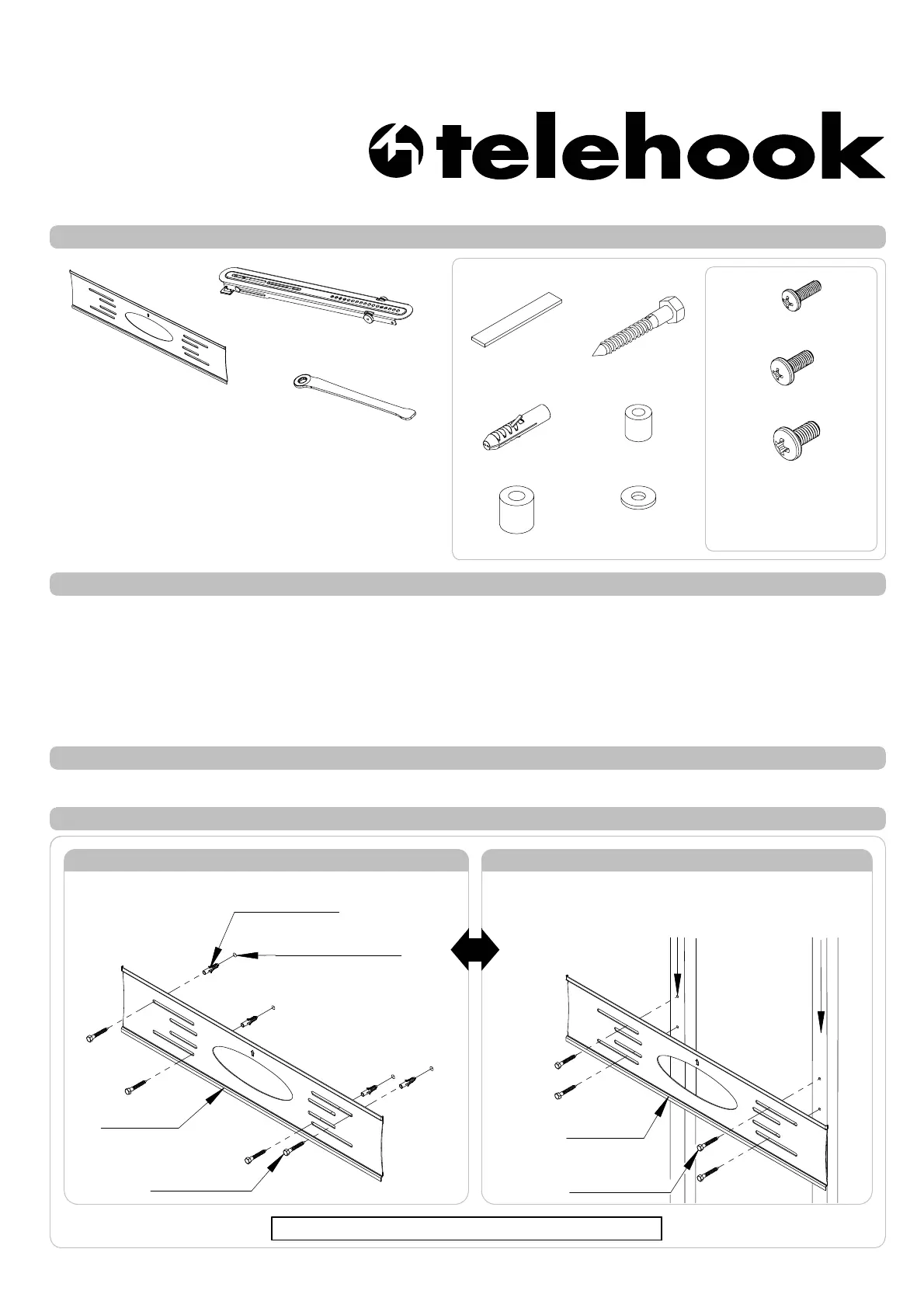

Installation Instructions

TH-3060-LPT

Components Checklist

Flat Screen Wall Mount | Tilt

Wall Plate

Tilt Bracket (x2)

IMPORTANT INFORMATION

! IMPORTANT - Install Telehook 3060 Wall Mount as per Installation Instructions.

! This product supports a load from 8kg (17.6lbs) min. to 5

0kg (110lbs) max.

! This product only supports displays with mounting hole configurations from 200mm x 100mm min.

to 800mm x 500mm max.

! The manufacturer does not accept responsibility for incor

rect installation.

! Before installing this Telehook product, please check the

display ventilation requirements with your

LED/LCD manufacturer.

Step 1. Check Components

Step 2. Mounting the Wall Plate

Tools Required:



Power Drill



6mm (¼") drill bit





10mm (

") masonry drill bit





13mm (½") Socket Wrench or Shifter

Tip: Use a spirit level to ensure wall plate is horizontal.

Masonry Wall

Timber Stud

Check you have received all parts against the Component Checkli

Tension Tool

Wall Plate

Coach Screw

Nylon Anchor

10mm (

") hole



") drill bit



Spirit Level

Self-adhesive

Foam Pad

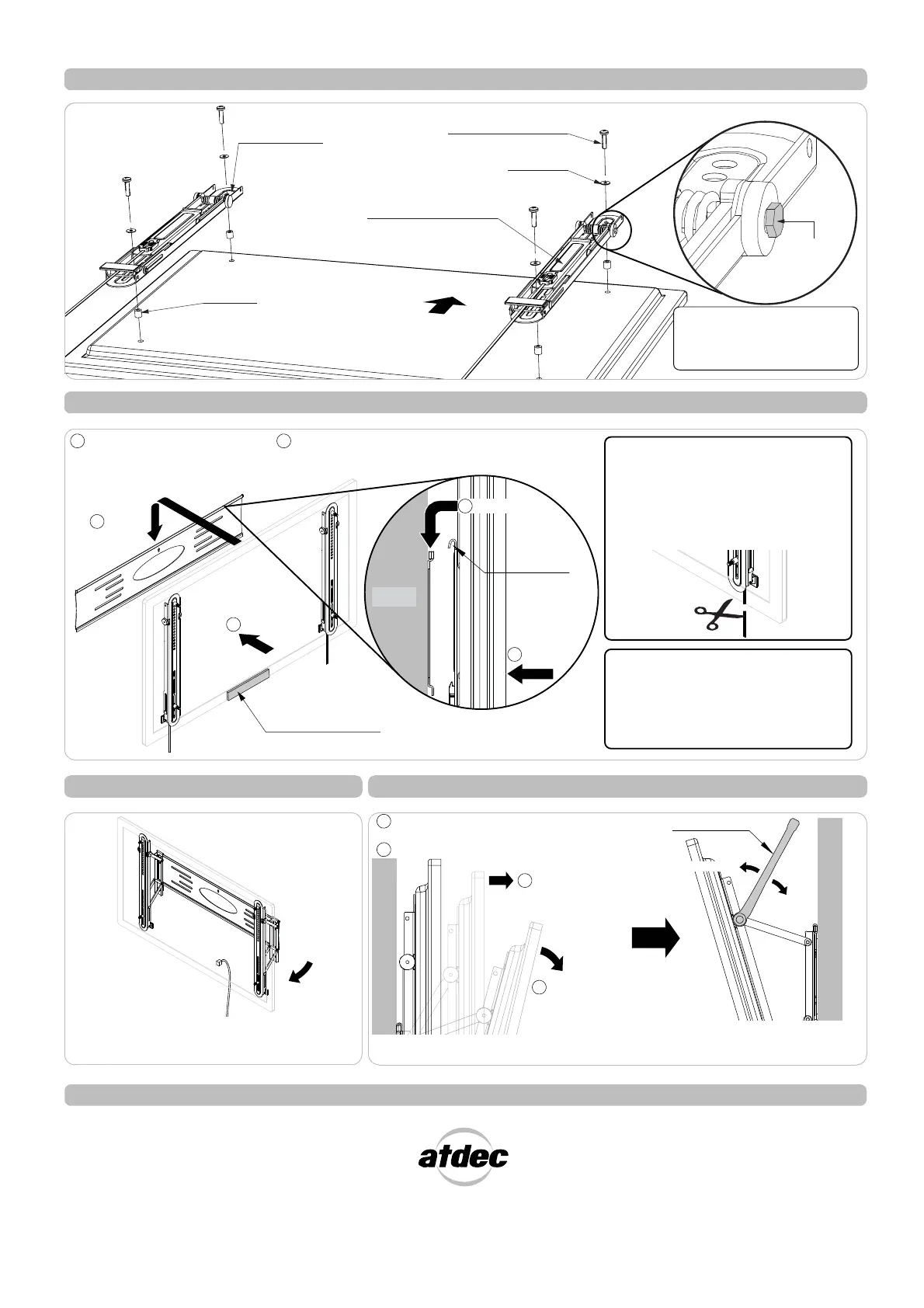

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Ikke kategorisert
Modell:	Ultra Slim TH-3060-LPT
Farge:	Nei
Produktfarge:	Sort
Vippevinkelområde:	-15 - 15 °
Skjermstørrelsekompabilitet:	32 "
Kroppsmateriale:	Metall
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	50 kg
Monteringsgrensesnitt, kompatibilitet (min):	200 x 100 mm
Monteringsgrensesnitt, kompatibilitet (maks):	200 x 100 mm
Distanse til vegg (min.):	25 mm
