Installation Instructions

VF-AT-W

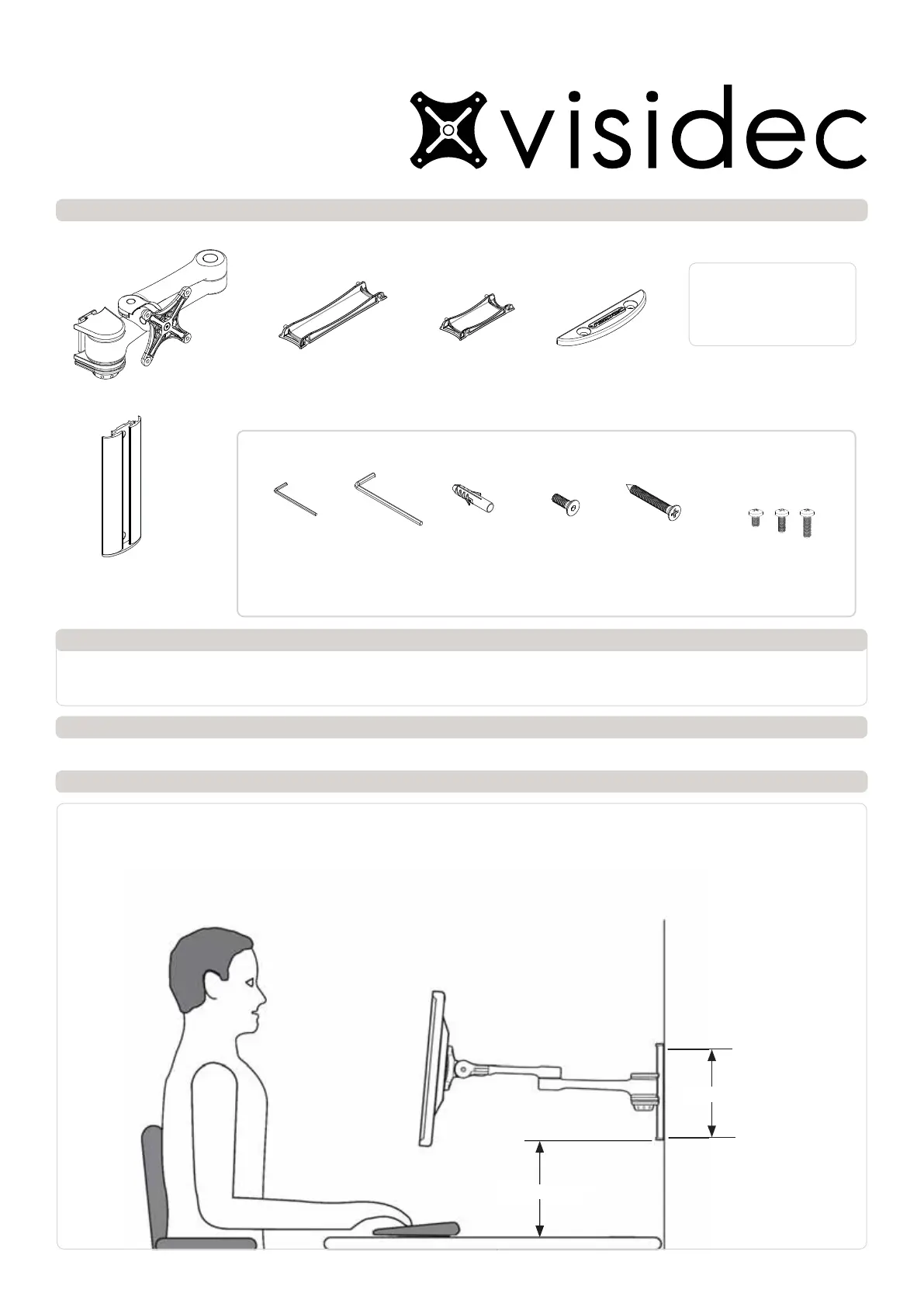

Component Checklist

Focus | Articulated Arm | Wall

M4x10/12/16mm (x4)

Phillips Head

Mounting Screws

Primary Arm

Cable Cover

Secondary Arm

Cable Cover

End CapArm Assembly

Wall Plate

5mm

Allen Key

Nylon Anchor

Plug (x2)

M4 x 12mm

Countersunk

Screw (x2)

M6 x 50mm

Countersunk

Screw (x2)

2.5mm

Allen Key

Display Mounting

Screws

HARDWARE

! IMPORTANT - Install Visidec Focus Articulated Arm Wall as per installation instruction.

! This product supports a maximum load of 8kg (17.6lbs).

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check what you have received against the component checklist and hardware above.

Step 2. Position Wall Plate

As a guide, it is recommended that the bottom of the Wall Plate be positioned approximately 140mm (5 1/2”)

above the desktop.

For further Ergonomic Guidelines, please refer to the end of the document.

Note: The Focus

Articulated Arm Wall

provides vertical

adjustment of 128mm.

Tools Required:

• Power Drill

• 5.5mm (1/4”) Drill Bit

• 8mm (5/16”) Drill Bit

• Phillips Head Screwdriver

128mm (5”)

140mm (5 1/2”)

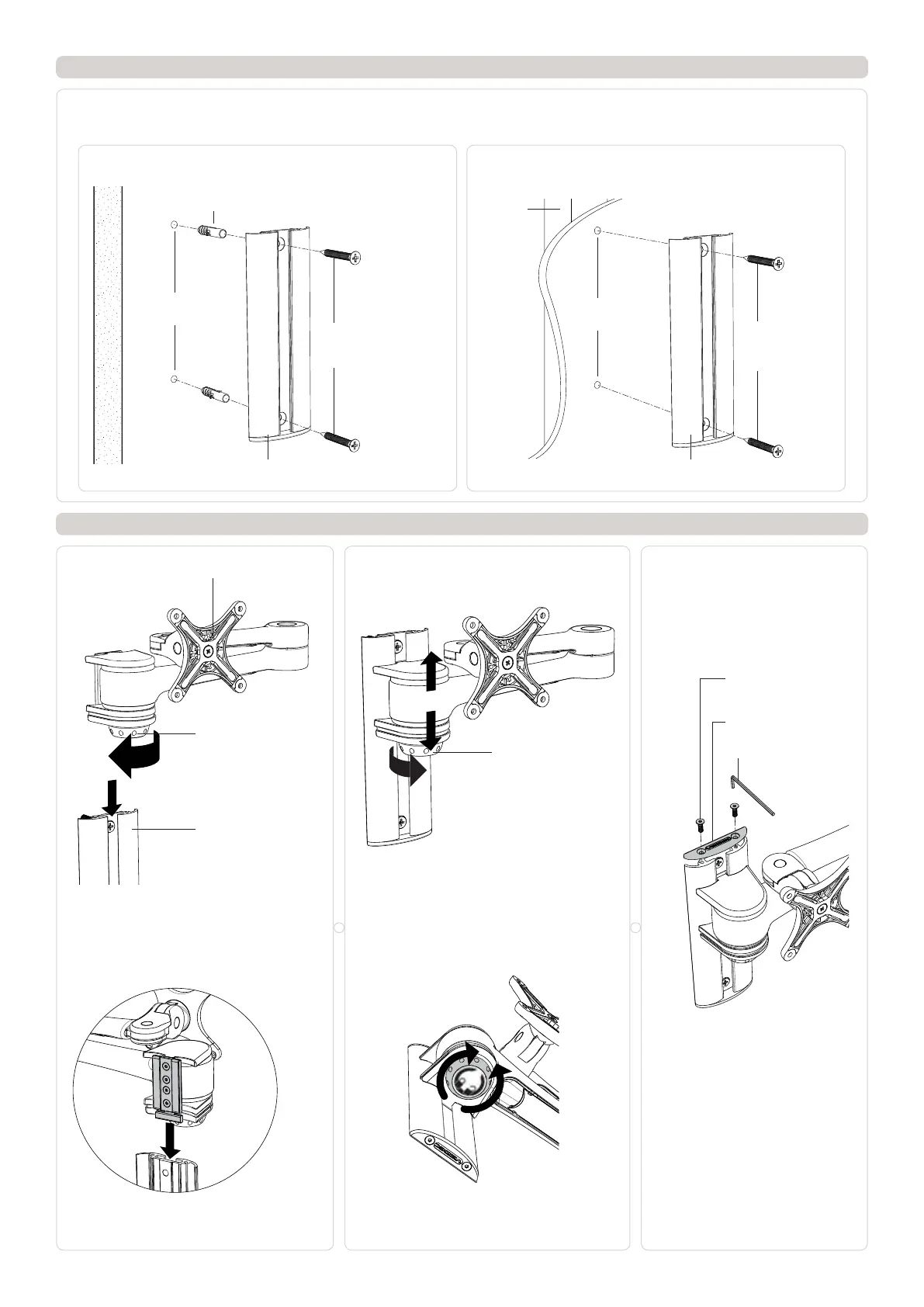

Step 3. Installing the Wall Plate

Step 4. Mount Arm Assembly

3.1 Choose the appropriate installation procedure depending on your wall type.

4.1 Unlock the Locking Dial before

inserting the Arm Assembly into the

Wall Plate.

4.2 Slide the Arm Assembly to the

preferred height and lock to secure

the arm.

Lock

Unlock

4.3 Secure the End Cap

with the supplied M4x12mm

Countersunk Screws and

2.5mm Allen Key.

2.5mm Allen Key

End Cap

Wall Plate

Nylon

Anchors

Timber

Stud

8mm (5/16”)

Hole

5.5mm

(1/4”) Hole

M6 x 50mm

Countersunk

Screw

M6 x 50mm

Countersunk

Screw

Wall Plate

Arm Assembly

Locking Dial

Wall Plate

M4x12mm

Countersunk Screw

Masonry

Timber Stud
