Introduction
The Atlona AT-UHD-EX-100CE-TX-PD is an HDBaseT™ transmitter for HDMI transmission up to 328
feet over category cable with Ethernet pass through, plus RS-232 control. It transmits (100 meters)
video signals up to 4K/UHD @ 60Hz with 4:2:0 color subsampling, plus embedded multi-channel
audio. The AT-UHD-EX-100CE-TX-PD is HDCP 2.2 compliant and supports EDID communication.
The transmitter features a quarter rack width metal enclosure for easy rack mounting with rear
panel I/O ports for uncluttered wire management. This device is externally powered via Power over
Ethernet, and is ideal for use with Atlona switchers with PoE-equipped HDBaseT inputs, including
the AT-UHD-CLSO-612ED, AT-UHD-CLSO-824, and AT-UHD-SW-5000ED.
Package Contents
Features
• 1 x AT-UHD-EX-100CE-TX-PD
• 1 x Female captive screw connector (3 pin: RS-232)
• 1 x Pair of wall/table mount ears
• 1 x Pair of screws for wall/mount ears
• 1 x User manual
• Extends IR, RS-232, Ethernet, and audio/visual content up to 328ft over a single category cable
• Supports resolutions up to 4K 60Hz @ chroma sub-sampling 4:2:0 8-bit(UHD)
• Bi-directional Ethernet pass through
• PoE , is powered by compatible receivers (Power over Ethernet)
AT-UHD-EX-100CE-RX -PD or UHD-CLSO PoE switcherse.g.
• Multichannel audio pass through up to Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos
• Full 3D pass through
• HDCP 2.2 compliant
• Field updatable firmware
Before You Start
• When installing the extenders DO NOT:
Cover the vents
Install into a sealed wall
Install into an area without adequate air ventilation
Do not
cover
venting!

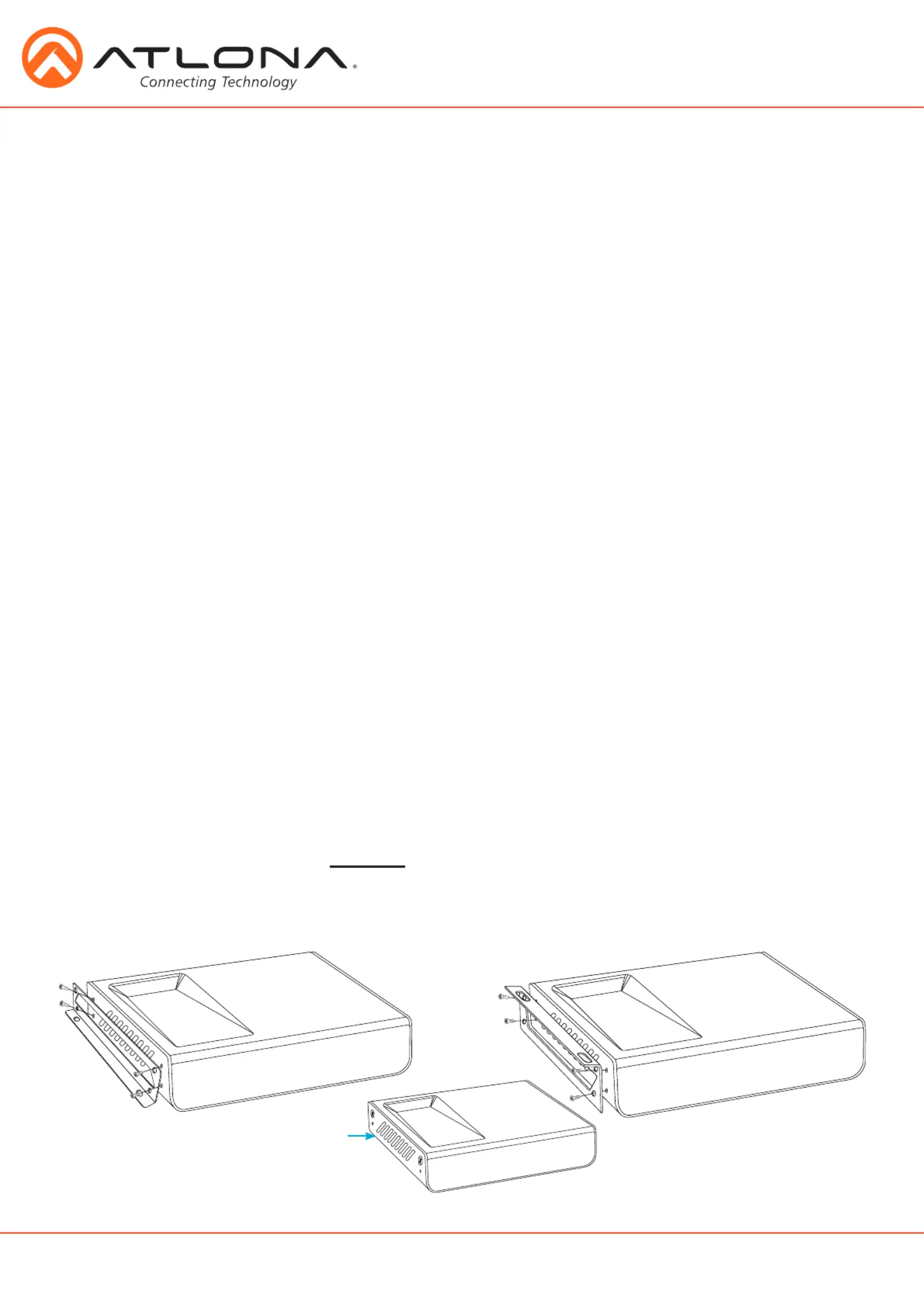

*Remove the side screws from the case and use for bracket installation
Connect the screws to these
four holes when mounting to a
table.
Connect the screws to these
four holes when mounting to
a wall.
