PROFESSIONAL AUDIO EQUIPMENT

Outdoor Wall Speaker WX302/OB-OW

User Manual &

Installation Guide

Outdoor Wall Speaker

WX302/OB-OW

AUDAC

Warning

 Only use the correct amplifier output voltage and impedance. Exceeding these limits could

cause fire or other failures.

Avoid explosions: do not use the speaker around gasoline, thinner or other combustibles.

 Only install the speaker in locations that can structurally support the weight of the speaker.

Not doing so may result in the speaker falling down.

 Do not use any other method than specified to mount the speaker. If extreme force is applied

to the speaker, the speaker could fall down.

 Attach a safety wire to the speaker when it’s mounted high above the ground. Failure in doing

so could cause the speaker to fall down for any reason.

 Avoid mounting the speaker in locations exposed to constant vibrations. The mounting points

can be damaged by excessive vibrations, potentially causing the speaker to fall down.

Caution

 Avoid electric shocks: switch off the amplifier power when connecting the speaker.

 Avoid installing the speaker in locations exposed to solvents, acids, smoke and heaters, as

excessive exposure to these factors could result in speaker failure, fire or electric shocks.

 Do not operate the speaker for an extended period of time at distorted sound. This could

cause (irreparable) damage to the speaker.

 Do not stand or sit on, nor hang down from the speaker as this may cause failure of the

speaker.

Installing the WX302/OB-OW

Mounting the loudspeaker

The loudspeaker can be mounted both horizontally and vertically by means of the supplied

mounting bracket. For mounting the loudspeaker on the desired mounting location, the mounting

bracket should be removed from the loudspeaker. This can be done by loosening the screws on

either side of the loudspeaker. After this is done, the mounting holes should be indicated. For a

stable mounting of the loudspeaker it should always be fastened by two screws. The position of

the mounting holes depends of the mounting position, horizontally or vertically with a spacing of

107 mm in between. After this, the bracket can be mounted on the desired location. Always use

the proper fasteners depending of the mounting surface.

Once the bracket is mounted on the desired location, the loudspeaker can be fixed to the bracket.

Connecting the loudspeaker

On the rear side of the WX302/OB- is a special waterproof AWX-5 connector provided. OW

This allows to connect the loudspeaker to the amplifier output. A special included connection

cable should be used. Always connect the white conductor of the connection cable to the COM

output of the amplifier and the black connection terminal to the positive terminal of the amplifier

output.

Mind the polarity markings when wiring the loudspeaker cables.

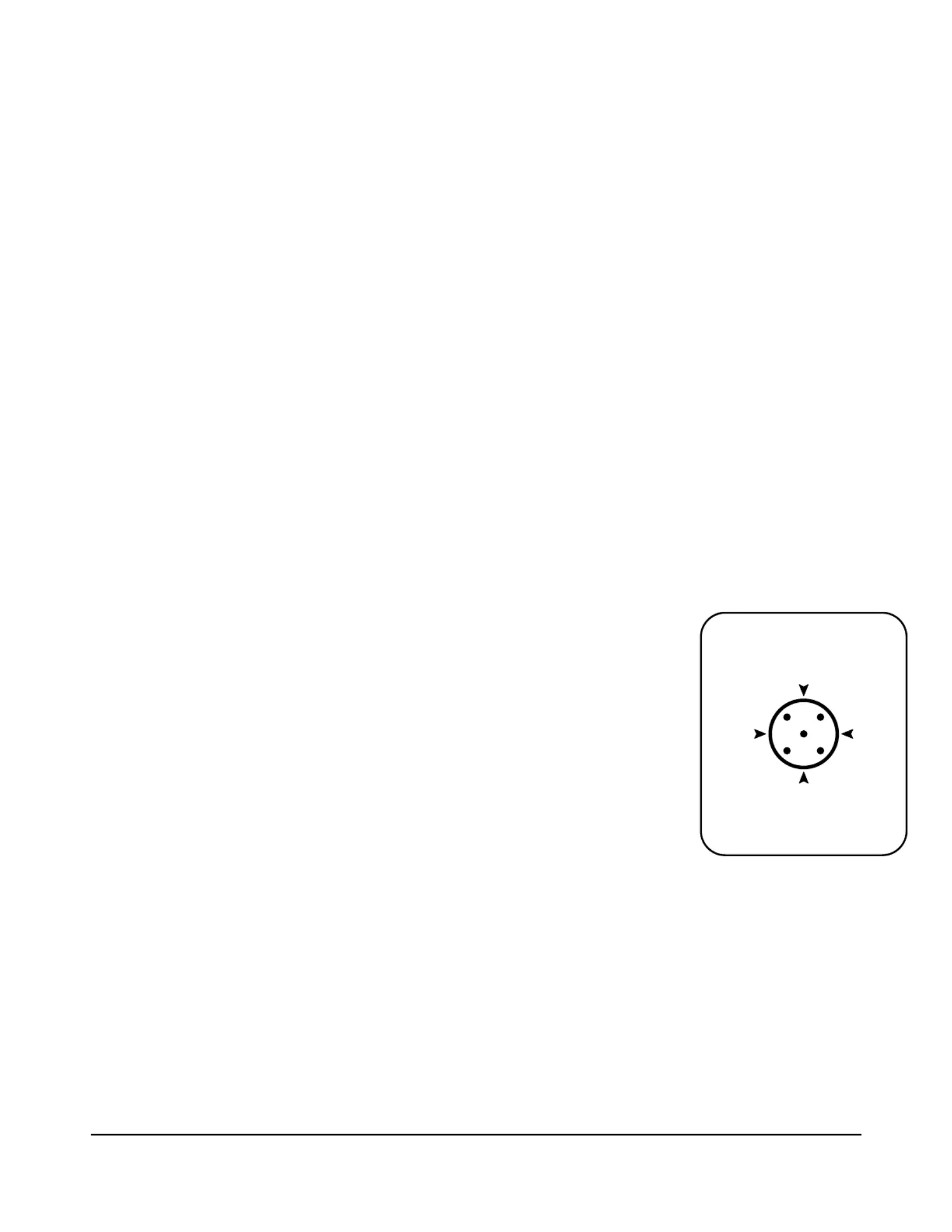

Power settings

The power settings of the WX302/OB- can be made by rotating OW

the waterproof connector on the rear side of the loudspeaker. On the

cable part of the connector is a white dot displayed. Depending of

the position of the white dot, the desired power can be selected. The

corresponding powers are shown on the sticker on the rear side of

the loudspeaker. The power / impedance of the loudspeaker can be

set in 3 adjustable steps of impedance for 100V ( Watt, Watt, 5 20 10

Watt) and 1 step for 8 Ohm standard low impedance applications.

1) 30 8 Ohm / Watt

2) 20 500 Watt / Ohm

3) 10 1000 Watt / Ohm

4) 200 5 Watt / 0 Ohm

When the loudspeaker is connected to 70.7V facilities, the power indicated in the table above

will be reduced to half the power, and when connected to 50V facilities, the power will be

reduced to a quarter.

10W

20W

8Ω

1 kΩ

0.5 kΩ2 kΩ

Produkspesifikasjoner

Merke:	Audac
Kategori:	Høyttaler
Modell:	WX302/O
Vekt:	1660 g
Bredde:	199 mm
Dybde:	120 mm
Høyde:	129 mm
Tilkobling:	AWX-5
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Pakkevekt:	3900 g
Anbefalt bruk:	Universell
Impedans:	8 Ω
Høyttalerplassering:	Vegg.monterbar
Basshøyttaler:	Ja
Diskanthøyttaler:	Ja
Produktfarge:	Hvit
Pakketype:	Boks
Kroppsmateriale:	Akrylonitril-butadien-styren (ABS)
Lyd-utgang kanaler:	1.0 kanaler
RMS-rangert strøm/utgangseffekt:	30 W
Monteringsbeslag inkludert:	Ja
Dreibar:	Ja
Antall drivere:	2
Høyttaler type:	2-veis
Frekvensrekkevidde:	60 - 20000 Hz
Sensitivitet/følsomhet:	85 dB
Diskanthøyttalerens diameter:	1 "
Basshøyttalerens diameter (imperisk):	3 "
Overgangsfrekvens:	2500 Hz
Antall drivere til diskant:	1
Antall basshøyttalerdrivere:	1
