OWNER’S MANUAL

CAR POWER AMPLIFIER

PRINTED IN ITALY - Code 10125790

62018 Potenza Picena (MC) Italy

Tel. 0733.870870 • Fax 0733.870880 • http://www.audison.com • e-mail: com@audison.com

is a division of

Audison measurement standards

(Power measures taken according to audison standard, 1998 edition)

- 12VDC and 13.8VDC;

- 1 kHz or crossover cut-off frequency;

- 0.3% THD @ nominal power; 1% THD @ continuous power;

- Tolerance: +10%; -5%;

- Continous power given by RMS Voltage measured on resistive load;

- The nominal power of the amplifier is measured upon a battery voltage of 12 Volts with

a 4 Ohm load and with all channels in function.

INTRODUCTION

Audison thanks you for preferring this product and compliments you on your choice since it was

designed in order to insure outstanding musical and instrumental performances.

Before use instructions, please carefully read the safety norms you have to respect in order to avoid

unpleasant inconveniences and to enjoy this product at best.

PRECAUTIONS

- Avoid to install the amplifier where temperature is below 0°C or above 55°C and in non ventilated

places.

- The amplifier needs 12VDC power supply voltage with negative to ground. Be sure that your car electric

system is compatible with the amplifier ordinary functioning.

- For safer driving,we recommend to adjust volume not to drown external traffic sounds.

WARNING!:

While installing the amplifier, make sure that the cable coming from the battery positive pole (+)

doesn’t touch the amplifier heat sink.

The heat sink is directly connected to the battery negative pole (-) through the screws which fix it to the

vehicle chassis. Its contact with the positive pole cable would cause short circuit and, thus, possible fires

and battery damages.

Please connect power supply cables to the amplifier terminal blocks (POWER + and -) before and

to battery AFTER, to get maximum safety.

CAUTIONS

INPUTS: If the source output signal ground (PRE OUT) is not connected to the source chassis and the

system sound is not powerful enough or is distorted, try to solve the problem by connecting the output

signal cable braided shield (PRE OUT) to a point of the source chassis.

OUTPUTS: Don’t connect –L and –R power outputs to each other or to ground (car chassis). In case you

use an external crossover, make sure that channels grounds are not connected one to the other.

INSTALLATION

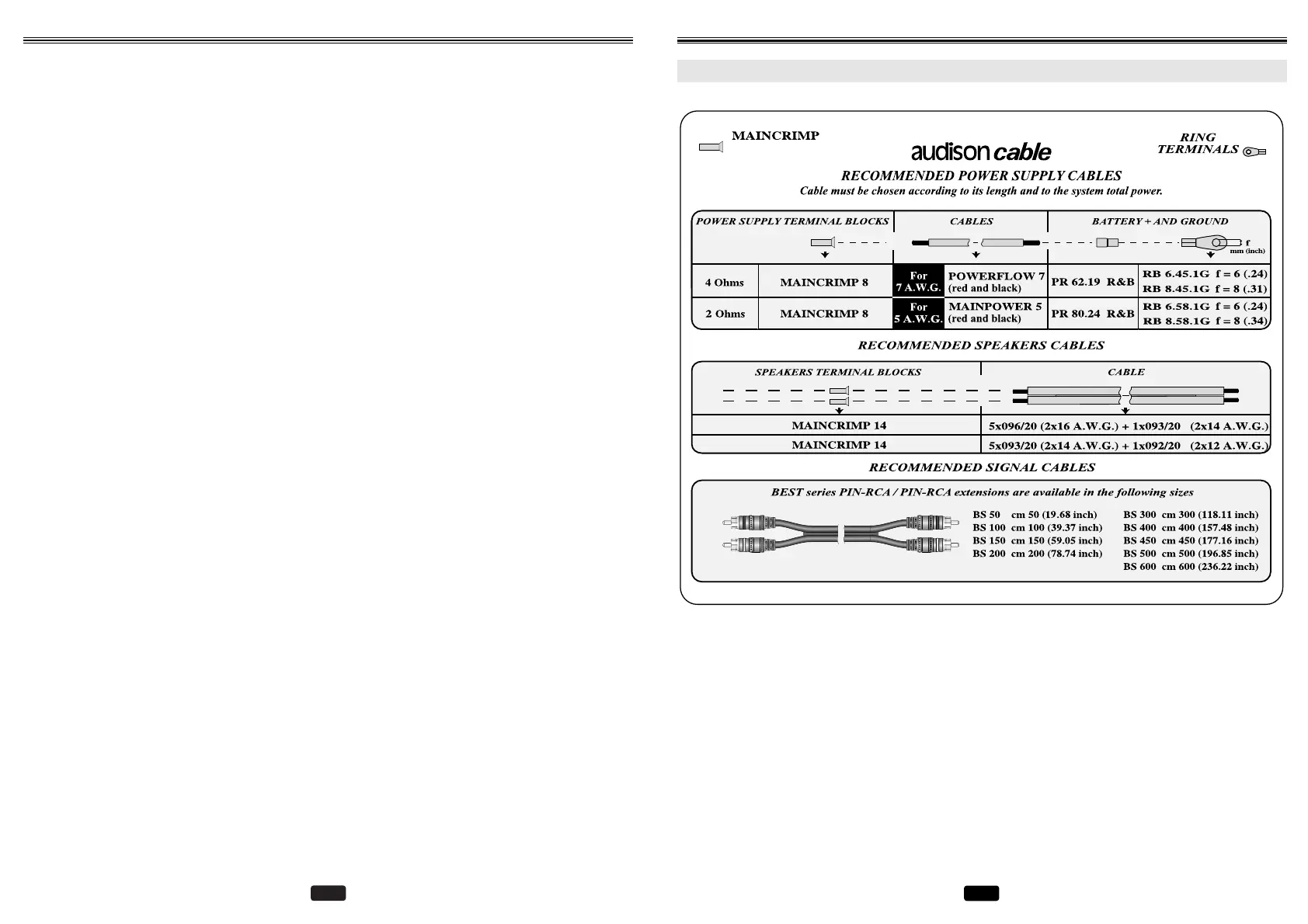

audison cable PRODUCTS FOR ELECTRIC CONNECTIONS

CONTENTS

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 4

In-Out panel

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Power supply panel

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Fuse replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Controls panel

Functions and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Setting panel

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Subsonic filter activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Subsonic filter cut-off frequency modification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

VCA-VCA1D modules insertion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Technical features

Size for fixing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

LRx 6.SR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Accessories

VCR01K, VCRAK and VCRDK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

CLK2 - LRx Cooling Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Configurations

Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Configuration table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Controls panel diagram and subsonic filter switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Configuration example

Front+Rear+Center+Sub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Installation

Logo rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Amplifier fixing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Electric connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

audison cable products for electric connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

audison measurement standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

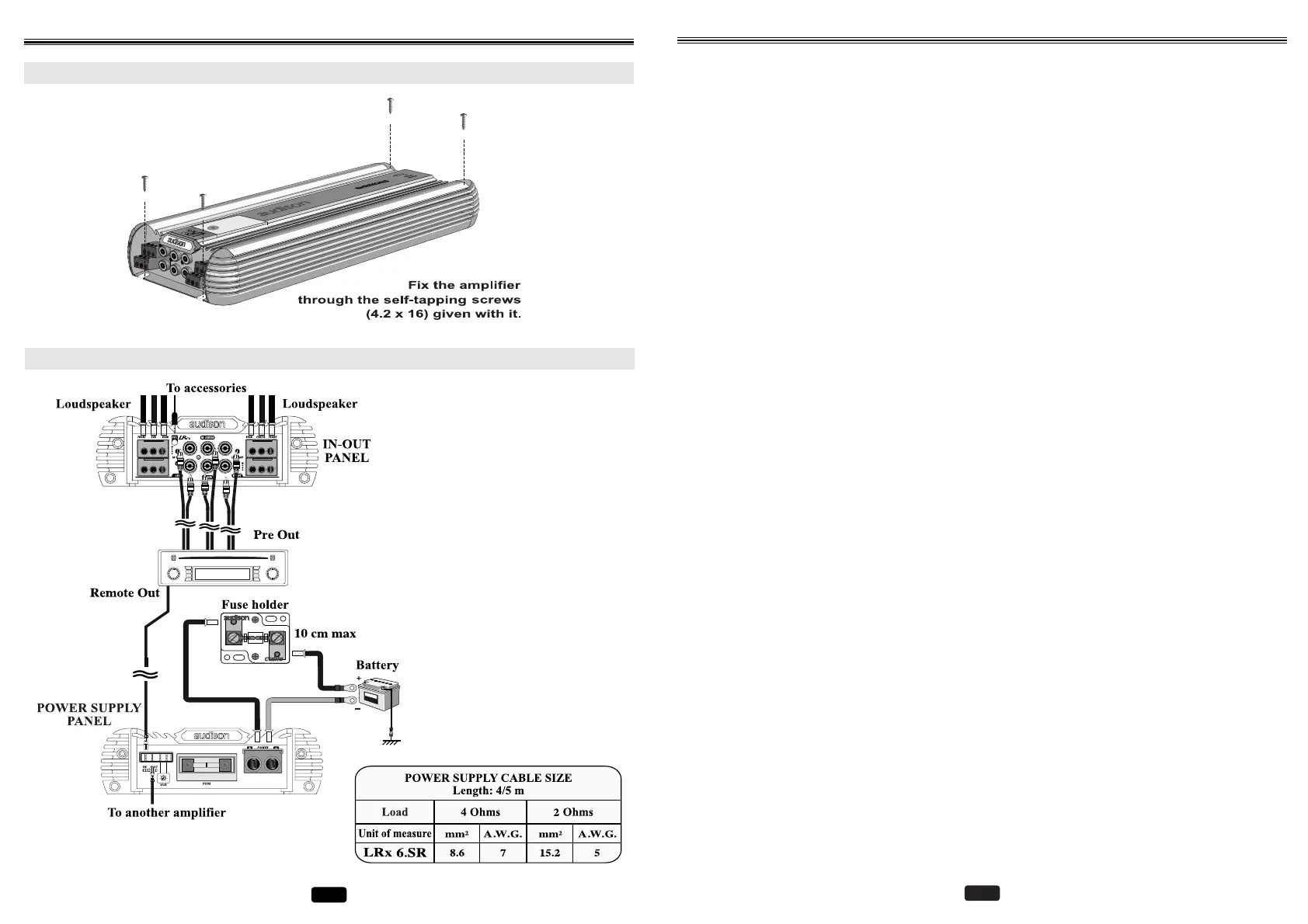

INSTALLATION

CAUTION

For the system safer protection, we

recommend the use of a strip fuse

on the cable that connects the

battery positive pole to the

amplifier POWER (+) terminal block.

This fuse has to be installed about

10 cm far from the battery; its value

will have to be equal or slightly

higher (+10% approx.) than

consumption @13.8 VDC, according
