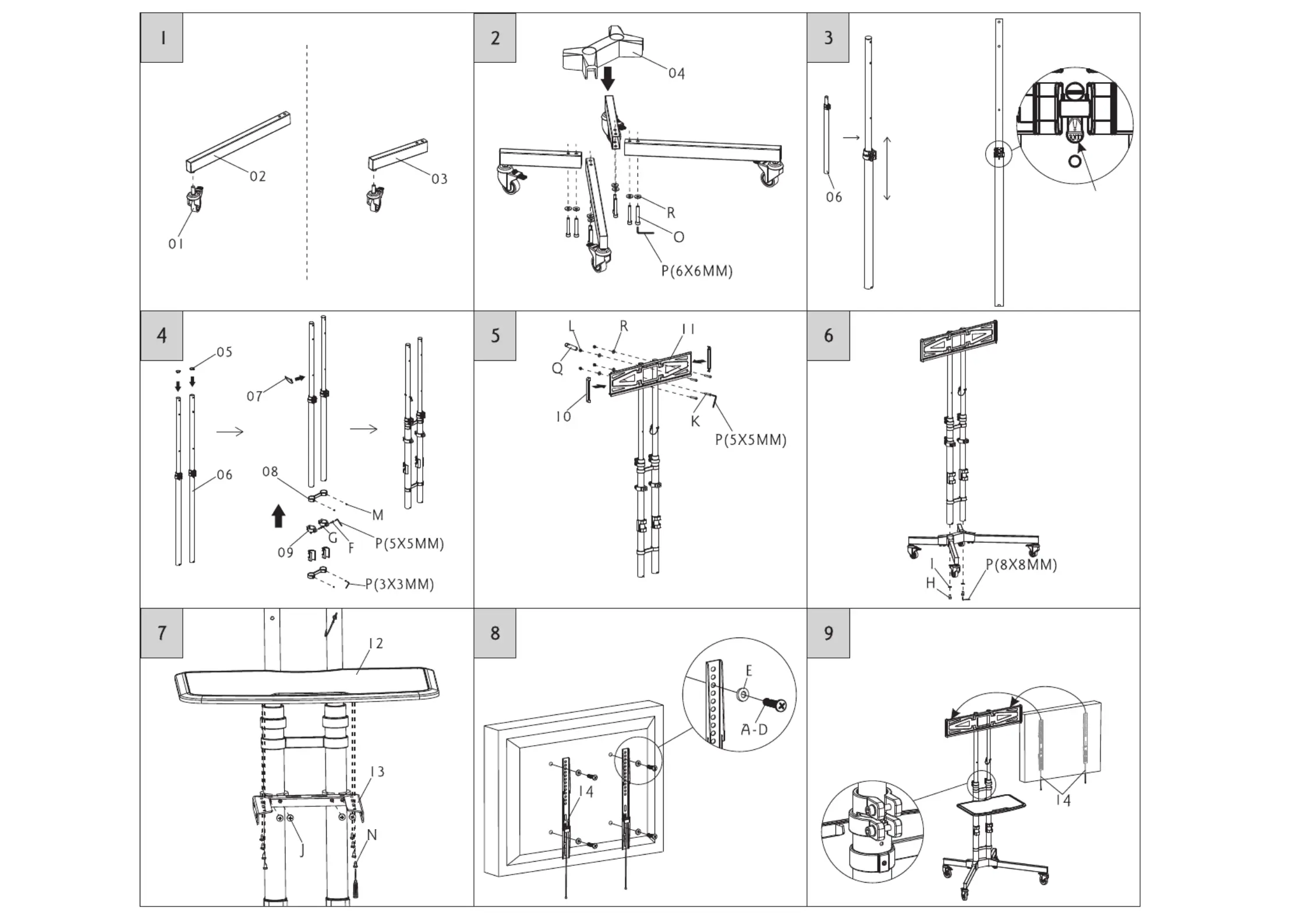

Insert the wheels 01 into the holes on each leg 02 and 03 Screw the legs onto fixing bracket 04 using fixings as above
Adjust the rods
06 up and down
to required height
Warning do not extend
the rods past the final
safety hole
Assemble the rods 06 together using bracket 08 and fixings as above
the 2 end caps 10 to the plate
Attach the plate and rods to the
feet assembly as above
Attach the shelf
12 using fixing
bracket 13
Attach the TV mounting plates
14 to the back of your TV as below.
If you use screws A or B use
washer E, if you use screws
C or D no washer is needed
Please ensure the screws in the centre of the rods
highlighted below are tightened securely before attempting
to hang your TV on the trolley

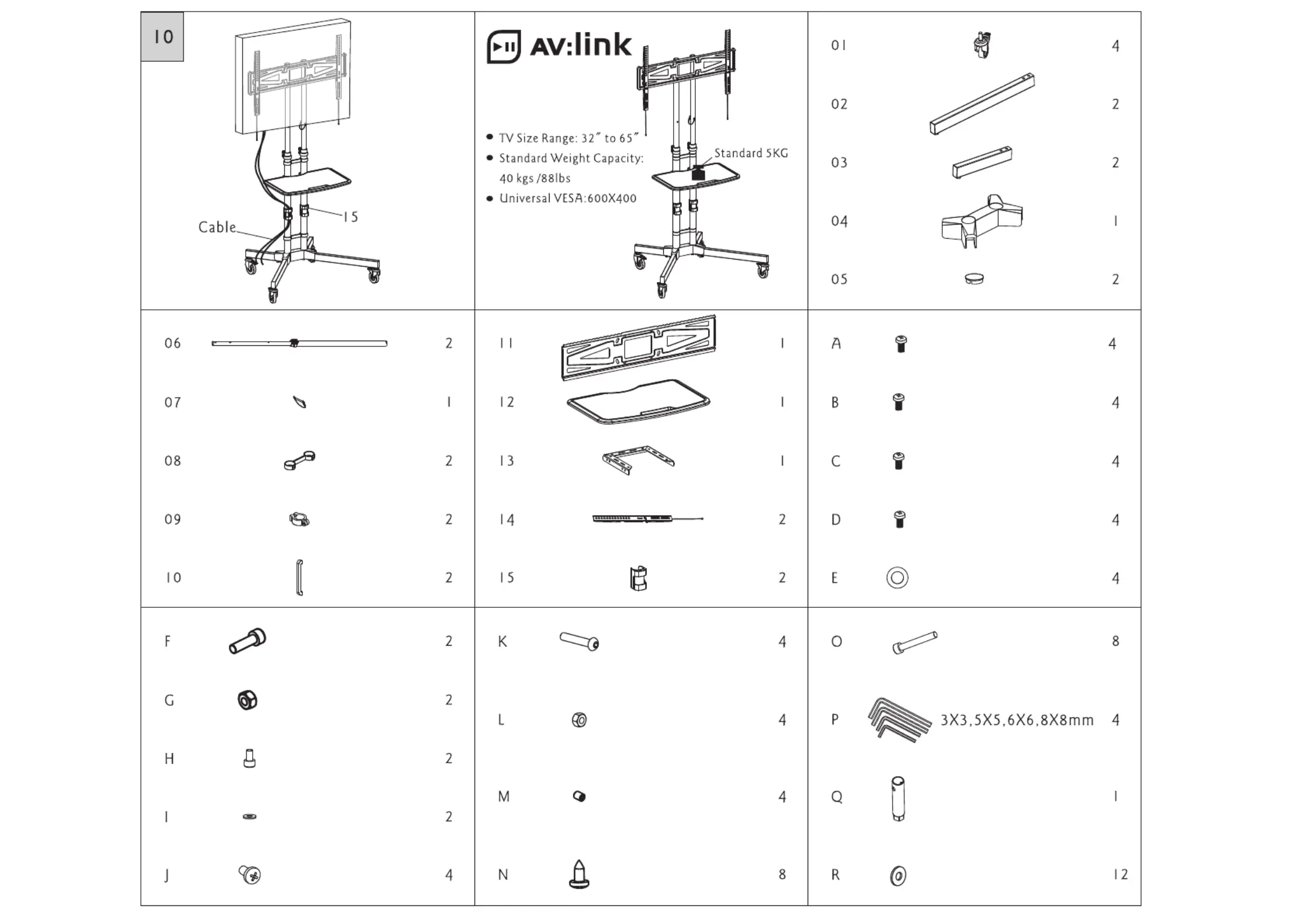

ø5.3Xø14X1.2
M6X20mm
M6
M10x16mm
ø10.5Xø20X2.0
M6x12mm
M8X45mm
M8
M6X8mm
St4.2x10mm
ø8.5Xø20X2.0
M8X55mm
M8X16mm
M6X12mm
M5X12mm
M4X12mm
Item No.:TSL600
