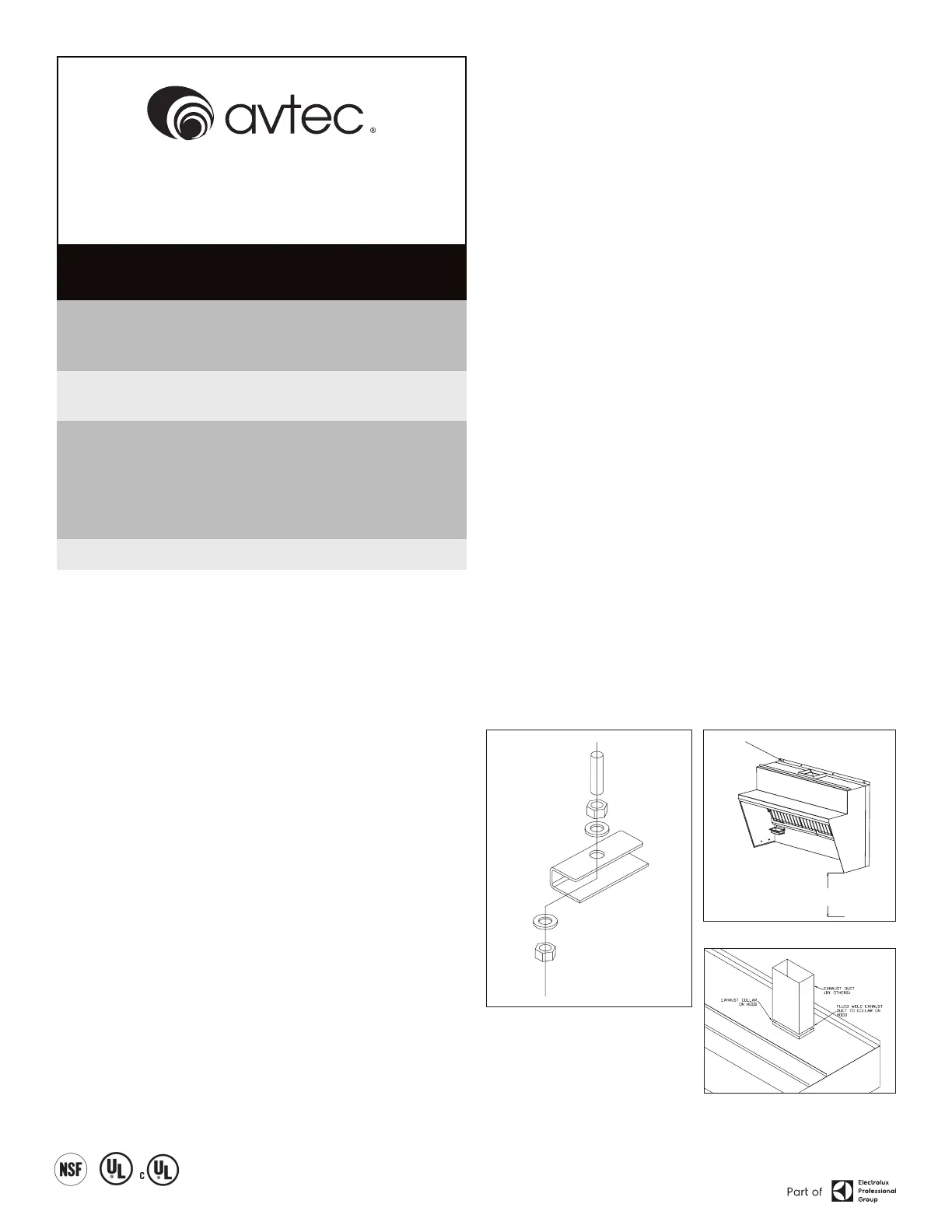

OPERATOR MANUAL

IMPORTANT INFORMATION, KEEP FOR OPERATOR

888-994-7636, fax 888-864-7636

uniedbrands.net

PART NUMBER PP MNL2201, REV. B (08/23)

This manual provides information for:

SIMPLESPEC

VENTILATION SYSTEMS

THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,

UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED

IN THIS MANUAL.

FOR YOUR SAFETY Do not store or use gasoline or other ammable vapors

and liquids in the vicinity of this or any other appliance.

NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the

consignee to inspect the container upon receipt of same and to determine

the possibility of any damage, including concealed damage. Avtec suggests

that if you are suspicious of damage to make a notation on the delivery

receipt. It will be the responsibility of the consignee to le a claim with the

carrier. We recommend that you do so at once.

Manufacture Service/Questions 888-994-7636.

RETAIN THIS MANUAL FOR FUTURE REFERENCE

NOTICE: Due to a continuous program of product improvement, Avtec reserves the

right to make changes in design and specications without prior notice.

NOTICE: Please read the entire manual carefully before installation. If certain

recommended procedures are not followed, warranty claims will be denied.

MODEL NUMBER _________________________

SERIAL NUMBER _________________________

INSTALLATION DATE ______________________

INSTALLATION INSTRUCTIONS

Avtec value ventilation hoods are provided with punched hanging brackets

designed to receive 1/2” threaded rod with a 1/2” nut and washer. Supporting

rods must be connected to all factory installed brackets. Recommended hanging

height is 6’-6” above nished oor for canopies. Low side wall ventilators should

be installed directly upon a Avtec base or on a re rated wall. If wall mounted, the

bottom of the vent side panel should be 3’ above nished oor.

ALL AVTEC VENTILATION SYSTEMS MUST BE INSTALLED IN ACCORDANCE

WITH NFPA-96, REMOVAL OF SMOKE AND GREASE LADEN VAPORS FROM

COMMERCIAL COOKING EQUIPMENT.

DISHWASHER/DISPLAY/BOX HOOD (SSA-DISH, SSA-ISLE, & SSA-BOX)

1. Check all local codes prior to installation. Special requirements may be

necessary depending upon building material construction.

2. Move crated hood to location of installation and very carefully uncrate hood.

3. Raise hood to proper hanging height.

4. Suspend hood from adequate roof supports using 1/2” threaded rods with

nuts and washers (See Fig. 1).

5. Level hood left to right and front to back.

6. Display hoods only: Slide chrome sleeve over all thread rod before securing

to hood/structure.

FRYER HOOD (SSA-FRYER)

1. Check all local codes prior to installation. Special requirements may be

necessary depending upon building material construction.

2. Move crated hood to location of installation and very carefully uncrate vent.

3. If vent is base mounted, base must be installed and leveled front to back and

left to right.

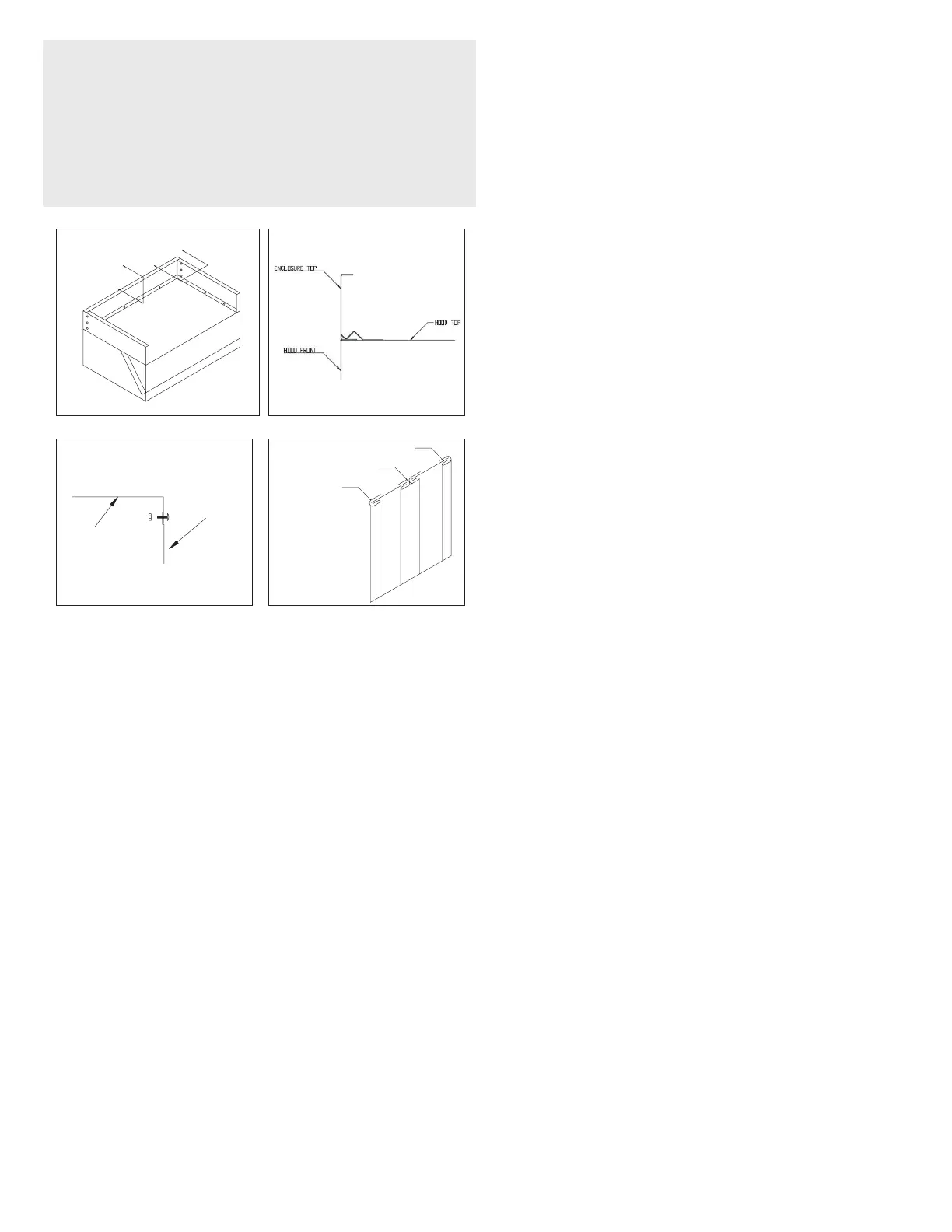

FIGURE 1

FIGURE 2

FIGURE 3

4. Place vent on wall, level front to back and left to right, then bolt metal

hanging bracket located on top of hood to wall (See Fig. 3).

5. Bottom of ventilator should be 32-34” above nished oor (See Fig. 2).

6. Fluid weld exhaust duct to hood exhaust duct collar (See Fig. 3).

32"-34" ABOVE

FINISHED FLOOR

SCREW

FOR

WALL

MOUNT

Information contained in this document is known to be current and accurate at the time of printing/creation. Reference our product line website for the most updated
