Side 1/8

Works with LES1200, LES1300, and LES1500 Series

console servers.

OpenVPN for LES Series Console Servers

LES1200, LES1300, LES1500 Series

Order toll-free in the U.S. or for FREE technical support: Call 877-877-BBOX

(outside U.S. call 724-746-5500)

www.blackbox.com • info@blackbox.com

Contact

Information

OpenVPN connection on the Black Box console servers

The LES1200 Series (LES1202A-R2, LES1204A-R2, LES1203A-11G, LES1203A-M-R2, LES1204A-3G-R2), LES1300 Series

(LES1308A, LES1316A, LES1332A, LES1348A), and LES1500 Series (LES1508A, LES1516A, LES1532A, LES1548A)

console servers with Firmware V3.2 and later each have OpenVPN clients and server software embedded.

OpenVPN allows secure VPN tunneling of data through a single TCP/UDP port over an unsecured network. So an

OpenVPN tunnel could be established between a roaming Windows client and a console server within a data center.

Or, OpenVPN tunnels could be set up between distributed LES1204A-3G-R2 edge devices (which may not have any

publicly accessible IP addresses allocated from their carrier) and some third-party OpenVPN server at the enterprise

central management site.

Configuring OpenVPN can be complex, so Black Box provides a simple GUI interface for basic set up. More detailed

information on the OpenVPN Access server and client can be found at https://openvpn.net.

Enabling OpenVPN on your console server:

• Select OpenVPN on the Serial & Networks menu.

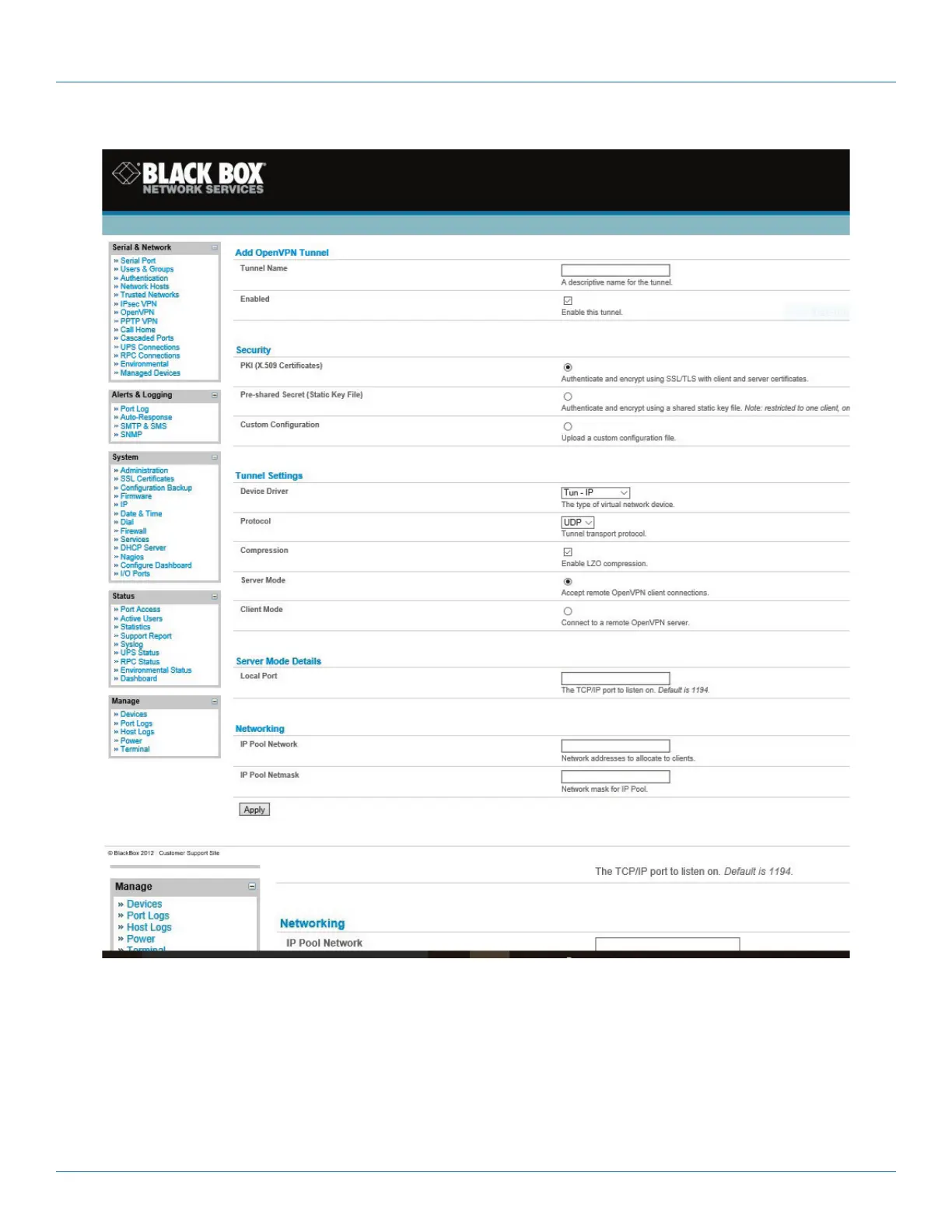

• Click Add and complete the Add OpenVPN Tunnel screen (see the illustration on the next page).

877-877-2269 | blackbox.com

Page 2

OpenVPN for LES Series Console Servers

• Enter any descriptive name you wish to identify the OpenVPN Tunnel you are adding, for example NorthStOutlet-VPN.

• Check Enabled to enable the tunnel.

• Check Control by Auto-Response if the tunnel is to be controlled by "Network Interface" Auto-Response action. If selected, the

default state for the tunnel will be Down

• Select the authentication method to be used. To authenticate using certificates, select PKI (X.509 Certificates) or select Custom

Configuration to upload custom configuration files. Custom configurations must be stored in/etc/config

Produkspesifikasjoner

Merke:	Black Box
Kategori:	Server
Modell:	LES1548A
Vekt:	4000 g
Strømkildetype:	AC
Antall USB 2.0-porter:	2
Sertifisering:	CE, UL 1950, TUV, C-Tick, RoHS NERC CIP standards, FIPS 140-2 #1051
Internminne:	4000 MB
Flash-minne:	32 MB
Konsollport:	RJ-45
Dimensjoner (B x D x H):	432 x 175 x 45 mm
AC-inngangsspenning:	100-240 V
AC-inngangsfrekvens:	50 - 60 Hz
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	50
Driftstemperatur (T-T):	5 - 50 °C
IP-adressefiltrering:	Ja
Sikkerhetsalgoritmer:	HTTPS, SNMP, SSH, SSL/TLS
Kommunikasjonsserieporter:	48
Relativ luftfuktighet under drift (H-H):	5 - 90
Rack-montering:	Ja
