Side 1/60

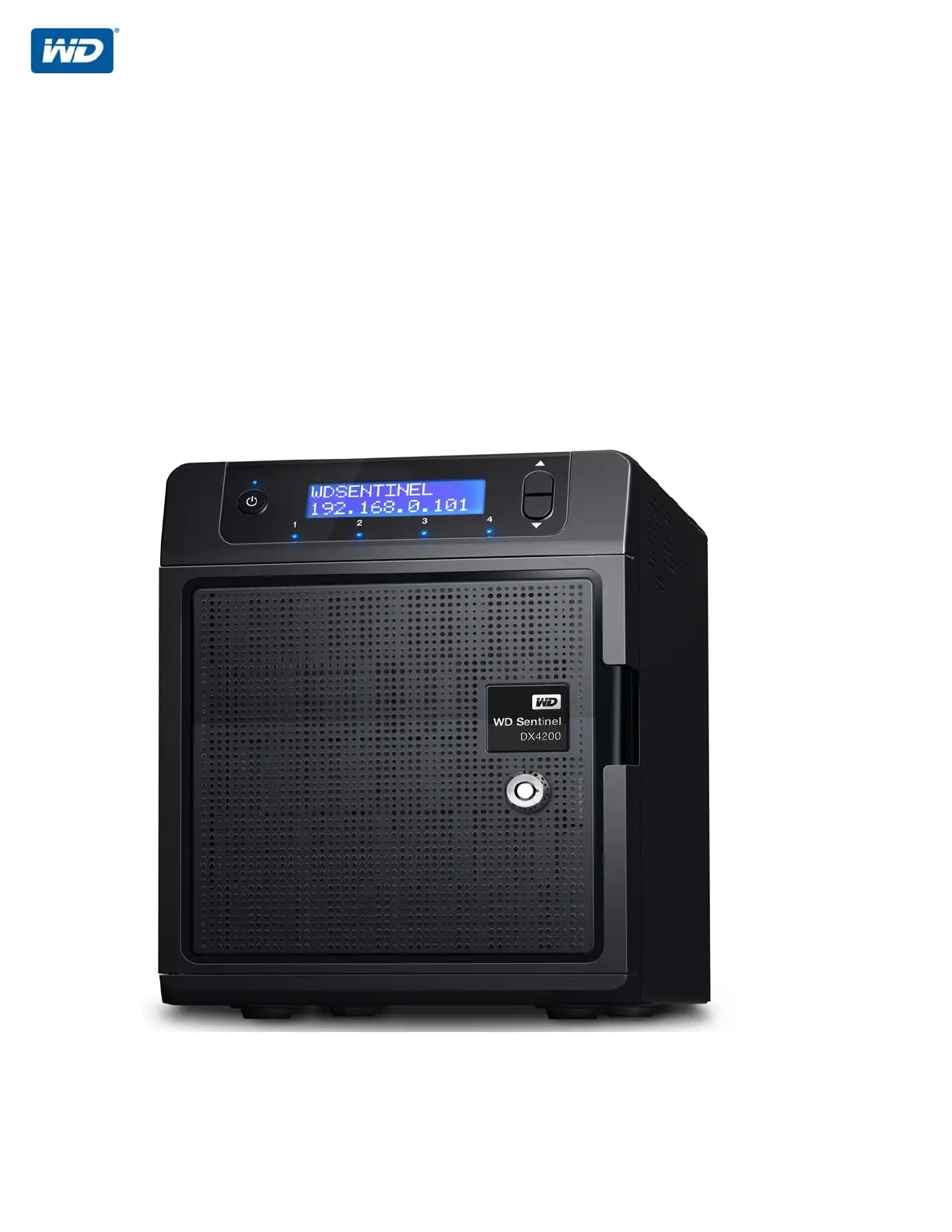

WD Sentinel DX4200

Storage Server

Administrator and Maintenance Guide

™

WD® Service and Support

Should you encounter any problem, please give us an opportunity to address it before returning this

product. Most technical support questions can be answered through our knowledge base or email

support service at http://support.wd.com. If the answer is not available or if you prefer, please

contact WD at the best telephone number shown below.

Your product includes 30 days of free telephone support during the 2-year standard limited warranty

period. This 30-day period starts on the date of your first telephone contact with WD Technical

Support. Email support is free for the entire warranty period and our extensive knowledge base is

available 24/7. To help us keep you informed of new features and services, remember to register

your product on the Registration page on the user interface or online at http://register.wd.com.

WD Guardian Services

When you need a little help from an expert, we’ll take care of you! WD Guardian Services offers

flexible, affordable and hassle-free technical support and extended warranty plans with a variety of

benefits. Choose the plan that works best for your business. Visit www.wdguardian.com for details.

Accessing Online Support

Visit our product support website at http://support.wd.com and choose from these topics:

• Downloads - Download drivers, software, and updates for your WD Product.

• WD Support Portal - Register your WD products and get support information customized

to your needs.

• Warranty & RMA Services - Get Warranty, Product Replacement (RMA), RMA Status, and

Data Recovery Information.

• Knowledge Base - Enter keyword, phrase, answer ID, or PID.

• Installation - Get manuals, installation guides, and documentation for your WD product.

• WD Community - Share your thoughts and connect with other WD users.

Contacting WD Technical Support

When contacting WD for support, have your WD product serial number, system hardware, and

system software versions available.

North America Europe (toll free)*

00800 ASK4 WDEU

English / Spanish 855.556.5117 (00800 27549338)

Europe

+31 880062100

South America

Middle East

+31 880062100

Chile 1230 020 5871

Africa

+31 880062100

Colombia 009 800 83247788

Russia

8 10 8002 335 5011

Venezuela 0800 100 2855

Peru 0800 54003

Asia Pacific

Uruguay 000 413 598 3787 Australia 1800 429 861 / 0011 800 2275 4932

Argentina 0800 4440839 China 800 820 6682 / 400 627 6682

Brazil 0800 7704932 Hong Kong 3057 9031

0021 800 83247788 India 1800 200 5789 / 1800 419 5591

Indonesia 001 803 852 3993

Japan 0800 805 7293

Korea 02 2120 3415

Malaysia 1800 817 477

New Zealand 0508 555 639 / 00800 2275 4932

Philippines 1800 1855 0277

Singapore 1800 608 6008

Taiwan 0800 225 593

Thailand 00 1800 852 5913

Other countries +86 21 2603 7560

* Toll free number available in the following countries: Austria, Belgium, Czech Republic, Denmark, France, Germany, Ireland, Italy,

Netherlands, Norway, Poland, Slovakia, Spain, Sweden, Switzerland, United Kingdom.

Produkspesifikasjoner

Merke:	Western Digital
Kategori:	Server
Modell:	Sentinel DX4200
Innebygd skjerm:	Ja
Vekt:	6640 g
Bredde:	170 mm
Dybde:	223.5 mm
Høyde:	205.7 mm
LED-indikatorer:	Ja
Prosessorfrekvens:	1.7 GHz
Prosessorfamilie:	Intel Atom®
Internminne:	4 GB
Antall brukere:	50 bruker(e)
Intel® 64:	Ja
Prosessorpakkestørrelse:	34 x 28 mm
Konfliktfri prosessor:	Ja
Prosessorkode:	SR1S8
Maksimal støttet lagringskapasitet:	- TB
Utgangsstrøm:	19 V
Maksimalt internminne støttet av prosessor:	16 GB
UART:	Ja
Minnekanaler støttet av prosessor:	Single/enkelt
RAID-støtte:	Ja
Enhetsklasse:	Hjem og hjemmekontor
AC-inngangsspenning:	100-240 V
AC-inngangsfrekvens:	50 - 60 Hz
iSCSI-støtte:	Ja
L2 cache:	1 MB
Produktfarge:	Sort
Skjermtype:	LCD
Prosessorkjerner:	2
Operativsystemprogramvare 04:	Windows Storage Server 2012 R2
Kabler inkludert:	LAN (RJ-45)
Antall VGA (D-Sub)-porter:	1
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	2
Driftstemperatur (T-T):	0 - 35 °C
Oppbevaringstemperaturomåde (Celsius):	-40 - 70 °C
Innebygd kortleser:	Nei
prosessorprodusent:	Intel
Modell/Type:	Lagringsserver
Ekstern strømadapter:	Ja
Ethernet LAN dataoverføringshastigheter:	10,100,1000 Mbit/s
Støttede Windows operativsystemer:	Ja
RAID-nivåer:	1
Prosessorstøpsel:	BGA 1283
Antall lagringsdrivere som støttes:	4
Ethernet/bredbåndsforbindelse:	Ja
Chassis-type:	Desktop
Prosessor forsidebuss:	- MHz
Prosessormodell:	C2338
Antall USB 3.2 Gen 1 (3.1 Gen 1)Type-A-porter:	4
Systembussrate:	- GT/s
PCI Express sporversjon:	2.0
Form for nedkjøling:	Aktiv
Ledelsesprotokoller/håndteringsprotokoller:	FTP/FTPS
Kabellåsport:	Ja
Kabellåstype:	Kensington
Webbasert administrasjon:	Ja
Støttede Mac operativsystemer:	Ja
Guide for hurtiginstallering:	Ja
Antall vifter:	1 vifter
Fullstendig installert lagringskapasitet:	16 TB
Lagermedia kapasitet:	4000 GB
HDD-hastighet:	7200 RPM
Installert lagringsdrivertype:	Harddisk
Støttet lagrings drive type:	Harddisk
Backup-funksjon:	Ja
Innebygd optisk driver:	Nei
Intel® Turbo Boost Technology:	2.0
Intel® Hyper Threading Technology (Intel® HT Technology):	Nei
Boostfrekvens prosessor:	2 GHz
Processor cache:	1 MB
Cachetype prosessor:	L3
Prosessortråder:	2
Prosessorlitografi:	22 nm
Prosessorens driftmoduser:	32-bit, 64-bit
Stigning:	B0
Minnetyper som støttes av prosessor:	DDR3-SDRAM, DDR3L-SDRAM
EEC støttet av prosessor:	Ja
Thermal Design Power (TDP):	7 W
Maksimalt antall PCI Express-spor:	8
Intel® Virtualization Technology (VT-x):	Ja
Integrerte alternativer tilgjengelige:	Ja
Intel® VT-x with Extended Page Tables (EPT):	Ja
Intel® AES New Instructions (Intel® AES-NI):	Ja
Execute Disable Bit:	Ja
Processor ARK ID:	77976
Grafikk og IMC-litografi:	22 nm
Strømforsyningens plassering:	Utvendig
Physical Address Extension (PAE):	36 bit
Antall lagringsdrivere installert:	4
Lagringsstasjonens størrelse:	3.5 "
Hot-swap drive bays:	Ja
Lagerdrivere installert:	Ja
Backup utstyr:	Nettsky
Maksimal RAM som støttes:	16 GB
Intel QuickAssist Teknologi:	Nei
Driver-bay låsing:	Ja
