Line Input /Line Output
Matching Transformer
Model WMT1A
The WMT1A is a balanced and isolated impedance matching transformer.
Typical uses are to provide a 600-ohm balanced input adapter for unbalanced
AUX inputs. WMT1A can also be used to drive long, balanced, twisted pair
cable. This improves noise rejection and the maximum run length.The WMT1A
can adapt line-level signals down to levels suitable for MIC inputs. See the

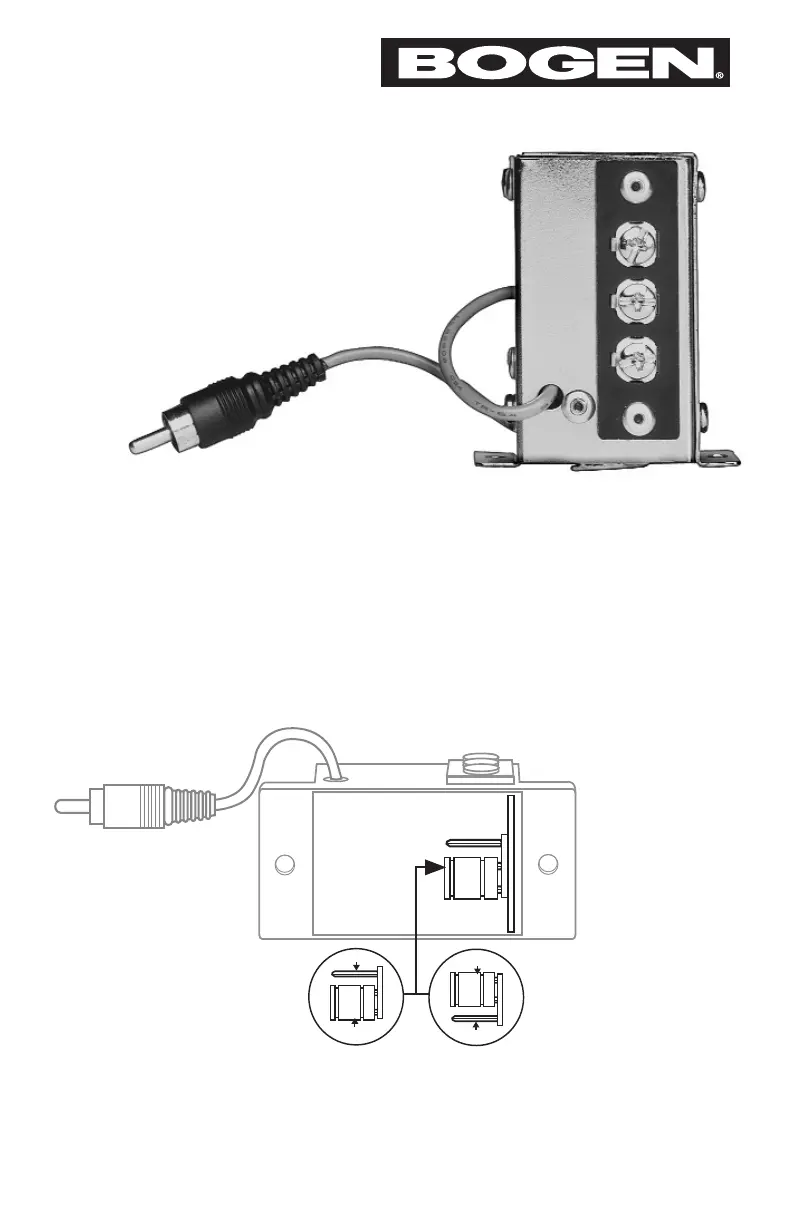

drawing below for setting the Operating Modes.
JUMPER
PIN
LINE INPUT
MIC INPUT
JUMPER
PIN
Specifications are subject to change without notice.
©2011 Bogen Communications, Inc.
54-5215-14D 1107
RCA Plug
Mode Select
54-5215-14D-WMT1A Manual:Layout 1 7/5/11 9:19 AM Page 1
www.bogen.com
The WMT1A is warranted to be free from defects in material or workmanship for two (2) years from the date of
sale to the original purchaser. This warranty does not extend to any of our products that have been subjected
to abuse, misuse, improper storage, neglect, accident, improper installation or have been modified or repaired
or altered in any manner whatsoever, or where the serial number or date code has been removed or defaced.
LIMITED WARRANTY
600
600
CT
150Ω
RCA PLUG
15kΩ
LINE
MIC
600Ω Input
or Output
AUX Level Signal
to Amp Input
(Jumper in NORMAL Position.)
MIC Level Signal
to MIC Input
(Jumper in MIC Position.
Use suitable adapter for
MIC connector style.)
-20
-10
0
10
20
60 100 1K 10K 20K
SW: LINE JMP: LINE
600Ω 10KΩ
600Ω 10KΩ
SW: LINE JMP: LINE
SIGNAL
FLOW
OPTION
SETTINGS
NOMINAL
IMPEDANCE
VOLTAGE GAIN* (dBr)
FREQUENCY (Hz)
* SOURCE IMP= 40Ω, LOAD IMP = 100KΩ

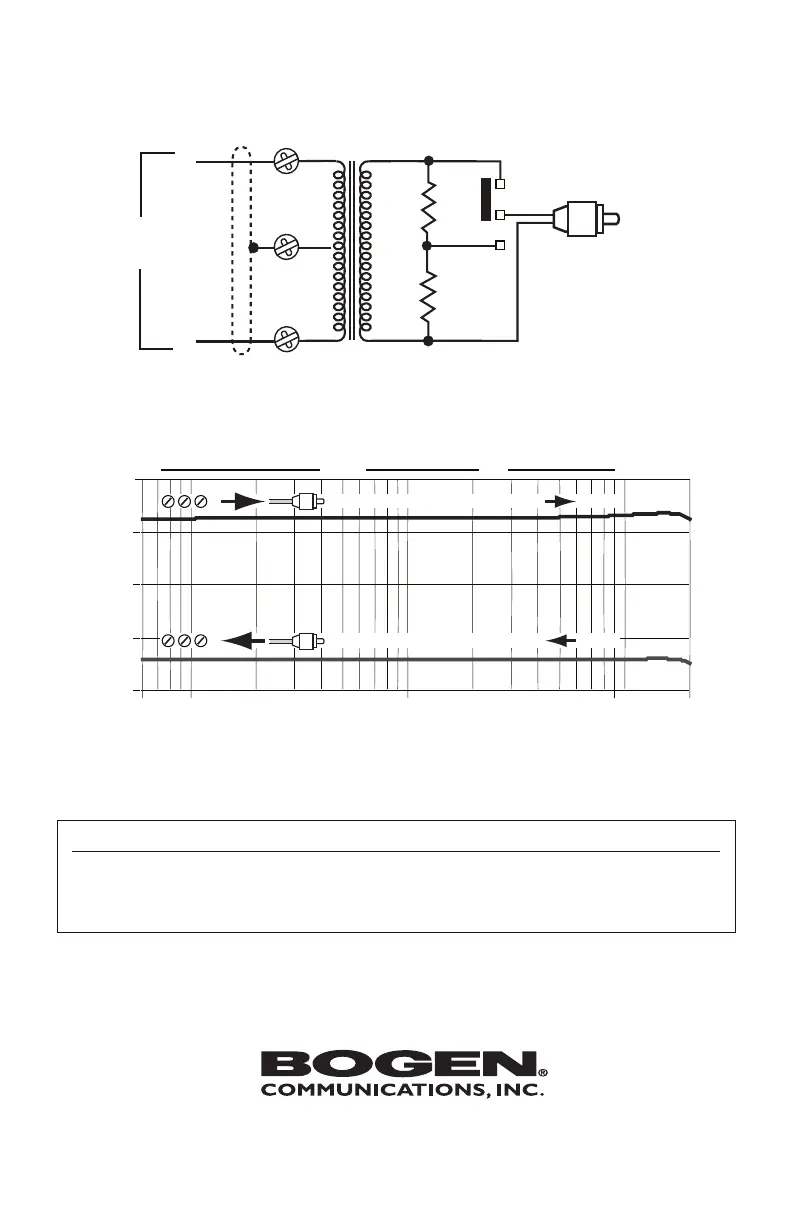

TYPICAL PERFORMANCE
54-5215-14D-WMT1A Manual:Layout 1 7/5/11 9:19 AM Page 2
