Unshielded Cat 6/Cat 5E Field Termination Plugs
Instruction Sheet
1. Remove the cover stopper from plug housing assembly before installation.
2. Strip off at least 1.5 inches of cable jacket. Remove any foil or spline from cable.

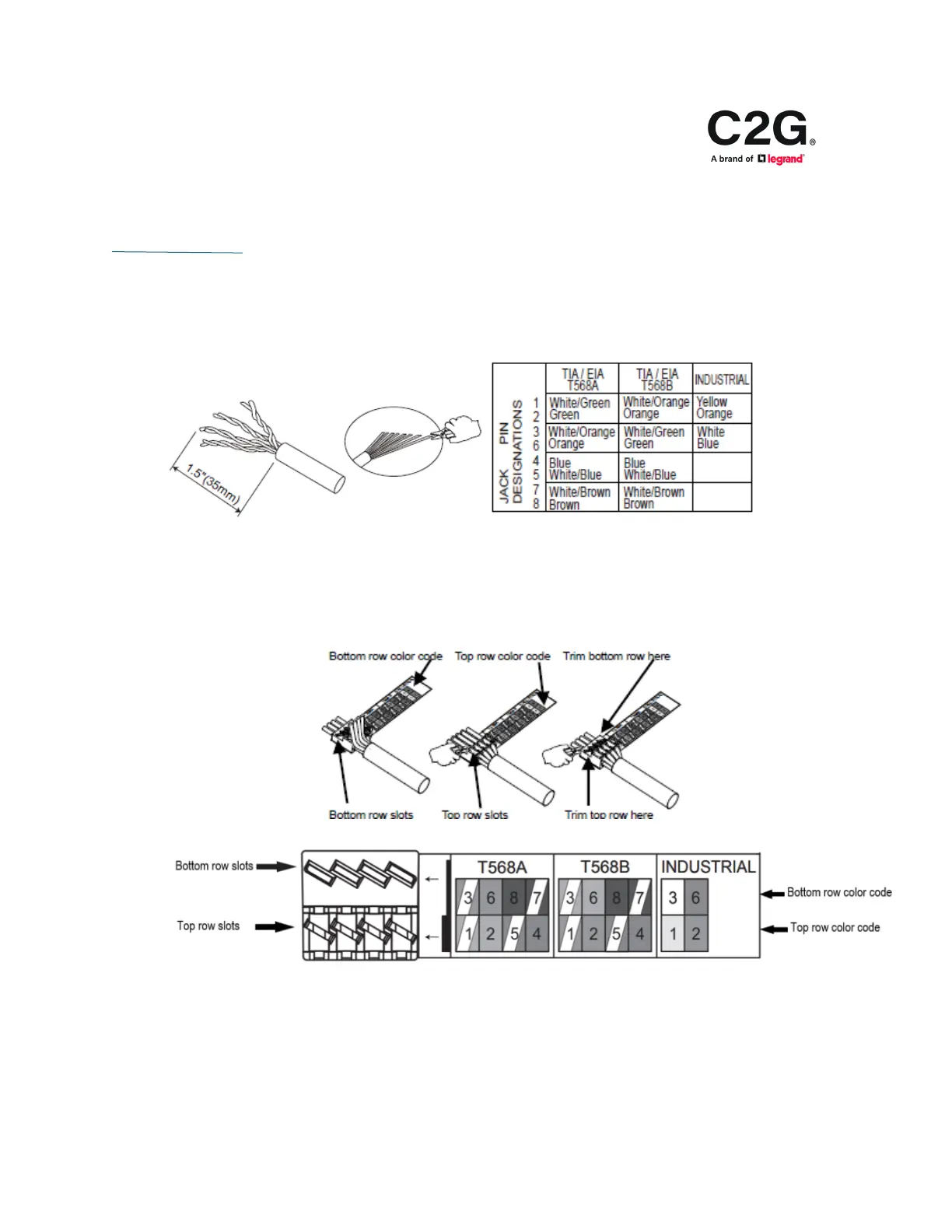

3. Fan out all four twisted pairs. With the attached wiring cap label facing up, insert the
bottom row of conductors according to the indicated color code. Push the wiring cap
back to the cable jacket and trim bottom conductors flush to cap end. Lace the remaining
conductors into the top row of the wiring cap according to the indicated color code. Trim
top conductors at location shown in illustration.

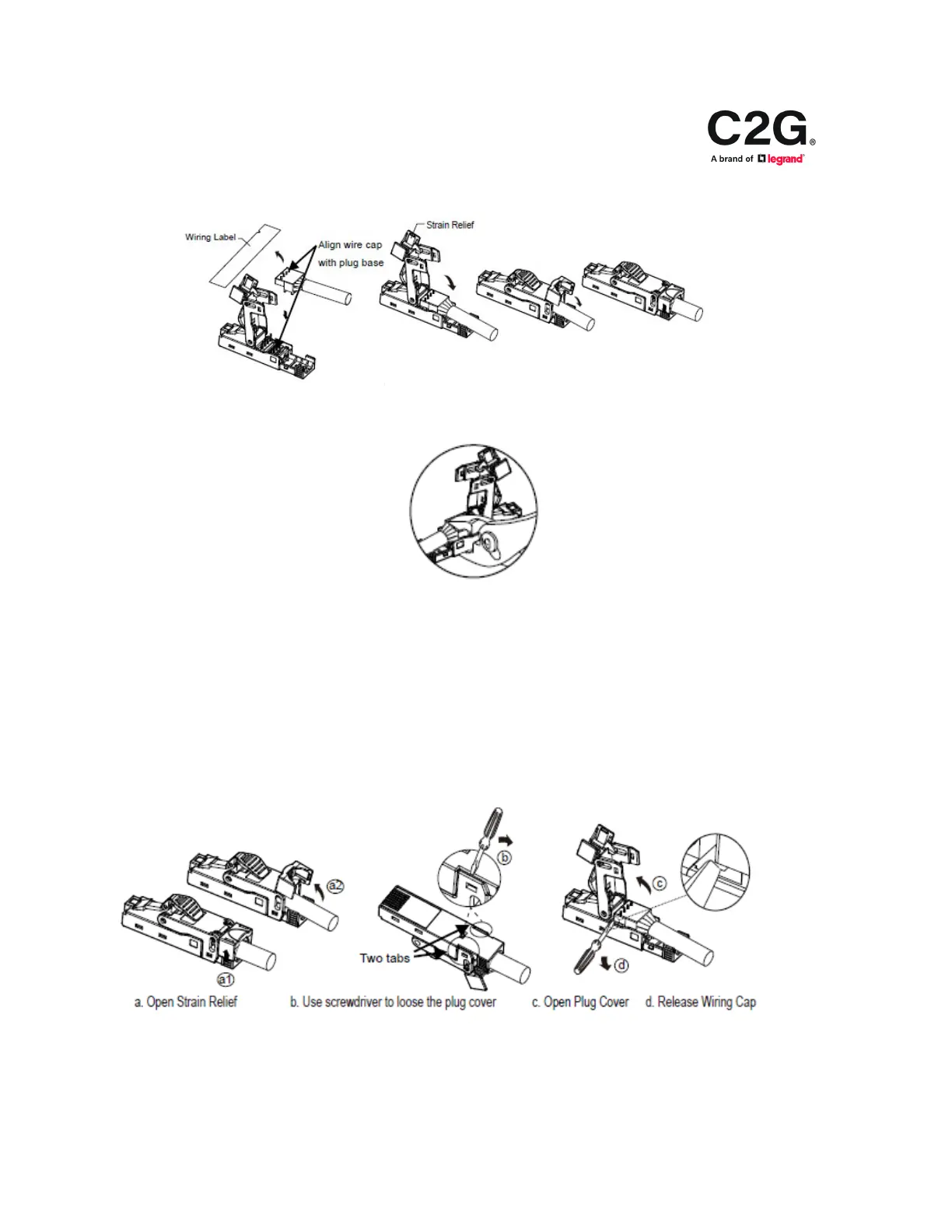

4. Rotate the conductor assembly into position with the wiring cap label facing down.
Remove the wiring label from the cap and align the rear of the wiring cap with the
opening pocket guides of the plug receptacle.
© 2024 Legrand All Rights Reserved rev. 8/24 Instruction sheet_C2G01157
5. Place the wiring cap onto plug, use plier to terminate wiring cap until fully pressed.
6. Close plug cover, press strain relief until secure on cable.
Unloading the cable: Using a flat screwdriver, pry gently on one end of the plug
cover first and the other end subsequently to open it.
For field testing guidance on all shielded Field Term Plugs please download from website: Go to
http://www.legrand.us, then enter HDPUC65E-5PK into the upper right search box
.
