© 2024 Legrand All Rights Reserved rev. 8/24 Instruction sheet_C2G01159
Shielded Cat 6A Field Termination Plugs
Instruction Sheet

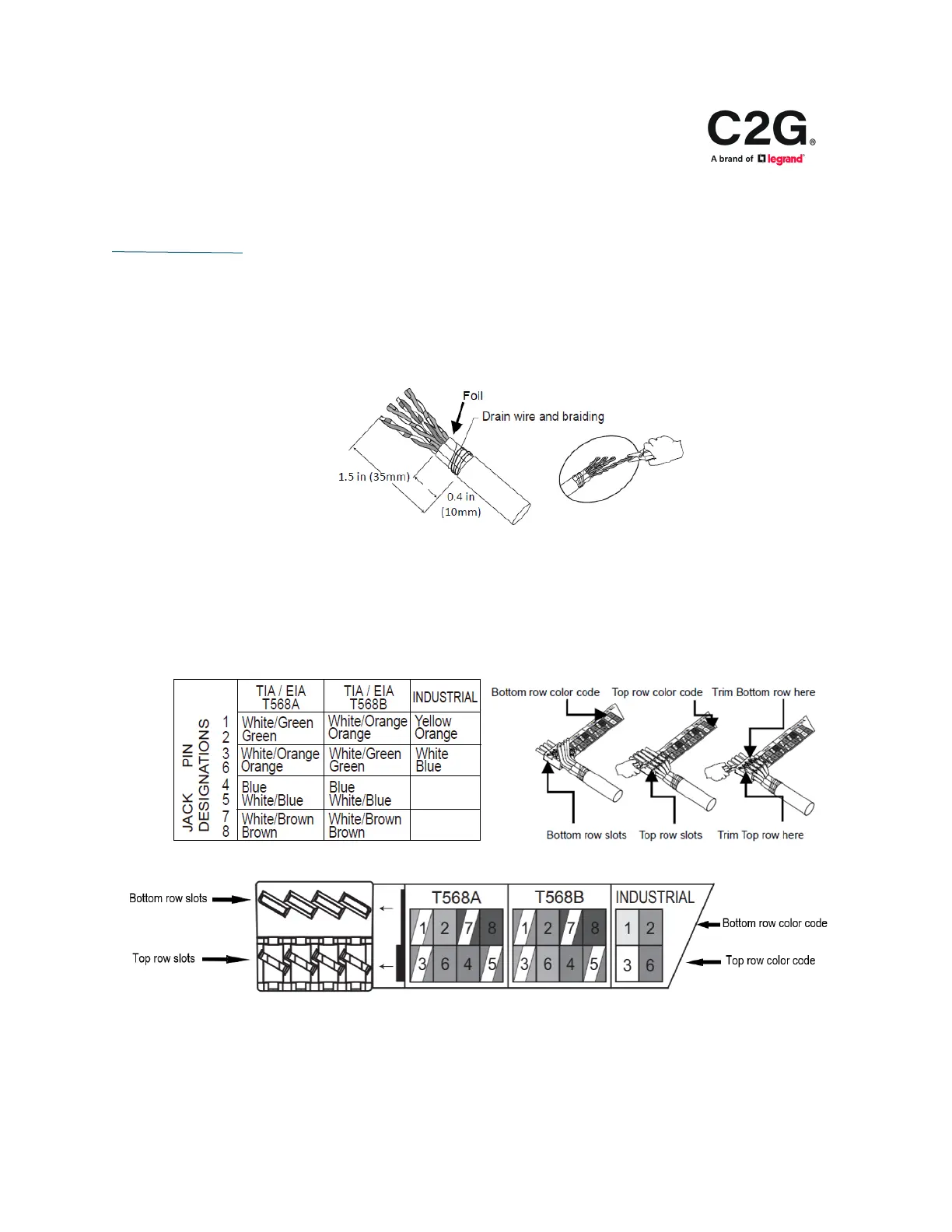

1. Remove the cover stopper from plug housing assembly before installation.
2. Strip off at least 1.5 inches of cable jacket. Fold or cut back shield to 0.4 inches, cut any
spline and wrap drain wire around foil.
3. Fan out all four twisted pairs. With the attached wiring cap label facing up, insert the
bottom row of conductors according to the indicated color code. Push the wiring cap
back to the cable foil and trim bottom conductors flush to cap end. Lace the remaining
conductors into the top row of the wiring cap according to indicated color code. Trim top
conductors at location shown in illustration.
4. Rotate the conductor assembly into position with the wiring cap label facing down.
Remove the wiring label from the cap and align the rear of the wiring cap with the
opening pocket guides of the plug receptacle.
© 2024 Legrand All Rights Reserved rev. 8/24 Instruction sheet_C2G01159
5. Place the wiring cap onto plug, use plier to terminate wiring cap until fully pressed.
6. Close plug cover, make sure the drain wire is in proper contact with grounding clip on
plug. Close and tighten strain relief firmly.
Unloading the cable: Using a flat screwdriver, pry gently to disengage latch and
then use flat screwdriver to remove wiring cap.
For field testing guidance on all shielded Field Term Plugs please download from website: Go to http://www.legrand.us,
then enter HDPSC6A-5PK into the upper right search box.
