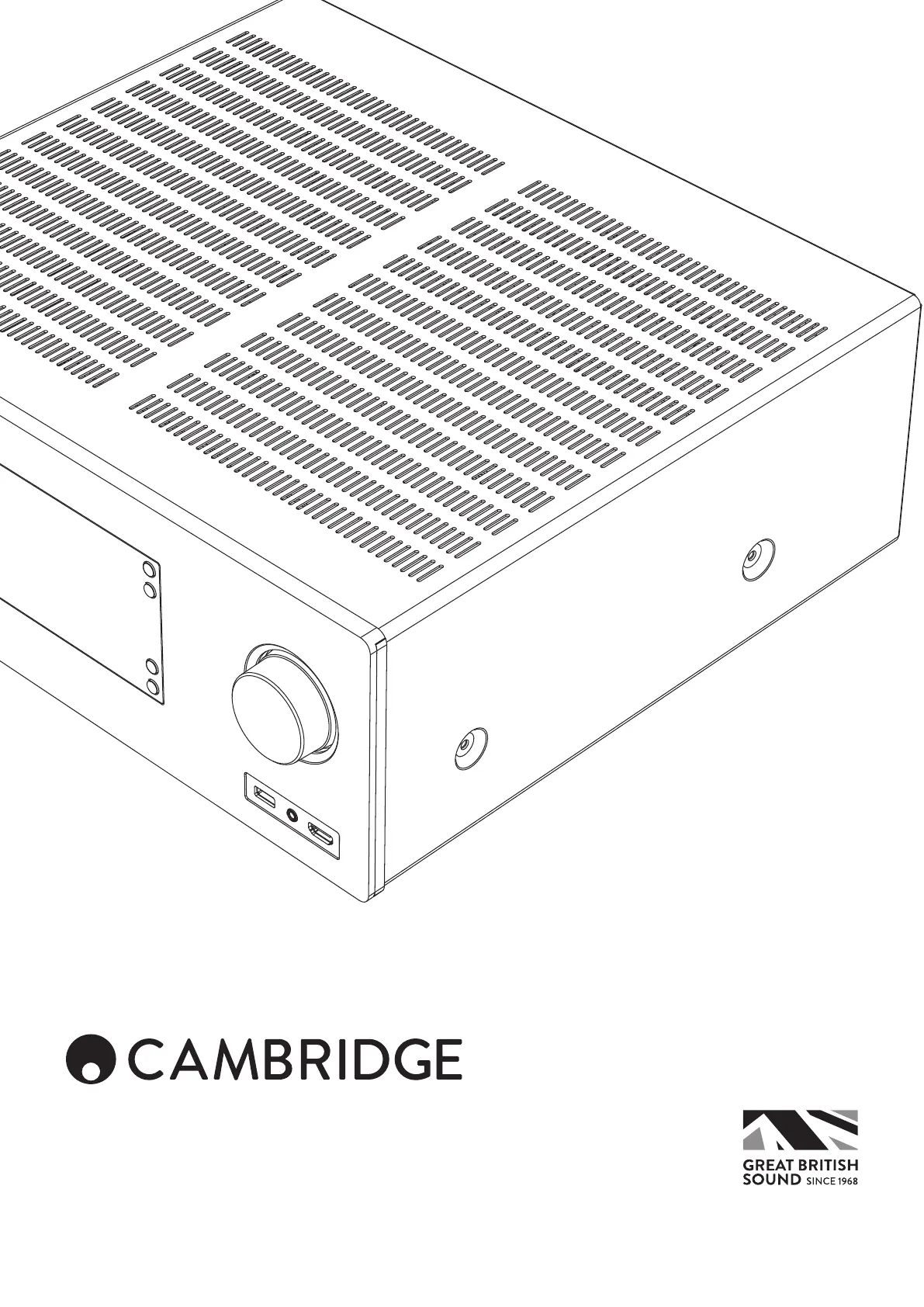

CXR120/200

AV RECEIVER

Contents

Make sure you register your purchase.

Visit: www.cambridgeaudio.com/vip

By registering, you'll be the rst to know about:

• Future product releases

• Software upgrades

• News, events and exclusive oers plus

competitions!

This guide is designed to make installing and using this product

as easy as possible. Information in this document has been

carefully checked for accuracy at the time of printing; however,

Cambridge Audio’s policy is one of continuous improvement,

therefore design and specications are subject to change without

prior notice.

For DTS patents, see http://patents.dts.com. Manufactured under

license from DTS Licensing Limited. DTS, DTS-HD, the Symbol,

& DTS and the Symbol together are registered trademarks, and

DTS-HD Master Audio is a trademark of DTS, Inc. © DTS, Inc. All

Rights Reserved.

Manufactured under license from Dolby Laboratories. Dolby,

Pro Logic, and the double-D symbol are trademarks of Dolby

Laboratories.

"HDMI","HDMI logo" and "High-Denition Multimedia Interface"

are trademarks or registered trademarks of HDMI Licensing LLC.

The Spotify software is subject to third party licenses found here:

www.spotify.com/connect/third-party-licenses.

Important safety instructions .................................................................. 3

Limited warranty ...................................................................................... 4

Front panel controls ................................................................................ 5

Rear panel connections ........................................................................... 5

Main remote control ................................................................................ 6

Loudspeaker connections ....................................................................... 7

Analogue audio connections ................................................................... 7

Digital audio connections ........................................................................ 8

5.1/7.1 direct in ....................................................................................... 8

HDMI connections ................................................................................... 9

4K video resolution .................................................................................. 9

Aerial connections ................................................................................. 10

Using the tuner ...................................................................................... 10

Presets .................................................................................................. 10

StreamMagic ...................................................................................... 10

Operating instructions ........................................................................... 10

Selecting the source ........................................................................... 10

Selecting the desired listening mode ................................................. 10

Surround sound modes ......................................................................... 10

DSP modes ........................................................................................... 11

Stereo/Stereo + Sub ........................................................................... 11

Direct .................................................................................................. 11

All channels ........................................................................................ 11

Setup menu ........................................................................................... 12

Speaker setup .................................................................................... 12

Speaker conguration ........................................................................ 12

Auto Setup ......................................................................................... 12

Manual Setup ........................................................................................ 13

Input Setup ............................................................................................ 13

Lip sync .............................................................................................. 14

Zone 2 (CXR200 only) ............................................................................ 14

Network Setup....................................................................................... 14

Connecting to a wired network .......................................................... 14

Network Setup.................................................................................... 14

Wireless Setup ................................................................................... 14

General Settings .................................................................................... 15

HDMI Output Setup ............................................................................... 15

DTS-HD speaker re-map .................................................................... 16

Trigger outputs ................................................................................... 16

SW Version ......................................................................................... 16

Update Via USB ................................................................................. 16

Save Current Settings ........................................................................ 16

Load Current Settings ........................................................................ 16

Factory Reset ..................................................................................... 16

Network software update ...................................................................... 16

Web administration interface .............................................................. 16

Wired connection ............................................................................... 16

Wireless connection ........................................................................... 16

The process of setting up the CXR is rst to make all the connections to your

speakers and source equipment and then set the unit up via its On-Screen

Display (OSD). There are various settings and adjustments that need to be

made before the CXR can be used.

However before you actually decide which connections to make or perform

any adjustments it is strongly advised that you read through the 'Setup menu'

section of this manual rst, starting on page 12.

For more detailed information, please visit our website

www.cambridgeaudio.com for the product reference

manual and FAQ.

Before connecting

Produkspesifikasjoner

Merke:	Cambridge
Kategori:	Mottaker
Modell:	CXR120
Vekt:	13200 g
Bredde:	430 mm
Dybde:	420 mm
Høyde:	165 mm
Bruksanvisning:	Ja
Bluetooth:	Ja
Wi-Fi:	Ja
Garantikort:	Ja
Hodetelefonutganger:	1
Audio Return Channel (ARC):	Ja
HDMI inn:	7
Antall HDMI-utganger:	2
Strømforbruk (standby):	0.5 W
Støttede lydformater:	AAC, AAC HE, AAC+, AIFF, ALAC, FLAC, MP3, OGG, WAV, WMA
Produktfarge:	Sort
Antall USB-porter:	3
Hodetelefontilkobling:	6,3 mm
RS-232-port:	1
Lydinngang (V/H) inn:	3
Strøminngang/AC (strøm) inn:	Ja
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Innebygd kortleser:	Nei
Fjernkontroll medfølger:	Nei
Signal-til-støy-forhold (SNR):	90 dB
Total Harmonic Distortion (THD):	0.006
Ethernet/bredbåndsforbindelse:	Ja
Lyd-utgang kanaler:	7.1 kanaler
Lydutgang (venstre/høyre):	1
Fjern (IR)-utgang:	2
Mobil HD-lenke (MHL):	Ja
Støttede radiobånd:	AM, FM
Line-out:	Ja
Frekvensrekkevidde:	10 - 20000 Hz
Digital optisk lydinngang:	2
Effekt pr. kanal (20-20KHz@8 Ohm):	1000 W
Digital koaksialinngang for lyd:	2
Effekt pr. kanal (1KHz@8 Ohm):	100 W
Dynamisk effekt pr. kanal (4 Ohm):	155 W
Fjerninngang (IR):	1
Effekt pr. kanal (1KHz@6 Ohm):	120 W
Crosstalk/krysstale (1kHz):	-80 dB
