Chapin 81000A Bruksanvisning

Les nedenfor 📖 manual på norsk for Chapin 81000A (20 sider) i kategorien Ikke kategorisert. Denne guiden var nyttig for 4 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Side 1/20
Chapin International, Inc
P.O. Box 549 700 Ellicott St.
Batavia, NY 14021-0549 U.S.A.
1-800-950-4458 www.chapinmfg.com
RESIDENTIAL TURF SPREADER
Model 81000A
80 lb. Spreader
016313 R1220
Carefully Read These Instructions Before Use
WARNING
Use and Care Manual
DO NOT RETURN TO STORE
Call: 1-800-950-4458
www.chapinmfg.com
See website for warranty detail
Suggested Tools:
Wrench and/or Ratchet Set
Approximate assembly time is 5-10 minutes
Assembly Instructions
1E
Chapin Spreader Operators Manual - English
WARNING: IMPROPER USE OR FAILURE TO FOLLOW INSTRUCTIONS CAN RESULT
IN PRODUCT FAILURE OR INJURIES. FOR SAFE USE OF THIS PRODUCT YOU MUST
READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING.
Do not allow anyone to operate the broadcast spreader without proper instructions. Do not
permit children to operate the broadcast spreader. Wear protective eyewear and gloves when
handling and applying lawn and garden chemicals. Read the chemical label instructions and
warnings for handling and applying the chemicals you plan to spread – application settings
provided are only a guideline.
Auger is designed to work in forward motion. Excessive reverse motion could cause
binding. If resistance is felt while pulling spreader backwards, stop and clear salt
from auger.
WARNING

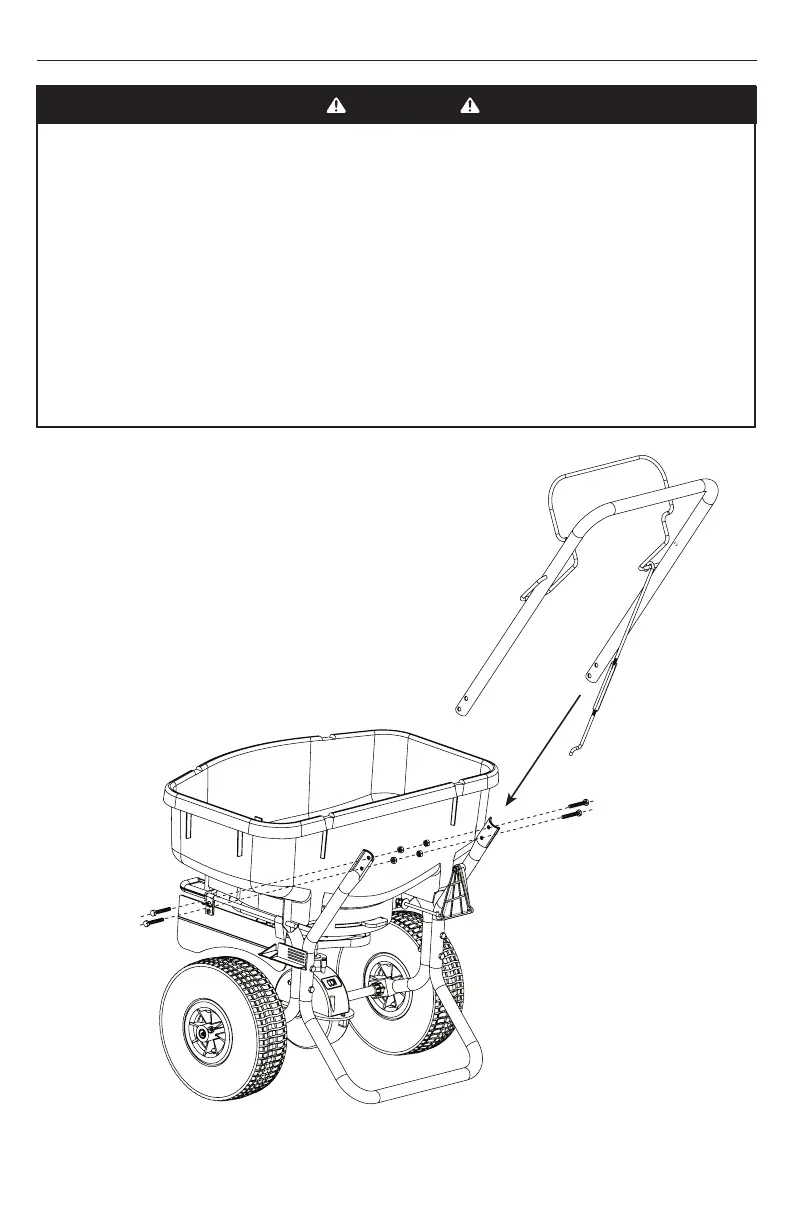

HANDLE ASSEMBLY
Assemble handle to uprights with Hex bolts and M6 nuts.
Tighten M6 nuts completely.
Note: If you frequently store your spreader with
the handle down, optional thumb screws are
provided for faster disassembling.
To Close Gate
(Increase Length)
To Open Gate
(Decrease Length)
Bail Position for adjusting Gate:
1) Bail must be in rest position for Gate Closed.
2) Bail must be depressed for Gate Open.
Figure A
Figure B
Figure C
Fully Assembled
Chapin Spreader Operators Manual - English
FLAT AUGER ASSEMBLY
Thread auger clockwise onto impeller shaft. Screw
auger retaining nut into auger hole with M6 socket
driver. Tighten completely with wrench to secure.
Choose flat auger for general turf applications.
• Fertilizers
• Herbicides
• Pesticides
• Grass Seed
• Free-Flowing Material
FLAT
AUGER
AUGER
NUT
IMPELLER
SHAFT
AUGER ASSEMBLY
2E

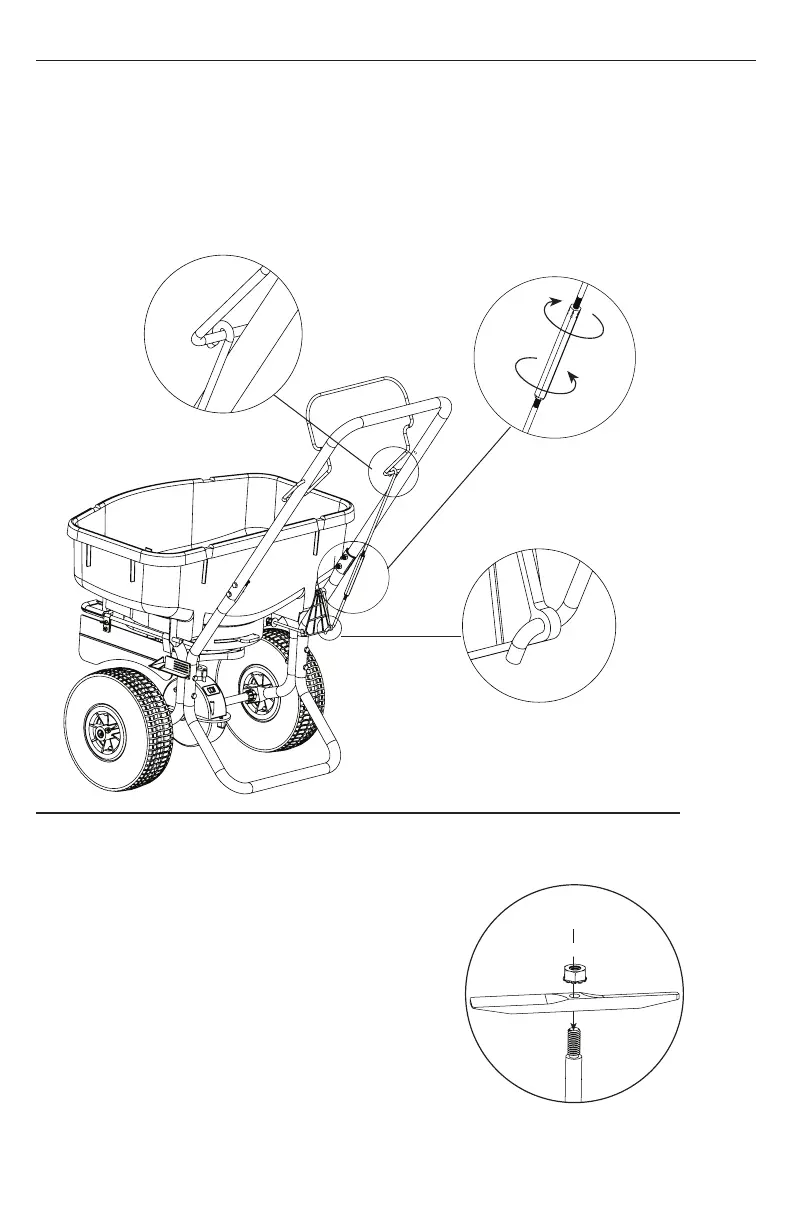

Assemble linkage to bail assembly (Fig. A).
Assemble linkage to rotate link (Fig. B).
• Rotate the turnbuckle to adjust the gate (Fig. C).
