Americas Headquarters:

Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Cisco Aironet 2.4-GHz/5-GHz MIMO 4-Element

Patch Antenna (AIR-ANT2566P4W-R)

This document outlines the specifications for the Cisco Aironet 2.4-GHz/5-GHz MIMO 4-Element Patch

Antenna (AIR-ANT2566P4W-R) and provides instructions for mounting it. The antenna operates in both

the 2.4-GHz and 5-GHz frequency ranges and is designed for indoor and outdoor use.

The following information is provided in this document.

• Technical Specifications, page 2

• System Requirements, page 4

• Safety Precautions, page 5

• Installation Notes, page 5

• Installing the Antenna, page 6

• Obtaining Documentation and Submitting a Service Request, page 8

Cisco Aironet 2.4-GHz/5-GHz MIMO 4-Element Patch Antenna (AIR-ANT2566P4W-R)

78-20578-01

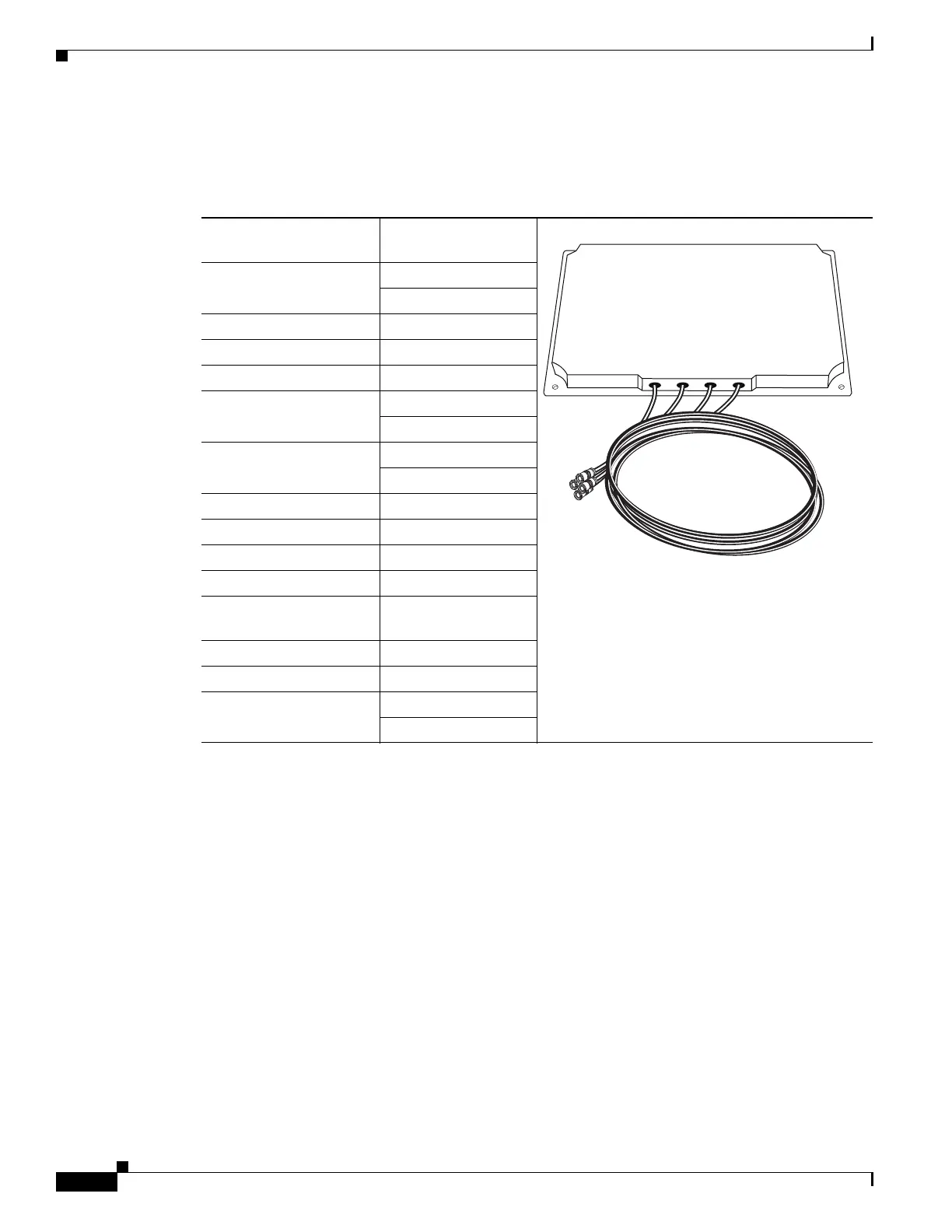

Technical Specifications

Table 1 AIR-ANT2566P4W-R 2.4-GHz/5-GHz MIMO 4-Element Patch Antenna Specifications

Antenna type 4-element dual-band

MIMO

Operating frequency

range

2400 to 2484 MHz

5150–5850 MHz

VSWR 2:1 or less

Gain 6 dBi in both bands

Polarization Linear, vertical

Azimuth Plane 3-dB

Beamwidth

2.4 GHz band: 105°

5 GHz band: 125°

Elevation Plane 3-dB

Beamwidth

2.4 GHz band: 70°

5 GHz band: 60°

Length 6.3 in. (16 cm)

Width 11 in. (27.9 cm)

Depth 1.2 in. (3.05 cm)

Weight 1.4 lbs

Cable length and type 3 ft. (91.4 cm) plenum

rated

Connector RP-TNC

Environment Indoor/outdoor

Operating temperature

range

-22° to 158° F

-30° to 70° C

330381

Produkspesifikasjoner

Merke:	Cisco
Kategori:	Wifi-antenne
Modell:	AIR-ANT2566P4W-R=
Vekt:	635 g
Bredde:	279 mm
Dybde:	160 mm
Høyde:	30.5 mm
Opprinnelsesland:	China
Pakkevekt:	907.03 g
Antall per pakke:	1 stykker
Dimensjoner (B x D x H):	279 x 160 x 30.5 mm
Polarisering:	Vertikal polarisasjon
Kabellengde:	0.914 m
Produktfarge:	Grå
Pakkedybde:	333.502 mm
Pakkehøyde:	79.502 mm
Pakkebredde:	244.602 mm
Driftstemperatur (T-T):	-30 - 70 °C
Harmonisert system (HS)-kode:	85177100
Antennetype:	Direksjonell antenne
Antenne forbedringsnivå (max):	6 dBi
Formål:	Inne & Ute
Frekvensbånd og driftskanaler:	2.4/5 GHz
Frekvens (MHz):	2.4 - 2.484GHz, 5.15 - 5.85GHz
Antennetilkoblingstype:	RP-TNC
Voltage Standing Wave Ratio (VSWR):	2:1
Antennevinning (5 GHz):	6 dBi
Antennevinning (2,4 GHz):	6 dBi
Horisontal strålingsbredde (2,4 GHz):	70 °
Horisontal strålingsbredde (5 GHz):	60 °
