Cisco UCS M1414 Compute Cartridge
Service Note
Overview of the Cisco UCS M1414 Compute Cartridge, page 1
Preparing to Replace Cartridge Components, page 4
Replacing Components, page 6
Service DIP Switches, page 14
Specifications, page 15
Overview of the Cisco UCS M1414 Compute Cartridge
Front Panel LEDs, page 2
Internal Component Locations, page 3
Feature Summary, page 3
Cisco UCS M1414 Compute Cartridge Service Note
Overview of the Cisco UCS M1414 Compute Cartridge
2
Front Panel LEDs

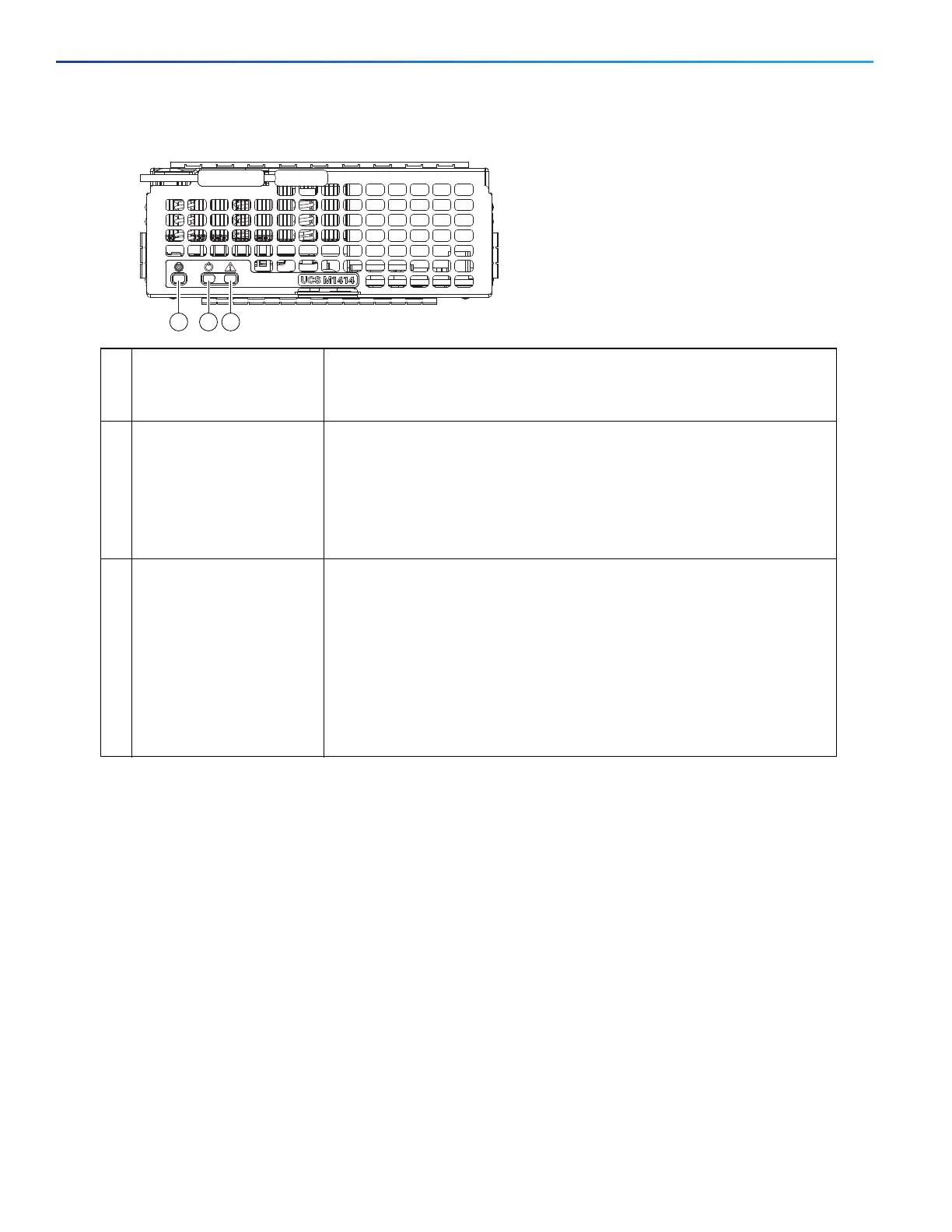

Figure 1 Front Panel LEDs
1 Cartridge identification LED
Activated via software
interface
Blue, blinking—identification function is in use.
Off—identification function is not in use.
2 Cartridge power LED Green—The CPU subsystem is in main power mode. Do not remove the cartridge
from the chassis.
Amber—The CPU subsystem is in standby power mode. You can decommission the
cartridge in the Cisco UCS Manager software and then remove it.
Off—There is no power to the cartridge. The cartridge can be safely removed from
the chassis.
3 Cartridge health LED Green—The cartridge is running in normal operating condition.
Amber—The cartridge is in a degraded operational state. For example:
— At least one DIMM is faulty.
Amber, blinking—The cartridge is in a critical operational state. For example:
— Boot failed.
— Fatal processor and/or bus errors are detected.
— Excessive thermal conditions.
305062
1 2 3
