DRK-IG Fly-bar
DRK-IG INSTRUCTIONS
Opzione codice Prodotto
Optional code
Product
DRK-IG SERIE INGENIA
DRK-IG
INGENIA SERIES
DRK-IG --> FLY-BAR per la serie INGENIA
DRK-IG --> FLY-BAR for INGENIA series speaker
ATTENZIONE DRK-IG deve essere utilizzato solo da personale qualicato!
Assicurarsi che linstallazione sia posizionata in modo stabile e sicuro per scongiurare
ogni condizione di pericolo per persone, animali e/o cose.
Lutilizzatore è tenuto a vericare le regolamentazioni e le leggi cogenti in materia di
sicurezza nel Paese in cui si utilizza il prodotto. Installare il prodotto attenendosi a
quanto illustrato in queste istruzioni.
WARNING For installation of DRK-IG use only specialist personnel! Make sure
that the installation is positioned in a stable and secure way in order to avoid any
dangerous conditions for people, animals and/or objects. It is mandatory to follow the
safety law and regulations of the Country in which the equipment is installed.
Install the product as described in these instructions.

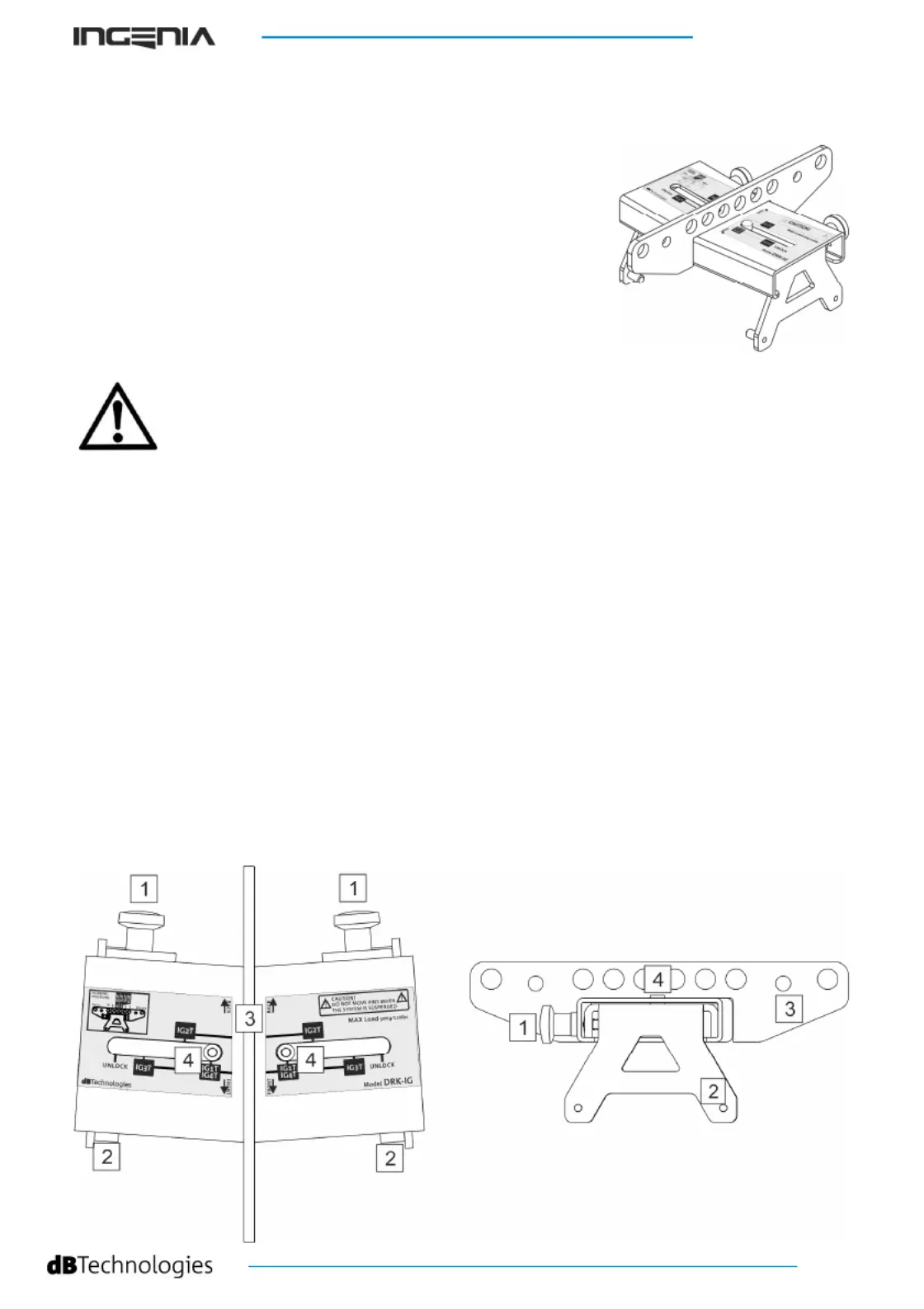

Elementi principali di DRK-IG
DRK-IG main components
[1] Pistoncini a molla di bloccaggio/sbloccaggio || Blocking/unblocking indexing plungers
[2] Stae mobili laterali di ssaggio del diffusore || Mobile side brackets for speaker mounting.
[3] Staa di appensione con fori pressati || Hanging bracket with holes for hooking
[4] Cursori di posizione || Position markers
DRK-IG Fly-bar
Esempio di installazione con IG4T
IG4T installation example

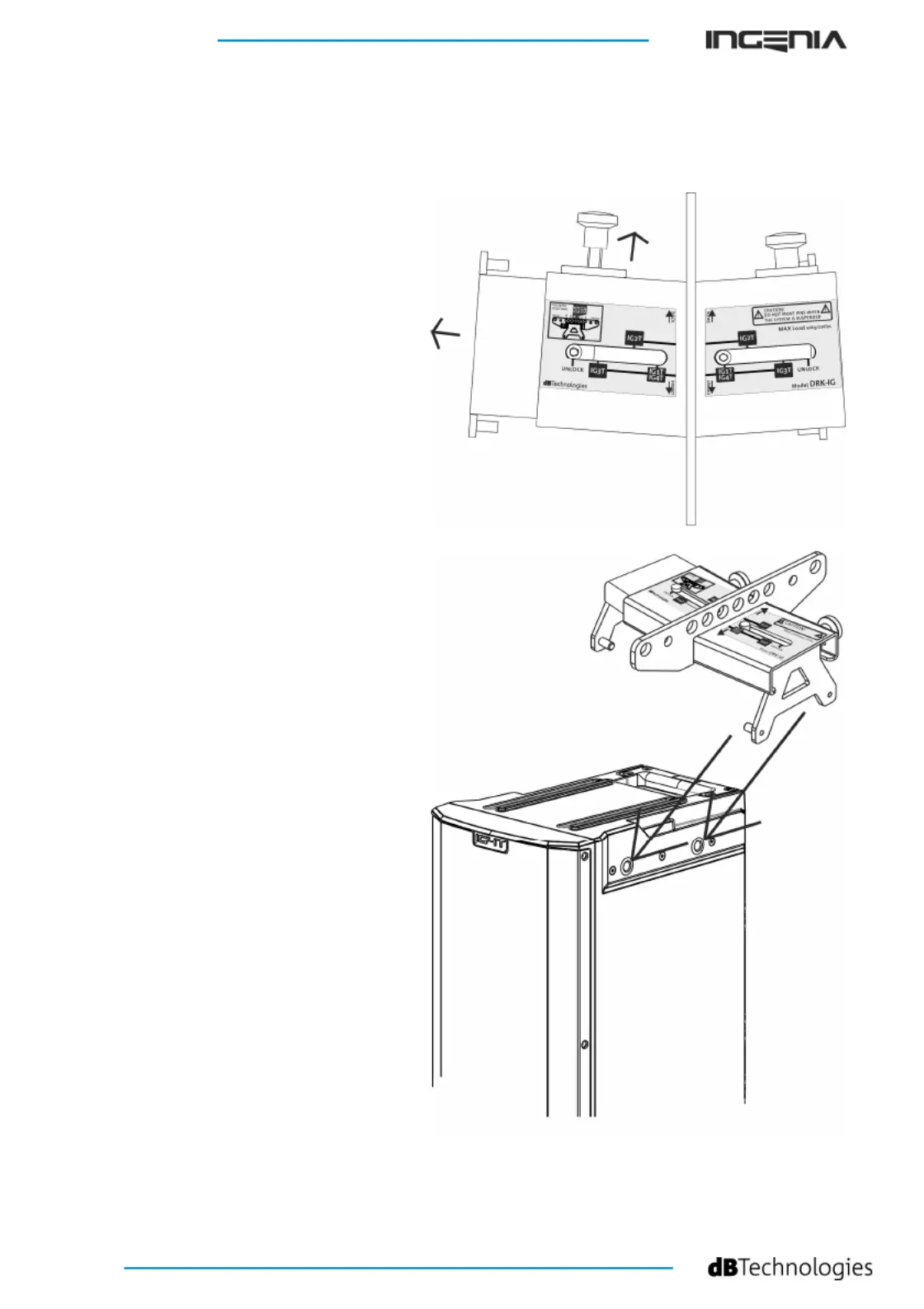

a) Tenendo tirato verso lesterno il
pistoncino relativo [1], estrarre verso la
posizione di UNLOCK (indicata dal cursore
[4]) una delle 2 stae laterali [2]. Rilasciare
quindi il pistoncino e assicurarsi che la
staa sia bloccata saldamente in questa
posizione. Con lo stesso procedimento
portare laltra staa nella posizione relativa
al modello di speaker da installare (in
questo esempio la posizione mostrata in
gura è IG1T/IG4T).
a) Extract one of the two side brackets into
the UNLOCK position (as indicated by the
position marker [4]),while pulling the related
indexing plunger [1]. Release the plunger
and check that the bracket is rmly fastened
in this position. With the same procedure,
put the other bracket in the position related
to the model of the chosen speaker model
(in this example the position is IG1T/IG4T,
as shown in the picture).
b) Allineare DRK-IG a INGENIA IG4T ed
inserire i perni della staa, (nel lato ssato
in posizione IG1T/IG4T) in corrispondenza
dei fori dello speaker, come mostrato in
gura.
b) Align DRK-IG and INGENIA IG4T and
insert the pins of the bracket (the side
fastened in the position IG1T/IG4T) in the
holes of the speaker, as shown in the
picture.
DRK-IG Fly-bar

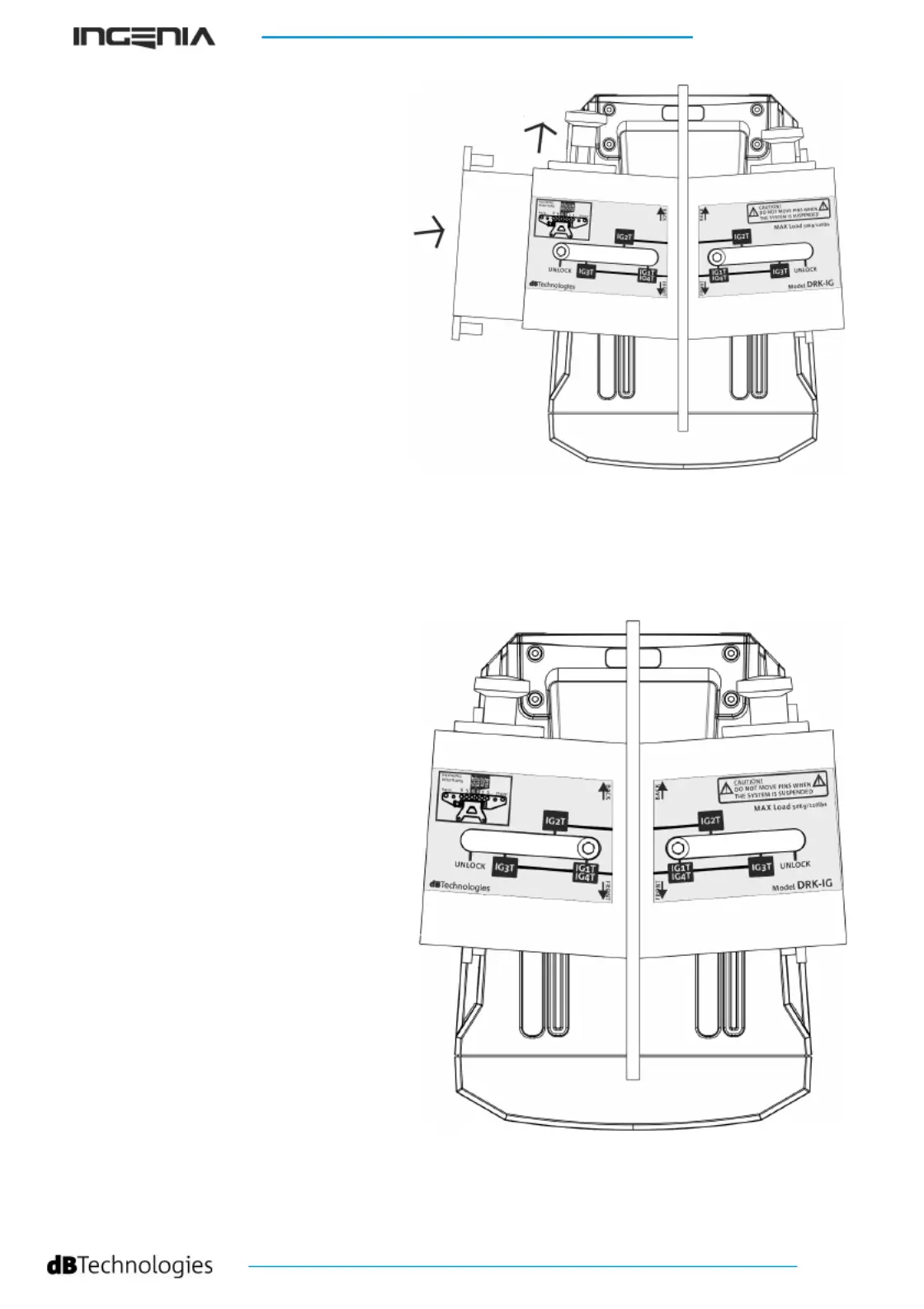

c) Tenendo tirato verso lesterno il
pistoncino relativo [1], spingere verso
linterno la staa laterale [2] dalla
posizione UNLOCK no a che il cursore
[4] non indica la posizione nale dello
speaker IG1T/IG4T.
c) Push inward the side bracket [2] while
pulling the related indexing plunger [1],
from the position UNLOCK until the
position marker [4] is in the nal position
of IG1T/IG4T .
d) Vericare che DRK-IG sia bloccato,
che i pistoncini [1] siano completamente
rilasciati come mostrato in gura, e che
entrambi i cursori [4] siano nella posizione
corretta. Vericare inoltre che il dispositivo
sia privo di giochi meccanici una volta
installato.
d) Check that DRK-IG is properly
fastened, check that the plungers [1] are
completely released, and verify that both
the position markers [4] are in the correct
position. At last, check that the system is
without clearance.
