DXCMTB5590856
160cc, Gas Wheeled Portable Air Compressor
160cc, gaz roues de compresseur portatif
160cc, gas ruedas de compresor portátil
INSTRUCTION MANUAL
GUIDE D'UTILISATION
MANUAL DE INSTRUCCIONES
INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA
DE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES
DE USAR EL PRODUCTO.
If you have questions or comments, contact us.
Pour toute question ou tout commentaire, nous contacter.
Si tiene dudas o comentarios, contáctenos.
1-888-895-4549 • www.dewalt.com
MAT Industries, LLC, Long Grove, IL 60047
(MAY18) Part No. 200-3013-C DXCMTB5590856 Copyright © 2015, 2016, 2017, 2018 DEWALT
2
English
Air Compressor
A. Pump Air Intake Filter
B. Engine Air Filter
C. Engine On/Off Switch
D. Air Tank Pressure Gauge
E. Regulated Pressure Gauge
F. Pressure Regulator
G. Air Outlet
H. Unloader Valve
I. Safety Valve
J. Air Tank Drain Valve(s)
K. Pump Oil Dipstick/Oil Fill Plug
L. Pump Oil Drain Plug
M. Fixed Throttle
N. Choke Control
O. Fuel Valve Lever
P. Starter Grip
Pump Specications
Inline, vertical twin cylinder
Single stage
Oil lubricated
Cast iron crankcase and cylinder
Weight: 49 lbs. (22.2 kg)
Oil Capacity: 16 oz. (473 mL)
Engine Specications
Honda 160 cc
Internal Combustion
4-stroke
High RPM 2000-3600
Idle RPM 1250-1600
Specications
MODEL DXCMTB5590856
WEIGHT 168 lbs. (76.2 kg)
HEIGHT 24.14" (536.9 mm)
WIDTH 17.26" (438.4 mm)
LENGTH 44.65" (1134.1 mm)
AIR TANK CAPACITY 8 gallons (30.3 liters)
M
N
O
P
J
B
L
C
FIG. 1
K
A
Actual unit may vary slightly.
E
D
F
G
I
H
3
English
Hot Surfaces
MODEL DXCMTB5590856
APPROX. BLOW OFF PRESSURE
150 psi
SCFM @ 100 PSI 9.9 *
* Tested per ISO 1217
Denitions: Safety Guidelines
The definitions below describe the level of severity
for each signal word. Please read the manual and pay
attention to these symbols.
DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous
situation which, if not avoided, could result in death or
serious injury.
CAUTION: Indicates a potentially hazardous
situation which, if not avoided, may result in minor or
moderate injury.
NOTICE: Indicates a practice not related to personal injury
which, if not avoided, may result in property damage.
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT
THIS OR ANY D
e
WALT TOOL, CALL US TOLL FREE AT:
1-888-895-4549
Important Safety Instructions

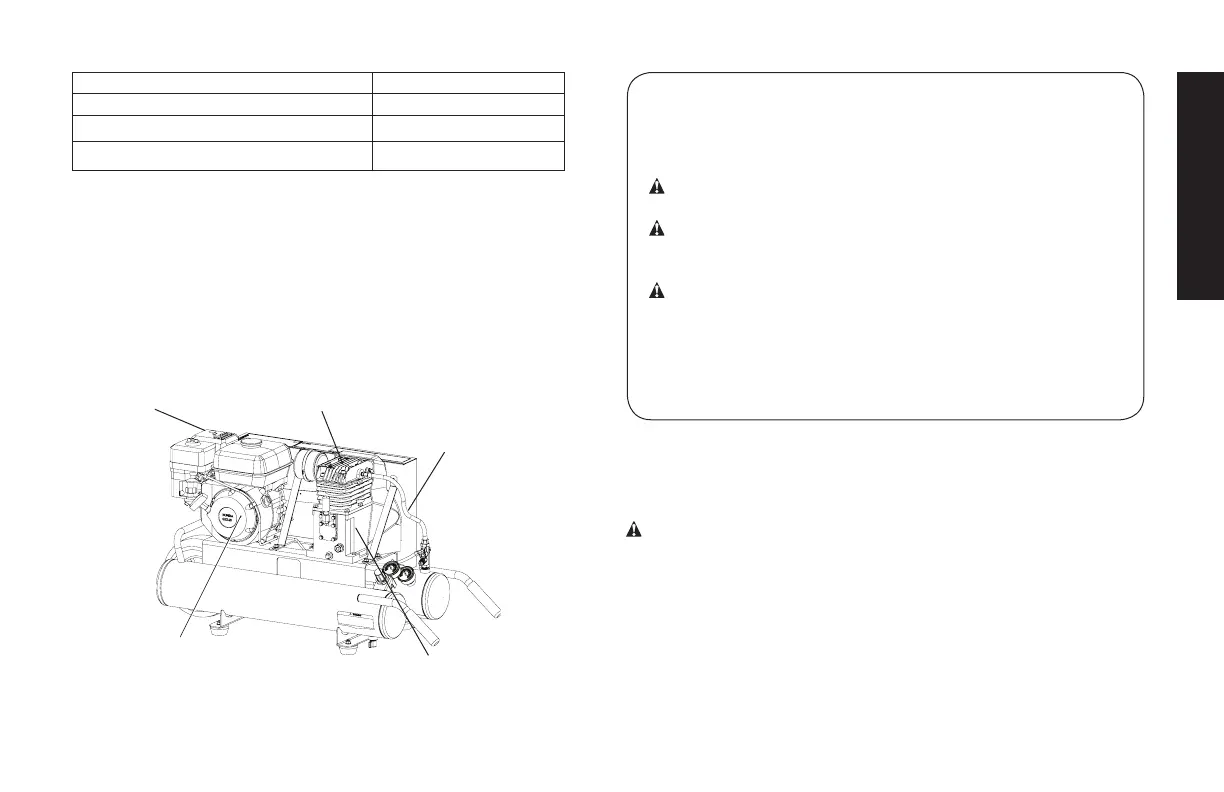

DANGER: Carbon Monoxide. Using an engine indoors can
kill you in minutes. Engine exhaust contains high levels of
carbon monoxide (CO), a poisonous gas you cannot see or
smell. You may be breathing CO even if you DO NOT smell
engine exhaust.
OUTLET TUBE
ENGINE
MUFFLER
GASOLINE
ENGINE
COMPRESSOR
CYLINDER & HEAD
PUMP
CRANKCASE
FIG. 2
