KEY FOB

TESTE R

Original Instructions

Version 3

Read this manual in full before using this product and

retain it for future use. Always use the latest version of

the manual. Please visit drapertools.com/manuals for

the latest version.

1. Intended Use

This product is designed for checking radio and infrared

wavelength emissions from vehicle key fobs and remote

controls to assist with diagnosing faults. The tester

operates between 418–434MHz.

Any other application beyond the conditions established

for use will be considered misuse. Draper Tools accepts no

responsibility for improper use of this product.

Part of our Expert range, this product is intended for

frequent trade use, with the quality and features to meet

and exceed expectations of the most demanding user.

3. Health and Safety Information

• Use this product only for its intended purpose and do

not modify it in any way.

• DO NOT expose this product to liquids or wet

environments.

• Check the device carefully before use.

− DO NOT use this product if it is damaged in any way

or if there is evidence of battery leakage.

− If battery acid comes into contact with your skin,

wash it o immediately with plenty of clean water.

− If battery acid comes into contact with your eyes,

ush them with plenty of clean water and seek

medical attention immediately.

• DO NOT immerse this device in water or allow the

battery to come into contact with liquids.

• DO NOT abuse, mutilate or burn the battery.

• Keep this product out of reach of children.

2. Specication

4. Identication

Stock No. 24446

Part No. KFT

Radio frequency ranges 418Mhz, 433–434MHz

Power consumption 26mA approx.

Automatic power o 70–100 seconds after power on

Ambient conditions

Operation 0 to 50°C, humidity <85%

Storage -10 to 60°C, humidity <85%

Battery 1 x 9v PP3 (not supplied)

Dimensions W 81 x H 132 x D 28mm

Weight (incl. battery) 130g approx

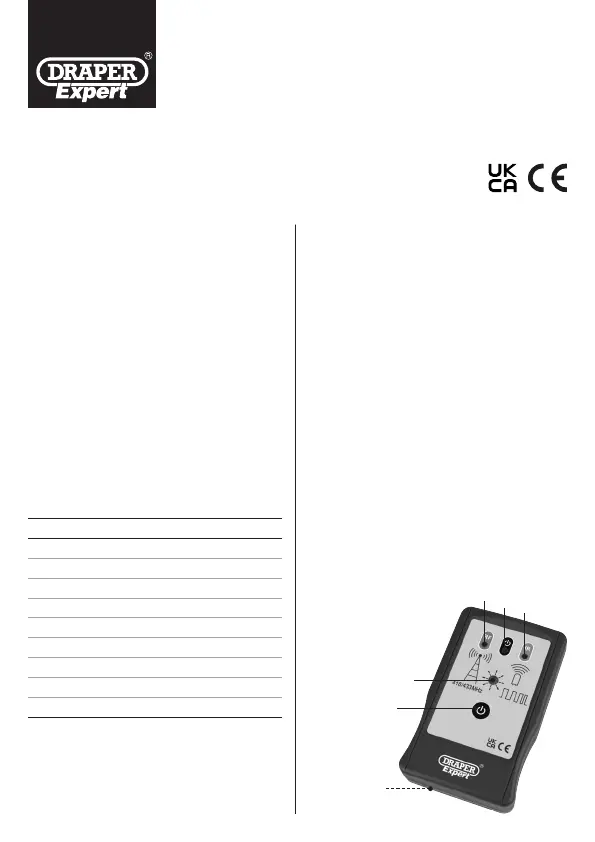

(1) Radio signal indicator (red)

(2) Power indicator (green)

(3) Infrared signal indicator (red)

(4) Signal receptor

(5) Power button

(6) Battery compartment

(1)

(2)

(3)

(4)

(5)

(6)

5. Operation

Important: This product requires 1 x 9V PP3 battery

(not supplied).

1. Remove the battery compartment (6) and install a

suitable battery.

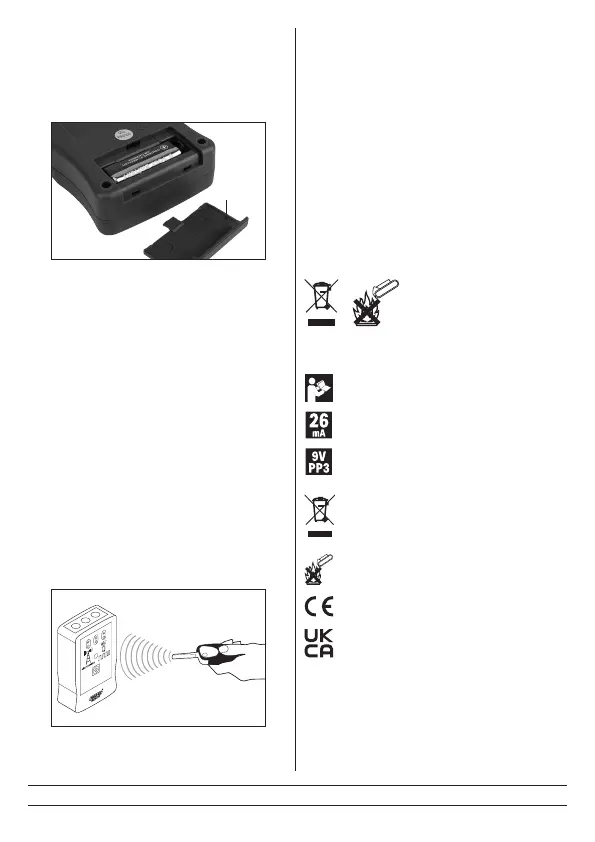

Fig.

2. Press the power button (5) to switch on the tester.

− The power indicator (2) illuminates.

− The radio signal indicator (1) illuminates and

goes out after two seconds.

3. Move the vehicle key fob or remote control to be

tested close to the tester and direct it towards the

signal receptor (4).

4. Operate the key fob or remote control.

5. If the tester detects radio or infrared wavelengths

at the applicable frequencies, the corresponding

indicator (1)(3) will illuminate.

Important: When testing for radio signal, Draper

Tools recommends repeating the test several times as

radio interference may aect the device’s response.

6. If the key fob or remote control does not trigger the

appropriate indicator, replace the battery in the

emitting device and retry.

7. The tester switches o automatically after 70–100

seconds regardless of use.

Fig.

6. Storage and Disposal

• Remove the battery if the product will not be used for

extended periods.

• Store the product in a cool, clean and dry location, out

of direct sunlight and out of reach of children.

• At the end of its working life, dispose of the product

responsibly and in line with local regulations; recycle

where possible.

• Remove the battery before decommissioning and

dispose of the battery separately.

• DO NOT dispose of this product with domestic waste;

most local authorities provide appropriate recycling

facilities.

• DO NOT burn or mutilate batteries; this may release

toxic or corrosive substances.

7. Explanation of Symbols

Read the instruction manual

Power consumption

Battery type

WEEE –

Waste Electrical & Electronic Equipment

Do not dispose of Waste Electrical & Electronic

Equipment in with domestic rubbish

Do not incinerate or throw onto re

European conformity

UK Conformity Assessed
