60981
EN
Original Instructions
Version 2 – February 2023

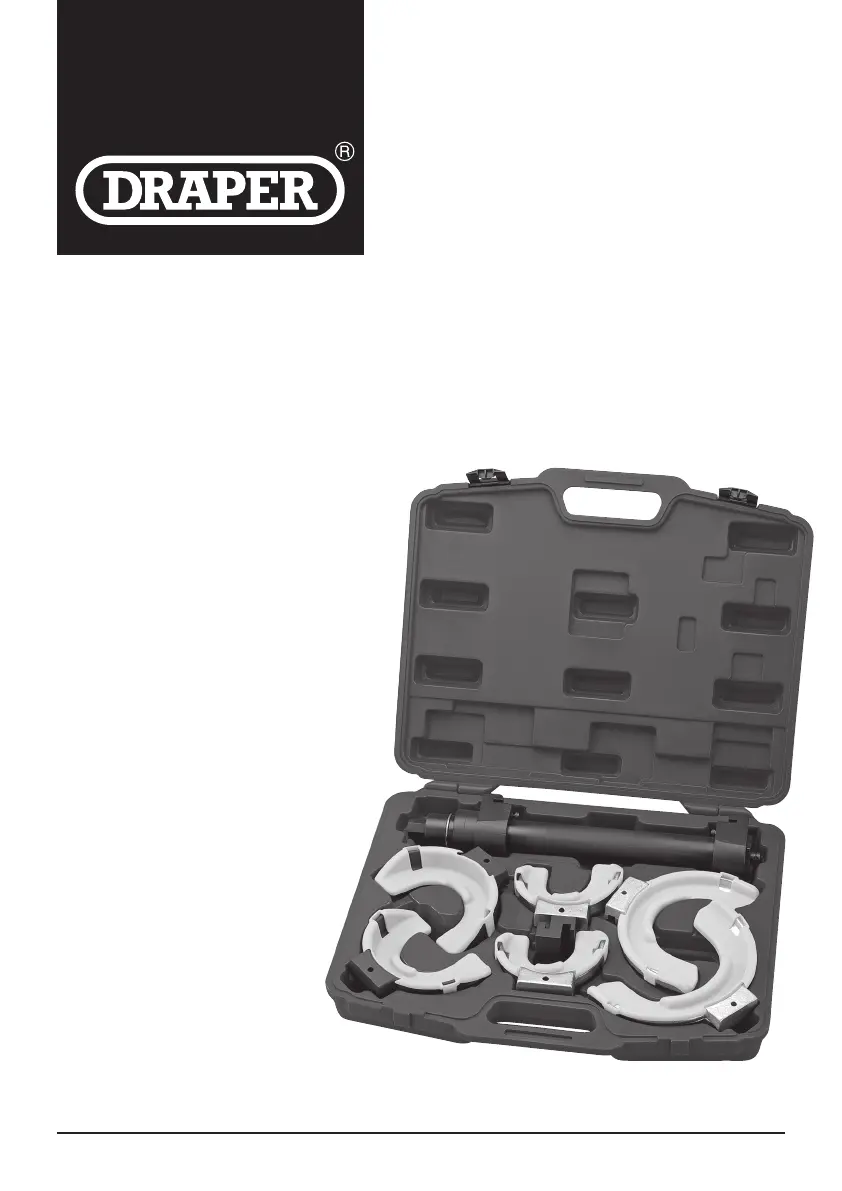

COIL SPRING
COMPRESSOR
KIT
Read this manual in full before using this
product and retain it for future use.
Always use the latest version of the manual.
Please visit drapertools.com/manuals
for the latest version.
1. Intended Use
This product is designed to compress and
expand automotive strut springs found in
vehicles from a range of manufacturers
and is suitable for use on both MacPherson
Strut coil springs and conical springs.
It is intended for frequent trade use,
with the quality and features to meet
and exceed expectations of the
most demanding user.
Important: ALWAYS consult the
vehicle manufacturer’s information
to determine the correct procedure
specic to each vehicle.
Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire, SO53 1YF Website: drapertools.com E -mail: sales@drapertools.com
2. Specication
Stock No. 60981
Part No. N1000B
Gold jaws:
Range: Ø 80–115mm
Inner diameter: 65mm
Outer diameter: 125mm
Weight (pair) 1.45kg*
Black Jaws:
Range: Ø 105–140mm
Inner diameter: 88mm
Outer diameter: 160mm
Weight (pair) 2.2kg*
Silver jaws:
Range: Ø 145–190mm
Inner diameter: 126mm
Outer diameter: 212mm
Weight (pair) 2.3kg*
Main body:
Max. load: 1,250kg
Max. jaw opening: 300mm ±5mm (approx.)
Drive: 21mm
Weight: 5.17kg*
*All weights are approximate and may vary between
individual items
3. Health and Safety
Information
Important: Read these instructions before attempting to
use or maintain this product. Non-compliance may result
in injury or damage to the user, the product or the load.
• DO NOT allow anyone who is unfamiliar with this
product or unqualied in its use to operate this device.
• Observe all standard safety precautions and good
practices when working with vehicles and
compression devices.
• ALWAYS read this document in conjunction with the
vehicle manufacturer’s information.
• Keep your work area well lit, with bystanders at a
safe distance.
• Do not modify the product in any way and use spare
parts supplied by Draper Tools ONLY.
• Before every use, inspect the product for broken parts,
cracks and loose xtures.
WARNING! DO NOT use this product if it is
damaged in any way or its structural integrity
is compromised. Replace or repair all aected
parts before use.
• Wear appropriate personal protective
equipment, including eye or face protection and
protective gloves.
• ALWAYS ensure that the chosen jaws are suitable for
the spring type and size.
− The spring must rest securely between the outer
rib and safety ridges of the jaws.
− Ensure that the spring cannot slide out of the jaw
plates once they are installed.
• Keep your hands and other body parts clear of the
spring as it is being compressed or released.
− DO NOT wear loose clothing or jewellery and keep
long hair tied back.
• DO NOT allow the spring windings to touch or the
compressor jaws to reach the minimum or maximum
limit of the tool’s compression range.
• The centre line of the spring MUST remain parallel to
the main body at all times, particularly when
compressing conical springs.
• Ensure that the jaw bolts remain rmly tightened
during use.
• DO NOT leave a compressed spring unattended.
• DO NOT replace the safety pin with a pin of a dierent
strength grade.
WARNING! Compressed springs contain
signicant amounts of potential energy.
Exercise extreme caution when working with or
handling compressed springs and observe the
load at all times.
WARNING! NEVER use any form of power tool or
air tool to rotate the hex drive as the increased
speed may cause the spring to burst from the
jaw pieces. Use ONLY a manual 21mm spanner.
