Side 1/298

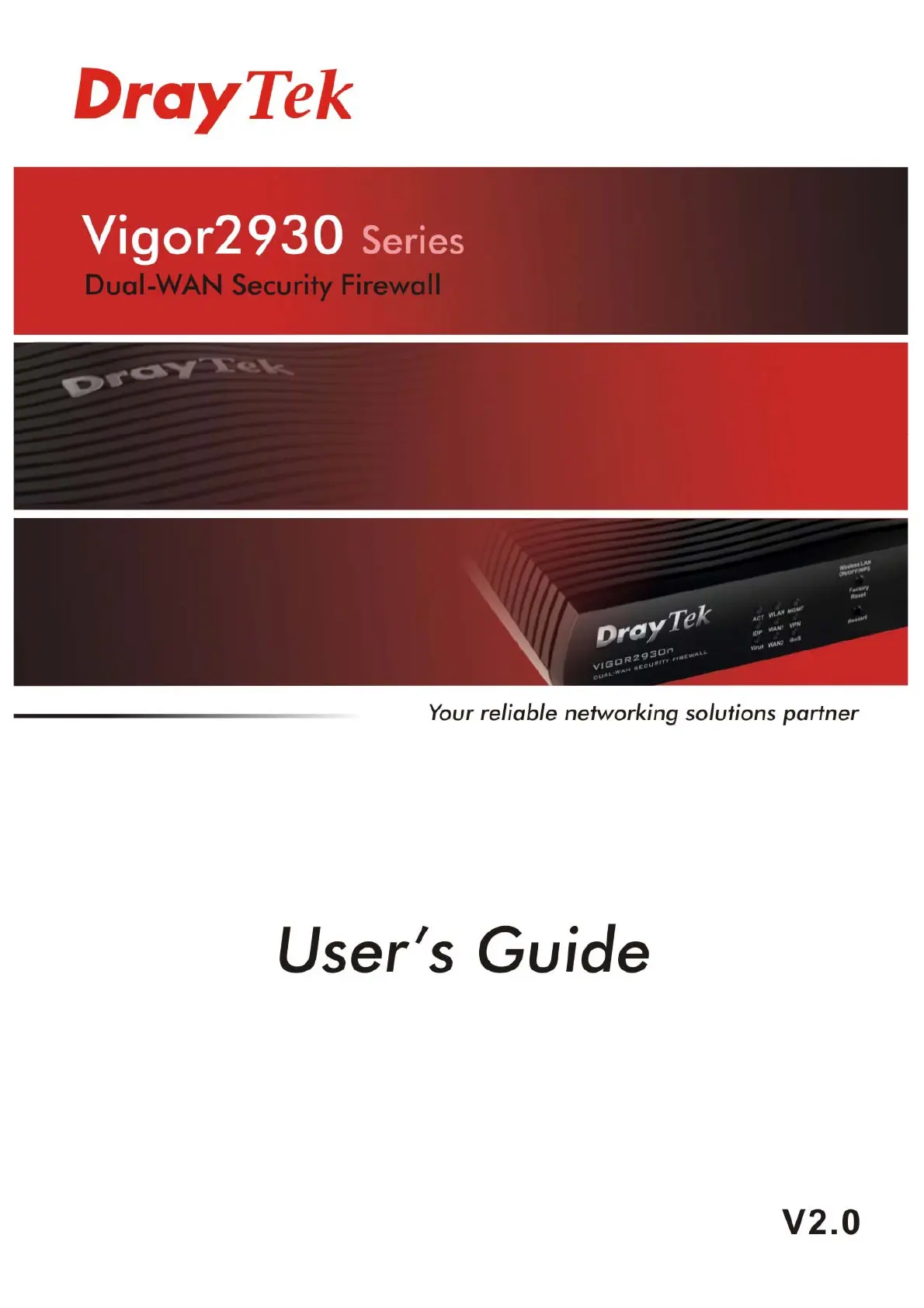

Vigor2930 Series User’s Guide

Vigor2930 Series

Dual-WAN Security Firewall

User’s Guide

Version: 2.0

Firmware Version: V3.3.0

Date: 22/10/2010

This publication contains information that is protected by copyright. No part may be reproduced, transmitted,

transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright

holders. The scope of delivery and other details are subject to change without prior notice.

Microsoft is a registered trademark of Microsoft Corp.

Windows, Windows 95, 98, Me, NT, 2000, XP, Vista and Explorer are trademarks of Microsoft Corp.

Apple and Mac OS are registered trademarks of Apple Inc.

Other products may be trademarks or registered trademarks of their respective manufacturers.

Vigor2930 Series User’s Guide

iii

Declarations

protected by copyright. No part may be reproduced, transmitted, transcribed,

stored in a retrieval system, or translated into any language without written

permission from the copyright holders.

Trademarks

The following trademarks are used in this document:

z Microsoft is a registered trademark of Microsoft Corp.

z Windows, Windows 95, 98, Me, NT, 2000, XP, Vista and Explorer are

trademarks of Microsoft Corp.

z Apple and Mac OS are registered trademarks of Apple Inc.

z Other products may be trademarks or registered trademarks of their

respective manufacturers.

Safety Instructions and Approval

Safety

Instructions

z Read the installation guide thoroughly before you set up the router.

z The router is a complicated electronic unit that may be repaired only be

authorized and qualified personnel. Do not try to open or repair the router

yourself.

z Do not place the router in a damp or humid place, e.g. a bathroom.

z The router should be used in a sheltered area, within a temperature range

of +5 to +40 Celsius.

z Do not expose the router to direct sunlight or other heat sources. The

housing and electronic components may be damaged by direct sunlight or

heat sources.

z Do not deploy the cable for LAN connection outdoor to prevent electronic

shock hazards.

z Keep the package out of reach of children.

z When you want to dispose of the router, please follow local regulations on

conservation of the environment.

Warranty

We warrant to the original end user (purchaser) that the router will be free from

any defects in workmanship or materials for a period of two (2) years from the

date of purchase from the dealer. Please keep your purchase receipt in a safe

place as it serves as proof of date of purchase. During the warranty period, and

upon proof of purchase, should the product have indications of failure due to

faulty workmanship and/or materials, we will, at our discretion, repair or replace

the defective products or components, without charge for either parts or labor, to

whatever extent we deem necessary tore-store the product to proper operating

condition. Any replacement will consist of a new or re-manufactured

functionally equivalent product of equal value, and will be offered solely at our

discretion. This warranty will not apply if the product is modified, misused,

tampered with, damaged by an act of God, or subjected to abnormal working

conditions. The warranty does not cover the bundled or licensed software of

other vendors. Defects which do not significantly affect the usability of the

product will not be covered by the warranty. We reserve the right to revise the

manual and online documentation and to make changes from time to time in the

contents hereof without obligation to notify any person of such revision or

changes.

Be a Registered

Owner

Web registration is preferred. You can register your Vigor router via

http://www.draytek.com.

Firmware & Tools

Updates

Due to the continuous evolution of DrayTek technology, all routers will be

regularly upgraded. Please consult the DrayTek web site for more information on

newest firmware, tools and documents.

http://www.draytek.com

Produkspesifikasjoner

Merke:	Draytek
Kategori:	Ruter
Modell:	Vigor2930n
Vekt:	- g
Bredde:	165.07 mm
Dybde:	240.96 mm
Høyde:	43.96 mm
LED-indikatorer:	Ja
Bruksanvisning:	Ja
Wi-Fi-standarder:	Wi-Fi 4 (802.11n)
Kablingsteknologi:	10/100Base-T(X)
Nettverksstandard:	IEEE 802.11n
MAC-adressefiltrering:	Ja
Filtrering:	Ja
Ethernet WAN:	Ja
DHCP-server:	Ja
Universal Plug and Play (UPnP):	Ja
DHCP-klient:	Ja
Dimensjoner (B x D x H):	165.07 x 240.96 x 43.96 mm
Produktfarge:	Sort
Type strømforsyning:	AC/DC
Beste Wi-Fi-standard:	Wi-Fi 4 (802.11n)
Kabler inkludert:	AC
Strømforbruk (vanlig bruk):	18 W
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	6
Driftstemperatur (T-T):	0 - 45 °C
Oppbevaringstemperaturomåde (Celsius):	-25 - 70 °C
Hurtigstartsguide:	Ja
Quality of Service (QoS) støtte:	Ja
Oppgraderbar fastvare:	Ja
DC-inngangskontakt:	Ja
Av/på-bryter:	Ja
Ethernet LAN dataoverføringshastigheter:	10, 100 Mbit/s
Sikkerhetsalgoritmer:	128-bit WEP, 3DES, 64-bit WEP, DES, MD5, SHA-1, SSID, WPA, WPA2
Ethernet/bredbåndsforbindelse:	Ja
Krav til strømforsyning:	DC 15V
Rack-montering:	Ja
AC-adapter bunt:	Ja
Webbasert administrasjon:	Ja
Brennmur-sikkerhet:	Cisco Security Manager (CSM)
Ethernet LAN-grensesnittype:	Raskt Ethernet
DMZ støttes:	Ja
Antall antenner:	3
Antennedesign:	Utvendig
Routerprotokoll:	RIP-2
Luftfuktighet, uvirksom:	10 - 90
